Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

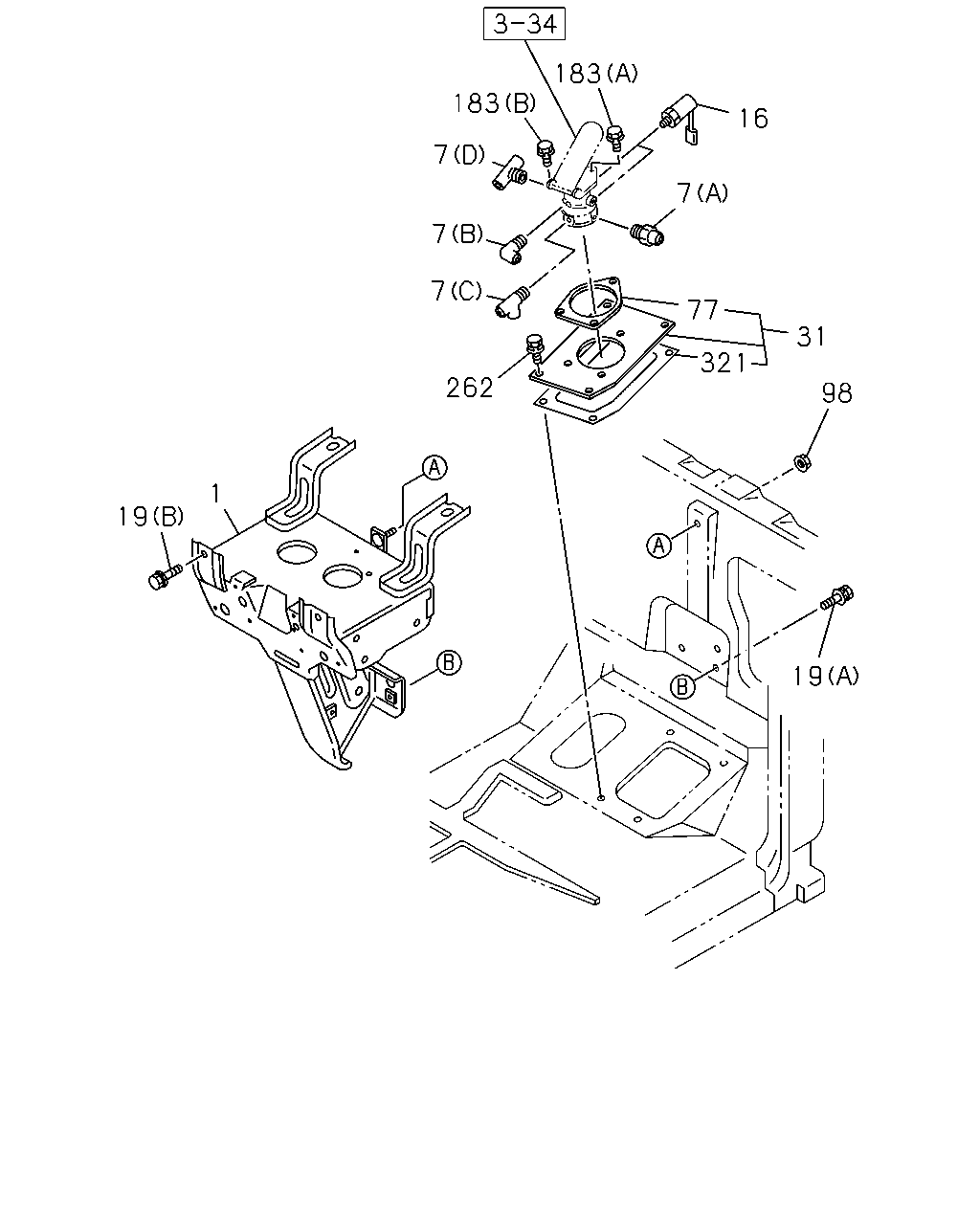

3-10 — BRAKE PEDAL AND CONTROL
(#10704) — 16 parça
183
183
16
7
7
7
7
77
31
321
262
98
1
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
MJD7S M/T(Y2Y)
1-73908-280-1
01
1
0107-
1
BRACKET ASM; PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)
1-73907-392-6
01
1
0107-
7
CONNECTOR; BRK VALVE
(A) DIN8,R3/8 STRAIGHT
1-09660-651-1
01
1
0107-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-652-1
01
1
0107-
7
CONNECTOR; BRK VALVE
(C)
1-09660-969-0
01
1
0107-
7
CONNECTOR; BRK VALVE
(D)
1-09660-970-0
01
1
0107-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0107-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0107-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0107-
31
PLATE; MTG,BRKT VLV
1-73996-271-3
01
1
0107-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0107-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0107-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0107-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0107-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0107-
321
SEAL; VALVE
1-73996-143-0
01
1
0107-
