Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

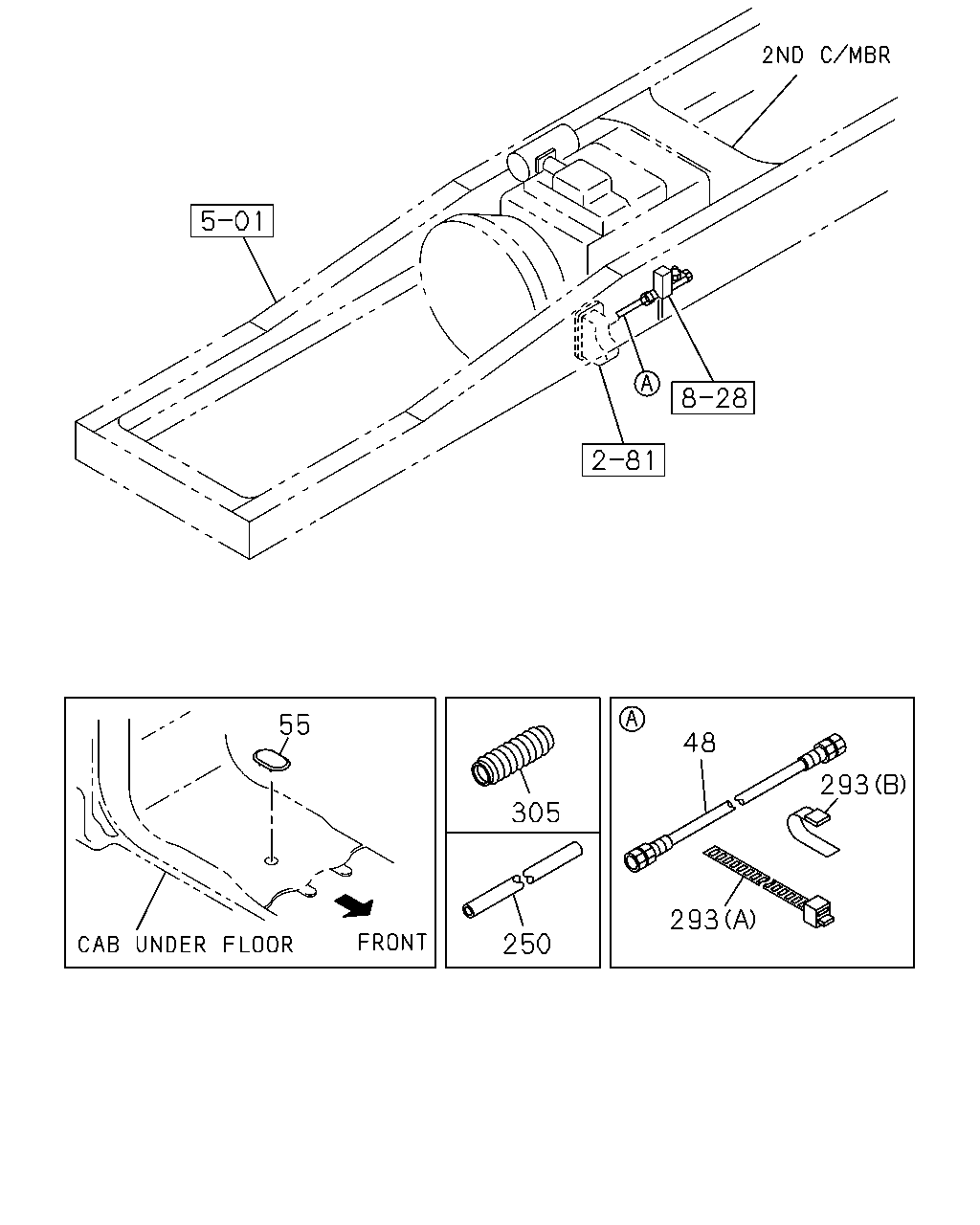

2-85 — POWER TAKE OFF CONTROL
(#10701) — 6 parça
55
48
293
305
293
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=430
1-09363-677-0
01
1
0107-
55
GROMMET; CABLE
1-09983-068-0
01
1
0107-
250
TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> SERVICED BY L=4000 OD=8
1-87410-074-0
01
1
0107-
293
CLIP; HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=250
1-09707-126-0
01
1
0107-
293
CLIP; HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=175
1-09707-178-0
01
1
0107-
305
TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> SERVICED BY L=4000 ID=10
1-87410-089-0
01
1
0107-
