2-53B — TRANSMISSION OIL COOLER SYSTEM (#10699) — 84 parça

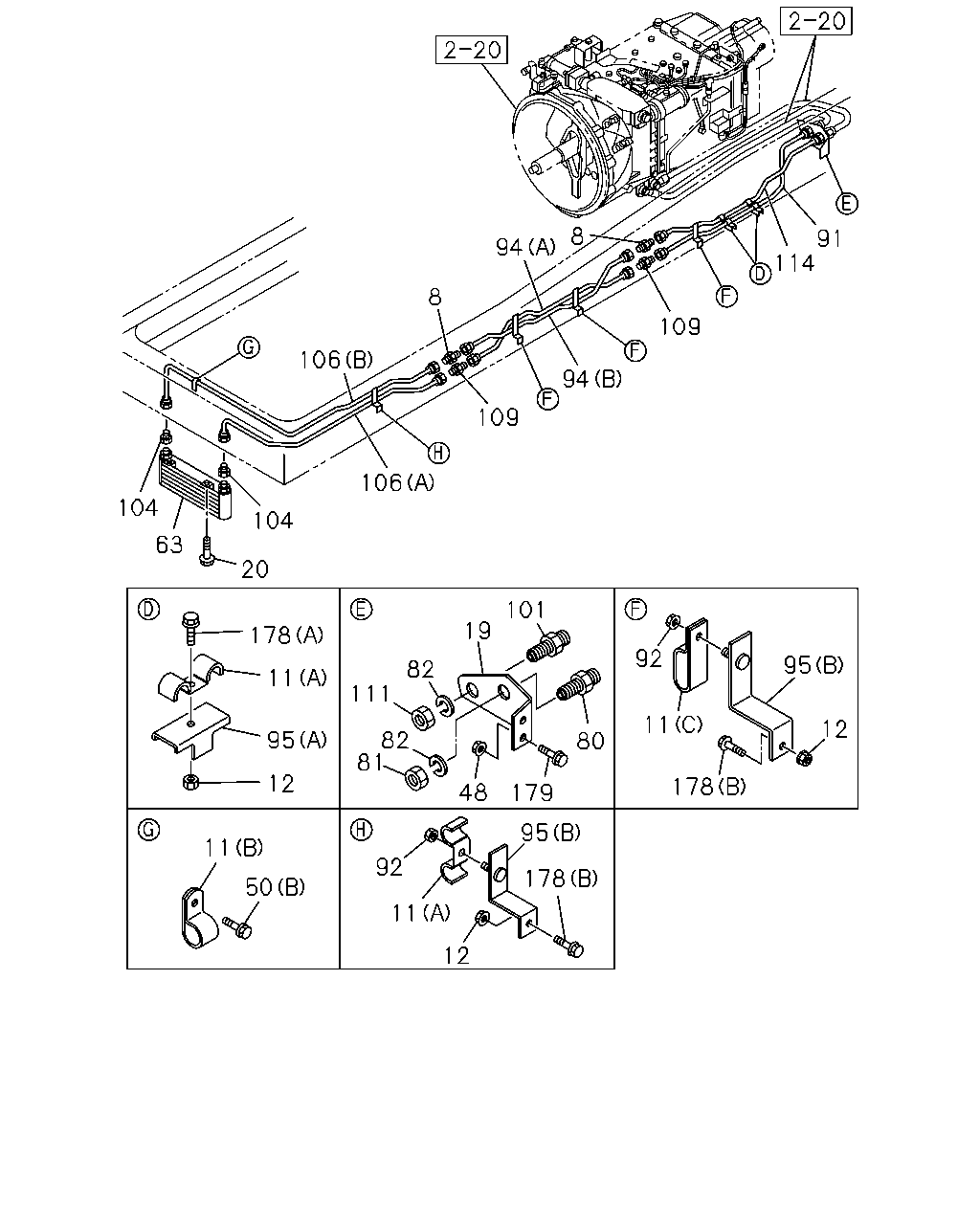

8 91 114 94 8 109 106 94 109 106 104 104 63 20 101 19 178 92 95 82 11 111 82 81 11 12 95 80 12 178 48 179 95 11 92 178 50 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	UNION M22	9-09233-015-1	02	1	0107-
11	CLIP; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16X2 L=20	9-09535-536-0	03	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 L=20	9-09525-535-0	01	1	0107-
11	CLIP; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
12	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	06	1	0107-
12	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
19	BRACKET; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-566-0	01	1	0107-
19	BRACKET; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-521-0	01	1	0107-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0107-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-
48	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
50	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
50	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-
63	COOLER; OIL	1-21700-290-0	01	1	0107-
80	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	01	1	0107-
81	NUT; UNION M22	9-09111-422-0	01	1	0107-
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-215-0	01	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-190-0	01	1	0107-
92	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
92	NUT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	06	1	0107-
94	PIPE; OIL,UNION TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49165-192-0	01	1	0107-
94	PIPE; OIL,UNION TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49165-539-0	01	1	0107-
95	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-669-1	01	1	0107-
95	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47475-427-1	02	1	0107-
95	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-669-1	04	1	0107-
101	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	01	1	0107-
104	CONNECTOR; COOLER LIGHT DUTY PACKAGE TRUCK<Y21>	1-09654-398-0	02	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2324	1-49166-216-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1695	1-49166-217-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49165-196-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49165-199-0	01	1	0107-
109	UNION LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09233-015-1	02	1	0107-
111	NUT; UNION M22	9-09111-422-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1073	1-49166-218-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-541-0	01	1	0107-
178	BOLT; BRKT,CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X45 FLANGE	0-28080-845-0	02	1	0107-
178	BOLT; BRKT,CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
178	BOLT; BRKT,CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0107-

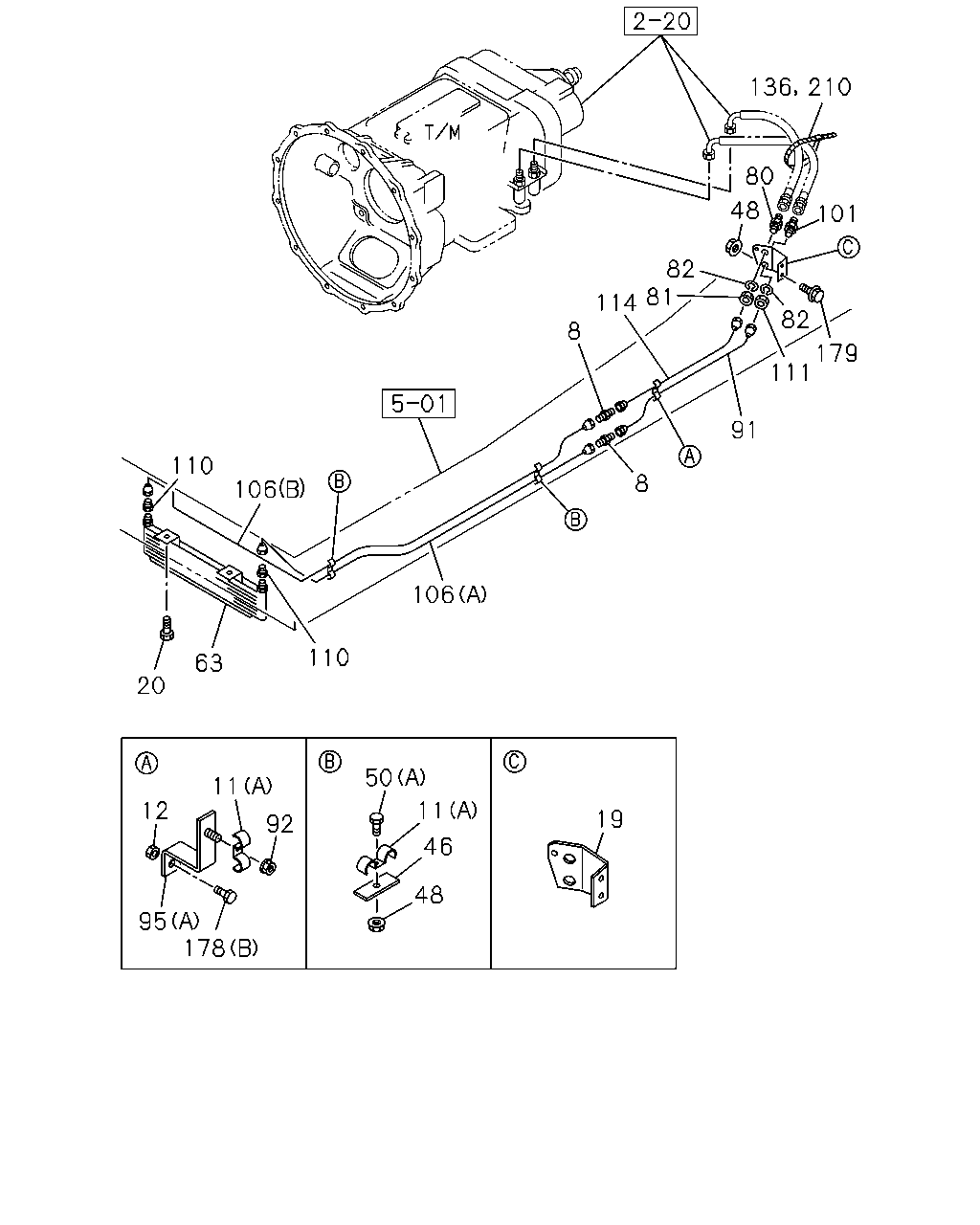

80 48 101 82 81 114 82 8 179 111 91 110 8 106 106 110 63 20 50 11 12 11 19 92 46 48 95 178 136 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	UNION M22	9-09233-015-1	02	1	0107-
11	CLIP; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16X2 L=20	9-09535-536-0	03	1	0107-
11	CLIP; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 L=20	9-09525-535-0	01	1	0107-
11	CLIP; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
12	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	06	1	0107-
12	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
19	BRACKET; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-566-0	01	1	0107-
19	BRACKET; FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-521-0	01	1	0107-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0107-
46	BRACKET; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=50	1-47475-299-2	02	1	0107-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-
48	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
50	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-
50	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-
63	COOLER; OIL	1-21700-290-0	01	1	0107-
80	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	01	1	0107-
81	NUT; UNION M22	9-09111-422-0	01	1	0107-
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-215-0	01	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-190-0	01	1	0107-
92	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
92	NUT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	06	1	0107-
95	BRACKET; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-669-1	01	1	0107-
95	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47475-427-1	02	1	0107-
95	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-669-1	04	1	0107-
101	UNION; FLEX HOSE M22 & M30 STRAIGHT	1-09664-237-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2324	1-49166-216-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1695	1-49166-217-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49165-196-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49165-199-0	01	1	0107-
110	UNION; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-09654-398-0	02	1	0107-
111	NUT; UNION M22	9-09111-422-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1073	1-49166-218-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-541-0	01	1	0107-
136	CLIP; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=250	1-09707-126-0	01	1	0107-
178	BOLT; BRKT,CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X45 FLANGE	0-28080-845-0	02	1	0107-
178	BOLT; BRKT,CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
178	BOLT; BRKT,CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0107-
210	BAND; FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=175	1-09707-178-0	01	1	0107-
