◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#10694) — 114 parça
çizim 24485
496 465 192 509 468
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0107-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0107-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0107-
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0107-
509 SEAL; BRKT 1-47477-825-2 01 1 0107-

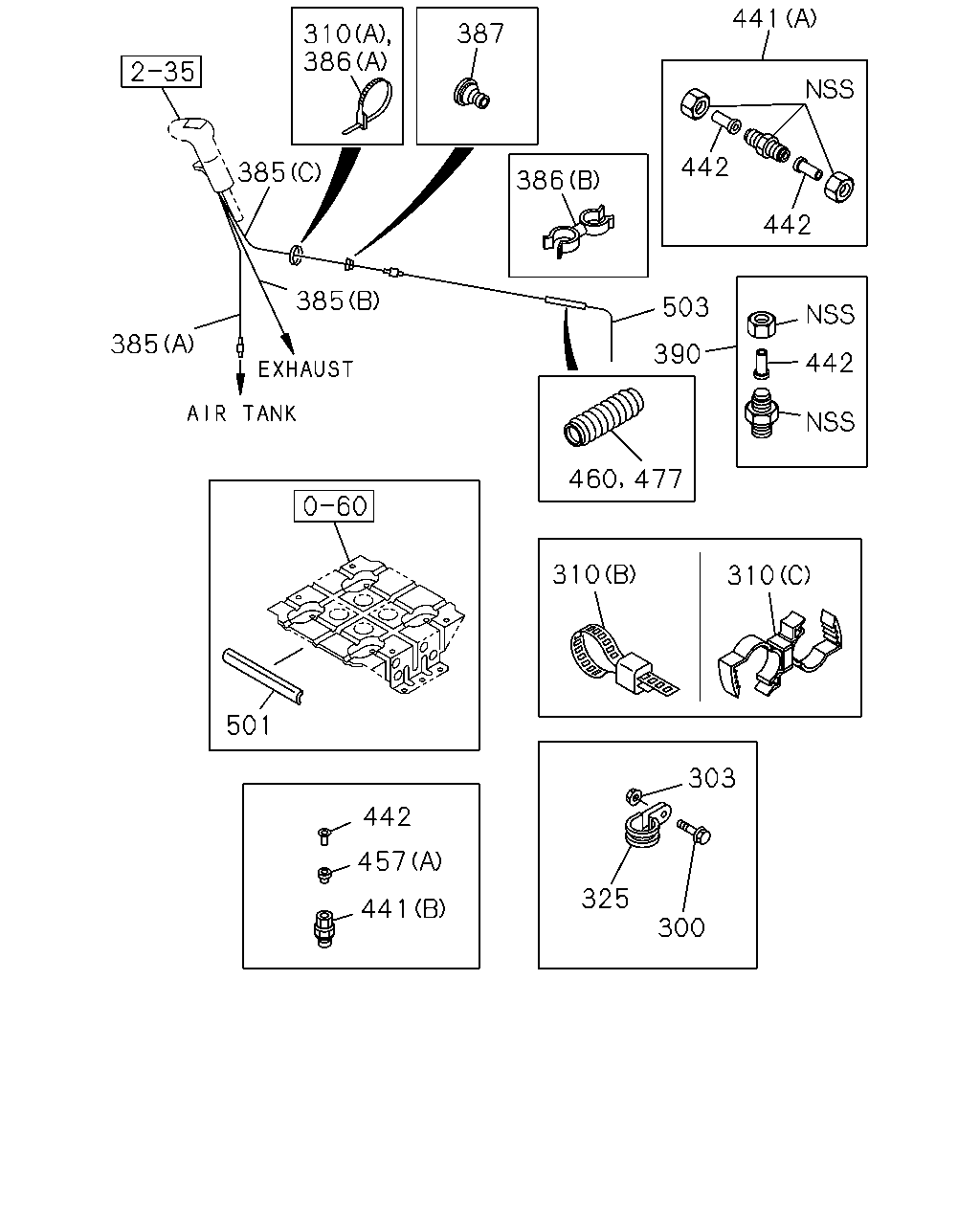

çizim 72562
441 387 310 386 385 442 386 442 385 503 385 390 442 310 310 501 303 442 457 325 441 300 460 477
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; CLIP
MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107-
303 NUT; CLIP
MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 01 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=12-16 & 12-16 		1-09709-191-0 01 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=140 		5-09707-031-1 03 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250 		1-09707-126-0 16 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=250 		5-09707-030-1 02 1 0107-
325 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=250 		1-09707-126-0 07 1 0107-
325 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=18 L=28 		1-09701-067-0 01 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250 		5-09707-030-1 02 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140 		5-09707-031-1 01 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0107-
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-09332-102-0 01 1 0107-
390 CONNECTOR; STRAIGHT,TRANS SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 0107-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-09660-466-0 01 1 0107-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN4 STRAIGHT 		1-09660-512-0 02 1 0107-
442 INSERT; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0107-
442 INSERT; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0107-
457 GASKET
(B) 		1-09623-594-0 04 1 0107-
457 GASKET
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 		1-83129-031-1 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
477 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=2000 ID=7 		1-87410-085-0 01 1 0107-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=4000 ID=7 		1-87410-086-0 01 1 0107-
477 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=4000 ID=7 		1-87410-086-0 01 1 0107-
501 SEAL; HARNESS PROTECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 100X40 		1-72498-022-0 04 1 0107-
503 TUBE; NYLON
MJX16P M/T(Y3Z) L=2000 OD=4 		1-87410-077-0 01 1 0107-
503 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=2000 OD=4 		1-87410-077-0 01 1 0107-
503 TUBE; NYLON
MJX16P M/T(Y3Z) L=6000 OD=4 		1-87410-079-0 01 1 0107-
503 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=6000 OD=4 		1-87410-079-0 01 1 0107-

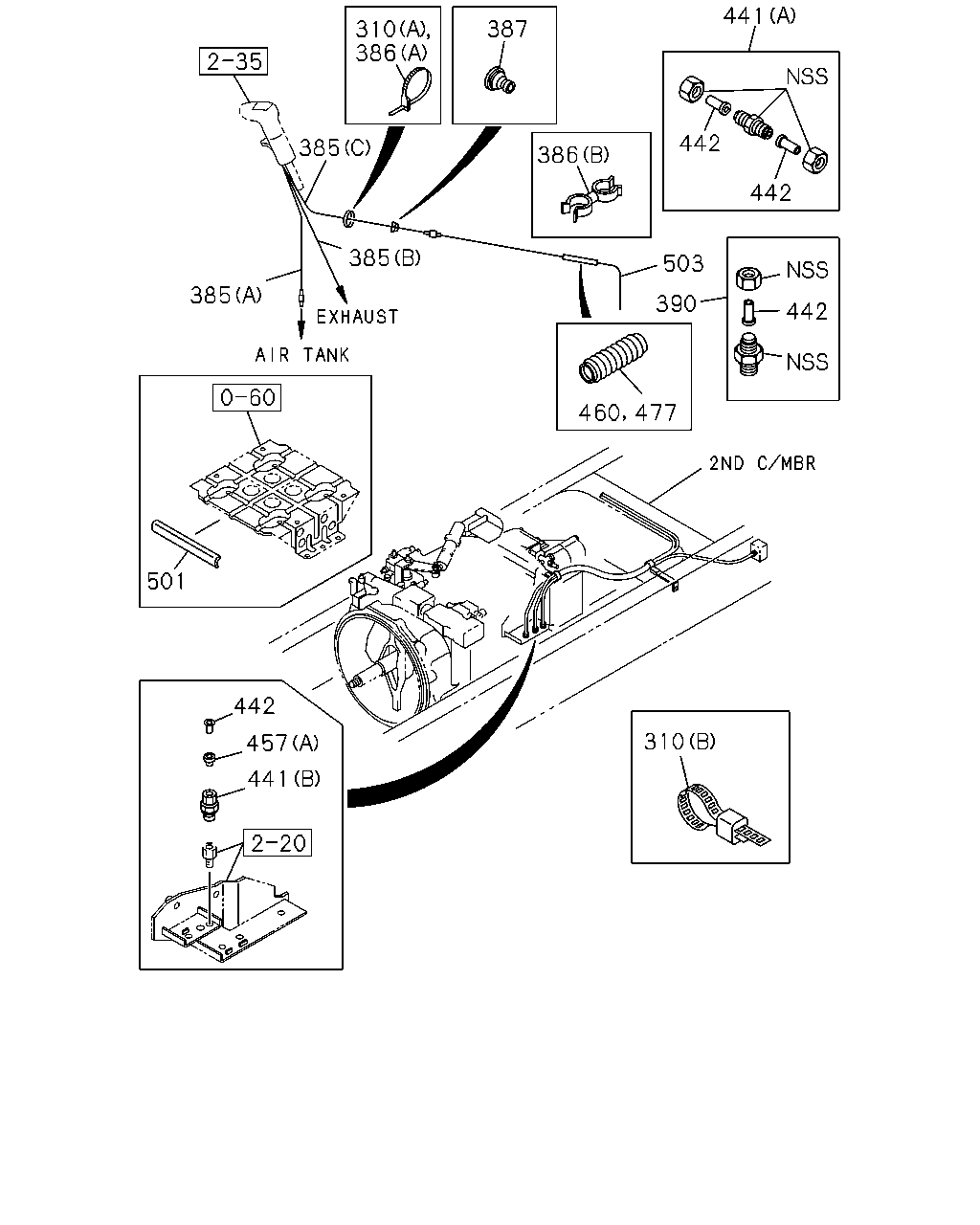

çizim 74783
441 387 310 386 385 442 386 442 385 503 385 390 442 501 442 310 457 441 460 477
BalonParca AdiParca NoAdetTipApplied Date
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=12-16 & 12-16 		1-09709-191-0 01 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=140 		5-09707-031-1 03 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250 		1-09707-126-0 16 1 0107-
310 CLIP; TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=250 		5-09707-030-1 02 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
385 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250 		5-09707-030-1 02 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140 		5-09707-031-1 01 1 0107-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0107-
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-09332-102-0 01 1 0107-
390 CONNECTOR; STRAIGHT,TRANS SIDE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 0107-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-09660-466-0 01 1 0107-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) DIN4 STRAIGHT 		1-09660-512-0 02 1 0107-
442 INSERT; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0107-
442 INSERT; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0107-
457 GASKET
(B) 		1-09623-594-0 04 1 0107-
457 GASKET
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 		1-83129-031-1 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
460 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0107-
477 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=2000 ID=7 		1-87410-085-0 01 1 0107-
477 TUBE; CORRUGATE
MJX16P M/T(Y3Z) L=4000 ID=7 		1-87410-086-0 01 1 0107-
477 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=4000 ID=7 		1-87410-086-0 01 1 0107-
501 SEAL; HARNESS PROTECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 100X40 		1-72498-022-0 04 1 0107-
503 TUBE; NYLON
MJX16P M/T(Y3Z) L=2000 OD=4 		1-87410-077-0 01 1 0107-
503 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=2000 OD=4 		1-87410-077-0 01 1 0107-
503 TUBE; NYLON
MJX16P M/T(Y3Z) L=6000 OD=4 		1-87410-079-0 01 1 0107-
503 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=6000 OD=4 		1-87410-079-0 01 1 0107-

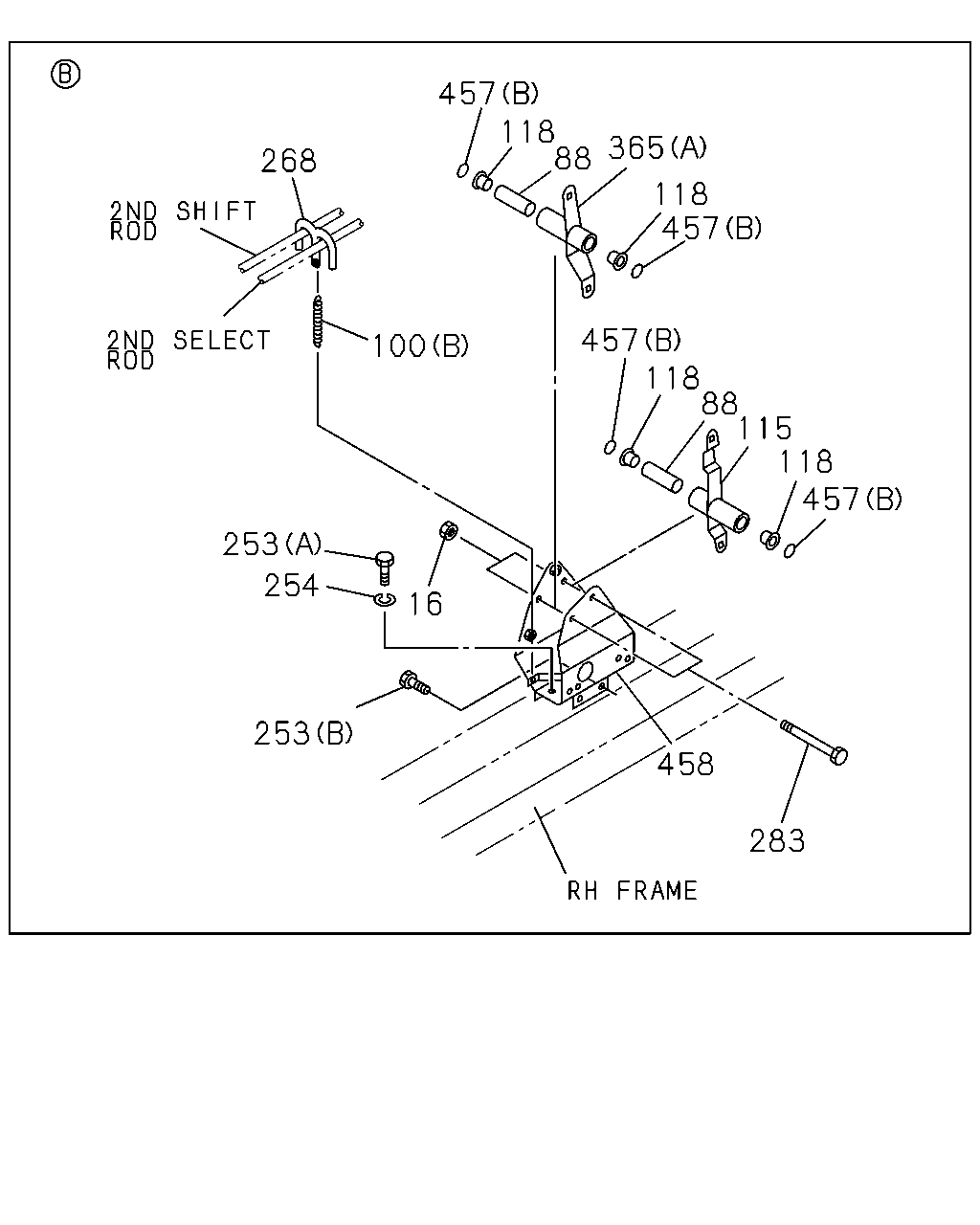

çizim 74786
457 118 88 365 268 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0107-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0107-
100 SPRING
(B) 		1-09583-319-0 01 1 0107-
100 SPRING
(A) 		1-09583-351-0 01 1 0107-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0107-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0107-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0107-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0107-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0107-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0107-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0107-
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-1 01 1 0107-
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-1 01 1 0107-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0107-
457 GASKET
(B) 		1-09623-594-0 04 1 0107-
457 GASKET
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0107-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0107-

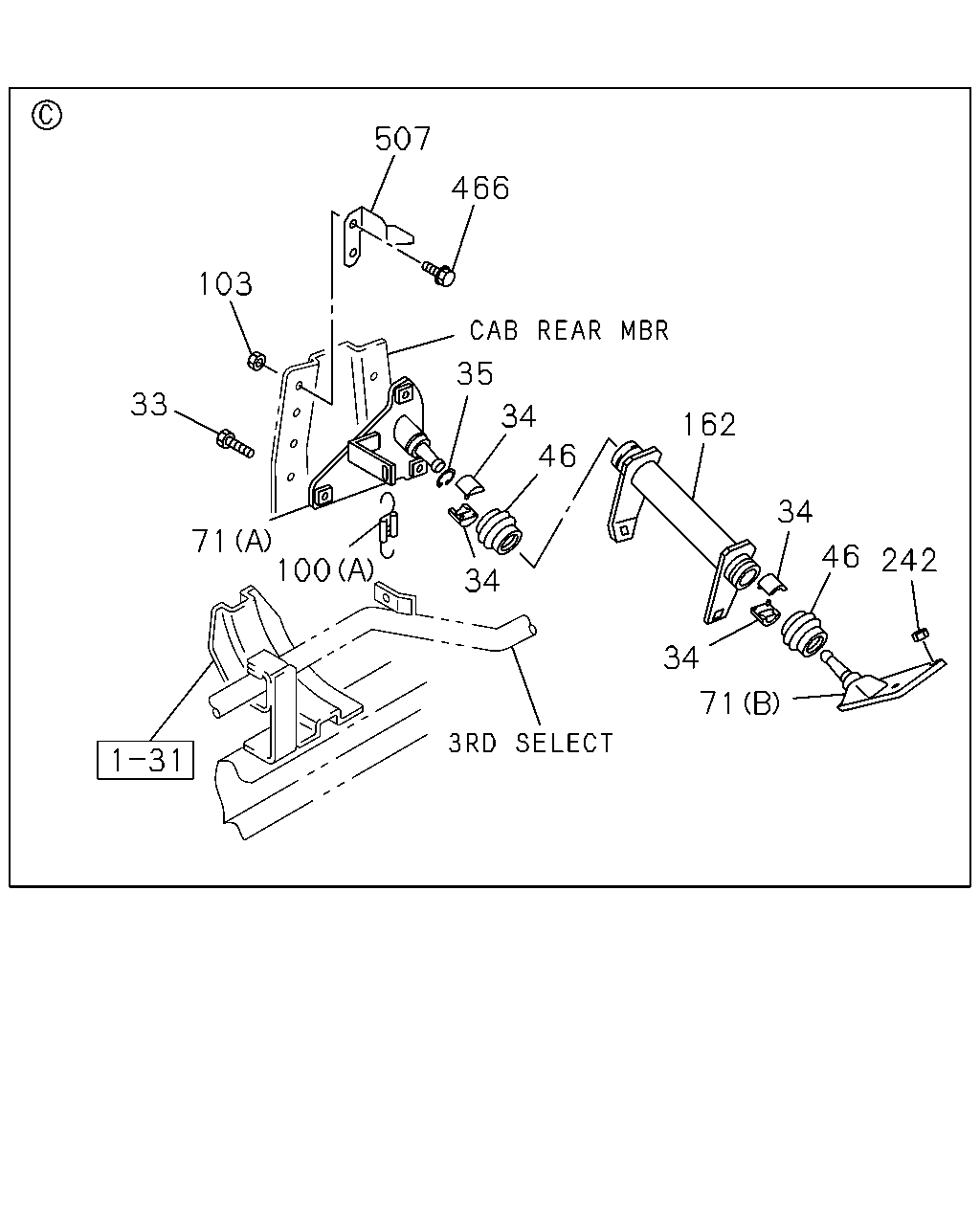

çizim 74791
507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0107-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0107-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0107-
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 0107-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0107-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-584-0 01 1 0107-
100 SPRING
(B) 		1-09583-319-0 01 1 0107-
100 SPRING
(A) 		1-09583-351-0 01 1 0107-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0107-
162 LEVER; RELAY
ISUZU M/T<X9A> 		1-33651-625-1 01 1 0107-
162 LEVER; RELAY
ZF M/T<X9E> 		1-33651-679-1 01 1 0107-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0107-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0107-
507 PROTECTOR; HEAT 1-14181-313-0 01 1 0107-

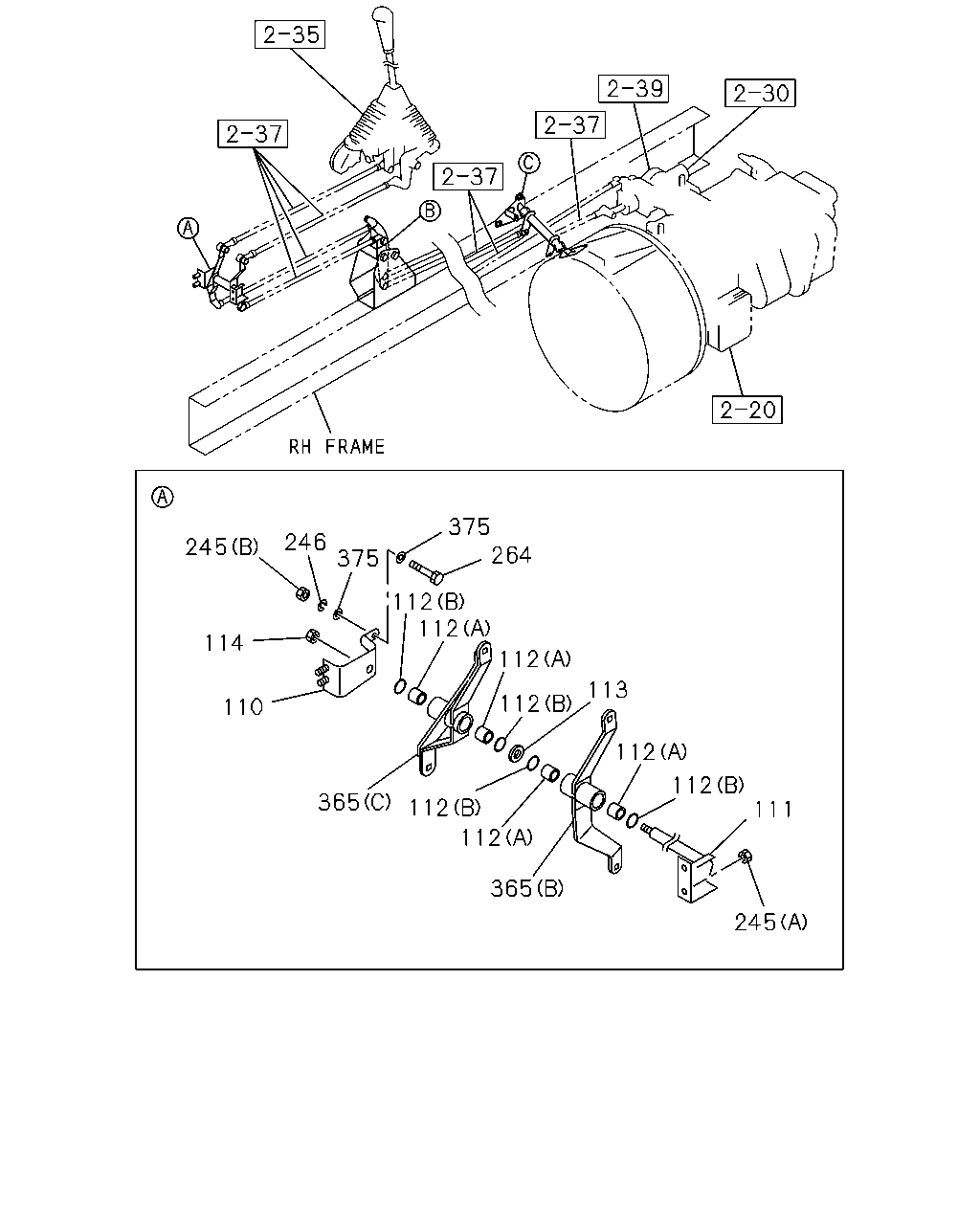

çizim 76787
375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0107-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0107-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0107-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0107-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0107-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0107-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0107-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0107-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0107-
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 0107-
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-1 01 1 0107-
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-1 01 1 0107-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0107-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0107-
