◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#10693) — 57 parça

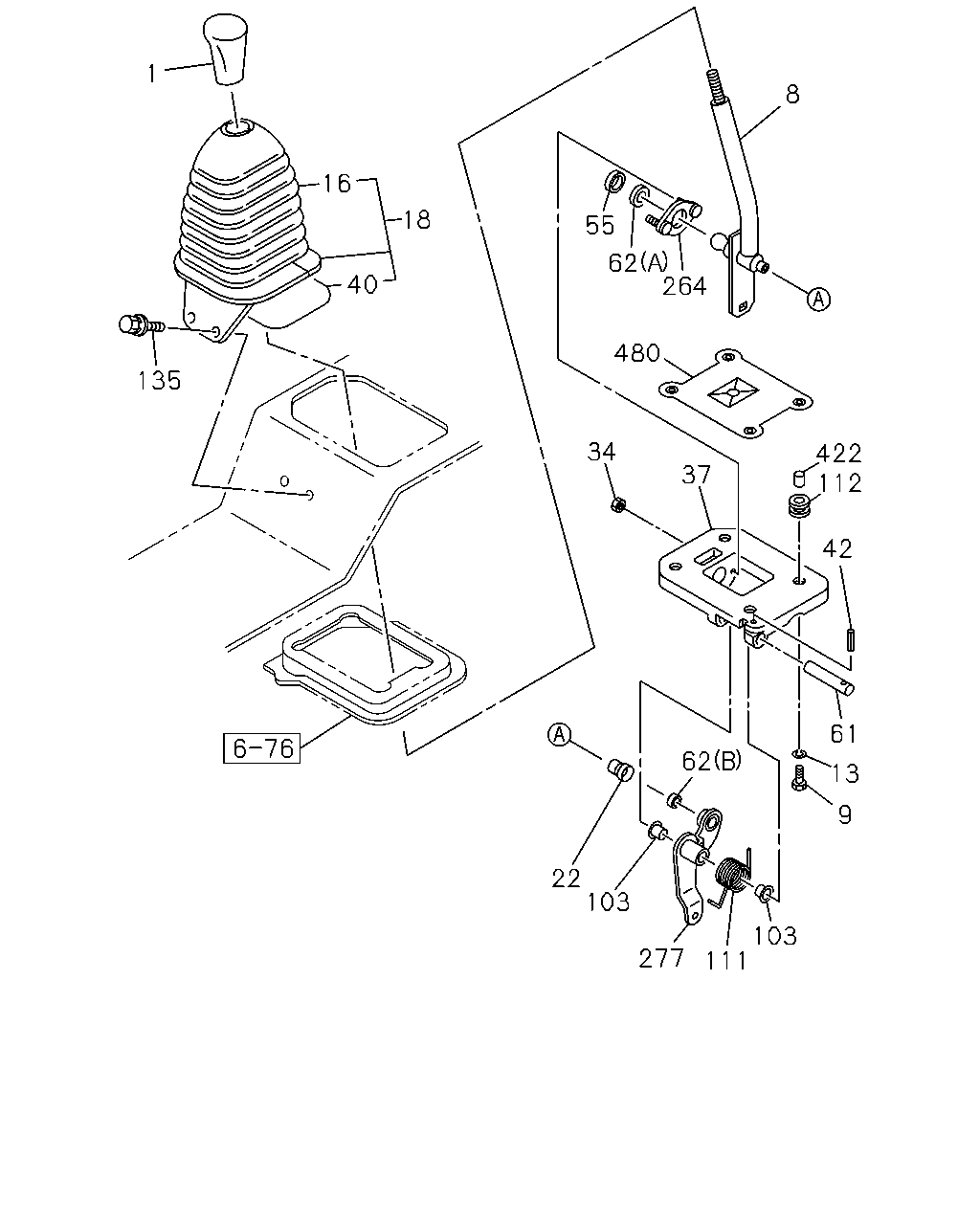

çizim 74366
1 8 16 18 55 62 40 264 480 135 34 422 112 37 42 61 62 13 9 22 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-33611-082-1 01 1 0107-
1 KNOB; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 0107-
8 LEVER; CHANGE
MJD7S M/T(Y2Y) 		1-33613-344-0 01 1 0107-
8 LEVER; CHANGE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 0107-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0107-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0107-
16 BOOT; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-79996-368-0 01 1 0107-
16 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 0107-
18 BOOT; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-79996-436-2 01 1 0107-
18 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 0107-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0107-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0107-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0107-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0107-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0107-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0107-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0107-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0107-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0107-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0107-
111 SPRING
MJD7S M/T(Y2Y) 		1-09585-133-1 01 1 0107-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0107-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-
264 PLATE; COVER 1-33619-469-0 01 1 0107-
277 LEVER; RELAY 1-33651-636-0 01 1 0107-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0107-
480 RUBBER; COVER 1-33619-554-0 01 1 0107-

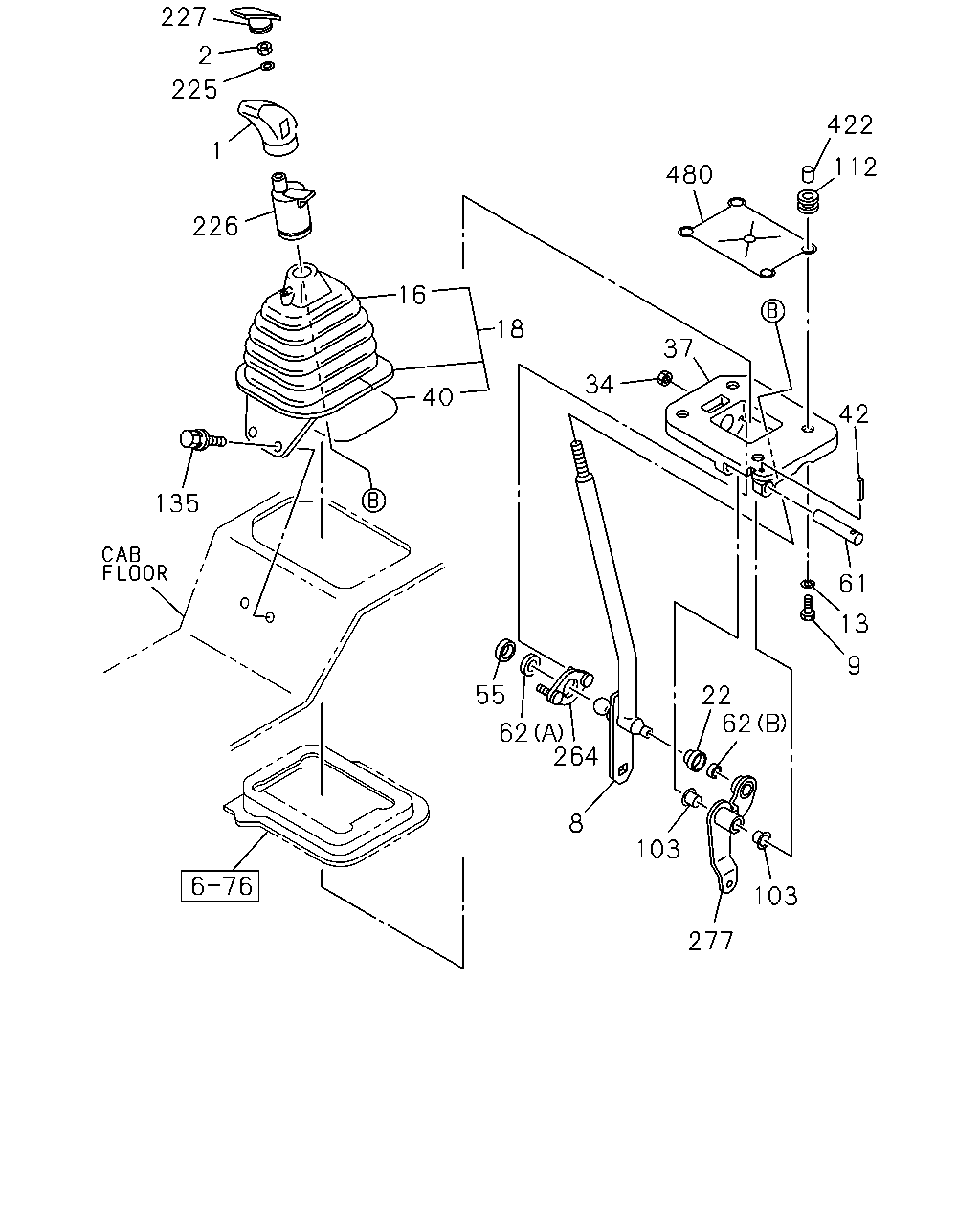

çizim 74849
227 2 225 422 1 112 480 226 16 18 37 34 40 42 135 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-33611-082-1 01 1 0107-
1 KNOB; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 0107-
2 NUT; KNOB
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) M10 FLANGE 		0-91150-210-0 01 1 0107-
8 LEVER; CHANGE
MJD7S M/T(Y2Y) 		1-33613-344-0 01 1 0107-
8 LEVER; CHANGE
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 0107-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0107-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0107-
16 BOOT; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-79996-368-0 01 1 0107-
16 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 0107-
18 BOOT; CHANGE LEVER
MJD7S M/T(Y2Y) 		1-79996-436-2 01 1 0107-
18 BOOT; CHANGE LEVER
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 0107-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0107-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0107-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0107-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0107-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0107-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0107-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0107-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0107-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0107-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0107-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0107-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0107-
225 WASHER; PL,KNOB
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=10.5 OD=22 		9-09160-610-0 01 1 0107-
226 VALVE; SELECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33710-008-0 01 1 0107-
227 COVER; KNOB
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-33619-219-0 01 1 0107-
264 PLATE; COVER 1-33619-469-0 01 1 0107-
277 LEVER; RELAY 1-33651-636-0 01 1 0107-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0107-
480 RUBBER; COVER 1-33619-554-0 01 1 0107-
