Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#10691) — 319 parça

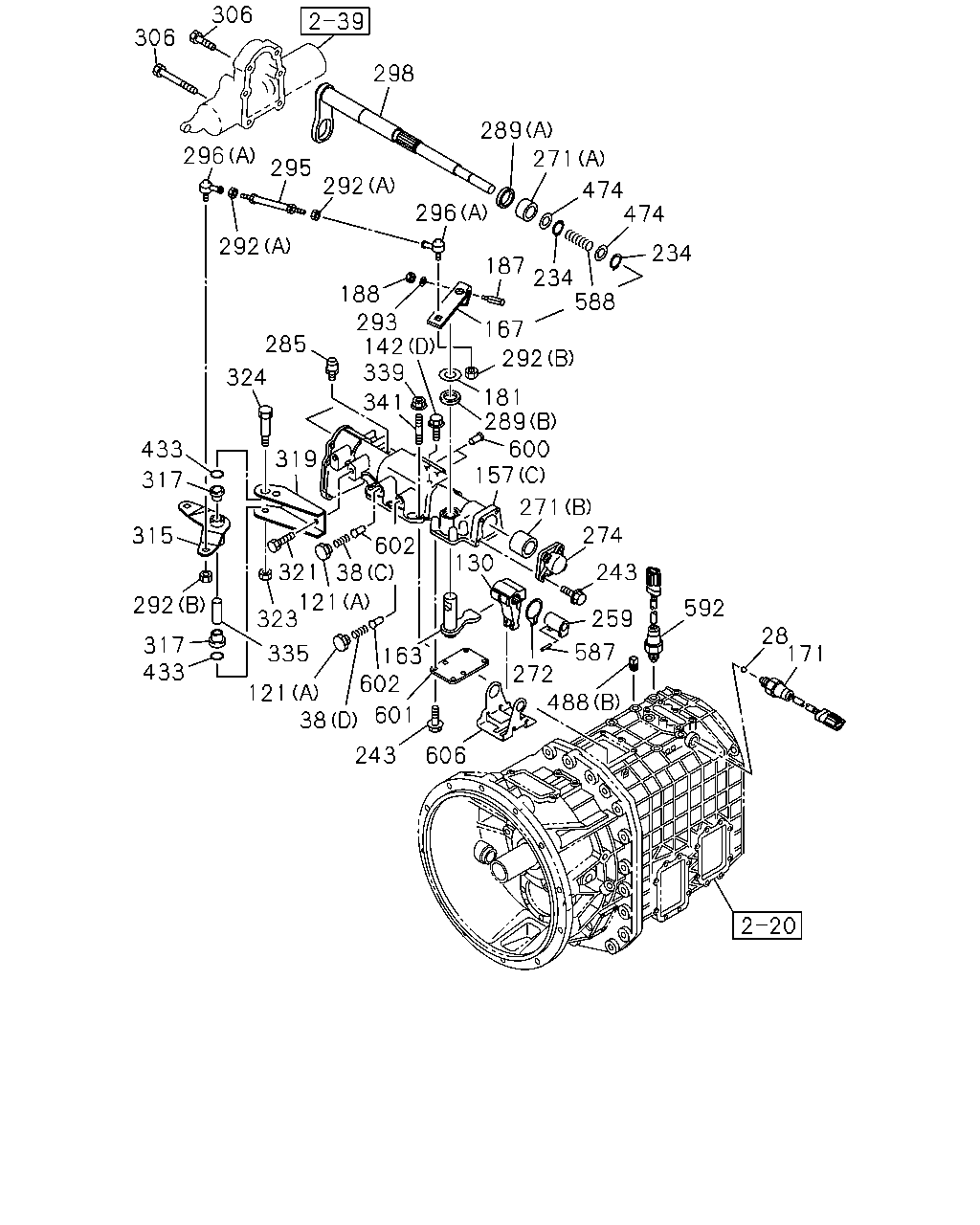

306 306 298 289 296 271 295 292 474 474 296 292 234 187 234 588 188 293 142 339 167 285 292 324 181 289 600 157 341 433 319 317 602 38 271 274 130 315 321 243 121 323 292 592 259 28 171 317 433 163 602 587 335 272 121 38 488 601 243 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
38	SPRING; DETENT (E)	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-		●
121	PLUG; DETENT SPR (A) M14X9	9-99202-314-0	02	1	0107-		●
121	PLUG; DETENT SPR (B) M16X12	9-99202-316-0	01	1	0107-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-183-0	01	1	0107-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-		●
157	BOX; QUAD,TRANS (C)	1-33541-532-0	01	1	0107-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	0107-		●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	0107-	●
167	LEVER; SELECT,EXTERNAL	1-33521-179-0	01	1	0107-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-	●	●
234	RING; SNAP ID=14.7	9-09180-416-0	02	1	0107-		●
243	BOLT; COVER M8X35 FLANGE	0-28680-835-0	04	1	0107-		●
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	0107-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	0107-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	0107-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0107-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0107-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0107-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-801-0	01	1	0107-	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	0107-		●
296	ROD END (A)	1-09760-108-0	02	1	0107-	●	●
298	SHAFT; SHIFT LEVER	1-33522-161-0	01	1	0107-	●
298	SHAFT; SHIFT LEVER	1-33522-173-0	01	1	0107-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0107-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0107-		●
341	STUD; QUAD BOX M10X25 L=40	9-04411-025-0	05	1	0107-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0107-	●	●
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	0107-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	0107-		●
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	0107-		●
592	SWITCH; POSITION	1-82440-083-3	01	1	0107-		●
600	PLUNGER; VLV	1-33263-037-0	02	1	0107-		●
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	0107-		●
602	PLUNGER; DETENT	1-33263-037-0	02	1	0107-		●
606	INHIBITOR	1-33529-116-0	01	1	0107-		●

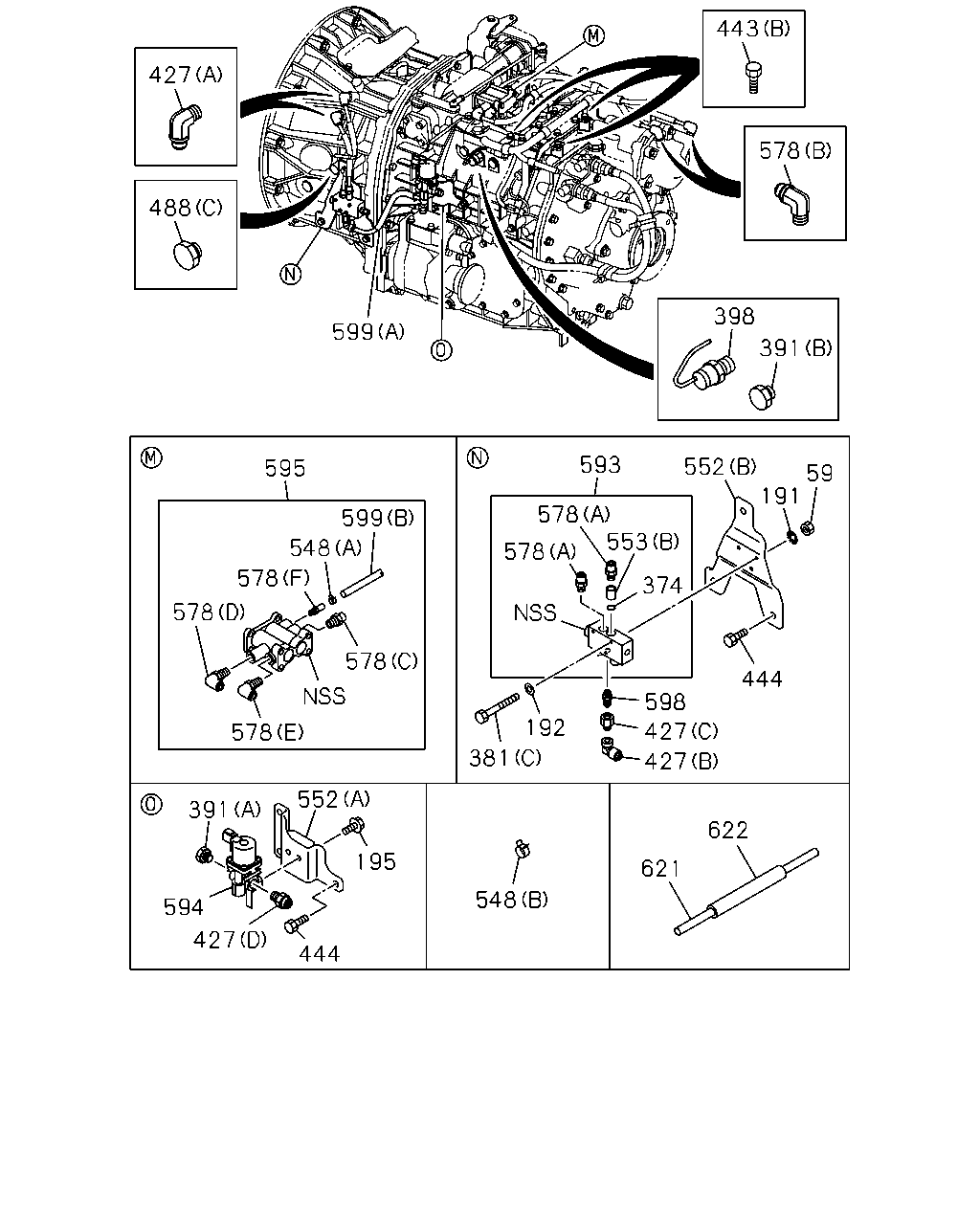

443 427 578 488 398 599 391 593 552 595 59 191 578 553 599 548 578 578 374 578 578 444 598 192 427 578 381 427 552 391 622 195 621 548 594 427 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	NUT	1-09440-068-0	04	1	0107-		●
191	WASHER; LK	1-09503-311-0	04	1	0107-		●
192	WASHER; PL	1-09503-310-0	04	1	0107-		●
195	BOLT M8X16 FLANGE	0-28080-816-0	02	1	0107-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T).	1-09661-390-0	01	1	0107-		●
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0107-		●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0107-		●
381	BOLT (C)	1-09044-111-0	04	1	0107-		●
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	0107-		●
391	PLUG; SW HOLE (B) M14X9	9-99202-314-0	02	1	0107-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-	●	●
427	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0107-		●
427	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0107-		●
427	CONNECTOR; NYLON TUBE (C) M12	1-09660-931-1	01	1	0107-		●
427	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0107-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28080-890-0	04	1	0107-		●
444	BOLT; CLIP M10X25 FLANGE	0-28781-025-0	06	1	0107-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
548	CLIP; HOSE (A)	1-33712-028-0	01	1	0107-		●
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	11	1	0107-		●
552	BRACKET (A)	1-33719-082-0	01	1	0107-		●
552	BRACKET (B)	1-33719-083-0	01	1	0107-		●
553	ADAPTER; AIR (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-		●
553	ADAPTER; AIR (B)	1-09661-389-0	01	1	0107-		●
578	CONNECTOR (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0107-		●
578	CONNECTOR (A)	1-09661-292-0	02	1	0107-		●
578	CONNECTOR (C)	1-33712-023-0	01	1	0107-		●
578	CONNECTOR (D)	1-33712-024-0	01	1	0107-		●
578	CONNECTOR (E)	1-33712-025-0	01	1	0107-		●
578	CONNECTOR (F)	1-33712-026-0	01	1	0107-		●
593	VALVE; SPLITTER	1-33712-009-0	01	1	0107-		●
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	0107-		●
595	VALVE; RANGE	1-33712-008-1	01	1	0107-		●
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	0107-		●
599	TUBE; NYLON (A)	1-09377-036-1	01	1	0107-		●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	0107-		●
621	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	05	1	0107-		●
622	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	05	1	0107-		●

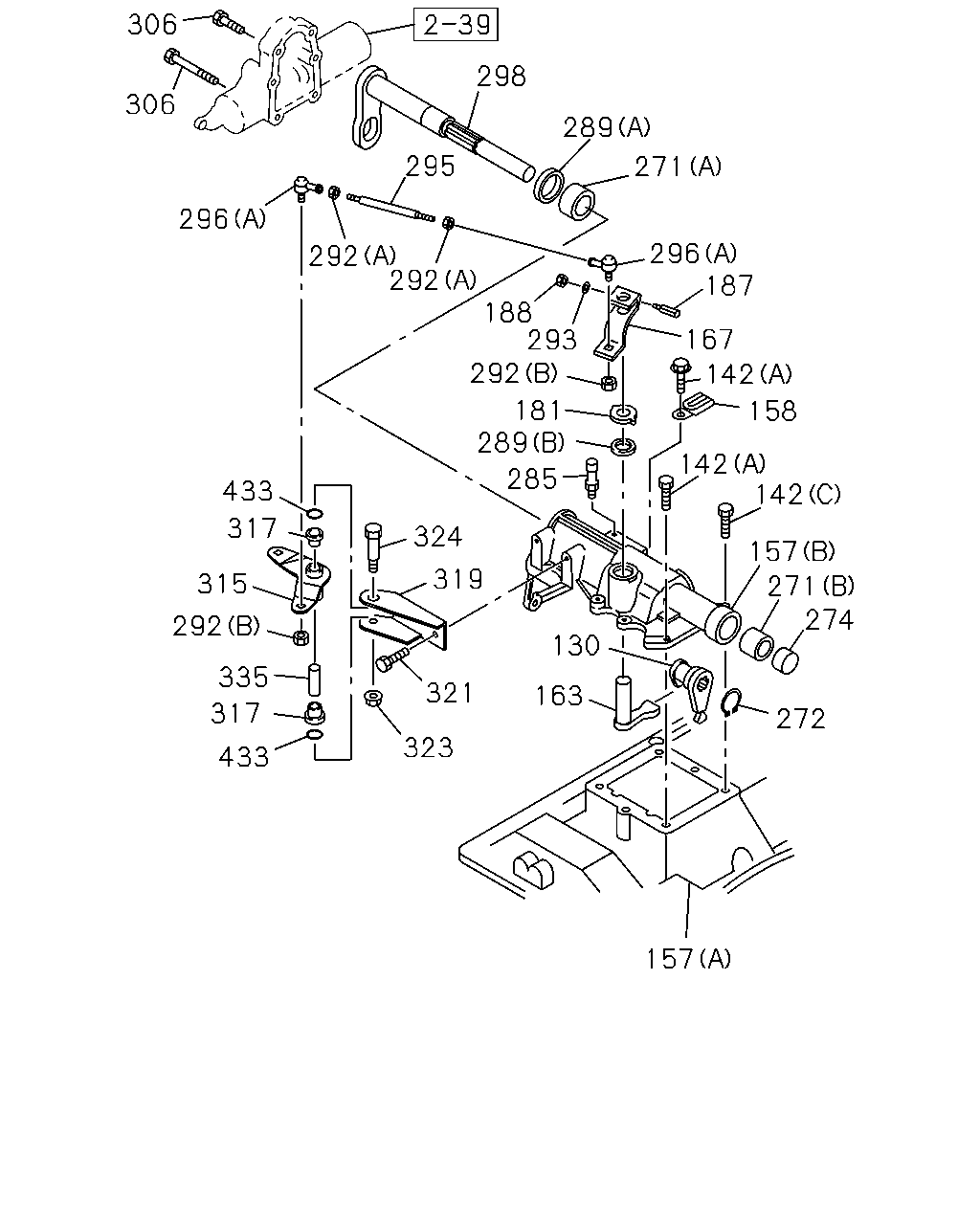

306 298 306 289 295 271 296 296 187 292 292 188 293 292 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 321 163 317 272 323 433 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-183-0	01	1	0107-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-		●
157	BOX; QUAD,TRANS (C)	1-33541-532-0	01	1	0107-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	0107-		●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	0107-	●
167	LEVER; SELECT,EXTERNAL	1-33521-179-0	01	1	0107-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	0107-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	0107-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0107-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0107-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0107-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-801-0	01	1	0107-	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	0107-		●
296	ROD END (A)	1-09760-108-0	02	1	0107-	●	●
298	SHAFT; SHIFT LEVER	1-33522-161-0	01	1	0107-	●
298	SHAFT; SHIFT LEVER	1-33522-173-0	01	1	0107-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0107-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0107-	●	●

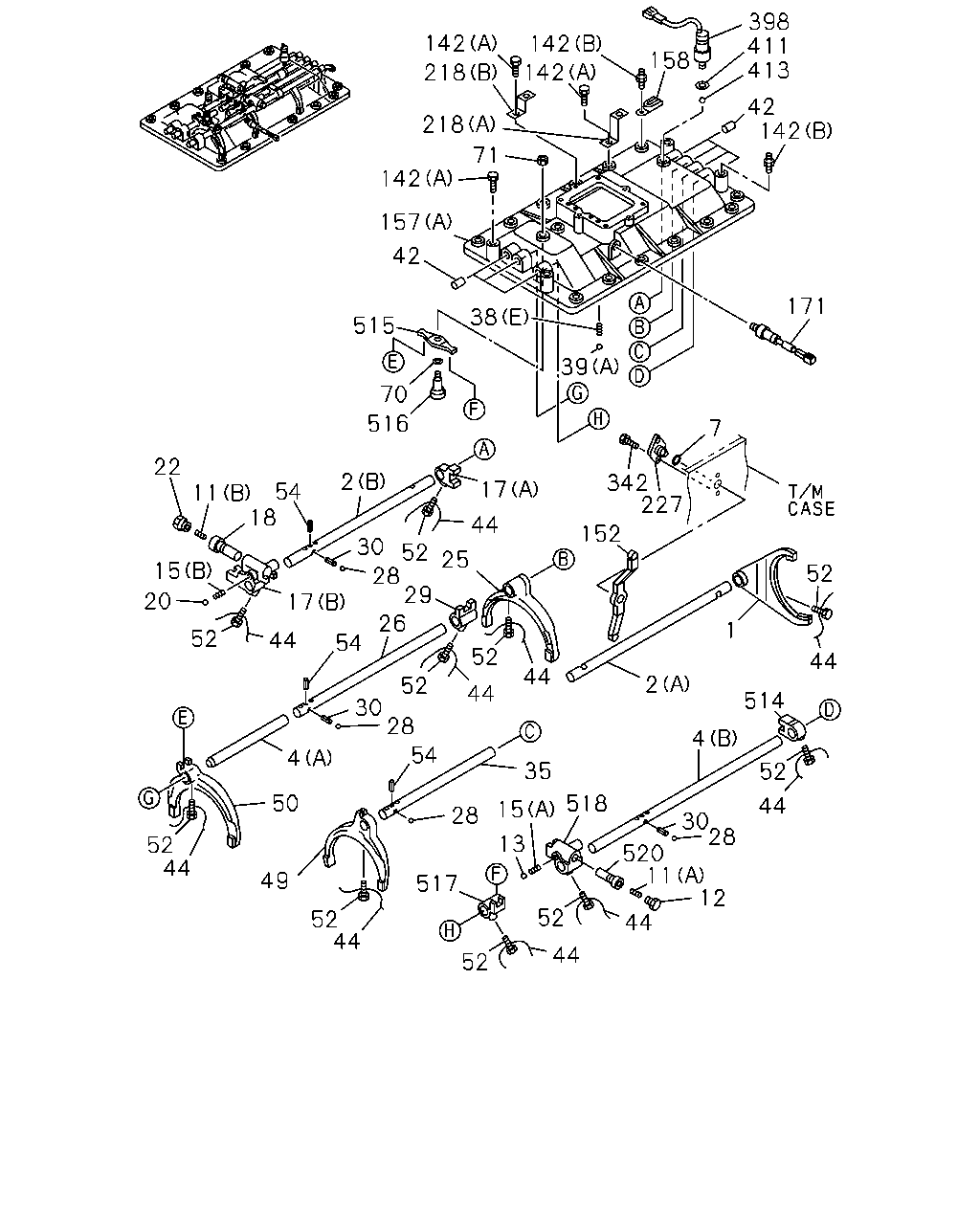

398 411 413 142 142 142 158 218 42 142 218 71 142 157 42 39 171 38 515 70 516 7 22 2 342 227 17 18 44 152 30 52 28 29 26 25 15 52 20 17 1 52 44 54 52 44 44 2 52 44 514 30 28 4 54 4 35 52 50 518 44 15 28 30 28 13 52 44 520 11 12 49 517 52 52 44 44 44 52 11 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-520-1	01	1	0107-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	0107-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	0107-	●
4	ROD; SHIFT,6TH (A)	1-33531-421-1	01	1	0107-	●
4	ROD; SHIFT,6TH (B)	1-33531-422-1	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0107-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0107-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0107-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0107-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0107-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	0107-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	0107-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0107-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0107-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0107-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	0107-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	0107-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-420-1	01	1	0107-	●
38	SPRING; DETENT (E)	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	0107-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	0107-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0107-	●
44	WIRE; LK L=180	1-09780-024-0	07	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	0107-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	0107-	●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0107-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0107-	●	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0107-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0107-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-		●
152	LEVER; RELAY,SELECT	1-33511-428-0	01	1	0107-	●
157	BOX; QUAD,TRANS (C)	1-33541-532-0	01	1	0107-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-328-1	01	1	0107-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-350-0	01	1	0107-		●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	0107-	●
342	BOLT M14X20	1-09044-078-0	02	1	0107-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0107-	●
413	BALL; BACK SW	9-00097-013-0	01	1	0107-	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	0107-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-082-0	01	1	0107-	●
516	SPINDLE; 6TH & 7TH	1-33519-012-0	01	1	0107-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-395-1	01	1	0107-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-293-2	01	1	0107-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	0107-	●

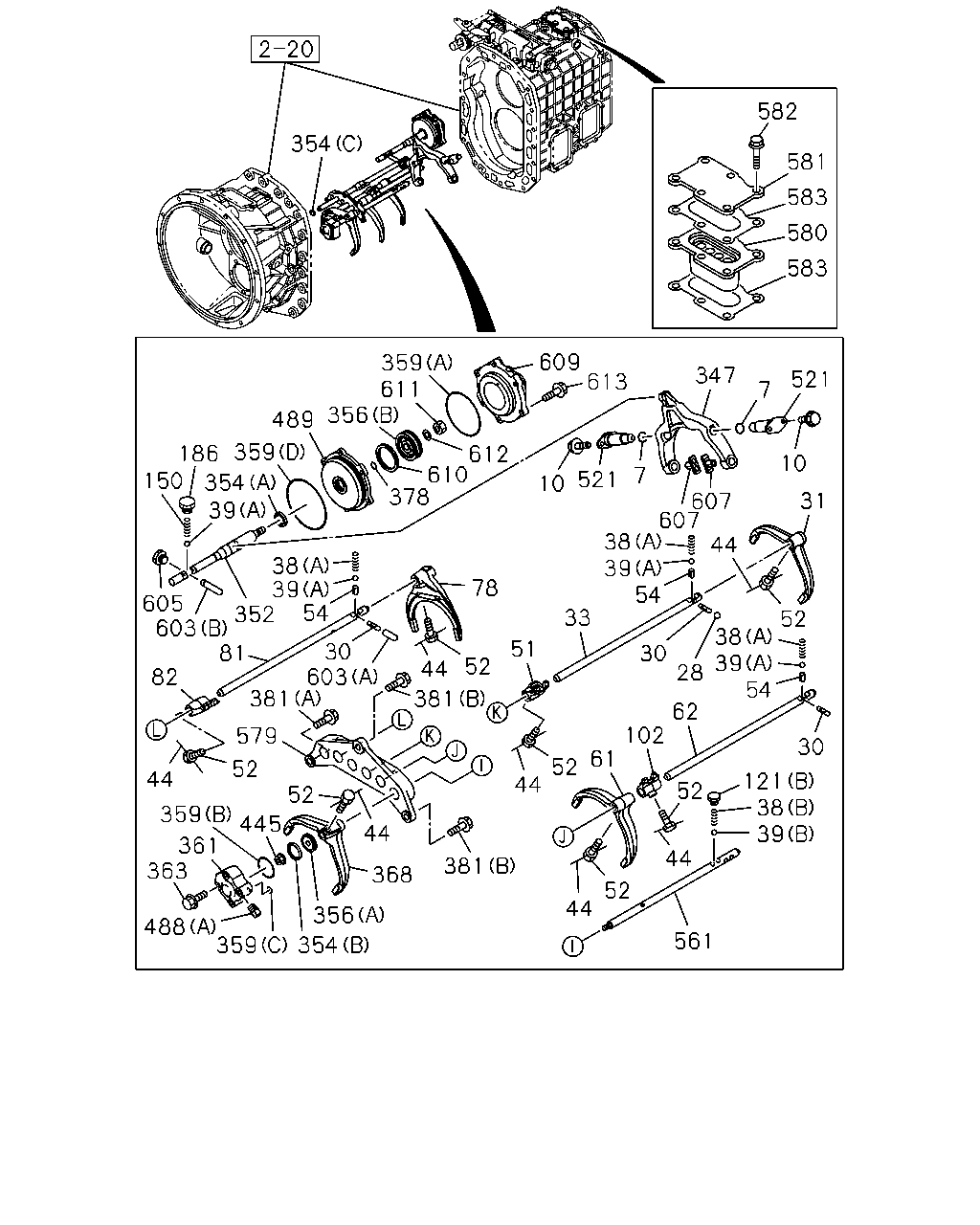

354 582 581 580 583 583 521 609 347 10 7 31 607 607 38 39 54 28 44 613 7 521 10 38 54 39 33 30 102 61 62 121 38 39 30 44 52 561 52 52 52 52 52 44 44 44 381 368 356 354 359 488 363 359 361 579 81 82 603 605 38 39 54 30 603 381 44 78 381 51 610 612 359 356 611 489 359 186 150 354 352 44 378 52 39 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0107-		●
10	BOLT; SPINDLE M10X30 FLANGE	0-28781-030-0	04	1	0107-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	0107-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	0107-		●
38	SPRING; DETENT (E)	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	0107-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	0107-		●
44	WIRE; LK L=180	1-09780-024-0	07	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	0107-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-617-0	01	1	0107-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0107-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0107-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	0107-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	0107-		●
78	ARM; SHIFT,REV	1-33511-589-0	01	1	0107-		●
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	0107-		●
82	BLOCK; SHIFT,REV	1-33511-600-0	01	1	0107-		●
102	BLOCK; SHIFT,3RD & 4TH	1-33511-615-0	01	1	0107-		●
121	PLUG; DETENT SPR (A) M14X9	9-99202-314-0	02	1	0107-		●
121	PLUG; DETENT SPR (B) M16X12	9-99202-316-0	01	1	0107-		●
150	SPRING; DETENT BALL	1-09580-379-0	01	1	0107-		●
186	PLUG; SHIFTER ROD M16X12	9-99202-316-0	01	1	0107-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	0107-		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-461-0	01	1	0107-		●
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	0107-		●
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	0107-		●
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	0107-		●
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	0107-		●
356	PISTON; AIR CYL (B)	1-33551-023-1	01	1	0107-		●
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	0107-		●
359	GASKET; AIR CYL (B) ID=55.6	1-09623-547-0	01	1	0107-		●
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	0107-		●
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	0107-		●
361	CYLINDER; AIR,SHIFT	1-33561-013-0	01	1	0107-		●
363	BOLT; AIR CYL M10X60 FLANGE	0-28181-060-0	04	1	0107-		●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	0107-		●
378	GASKET; PISTON ALSO INCLUDED IN GASKET SET(M/T).	9-09561-218-0	01	1	0107-		●
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0107-		●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0107-		●
381	BOLT (C)	1-09044-111-0	04	1	0107-		●
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91303-612-0	01	1	0107-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
489	COVER; AIR CYL	1-33569-049-1	01	1	0107-		●
521	SPINDLE; 6TH	1-33519-131-0	02	1	0107-		●
561	ROD; SHIFT	1-33531-466-0	01	1	0107-		●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-0	01	1	0107-		●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	0107-		●
581	COVER; BLOCK	1-33141-056-0	01	1	0107-		●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28781-035-0	06	1	0107-		●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	0107-		●
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	0107-		●
603	ROD; INTER LK (B) L=77	1-33534-010-0	01	1	0107-		●
605	PLUG; INTER LK M18X12	9-99202-318-0	01	1	0107-		●
607	PIECE; SHIFT	1-33518-008-1	02	1	0107-		●
609	BODY; AIR,CYL	1-33561-015-0	01	1	0107-		●
610	SEAL; PISTON	1-33738-054-0	01	1	0107-		●
611	NUT; SHAFT M16 LOCK NUT	9-09131-516-0	01	1	0107-		●
612	WASHER; PL ID=17	9-09160-516-0	01	1	0107-		●
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	06	1	0107-		●

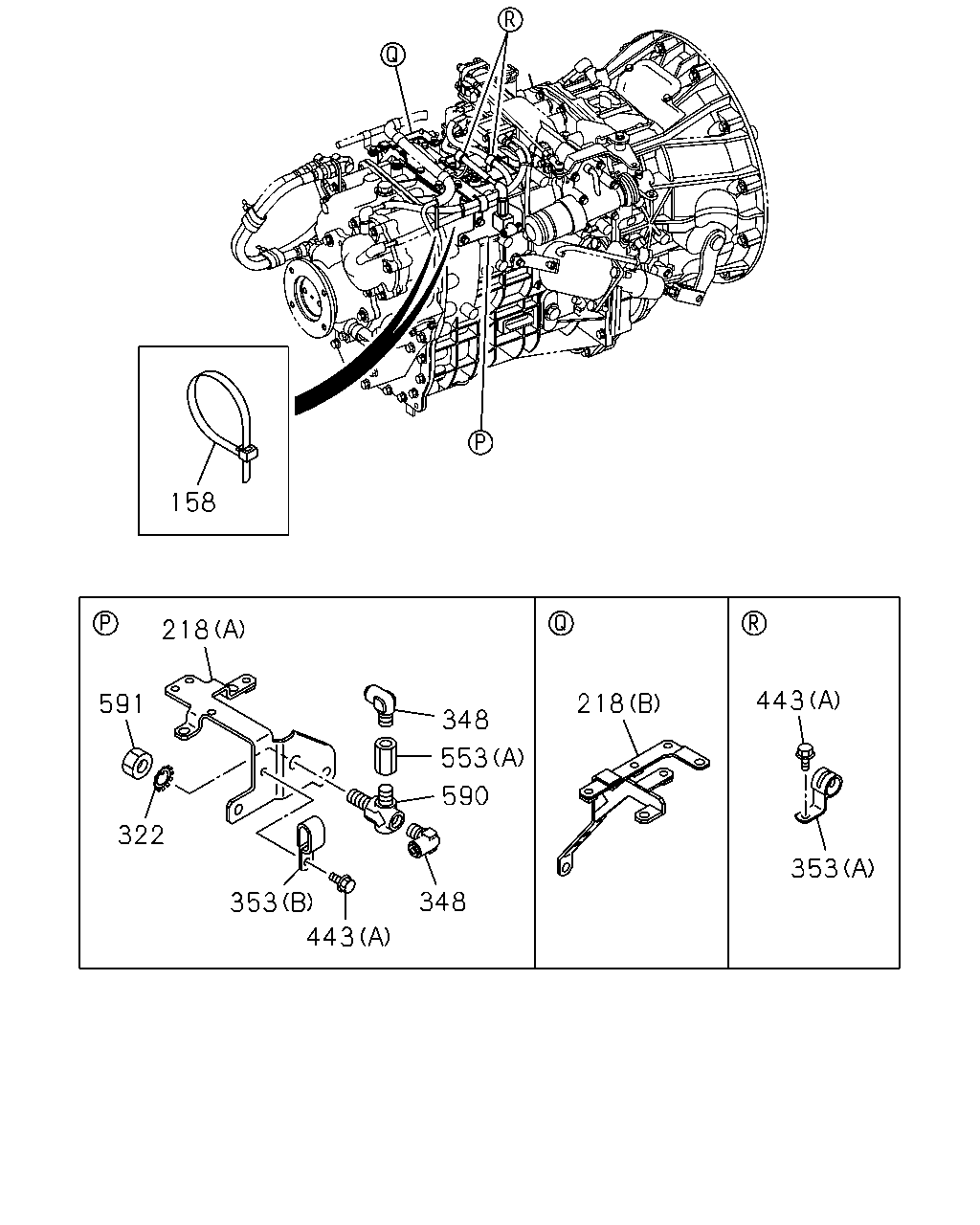

158 218 443 218 591 348 553 590 322 353 348 353 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-328-1	01	1	0107-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-350-0	01	1	0107-		●
322	WASHER; LK ID=16.2	9-09150-516-0	01	1	0107-		●
348	CONNECTOR; AIR HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-		●
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	02	1	0107-		●
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	0107-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0107-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28080-890-0	04	1	0107-		●
553	ADAPTER; AIR (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-		●
553	ADAPTER; AIR (B)	1-09661-389-0	01	1	0107-		●
590	UNION; AIR M16 & PT3/8 2WAY	1-09654-239-1	01	1	0107-		●
591	NUT; UNION M16	9-99111-516-0	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
