Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#10689) — 300 parça

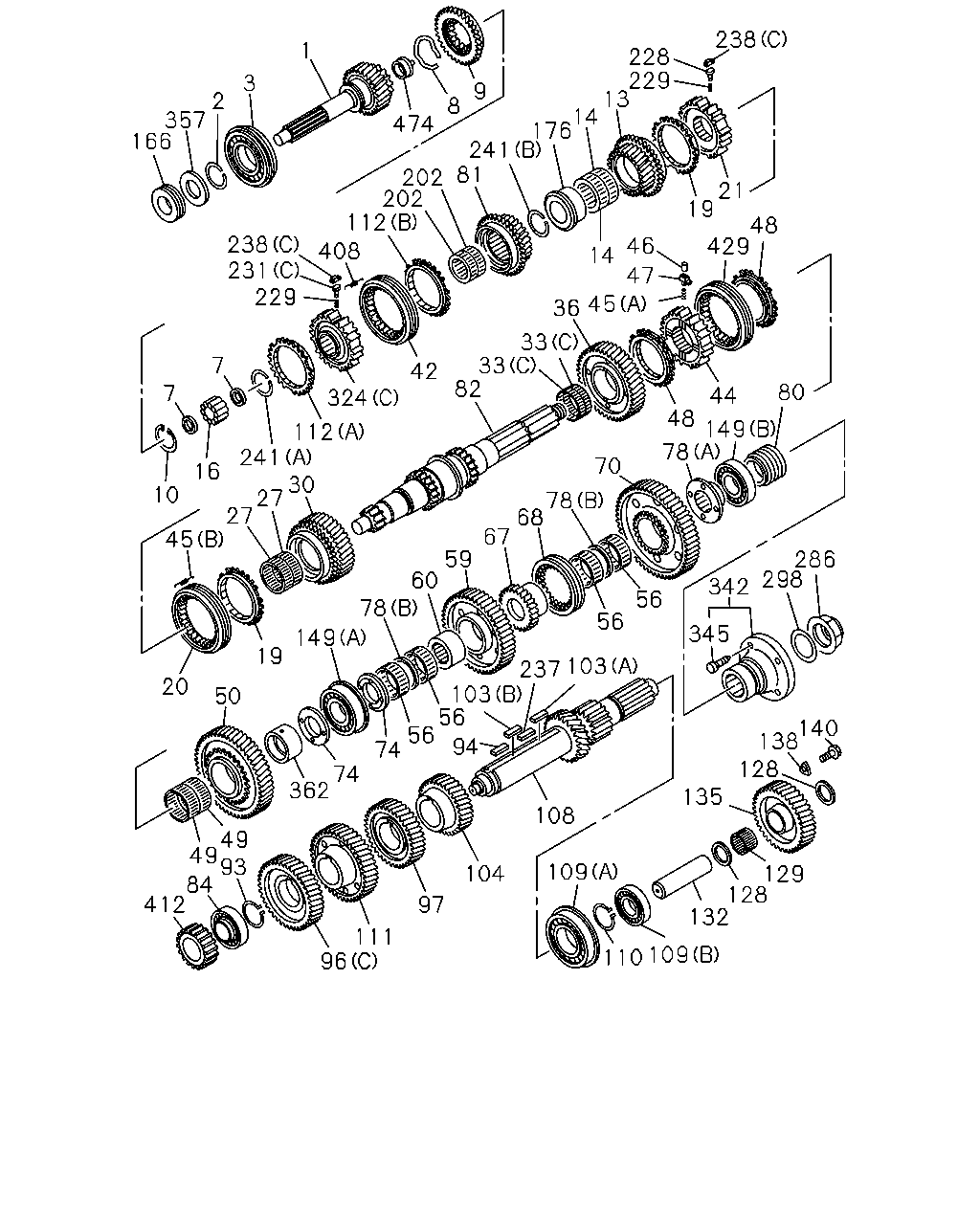

238 1 228 229 13 14 176 241 81 3 9 2 357 166 8 474 202 202 112 21 19 48 429 238 231 229 46 408 14 47 36 45 33 33 82 7 42 80 7 44 324 48 149 78 112 241 30 27 27 45 70 16 10 78 68 67 59 60 78 286 298 342 56 56 345 149 19 237 103 103 56 56 74 20 50 140 138 128 94 74 362 135 108 49 49 93 84 412 109 104 129 128 132 97 111 96 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0107-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0107-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0107-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0107-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0107-	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0107-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0107-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0107-	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0107-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0107-		●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-0	02	1	0107-	●
20	SLEEVE	1-33262-222-0	01	1	0107-	●
20	SLEEVE	1-33262-216-1	01	1	0107-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0107-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0107-	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0107-	●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0107-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0107-		●
42	SLEEVE	1-33262-222-0	01	1	0107-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0107-	●
45	SPRING; BLOCK INSERT (A)	1-09580-578-0	03	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0107-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0107-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0107-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0107-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0107-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0107-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0107-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0107-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0107-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0107-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0107-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0107-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0107-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0107-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0107-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0107-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0107-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0107-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0107-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-315-0	01	1	0107-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0107-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0107-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0107-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0107-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0107-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0107-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0107-	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-	●
103	KEY; COUNTER GEAR (C) L=75.3	1-09735-042-0	01	1	0107-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0107-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0107-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0107-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0107-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0107-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0107-	●
132	SHAFT; REV	1-33351-035-1	01	1	0107-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0107-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0107-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0107-		●
166	PIECE; DIST	1-33363-032-1	01	1	0107-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0107-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0107-	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0107-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	0107-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0107-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0107-		●
231	PLUNGER (C)	1-33263-020-0	03	1	0107-	●
231	PLUNGER (A)	1-33263-033-0	06	1	0107-		●
231	PLUNGER (B)	1-33263-038-0	12	1	0107-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0107-	●
238	INSERT (C)	1-33263-025-2	06	1	0107-	●
238	INSERT (A)	1-33263-036-0	06	1	0107-		●
238	INSERT (B)	1-33263-039-0	09	1	0107-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	0107-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0107-	●
241	RING; SNAP (A)	1-09587-023-0	02	1	0107-		●
241	RING; SNAP (B)	1-09587-104-0	01	1	0107-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0107-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0107-	●
324	HUB; CLU (A)	1-34231-015-0	01	1	0107-		●
324	HUB; CLU (C)	1-33261-238-0	01	1	0107-	●
324	HUB; CLU (B)	1-34371-013-0	01	1	0107-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0107-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●
357	RING	1-31349-015-0	01	1	0107-	●
357	RING	1-31349-044-0	04	1	0107-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0107-	●
408	SPRING	1-09583-171-0	03	1	0107-	●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0107-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0107-	●
474	NOZZLE; OIL	1-33219-257-0	01	1	0107-	●

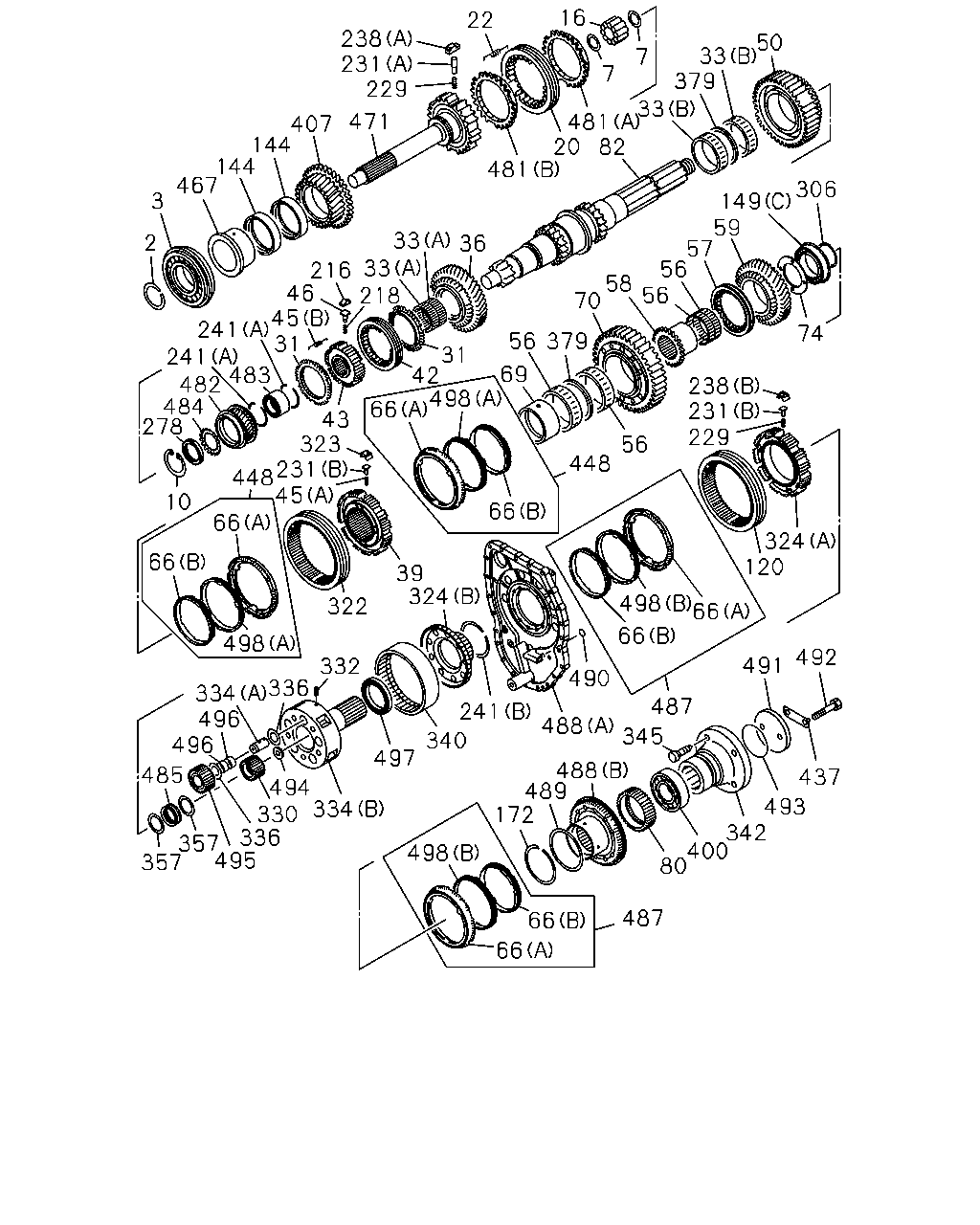

16 22 238 231 229 50 33 379 33 481 481 7 7 471 407 144 144 467 306 149 59 57 56 56 3 33 216 33 46 218 45 31 36 2 58 70 241 241 483 482 484 278 74 56 379 31 42 498 69 238 231 229 66 43 323 231 448 45 56 448 10 66 66 324 120 66 39 324 498 66 322 490 66 498 492 491 332 336 334 496 496 487 241 485 488 345 340 497 488 489 172 437 494 334 330 336 357 493 342 400 80 498 487 66 66 20 82 495 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0107-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0107-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0107-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0107-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0107-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0107-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0107-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0107-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0107-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0107-		●
20	SLEEVE	1-33262-222-0	01	1	0107-	●
20	SLEEVE	1-33262-216-1	01	1	0107-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0107-		●
31	RING; BLOCK,3RD & 4TH	1-33265-552-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (C) NSK	1-09811-380-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (C) NTN	1-09811-381-0	02	1	0107-	●
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	0107-		●
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	0107-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0107-	●
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-704-1	01	1	0107-		●
39	HUB; CLU,LOW & 2ND	1-33261-269-0	01	1	0107-		●
42	SLEEVE	1-33262-222-0	01	1	0107-	●	●
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-256-0	01	1	0107-		●
45	SPRING; BLOCK INSERT (A)	1-09580-578-0	03	1	0107-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0107-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0107-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0107-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0107-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0107-	●
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-411-1	01	1	0107-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0107-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	0107-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	0107-		●
57	SLEEVE; REV	1-33262-209-1	01	1	0107-		●
58	HUB; CLU,REV	1-33261-255-0	01	1	0107-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0107-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	0107-		●
66	RING; BLOCK,SYN (A)	1-33265-536-0	04	1	0107-		●
66	RING; BLOCK,SYN (B)	1-33265-538-0	04	1	0107-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-092-0	01	1	0107-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0107-	●
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-074-1	01	1	0107-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0107-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0107-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0107-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0107-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0107-	●
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-315-0	01	1	0107-		●
120	SLEEVE	1-33262-231-0	01	1	0107-		●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	0107-		●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	0107-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0107-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0107-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0107-		●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0107-		●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0107-		●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	0107-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0107-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0107-		●
231	PLUNGER (C)	1-33263-020-0	03	1	0107-	●
231	PLUNGER (A)	1-33263-033-0	06	1	0107-		●
231	PLUNGER (B)	1-33263-038-0	12	1	0107-		●
238	INSERT (C)	1-33263-025-2	06	1	0107-	●
238	INSERT (A)	1-33263-036-0	06	1	0107-		●
238	INSERT (B)	1-33263-039-0	09	1	0107-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	0107-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0107-	●
241	RING; SNAP (A)	1-09587-023-0	02	1	0107-		●
241	RING; SNAP (B)	1-09587-104-0	01	1	0107-		●
278	NUT; BRG	1-09449-080-0	01	1	0107-		●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0107-		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-217-0	01	1	0107-		●
323	INSERT	1-33263-041-0	03	1	0107-		●
324	HUB; CLU (A)	1-34231-015-0	01	1	0107-		●
324	HUB; CLU (C)	1-33261-238-0	01	1	0107-	●
324	HUB; CLU (B)	1-34371-013-0	01	1	0107-		●
330	GEAR; SUN Z=24	1-34311-007-0	01	1	0107-		●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0107-		●
334	SHAFT; PLANETARY GEAR (B)	1-34372-026-0	01	1	0107-		●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0107-		●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0107-		●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0107-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0107-	●
342	FLANGE; OUTPUT	1-37243-370-0	01	1	0107-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0107-	●	●
357	RING	1-31349-015-0	01	1	0107-	●
357	RING	1-31349-044-0	04	1	0107-		●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	0107-		●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0107-		●
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0107-		●
407	GEAR; PRIMARY MAIN	1-33253-713-1	01	1	0107-		●
437	PLATE; LOCK	1-34252-032-0	01	1	0107-		●
448	SYNCHRONIZER ASM; 1ST & 2ND	1-33265-539-0	02	1	0107-		●
467	COLLAR; SHAFT	1-33234-091-1	01	1	0107-		●
471	SHAFT; INPUT	1-33211-994-0	01	1	0107-		●
481	RING; BLOCK (A) HIGH	1-33265-516-0	01	1	0107-		●
481	RING; BLOCK (B) LOW	1-33265-532-0	01	1	0107-		●
482	GEAR; PRIMARY Z=29	1-33253-714-1	01	1	0107-		●
483	BEARING; TAPER NSK	1-09810-258-0	01	1	0107-		●
483	BEARING; TAPER NTN	1-09810-259-0	01	1	0107-		●
484	PLATE; SETTING	1-33313-022-0	01	1	0107-		●
485	PIECE; GUIDE	1-33363-038-0	01	1	0107-		●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-539-0	02	1	0107-		●
488	CLUTCH; DOG,RANGE (A)	1-34252-033-0	01	1	0107-		●
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0107-		●
489	WASHER; THRUST	1-09503-308-0	01	1	0107-		●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0107-		●
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	0107-		●
492	BOLT; PLATE	1-09000-740-0	02	1	0107-		●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0107-		●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0107-		●
495	PINION; PLANETARY	1-34361-018-0	05	1	0107-		●
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	0107-		●
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	0107-		●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0107-		●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0107-		●
498	CONE; SYN (A),(B)	1-33265-537-0	04	1	0107-		●

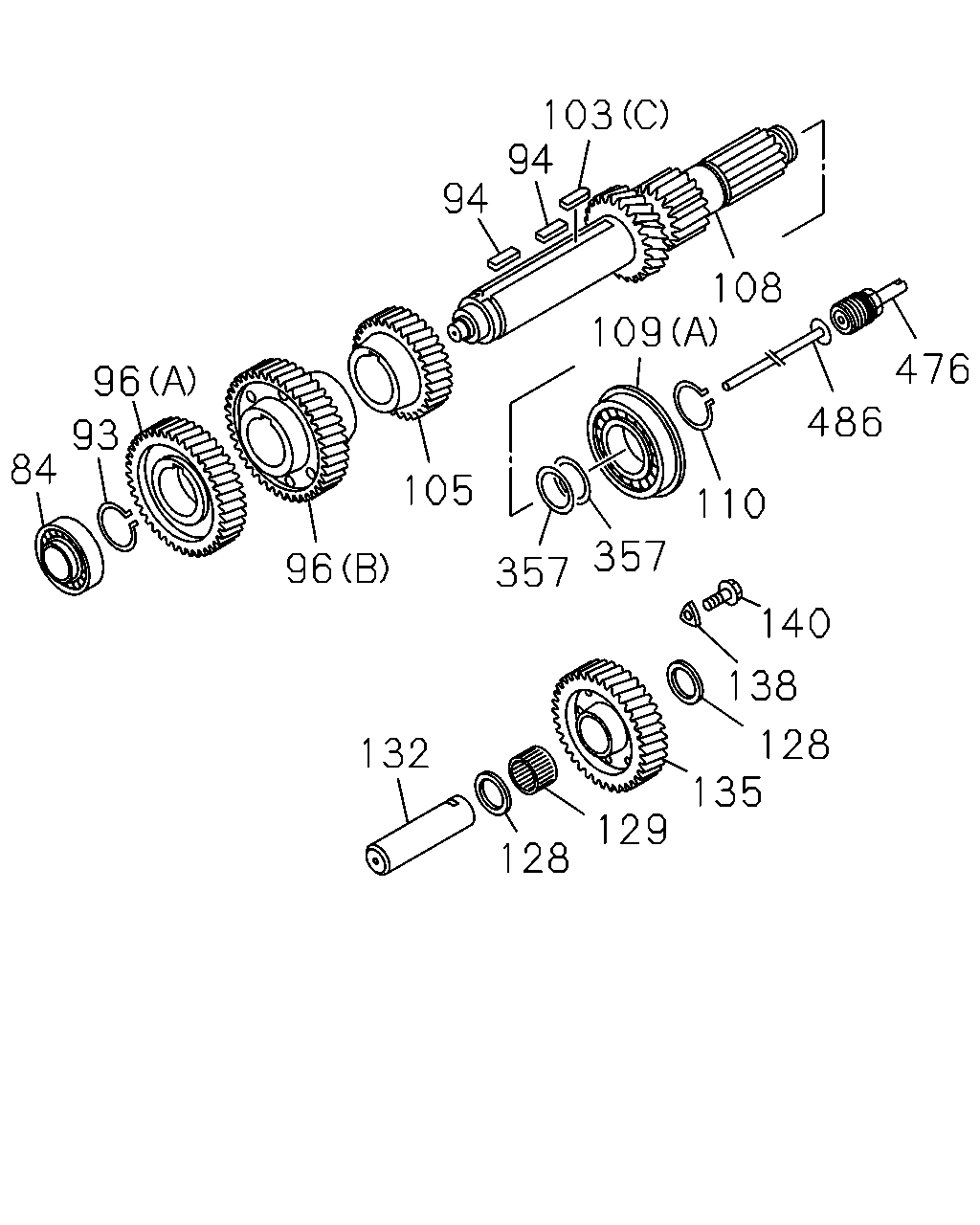

103 94 94 108 109 476 96 486 93 84 105 110 357 96 357 140 138 128 135 132 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0107-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0107-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0107-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0107-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0107-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0107-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0107-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0107-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0107-		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0107-	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0107-	●
103	KEY; COUNTER GEAR (C) L=75.3	1-09735-042-0	01	1	0107-		●
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	0107-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0107-	●
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	0107-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0107-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0107-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0107-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0107-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0107-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0107-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0107-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0107-	●
132	SHAFT; REV	1-33351-035-1	01	1	0107-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0107-	●
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	0107-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0107-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0107-	●	●
357	RING	1-31349-015-0	01	1	0107-	●
357	RING	1-31349-044-0	04	1	0107-		●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0107-		●
486	NOZZLE; CONT SHAFT	1-33219-254-0	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
