Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#10686) — 319 parça

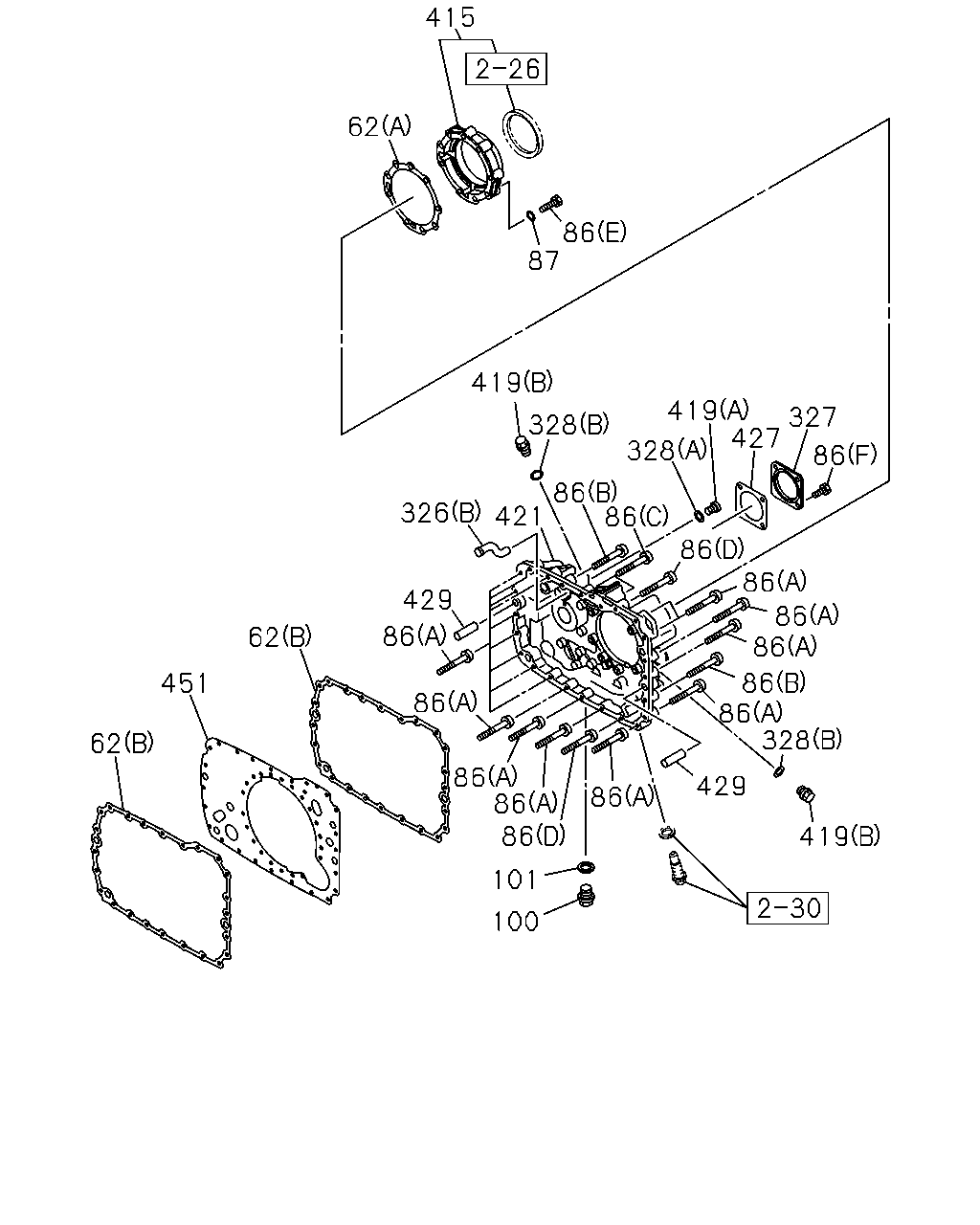

415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	0107-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	0107-
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	0107-
86	BOLT; RR COVER (F) M12X25	1-33119-400-0	04	1	0107-
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	0107-
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	0107-
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	0107-
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	0107-
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	0107-
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	0107-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0107-
327	COVER; RR,COUNTER	1-33131-165-0	01	1	0107-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0107-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0107-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0107-
415	COVER; BRG	1-33159-039-0	01	1	0107-
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	0107-
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	0107-
421	COVER; RR,TRANS	1-33131-244-0	01	1	0107-
427	GASKET; RR COVER	1-33132-054-0	01	1	0107-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0107-
451	PLATE; RR COVER	1-33139-055-0	01	1	0107-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

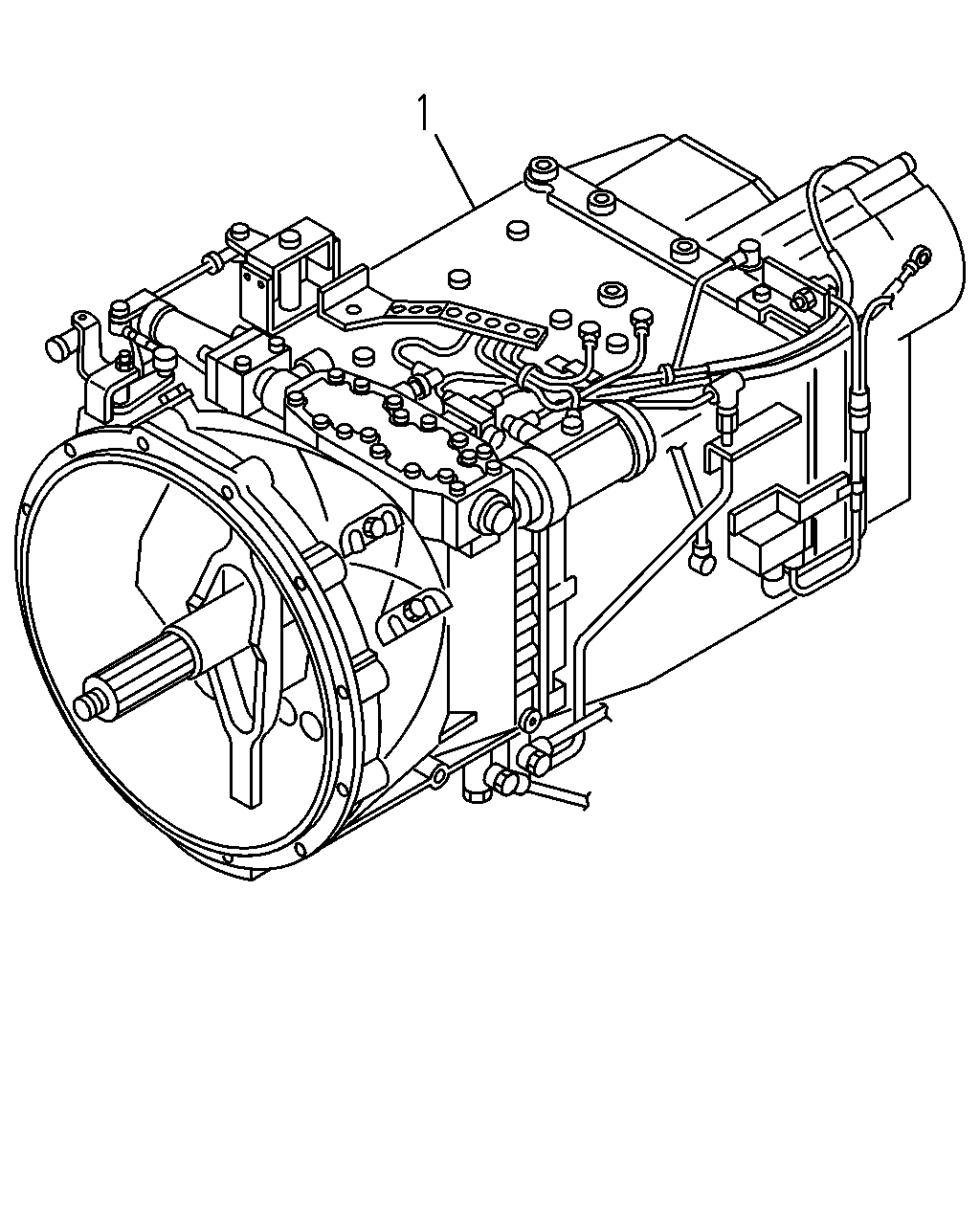

1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-33042-018-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-33043-022-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-020-0	01	1	0107-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

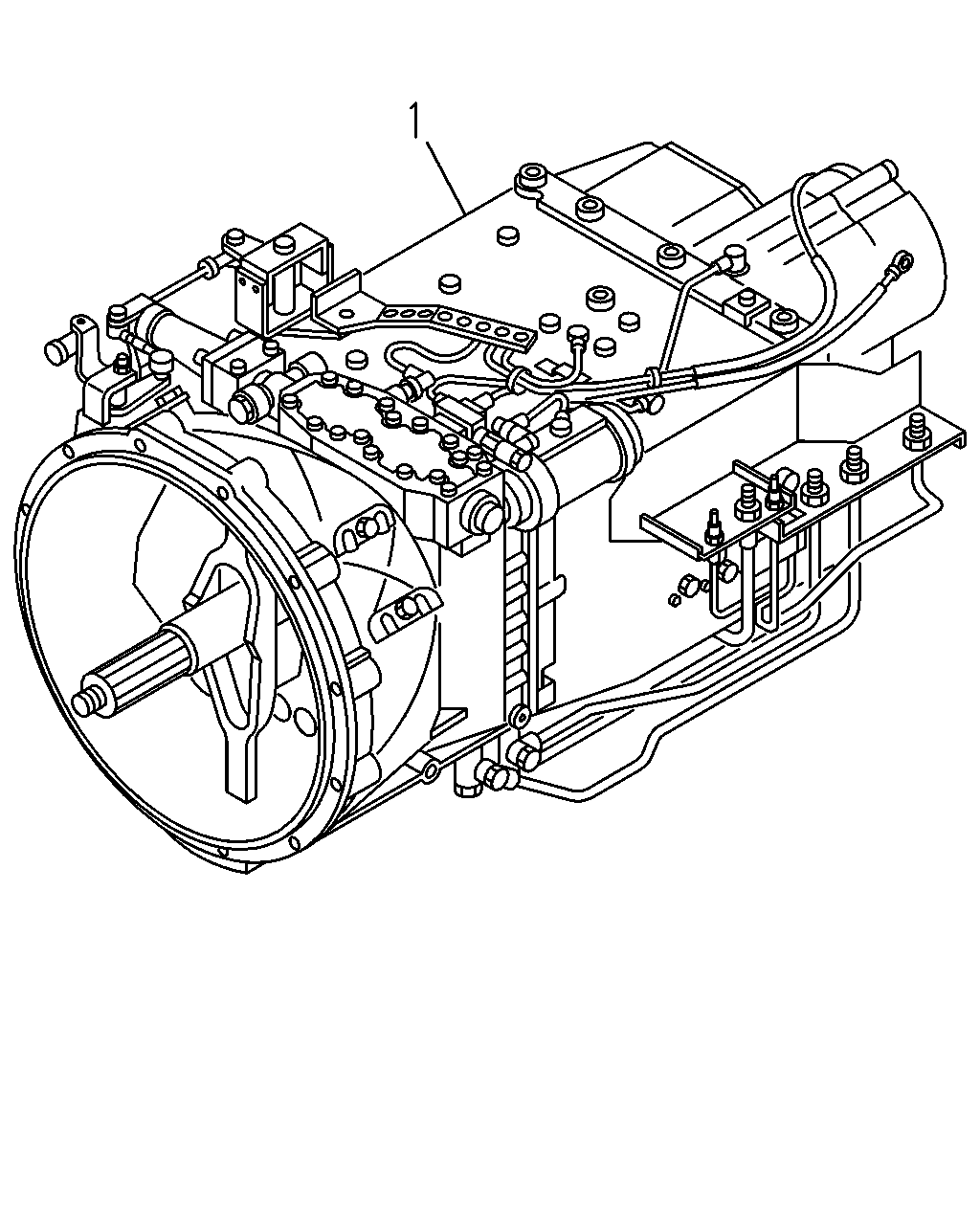

1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>,LIGHT DUTY PACKAGE TRUCK<Y21>	1-33042-018-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-33043-022-0	01	1	0107-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-020-0	01	1	0107-

370 176 175 180 182 181 178 177 187 180 180 180 164 506 184 184 186 265 265 186 405 183 556 199 186 186 185 185 355 506 180 180 432 439 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
164	CONNECTOR; ELBOW EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
164	CONNECTOR; ELBOW LIGHT DUTY PACKAGE TRUCK<Y21> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
175	BRACKET; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-299-0	01	1	0107-
175	BRACKET; UNION LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-847-0	01	1	0107-
175	BRACKET; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-545-0	01	1	0107-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0107-
177	UNION; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0107-
177	UNION; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> M12 2WAY	1-09654-059-2	01	1	0107-
178	NUT; UNION LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE	0-91150-212-0	01	1	0107-
178	NUT; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M14	9-99111-414-0	01	1	0107-
180	CONNECTOR; NYLON TUBE (D)	1-09660-239-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4	1-09654-396-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09660-466-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0107-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0107-
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0107-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0107-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0107-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0107-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0107-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0107-
187	GASKET; CONNECTOR LIGHT DUTY PACKAGE TRUCK<Y21> ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
199	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=14X29 H=15 L=20	1-09700-744-0	01	1	0107-
265	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X16 FLANGE	0-28080-816-0	03	1	0107-
265	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
355	BRACKET; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-476-1	01	1	0107-
355	BRACKET; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-500-1	01	1	0107-
370	SLEEVE; RUBBER,NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=15 L=100	1-09337-026-0	01	1	0107-
370	SLEEVE; RUBBER,NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=9 OD=14 L=35	8-94127-043-0	01	1	0107-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M18	1-09660-213-0	01	1	0107-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14	1-09660-767-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M10X25 FLANGE	0-28781-025-0	02	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M10X40 FLANGE	0-28781-040-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	02	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M16X40 FLANGE	0-28881-640-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0107-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0107-
506	INSERT LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0107-
556	CLIP; OIL HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-83574-134-0	02	1	0107-

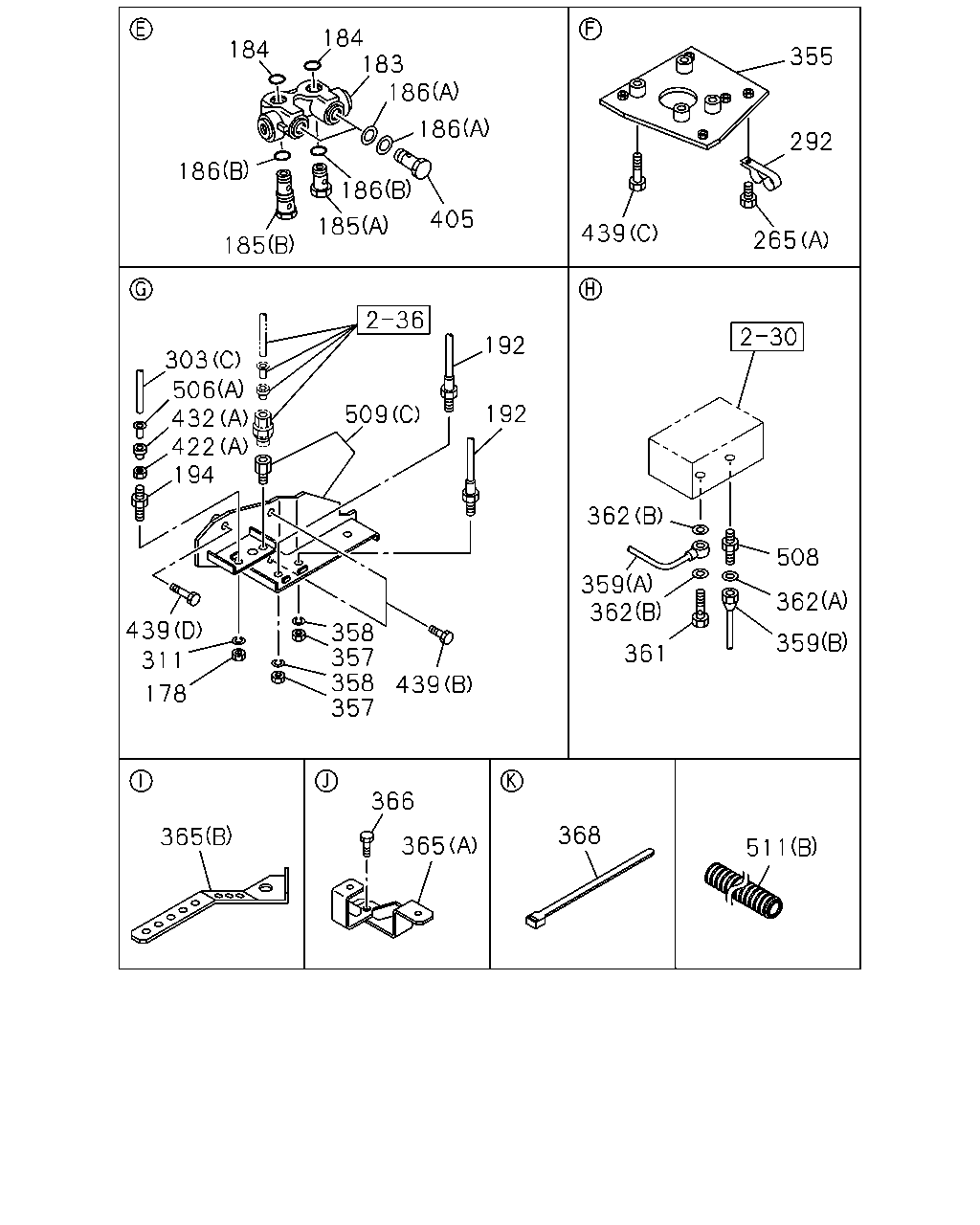

184 183 186 184 355 186 292 186 186 405 185 439 265 185 192 303 506 432 422 194 192 509 362 508 359 362 362 439 358 357 358 357 359 361 311 439 178 366 368 365 365 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	NUT; UNION LIGHT DUTY PACKAGE TRUCK<Y21> M12 FLANGE	0-91150-212-0	01	1	0107-
178	NUT; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M14	9-99111-414-0	01	1	0107-
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0107-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0107-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0107-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0107-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0107-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0107-
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=1030	1-09365-164-0	01	1	0107-
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=980	1-09365-169-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=400	1-09364-913-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=500	1-09364-914-0	01	1	0107-
194	UNION; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M14	1-09664-230-0	01	1	0107-
265	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X16 FLANGE	0-28080-816-0	03	1	0107-
265	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
292	CLIP; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=16 & 16 L=28	1-09701-219-0	01	1	0107-
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1600	1-49213-365-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 OD=8	1-87410-073-0	02	1	0107-0107
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
311	WASHER; LK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=14.2	9-09150-514-0	01	1	0107-
355	BRACKET; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-476-1	01	1	0107-
355	BRACKET; OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-47477-500-1	01	1	0107-
357	NUT; UNION,FLEX HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M22	9-09111-522-0	02	1	0107-
358	WASHER; LK,UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=22.5	9-09150-522-0	02	1	0107-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49118-935-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49118-937-0	01	1	0107-
361	BOLT; EYE,AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M12X24 EYE-BOLT	1-09675-229-0	01	1	0107-
362	GASKET; AIR PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=12.2	1-09630-084-0	01	1	0107-
362	GASKET; AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
362	GASKET; AIR PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=12.2	1-09630-084-0	02	1	0107-
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0107-
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0107-
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0107-
368	CLIP; BAND,CABLE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=140	5-09707-031-1	03	1	0107-
368	CLIP; BAND,CABLE LIGHT DUTY PACKAGE TRUCK<Y21> L=140	5-09707-031-1	02	1	0107-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M18	1-09660-213-0	01	1	0107-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14	1-09660-767-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M10X25 FLANGE	0-28781-025-0	02	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M10X40 FLANGE	0-28781-040-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	02	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M16X40 FLANGE	0-28881-640-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0107-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0107-
506	INSERT LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0107-
508	UNION; AIR EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M10 & M12 STRAIGHT	1-09664-235-0	01	1	0107-
509	BRACKET; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-477-0	01	1	0107-
509	BRACKET; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-021-0	01	1	0107-
509	BRACKET; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-447-2	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 ID=10	1-87410-088-0	01	1	0107-
511	TUBE; CORRUGATE (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-
511	TUBE; CORRUGATE (A) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-

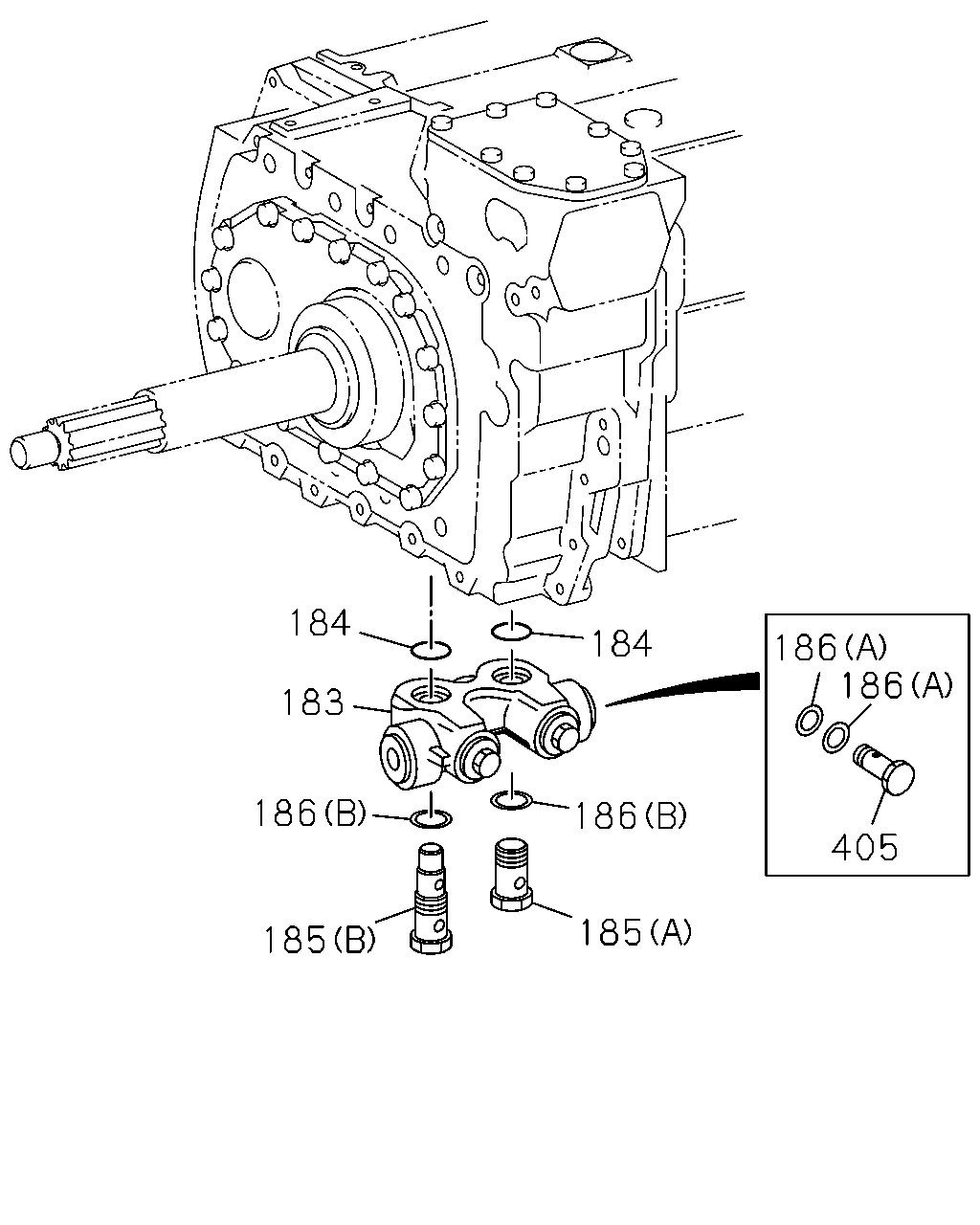

184 184 186 186 183 186 186 405 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0107-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0107-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0107-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0107-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0107-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0107-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0107-

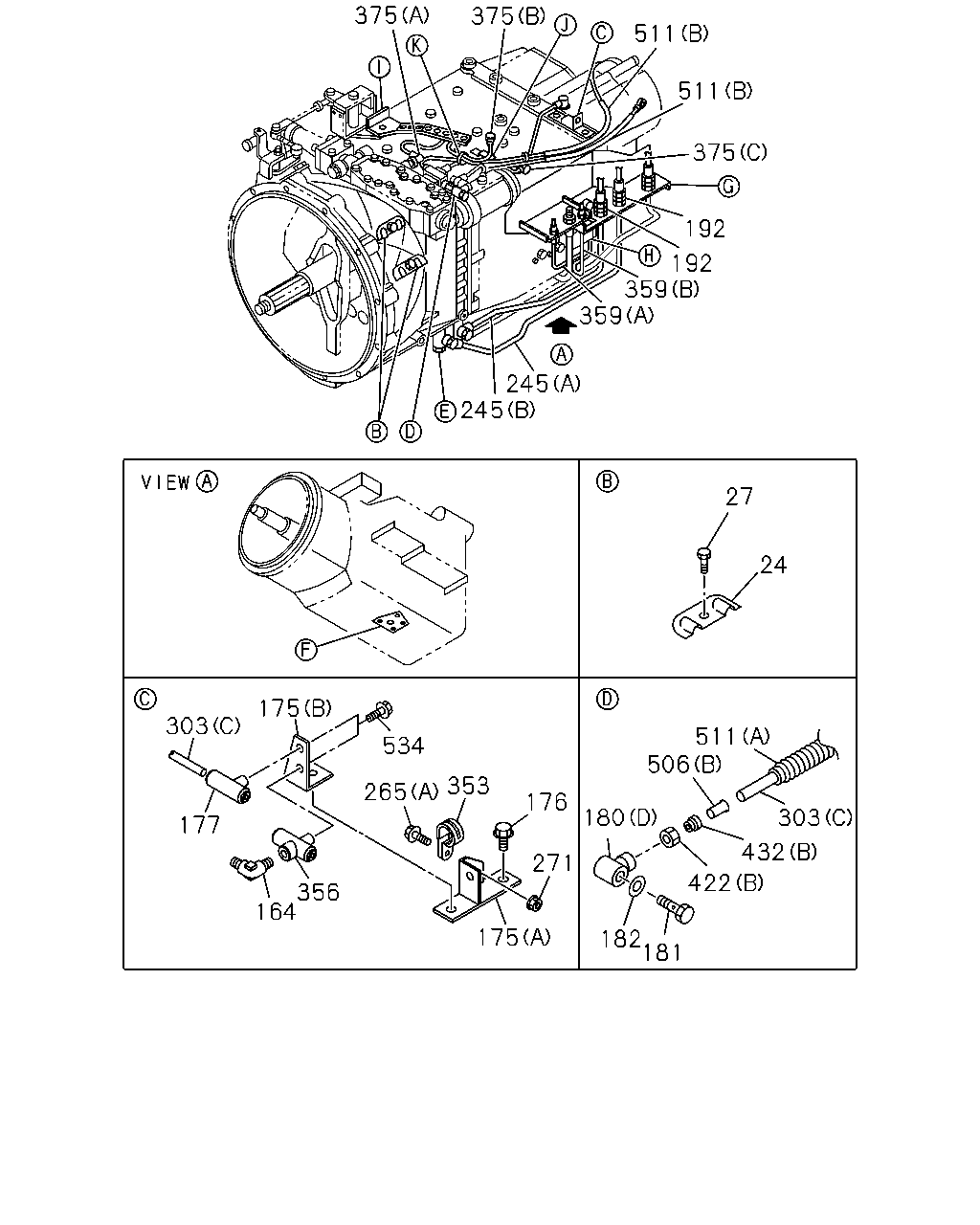

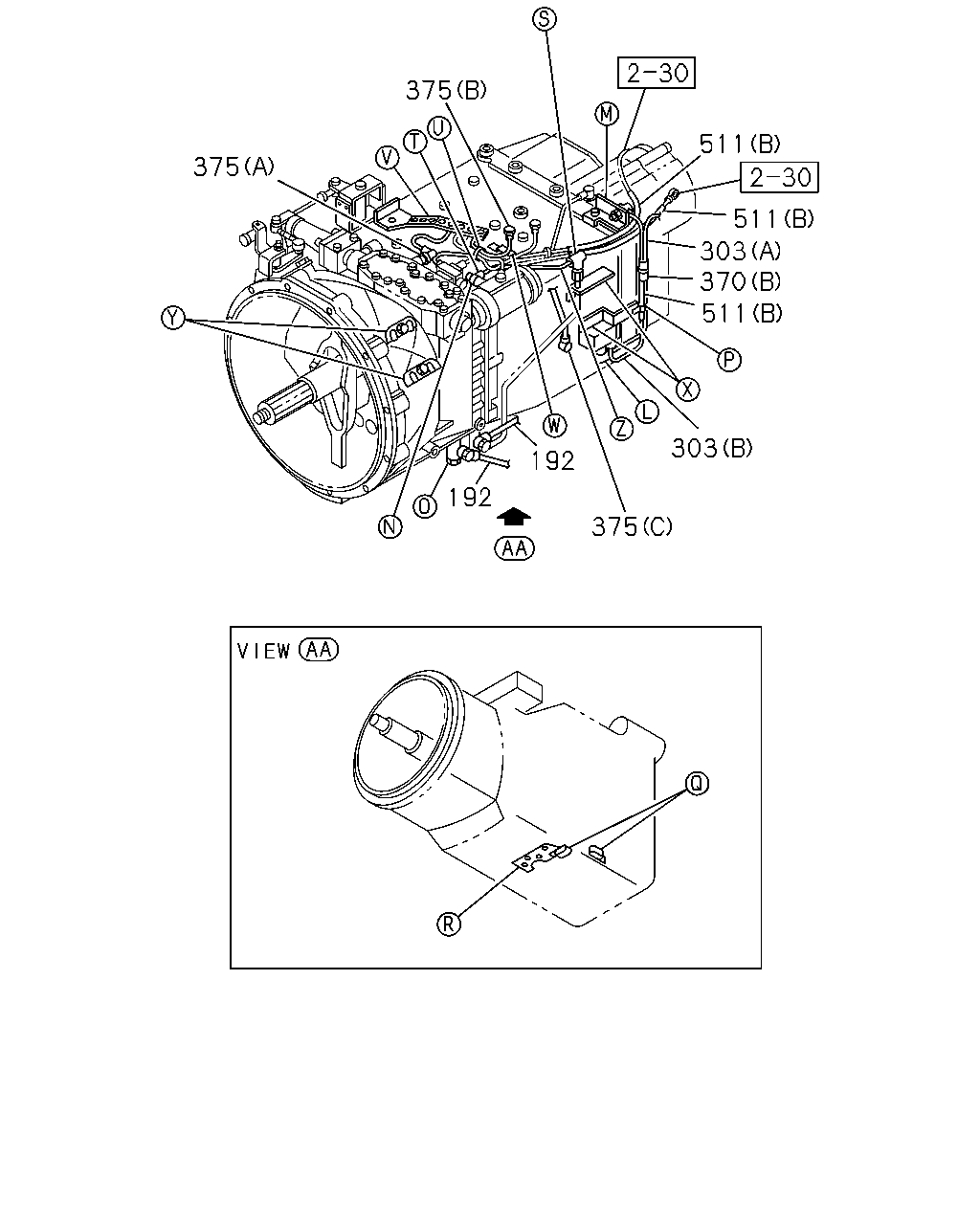

375 511 375 511 303 370 511 303 192 192 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=1030	1-09365-164-0	01	1	0107-
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=980	1-09365-169-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=400	1-09364-913-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=500	1-09364-914-0	01	1	0107-
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1600	1-49213-365-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 OD=8	1-87410-073-0	02	1	0107-0107
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
370	SLEEVE; RUBBER,NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=15 L=100	1-09337-026-0	01	1	0107-
370	SLEEVE; RUBBER,NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=9 OD=14 L=35	8-94127-043-0	01	1	0107-
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0107-
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0107-
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 ID=10	1-87410-088-0	01	1	0107-
511	TUBE; CORRUGATE (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-
511	TUBE; CORRUGATE (A) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-

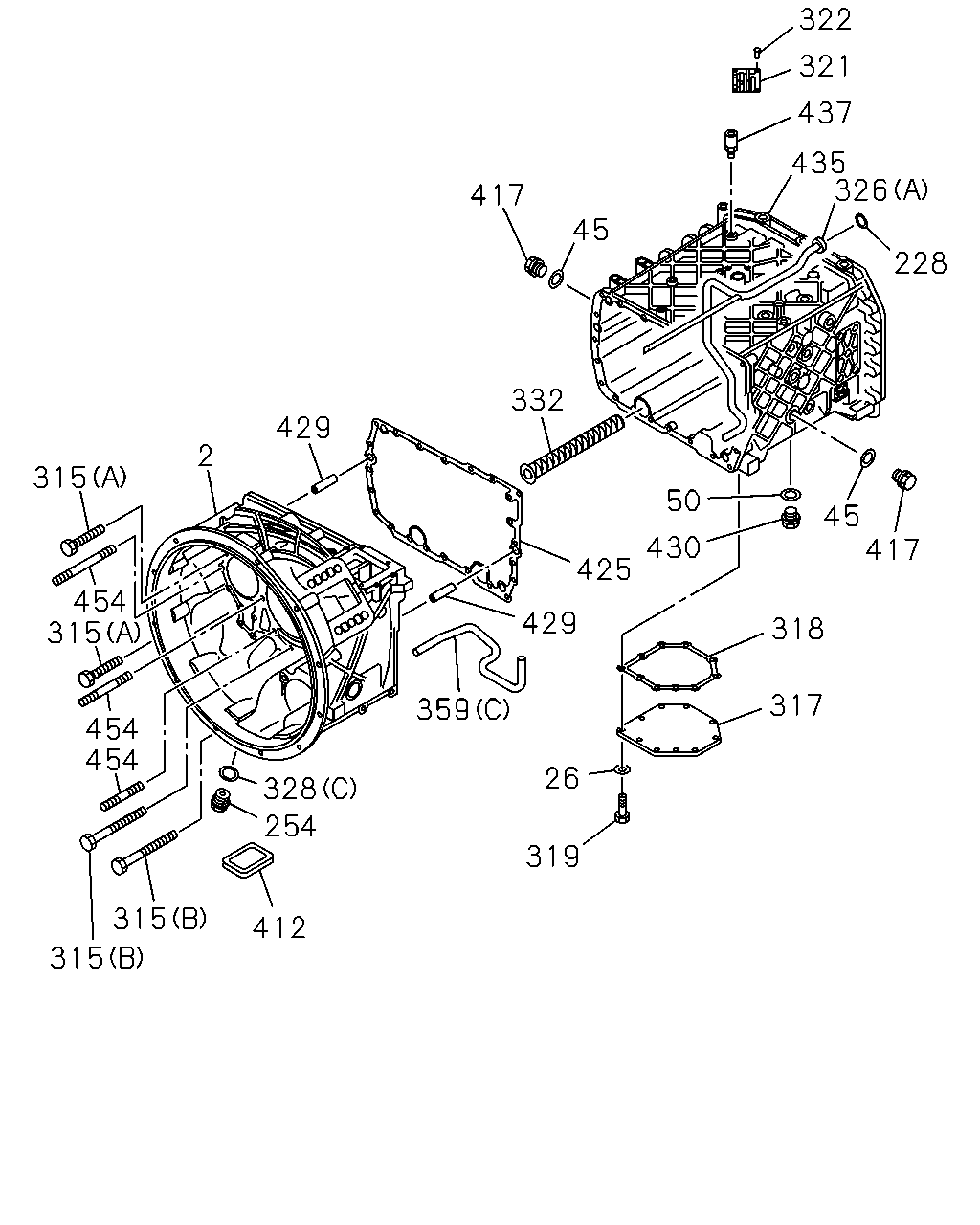

322 321 437 435 326 417 45 228 332 429 2 315 50 45 417 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-194-0	01	1	0107-
26	WASHER; PL,COVER	1-09469-010-0	10	1	0107-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	0107-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0107-
228	GASKET; NOZZLE	1-33119-273-0	01	1	0107-
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	0107-
315	BOLT; CASE (A)	1-33119-266-0	15	1	0107-
315	BOLT; CASE (B)	1-33119-267-0	07	1	0107-
317	COVER; CASE	1-33119-274-0	01	1	0107-
318	GASKET; COVER	1-33119-409-0	01	1	0107-
319	BOLT; COVER	1-33119-276-0	10	1	0107-
321	PLATE; NAME	1-33119-277-0	01	1	0107-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0107-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0107-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0107-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0107-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0107-
332	FILTER; OIL	1-33119-370-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49118-935-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49118-937-0	01	1	0107-
412	CAP; CLU HSG	1-31119-022-0	01	1	0107-
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	0107-
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	0107-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0107-
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	0107-
435	CASE; TRANS	1-33111-290-0	01	1	0107-
437	BREATHER; TRANS	1-36122-004-0	01	1	0107-
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	0107-
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	0107-
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	0107-

366 365 368 365 439 509 27 511 303 24 509 439 449 511 353 511 406 576

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0107-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0107-
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1600	1-49213-365-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 OD=8	1-87410-073-0	02	1	0107-0107
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
353	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 L=27	1-09700-809-0	01	1	0107-0107
353	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=250	1-09707-126-0	03	1	0107-
353	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=12 & 12	1-09709-280-1	01	1	0107-
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0107-
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0107-
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0107-
368	CLIP; BAND,CABLE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=140	5-09707-031-1	03	1	0107-
368	CLIP; BAND,CABLE LIGHT DUTY PACKAGE TRUCK<Y21> L=140	5-09707-031-1	02	1	0107-
406	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (A) M10X25 FLANGE	0-28781-025-0	02	1	0107-
439	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M10X40 FLANGE	0-28781-040-0	04	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M16X25 FLANGE	0-28881-625-0	02	1	0107-
439	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M16X40 FLANGE	0-28881-640-0	01	1	0107-
449	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
509	BRACKET; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-477-0	01	1	0107-
509	BRACKET; PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-021-0	01	1	0107-
509	BRACKET; PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-447-2	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 ID=10	1-87410-088-0	01	1	0107-
511	TUBE; CORRUGATE (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-
511	TUBE; CORRUGATE (A) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-
576	BRACKET; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> L=115 H=30	1-47477-715-3	02	1	0107-

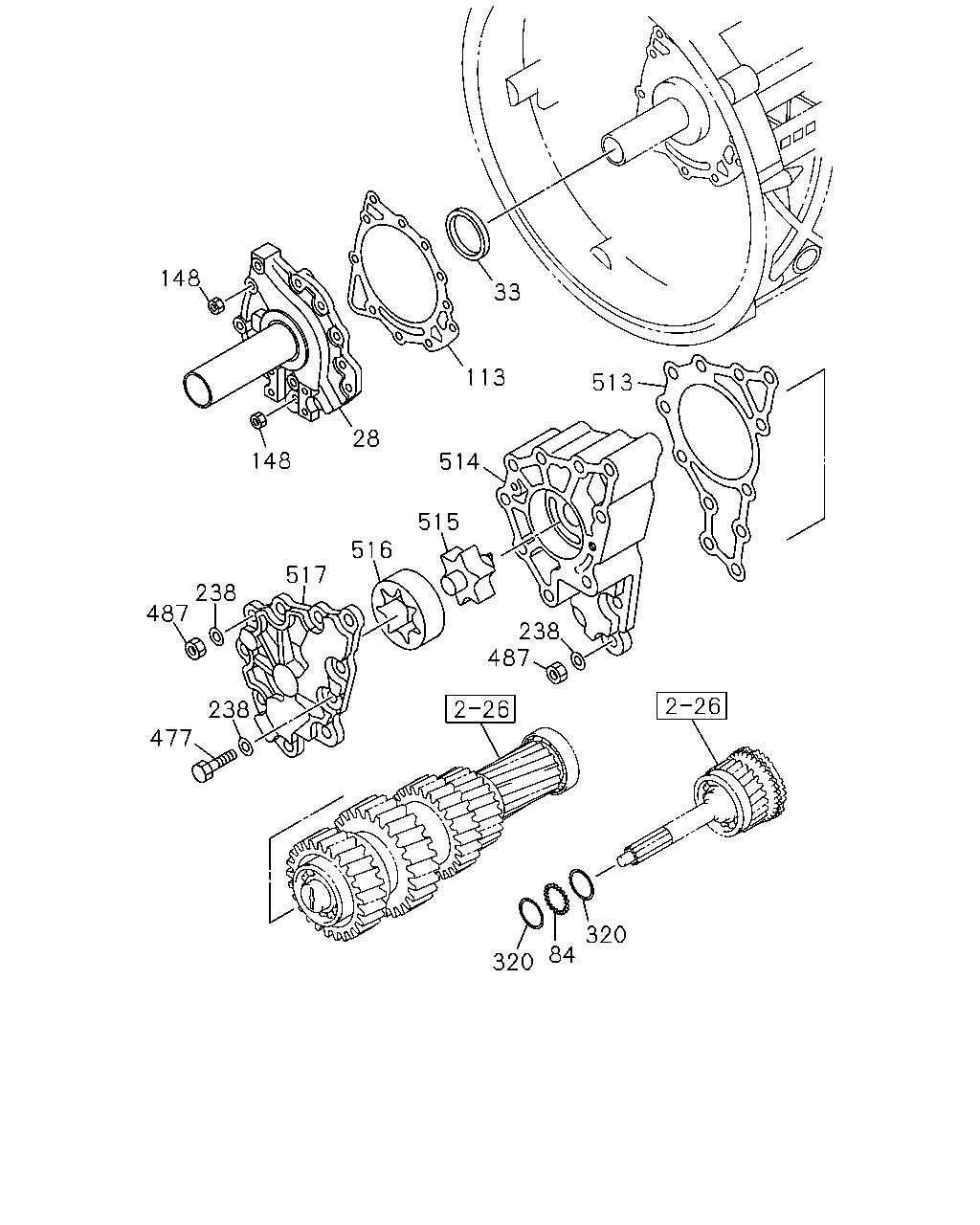

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	COVER; FRT,TRANS CASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-33121-146-0	01	1	0107-
28	COVER; FRT,TRANS CASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33121-149-0	01	1	0107-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	0107-
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	0107-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	0107-
148	NUT	1-33529-056-0	11	1	0107-
238	WASHER; PL	1-09469-010-0	14	1	0107-
320	WASHER; COVER	1-33129-007-0	02	1	0107-
477	BOLT; OIL PUMP	1-33529-055-0	02	1	0107-
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	0107-
513	GASKET; HOUSING	1-34159-058-0	01	1	0107-
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	0107-
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	0107-
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	0107-
517	COVER; OIL PUMP	1-34159-071-0	01	1	0107-

375 375 511 511 375 192 192 359 359 245 245 27 24 175 303 511 506 534 353 265 176 180 303 177 432 271 422 356 164 175 182 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0107-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0107-
164	CONNECTOR; ELBOW EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
164	CONNECTOR; ELBOW LIGHT DUTY PACKAGE TRUCK<Y21> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
175	BRACKET; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47479-299-0	01	1	0107-
175	BRACKET; UNION LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47478-847-0	01	1	0107-
175	BRACKET; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47477-545-0	01	1	0107-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0107-
177	UNION; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0107-
177	UNION; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> M12 2WAY	1-09654-059-2	01	1	0107-
180	CONNECTOR; NYLON TUBE (D)	1-09660-239-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (A) PT1/4	1-09654-396-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09660-466-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0107-
180	CONNECTOR; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> (E) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0107-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0107-
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=1030	1-09365-164-0	01	1	0107-
192	HOSE; FLEX,TRANS LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=980	1-09365-169-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> OUTLET L=400	1-09364-913-0	01	1	0107-
192	HOSE; FLEX,TRANS EXC. LIGHT DUTY PACKAGE TRUCK<Y21> INLET L=500	1-09364-914-0	01	1	0107-
245	PIPE; OIL EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49161-055-0	01	1	0107-
245	PIPE; OIL EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49161-061-0	01	1	0107-
265	BOLT; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X16 FLANGE	0-28080-816-0	03	1	0107-
265	BOLT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
271	NUT; CLIP EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-0107
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=1600	1-49213-365-0	01	1	0107-
303	TUBE; NYLON LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 OD=8	1-87410-073-0	02	1	0107-0107
303	TUBE; NYLON EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-
353	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=24 L=27	1-09700-809-0	01	1	0107-0107
353	CLIP; NYLON TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=250	1-09707-126-0	03	1	0107-
353	CLIP; NYLON TUBE LIGHT DUTY PACKAGE TRUCK<Y21> ID=12 & 12	1-09709-280-1	01	1	0107-
356	UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-49118-935-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-49118-937-0	01	1	0107-
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0107-
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0107-
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M18	1-09660-213-0	01	1	0107-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0107-
422	NUT; SLEEVE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14	1-09660-767-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0107-
432	SLEEVE; TUBE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0107-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0107-
506	INSERT LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
506	INSERT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=2000 ID=10	1-87410-088-0	01	1	0107-
511	TUBE; CORRUGATE (B) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-
511	TUBE; CORRUGATE (A) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0107-
534	BOLT; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X12 FLANGE	0-28080-812-0	01	1	0107-0107
534	BOLT; UNION EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X16 FLANGE	0-28080-816-0	02	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
