Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#10680) — 344 parça

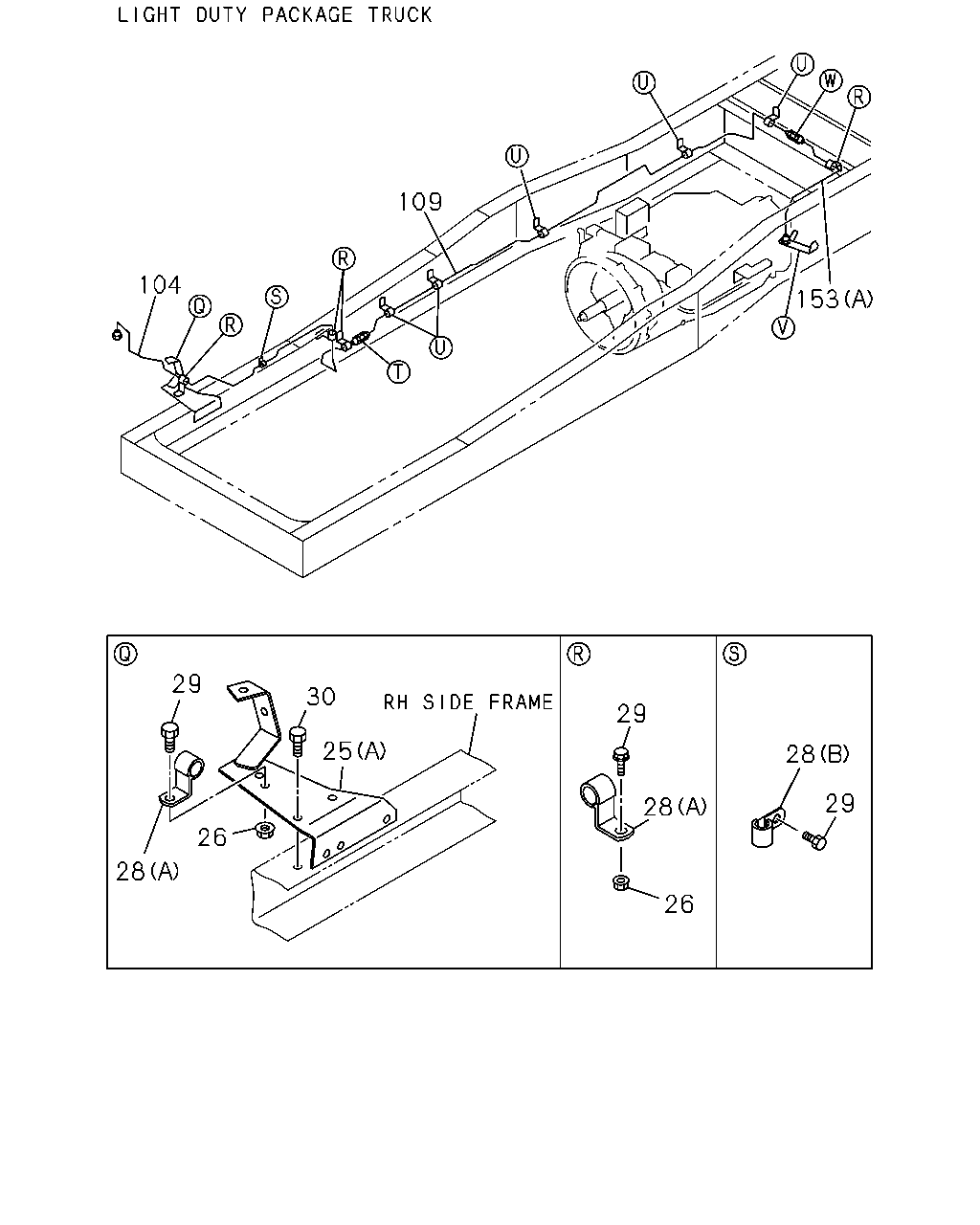

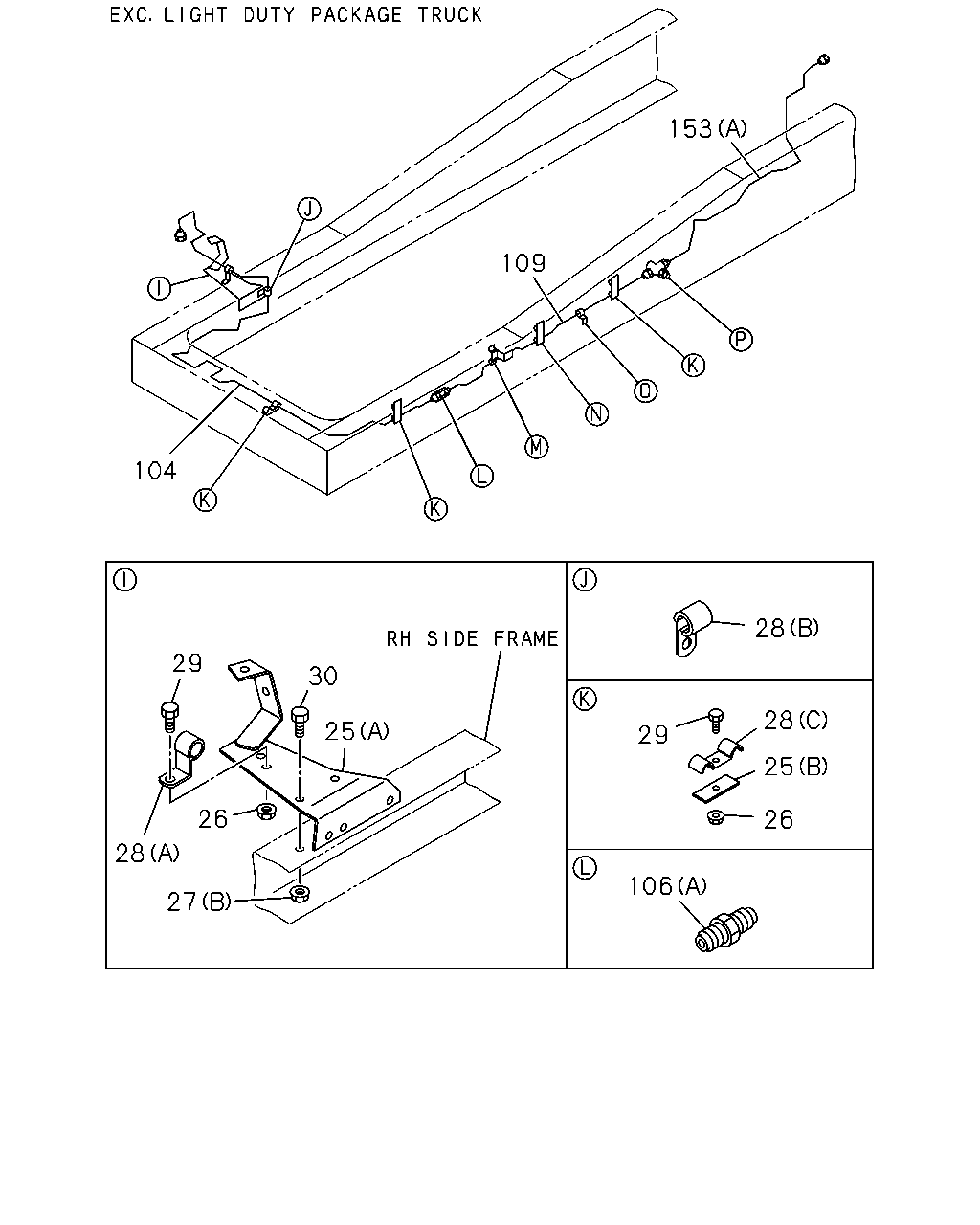

153 109 104 28 29 30 28 25 29 25 26 26 28 27 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-47478-406-0	01	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10 FLANGE	0-91150-210-0	02	1	0107-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> STUD M8X12,M10X20 L=39	1-09039-005-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	0107-
30	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
30	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	0107-
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-212-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-746-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
106	UNION; OIL PIPE ZF M/T<X9E> (B)	1-09654-384-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> L=2443 SERVICED BY L=2700	1-47428-772-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-

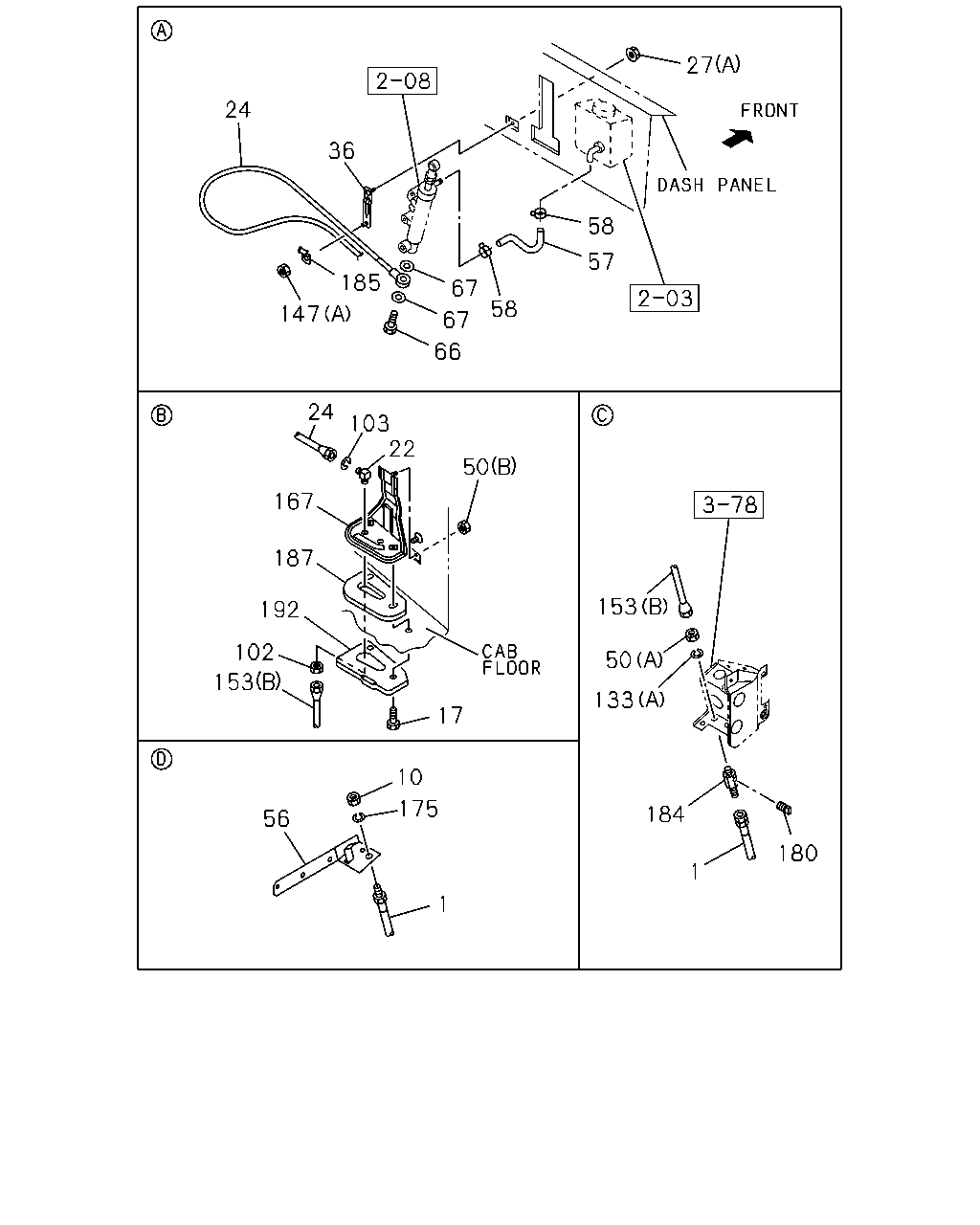

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0107-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-212-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-746-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-
167	BRACKET; UNION	1-71117-183-3	01	1	0107-

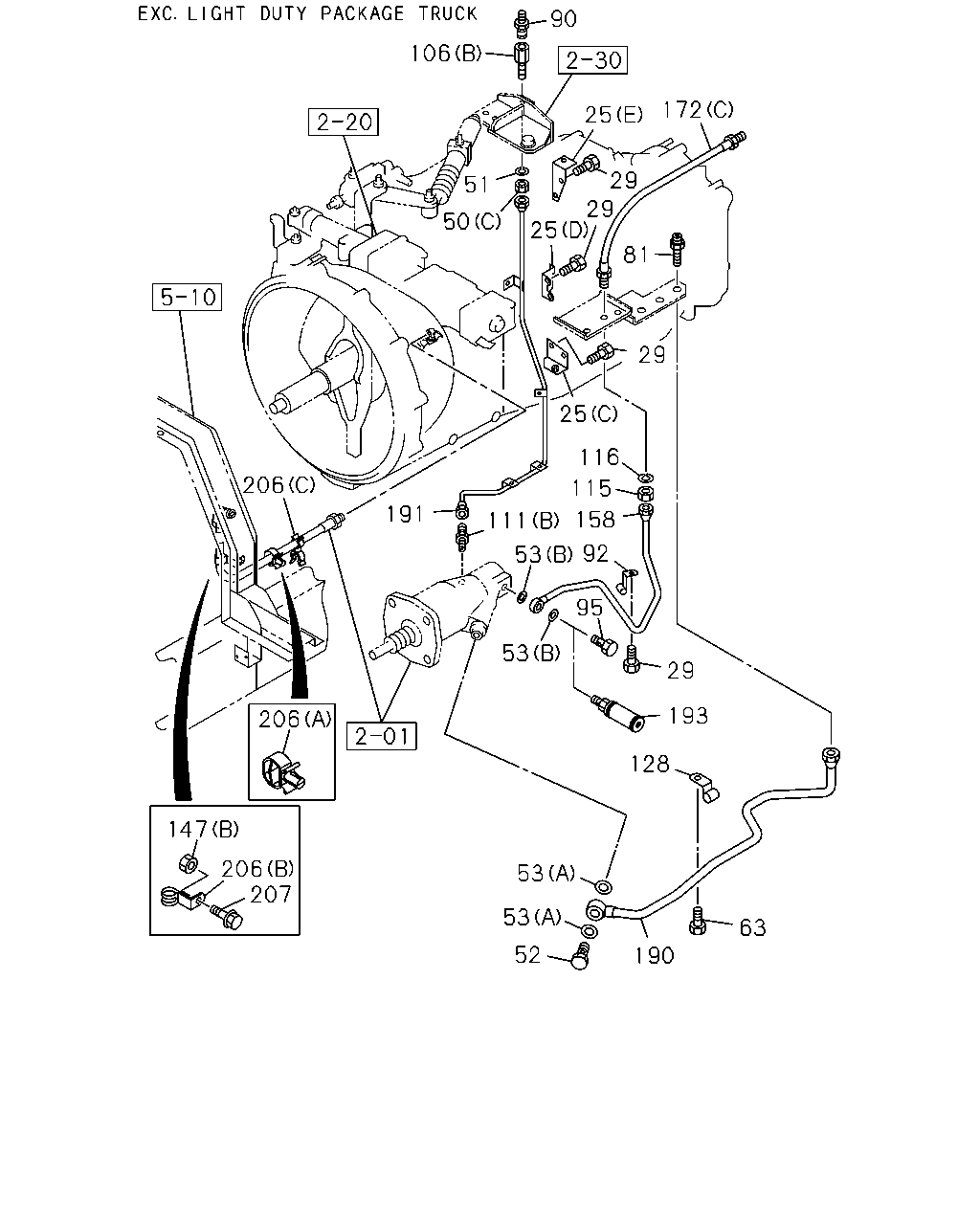

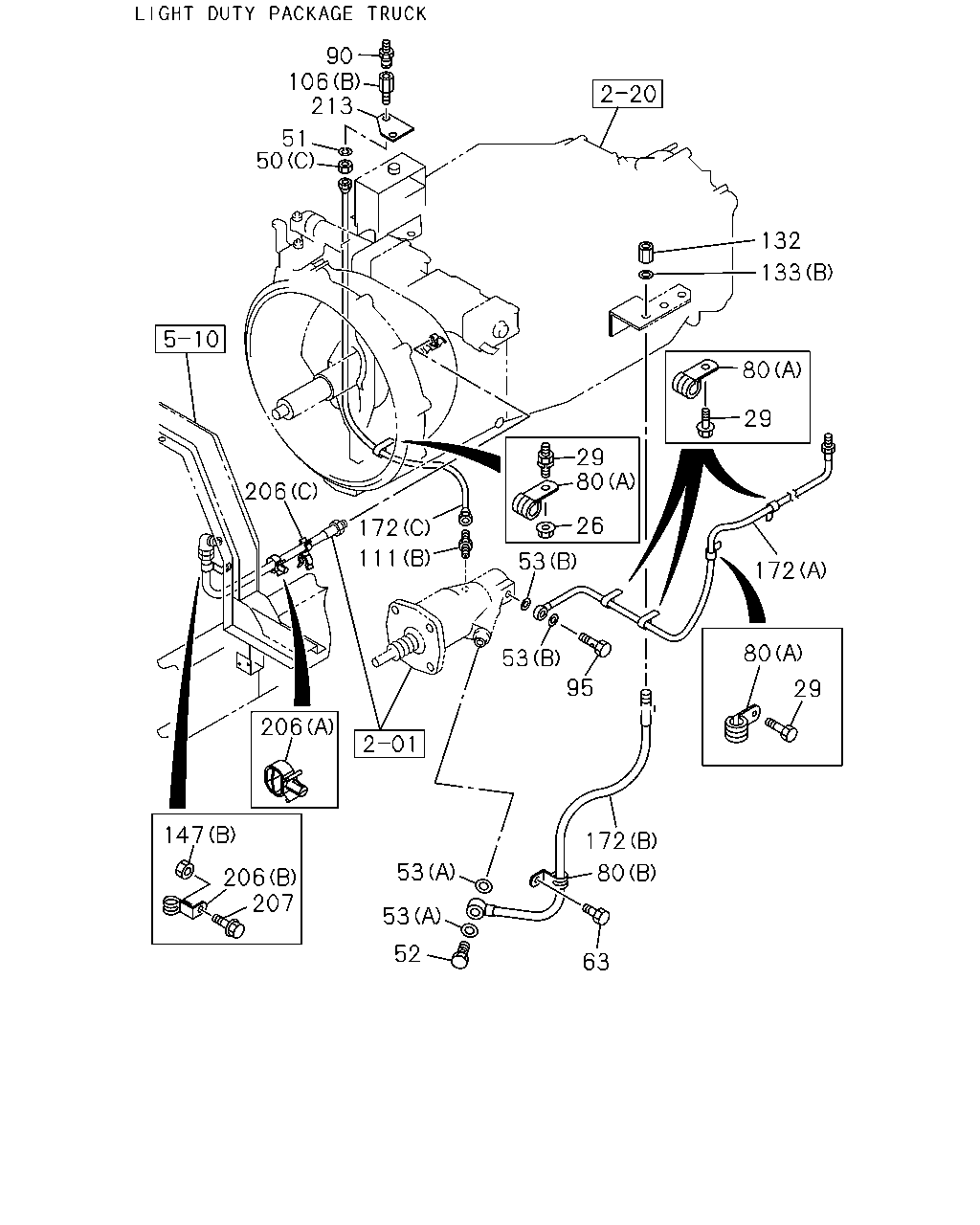

90 106 172 25 29 29 25 51 50 81 29 25 116 206 115 191 158 111 92 53 95 53 29 193 206 128 147 206 207 53 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-47478-406-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> STUD M8X12,M10X20 L=39	1-09039-005-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 FLANGE	0-91150-212-0	01	1	0107-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0107-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0107-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-09664-233-0	01	1	0107-
90	NIPPLE; OIL PIPE ZF M/T<X9E>	1-31829-485-0	01	1	0107-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=9 H=32 L=24	1-09701-221-0	01	1	0107-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
106	UNION; OIL PIPE ZF M/T<X9E> (B)	1-09654-384-0	01	1	0107-
111	UNION; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M14 2WAY	1-09654-176-2	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=13 H=18 L=20	1-09701-232-0	01	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49161-054-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09365-071-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09365-127-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=570	1-09365-162-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=380	1-09364-261-0	01	1	0107-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49161-730-0	01	1	0107-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49163-428-0	01	1	0107-
193	ABSORBER; CLU TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-31820-023-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13 & 12	8-94178-797-0	01	1	0107-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-

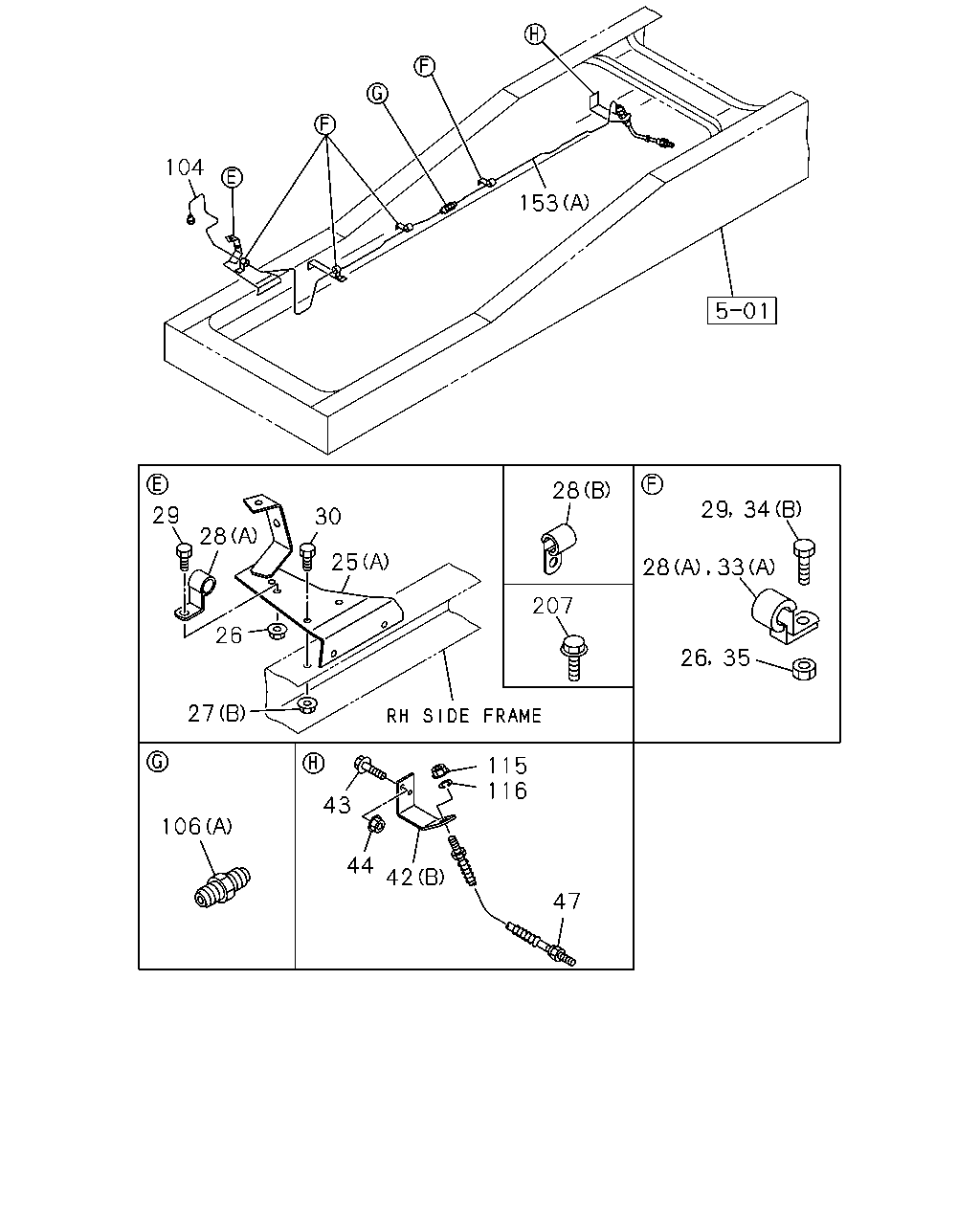

104 153 28 29 34 29 30 28 25 28 33 207 26 26 35 27 115 116 43 106 44 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-47478-406-0	01	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10 FLANGE	0-91150-210-0	02	1	0107-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> STUD M8X12,M10X20 L=39	1-09039-005-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	0107-
30	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
30	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	0107-
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
33	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	05	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
34	BOLT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	05	1	0107-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
35	NUT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	05	1	0107-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-841-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-47479-261-0	01	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-212-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-746-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
106	UNION; OIL PIPE ZF M/T<X9E> (B)	1-09654-384-0	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-

33 33 30 34 35 32 33 34 31 32 50 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
30	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	0107-
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
31	NUT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
32	BRACKET; CLIP OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47477-669-1	01	1	0107-
32	BRACKET; CLIP OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=50	1-47475-299-2	01	1	0107-
33	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	05	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
34	BOLT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	05	1	0107-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
35	NUT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	05	1	0107-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 FLANGE	0-91150-212-0	01	1	0107-
111	UNION; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M14 2WAY	1-09654-176-2	01	1	0107-

34 153 106 44 115 116 33 43 172 35 42 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	05	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
33	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
34	BOLT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	05	1	0107-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
35	NUT; PIPE CLIP LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	05	1	0107-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0107-
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-47478-841-0	01	1	0107-
42	BRACKET; FLEX HOSE,CLU CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-47479-261-0	01	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	02	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
106	UNION; OIL PIPE ZF M/T<X9E> (B)	1-09654-384-0	01	1	0107-
111	UNION; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M14 2WAY	1-09654-176-2	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09365-071-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09365-127-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=570	1-09365-162-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=380	1-09364-261-0	01	1	0107-

90 106 213 51 50 132 133 80 29 29 80 206 26 172 111 53 172 80 53 95 29 206 147 172 53 80 206 207 53 52 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> STUD M8X12,M10X20 L=39	1-09039-005-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 FLANGE	0-91150-212-0	01	1	0107-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0107-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0107-
80	CLIP; HOSE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0107-
80	CLIP; HOSE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16 L=28	1-09700-872-0	05	1	0107-
90	NIPPLE; OIL PIPE ZF M/T<X9E>	1-31829-485-0	01	1	0107-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
106	UNION; OIL PIPE ZF M/T<X9E> (B)	1-09654-384-0	01	1	0107-
111	UNION; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
111	UNION; OIL PIPE ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M14 2WAY	1-09654-176-2	01	1	0107-
132	NUT; UNION,AIR PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M16	9-99111-516-0	01	1	0107-
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	0107-
133	WASHER; LK,UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16.2	9-09150-516-0	01	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-09365-071-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (A)	1-09365-127-1	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=570	1-09365-162-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=380	1-09364-261-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13 & 12	8-94178-797-0	01	1	0107-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28181-016-0	02	1	0107-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-
213	BRACKET; OIL HOSE LIGHT DUTY PACKAGE TRUCK<Y21>	1-47478-478-0	01	1	0107-

109 104 153 29 30 29 25 28 28 29 26 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (E)	1-47478-406-0	01	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-
26	NUT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	04	1	0107-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> STUD M8X12,M10X20 L=39	1-09039-005-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	04	1	0107-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	03	1	0107-
30	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
30	BOLT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X35 FLANGE	0-28680-835-0	02	1	0107-
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-49166-212-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR LIGHT DUTY PACKAGE TRUCK<Y21>	1-49165-746-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION LIGHT DUTY PACKAGE TRUCK<Y21> L=2443 SERVICED BY L=2700	1-47428-772-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-

27 24 36 58 57 185 67 58 147 67 66 24 103 22 50 167 187 153 192 102 50 153 133 17 10 175 184 56 180 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0107-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0107-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E>	1-47427-608-0	01	1	0107-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) M10 FLANGE	0-91150-210-0	02	1	0107-
36	BRACKET; CLIP	1-71117-191-1	01	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION ZF M/T<X9E> EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (D) M12 FLANGE	0-91150-212-0	01	1	0107-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0107-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0107-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0107-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0107-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	0107-
133	WASHER; LK,UNION LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=16.2	9-09150-516-0	01	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX IRELAND EQUIPMENT(NJY) (B) L=500 SERVICED BY L=500	1-47428-752-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX EXC. IRELAND EQUIPMENT(NJY) (B) L=464	1-47424-530-2	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=411	1-49165-607-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-ZF 16S221 OD(Y1U) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=955	1-49163-430-0	01	1	0107-
167	BRACKET; UNION	1-71117-183-3	01	1	0107-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-
180	PLUG; PIPE	9-09204-510-0	01	1	0107-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0107-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0107-
187	SEAL; BRKT	1-71117-222-0	01	1	0107-
192	PLATE	1-71117-221-0	01	1	0107-

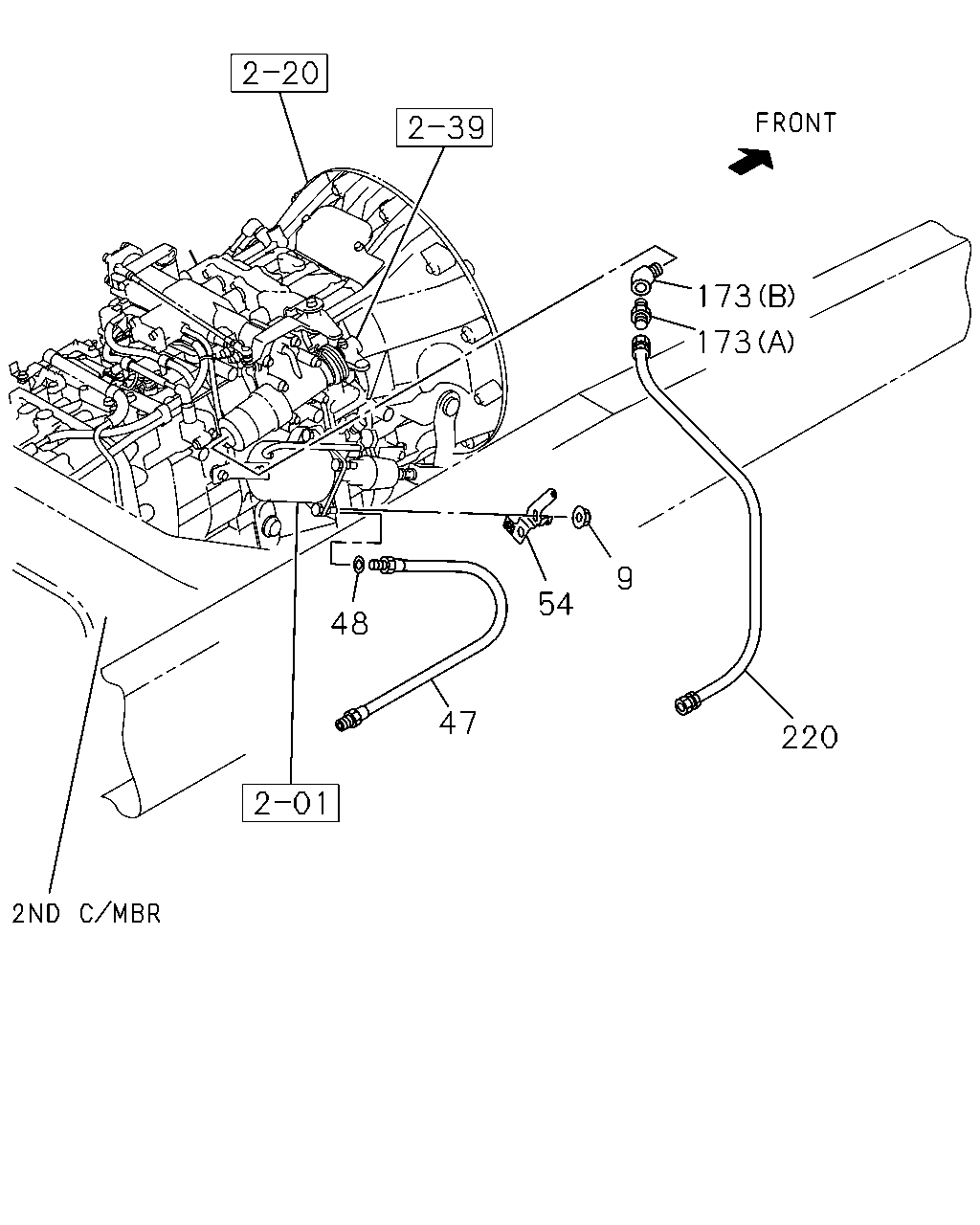

173 173 9 54 48 47 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0107-
173	CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
173	CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0107-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=340	1-09363-617-0	01	1	0107-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
