◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#10679) — 31 parça

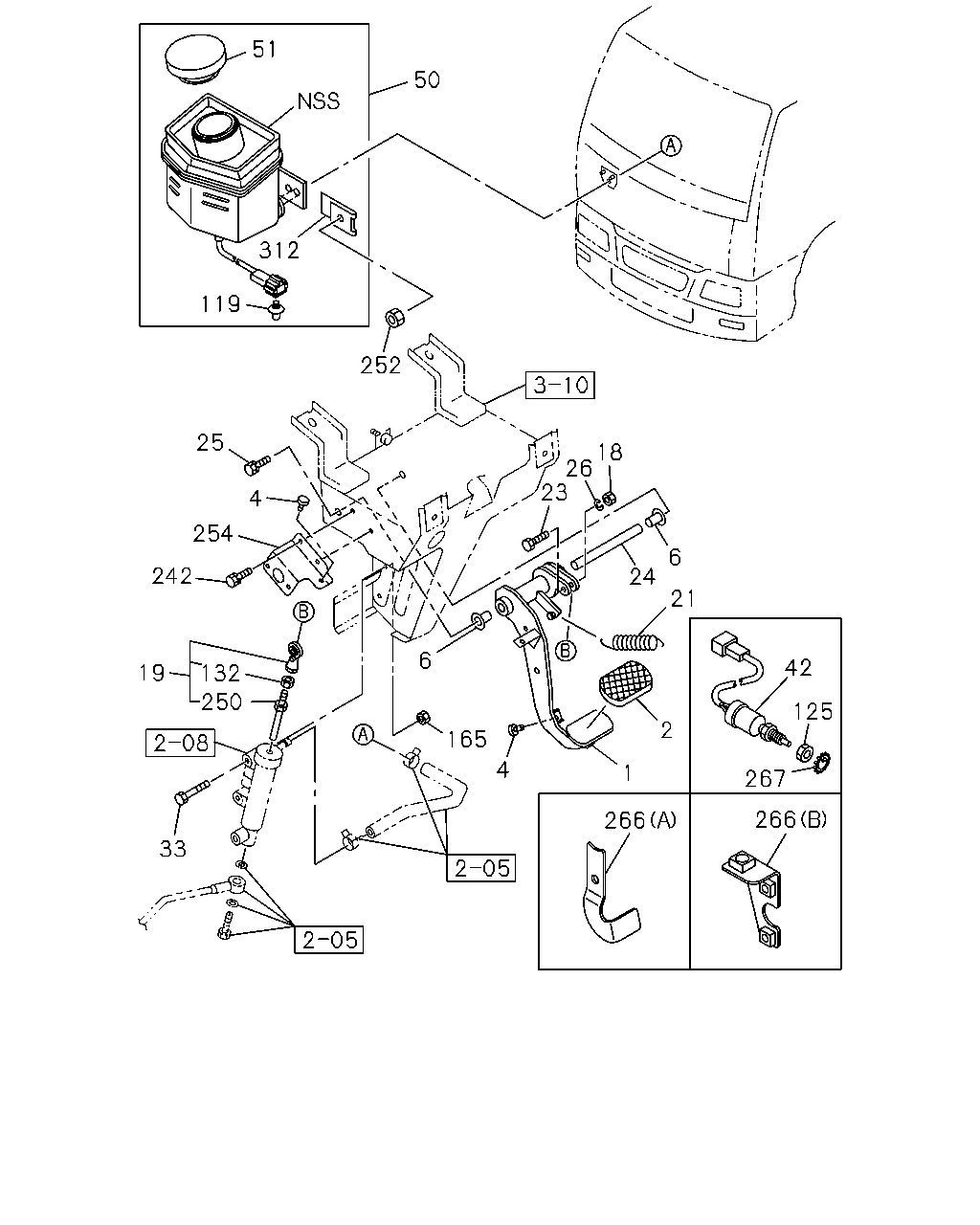

çizim 76249
51 50 312 119 252 25 18 26 23 4 254 6 242 24 21 6 42 19 132 250 125 2 165 4 1 267 266 266 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
MJD7S M/T(Y2Y) 		1-73907-321-4 01 1 0107-
1 PEDAL; CLU
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-73907-469-1 01 1 0107-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0107-
4 STOPPER; CLU PEDAL
MJD7S M/T(Y2Y) 		1-47319-014-1 04 1 0107-
4 STOPPER; CLU PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-47319-014-1 02 1 0107-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0107-
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0107-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0107-
21 SPRING; RETURN,CLU PEDAL
MJD7S M/T(Y2Y) 		1-73908-265-0 01 1 0107-
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-73907-445-0 01 1 0107-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0107-
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0107-
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0107-
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0107-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0107-
42 SWITCH; CLU
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 		1-82380-114-2 01 1 0107-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0107-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0107-
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0107-
125 NUT; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) M10 		9-09110-510-0 01 1 0107-
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0107-
165 NUT; CLU M/CYL
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0107-
242 BOLT; BRKT,CLUTCH
MJD7S M/T(Y2Y) M6X16 W/LK WASHER 		0-50040-616-0 02 1 0107-
242 BOLT; BRKT,CLUTCH
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0107-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0107-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0107-
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0107-
266 BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) 		1-73907-395-1 01 1 0107-
266 BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) 		1-73908-354-0 01 1 0107-
267 WASHER; LK,CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=10.2 		9-09150-510-0 01 1 0107-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0107-
