2-01B — CLUTCH (#10678) — 75 parça

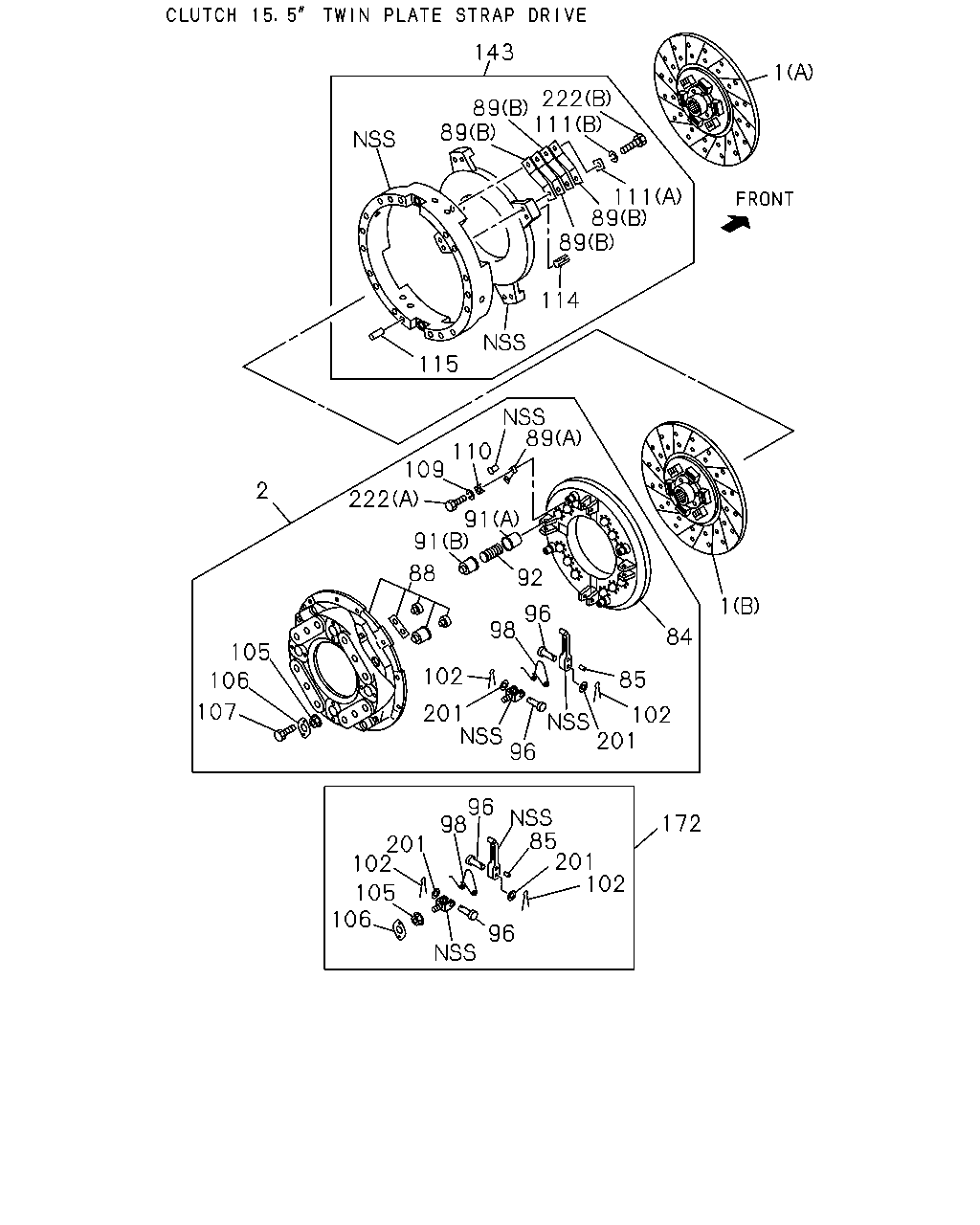

143 1 222 89 111 89 111 89 89 114 115 89 110 109 2 222 91 91 88 92 1 96 98 84 105 102 85 106 107 201 96 102 201 96 98 85 201 102 172 201 102 105 106 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-883-0	01	1	0107-
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-884-0	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-299-3	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0107-
84	PLATE; PRESSURE	1-31221-092-0	01	1	0107-
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0107-
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	0107-
89	PLATE; STRAP (B)	1-31229-010-0	12	1	0107-
89	PLATE; STRAP (A)	1-31229-048-0	20	1	0107-
91	SEAT; SPR (B)	1-31219-045-0	12	1	0107-
91	SEAT; SPR (A)	1-31219-046-0	12	1	0107-
92	SPRING; CLU 6WF1 TC(84L)	1-31214-055-0	12	1	0107-
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0107-
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0107-
98	SPRING; RETURN	1-31233-007-0	04	1	0107-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0107-
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0107-
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0107-
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0107-
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0107-
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0107-
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0107-
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0107-
143	PLATE; INTERMEDIATE	1-31221-110-0	01	1	0107-
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	0107-
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0107-
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0107-
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0107-

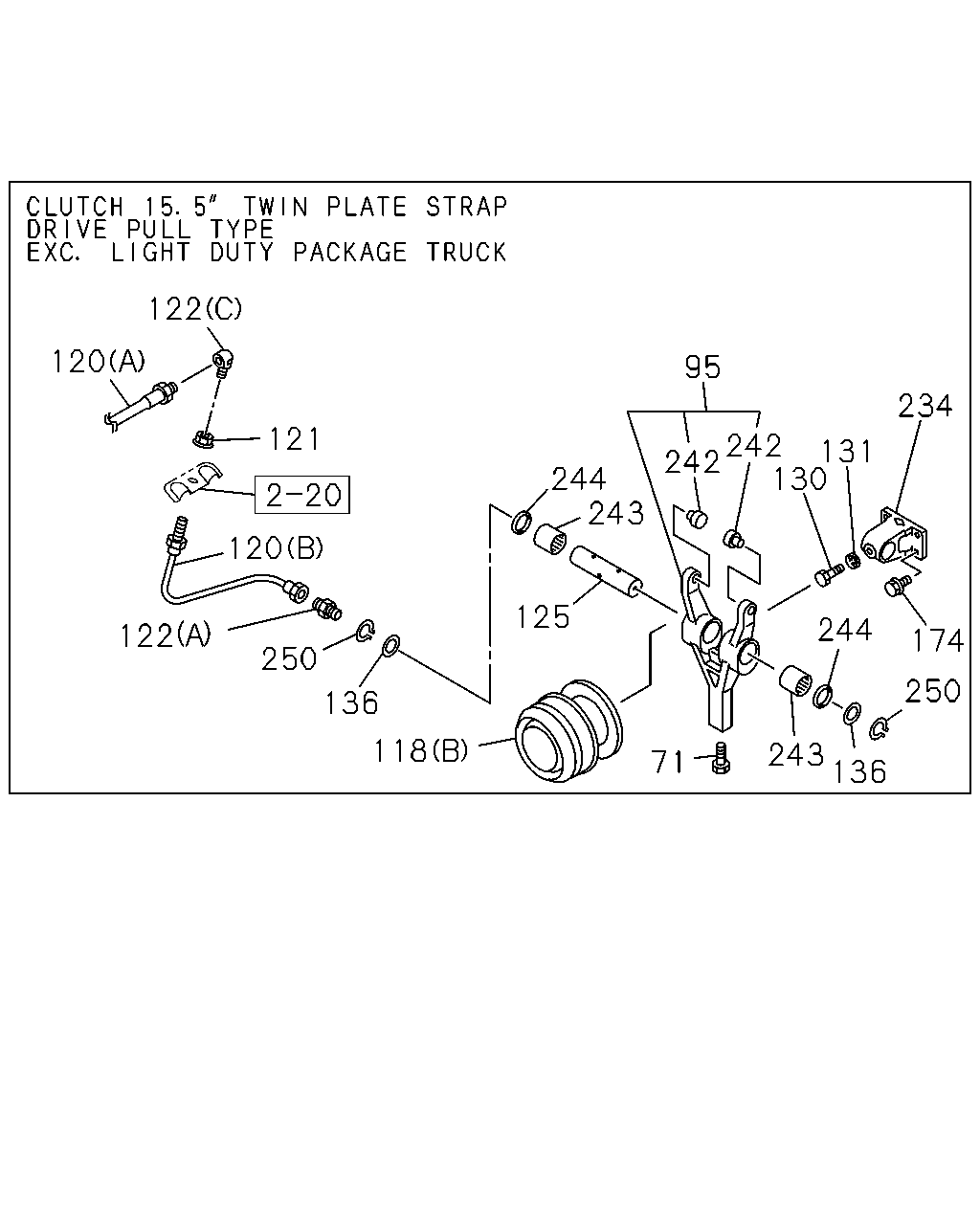

122 120 95 234 121 242 131 242 130 244 243 120 125 244 122 174 250 250 136 118 243 136 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	BOLT M4X6	9-93490-406-0	01	1	0107-
95	LEVER; RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-31340-068-2	01	1	0107-
118	BEARING; CLU RELEASE (A)	1-09820-080-0	01	1	0107-
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-31310-011-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=400	1-09364-934-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0107-
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
125	SHAFT; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-31342-295-0	01	1	0107-
130	SCREW; SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-09129-016-0	01	1	0107-
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-
136	WASHER; PL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=31	9-09160-530-0	02	1	0107-
174	BOLT; BRKT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> M8X23 FLANGE	8-94174-559-2	04	1	0107-
234	BRACKET; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-31345-004-0	01	1	0107-
242	BEARING; CAM FOLLOWER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-31349-060-1	02	1	0107-
243	BEARING; RELEASE LEVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-09811-087-0	02	1	0107-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21>	1-09625-003-0	02	1	0107-
250	RING; SNAP,SHAFT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=27.9	9-09180-030-0	02	1	0107-

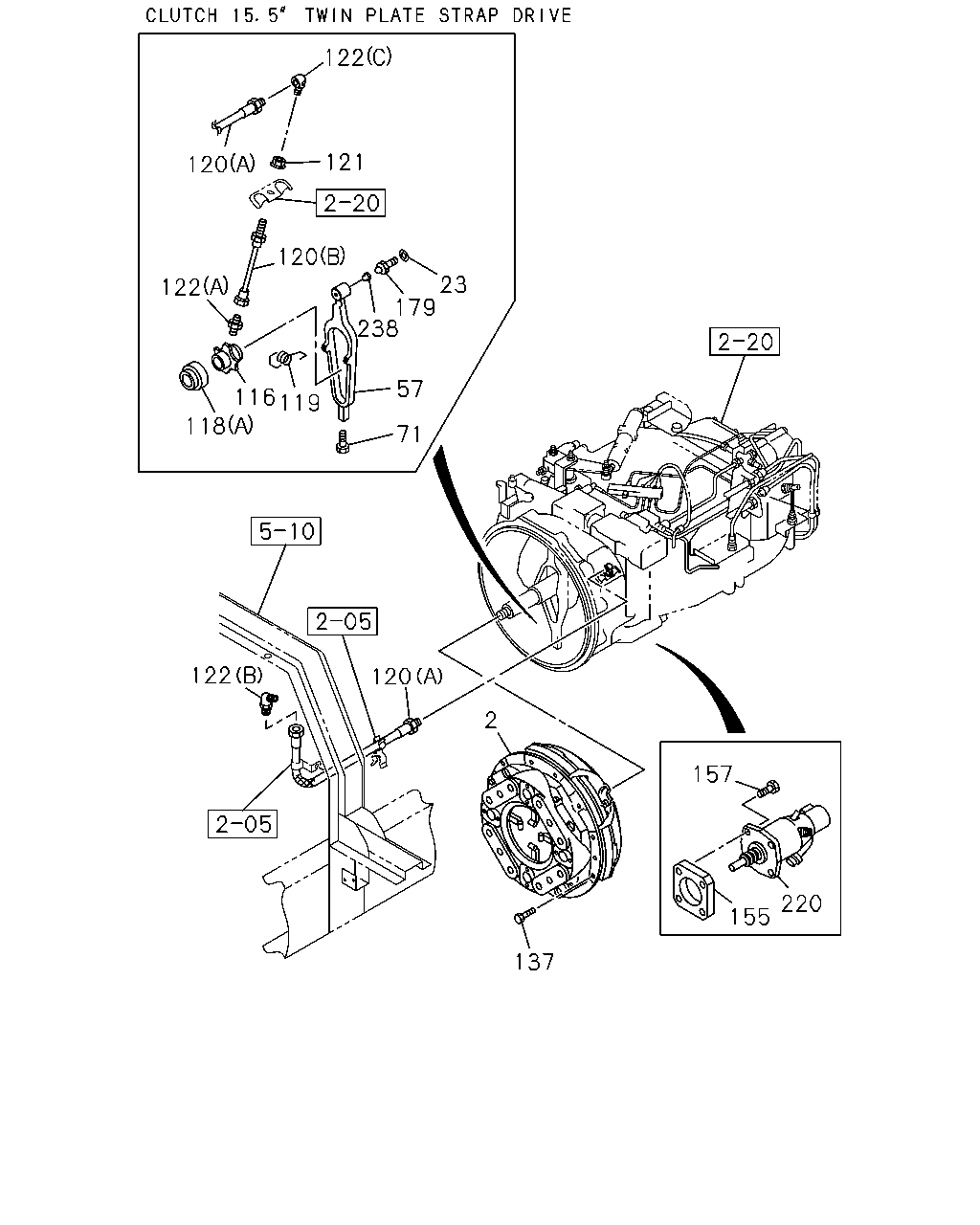

122 121 120 120 23 179 238 122 57 116 119 118 71 122 120 2 157 220 155 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-299-3	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0107-
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0107-
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0107-
71	BOLT M4X6	9-93490-406-0	01	1	0107-
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	0107-
118	BEARING; CLU RELEASE (A)	1-09820-080-0	01	1	0107-
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-31310-011-0	01	1	0107-
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=400	1-09364-934-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0107-
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0107-
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0107-
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0107-
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0107-
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0107-
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	0107-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0107-
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	0107-
