1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#10675) — 42 parça

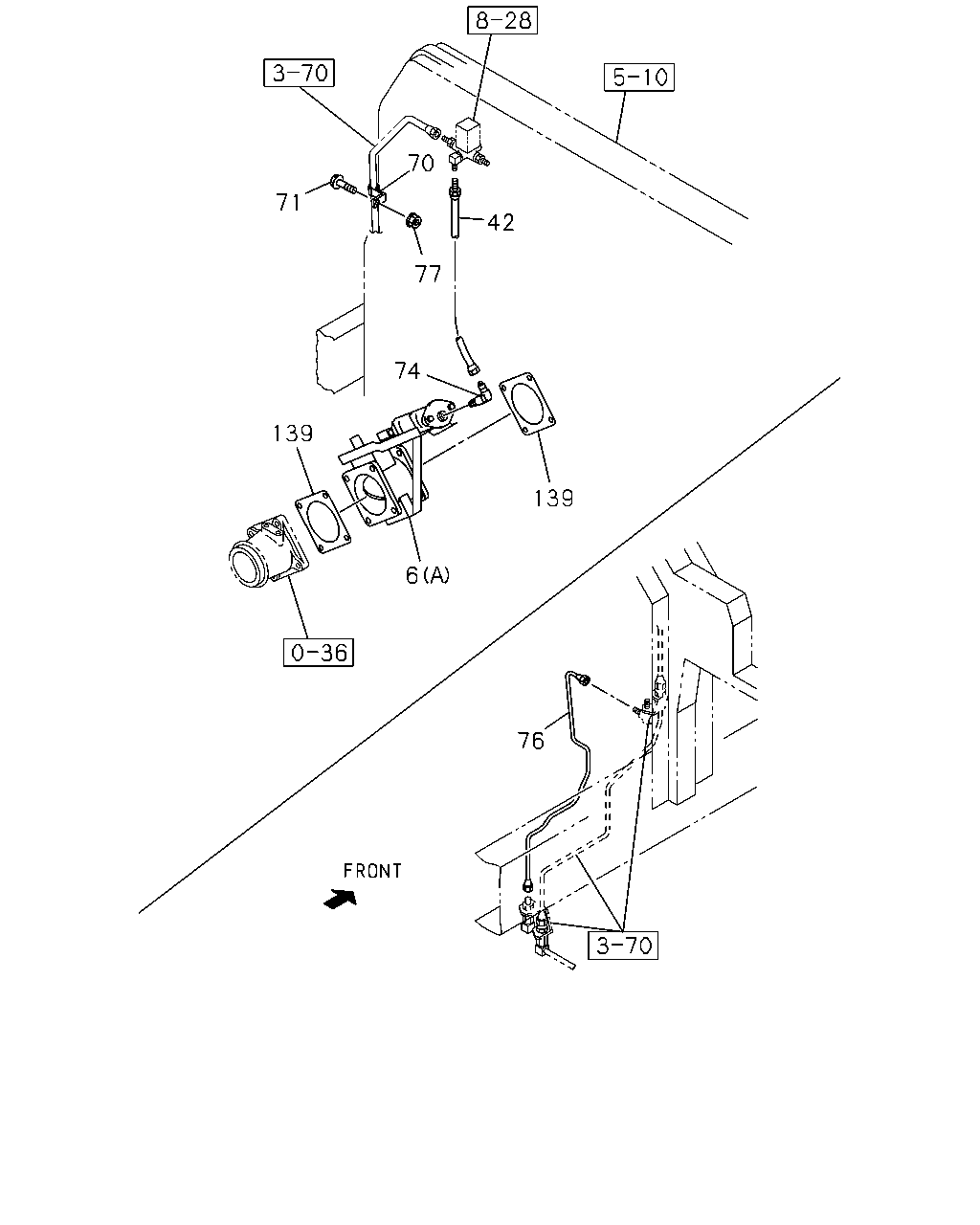

çizim 76246
70 71 42 77 74 139 139 6 76
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0107- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0107- ● ●
42 HOSE; FLEX,EXH BRK
L=430 		1-09363-677-0 01 1 0107- ● ●
70 CLIP; AIR PIPE
LIGHT DUTY PACKAGE TRUCK<Y21> ID=6 H=20 L=20 		1-09700-603-0 01 1 0107- ● ●
71 BOLT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE 		0-28680-820-0 01 1 0107- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0107- ● ●
76 PIPE ASM; AIR UNION TO UNION
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> 		1-49122-911-0 01 1 0107- ● ●
77 NUT; CLIP
LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE 		0-91150-108-0 01 1 0107- ● ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0107- ● ●

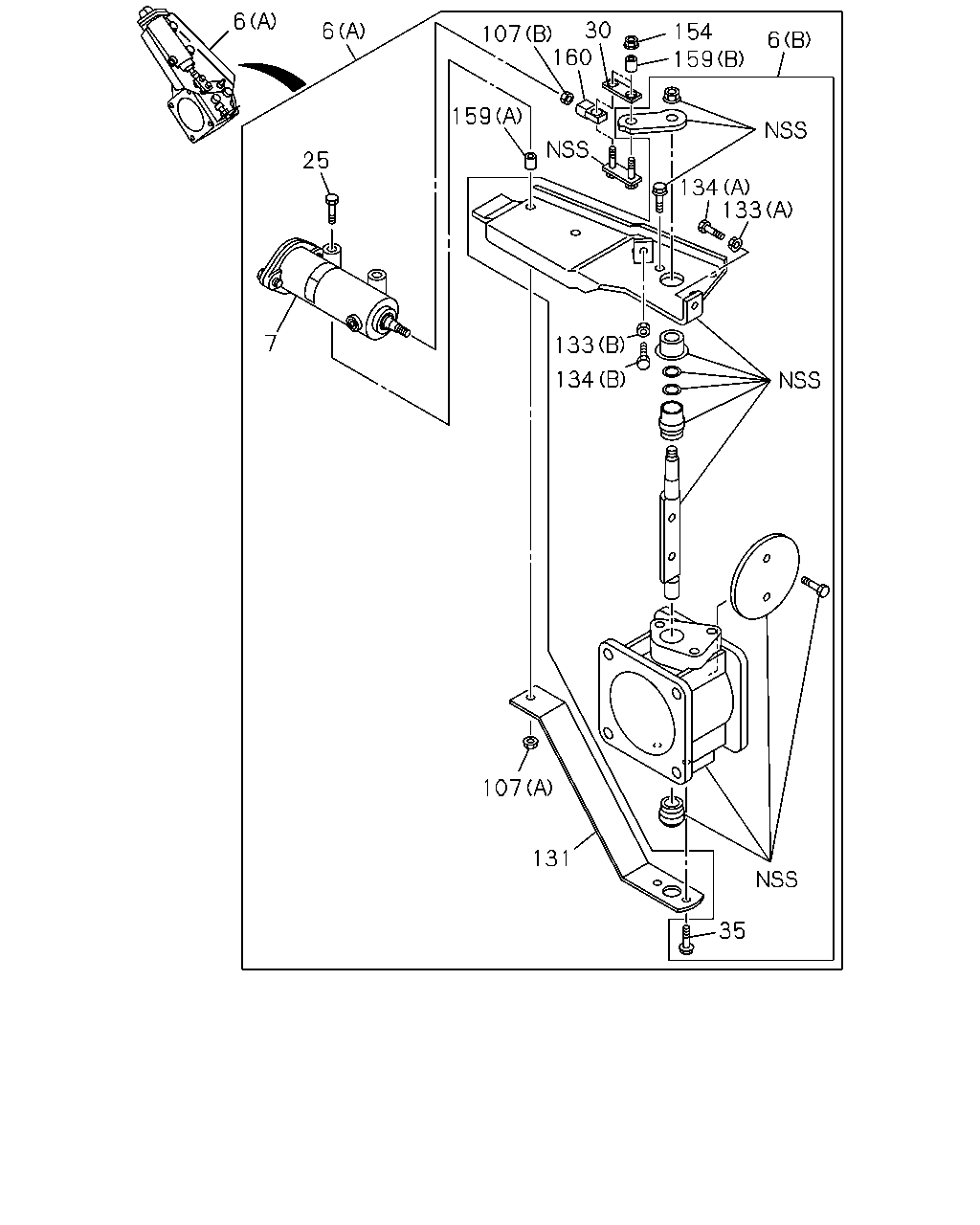

çizim 76248
6 107 30 160 6 154 159 6 159 25 134 133 7 133 134 107 131 35
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0107- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0107- ● ●
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0107- ● ●
25 BOLT; CONT CYL 1-09000-744-0 02 1 0107- ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0107- ● ●
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0107- ● ●
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0107- ● ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0107- ● ●
131 PLATE; BODY 1-22189-359-0 01 1 0107- ● ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0107- ● ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0107- ● ●
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0107- ● ●
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0107- ● ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0107- ● ●
159 COLLAR; CONT CYL
(A) 		1-22189-360-0 02 1 0107- ● ●
159 COLLAR; CONT CYL
(B) 		1-22197-151-0 02 1 0107- ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0107- ● ●
çizim 76818
7 14 13 162 163 10 24 23 105 104 21 20 17 15 16 161
BalonParca AdiParca NoAdetTipApplied Date A B
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0107- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0107- ● ●
13 SPRING; CONT CYL 1-22199-234-0 01 1 0107- ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0107- ● ●
15 PLATE; CONT CYL 1-22199-233-0 01 1 0107- ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0107- ● ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0107- ● ●
20 NUT; CONT CYL 1-09440-078-0 01 1 0107- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0107- ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 0107- ● ●
24 BOLT; COVER 1-22199-174-0 02 1 0107- ● ●
104 RING; RET 9-88510-331-0 01 1 0107- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0107- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0107- ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0107- ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0107- ● ●
