1-41 — FUEL PIPING; CHASSIS (#10672) — 64 parça

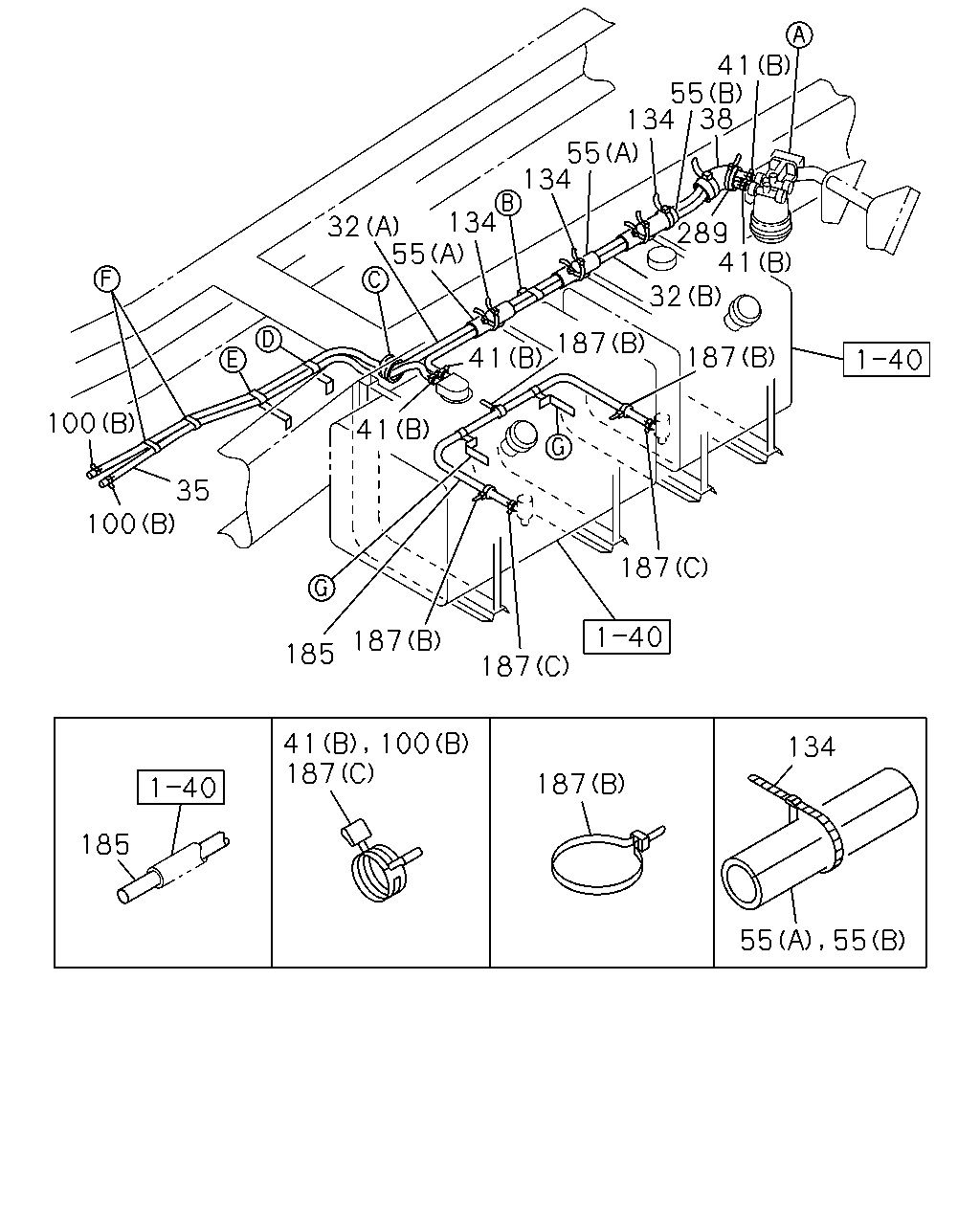

41 55 55 134 134 55 32 289 41 32 187 187 41 100 41 35 100 187 187 185 187 41 100 187 134 187 185 55 55 134 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (A) L=2350 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
35	PIPE; FUEL TANK,RETURN EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
35	PIPE; FUEL TANK,RETURN LIGHT DUTY PACKAGE TRUCK<Y21> L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
38	SLEEVE; RUBBER,RUBBER HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	06	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	04	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16X2 L=20	9-09535-536-0	01	1	0107-
55	COVER; PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-
55	COVER; PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0107-
100	CLIP; FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	02	1	0107-
100	CLIP; FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16X2 L=20	9-09535-536-0	04	1	0107-
134	CLIP; BAND,FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> L=250	5-09707-030-1	07	1	0107-
185	PIPE; FUEL TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	5-09707-030-1	03	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=19	8-94238-569-0	02	1	0107-
289	CLIP; BAND,HOSE EXC. LIGHT DUTY PACKAGE TRUCK<Y21> L=250	5-09707-030-1	04	1	0107-

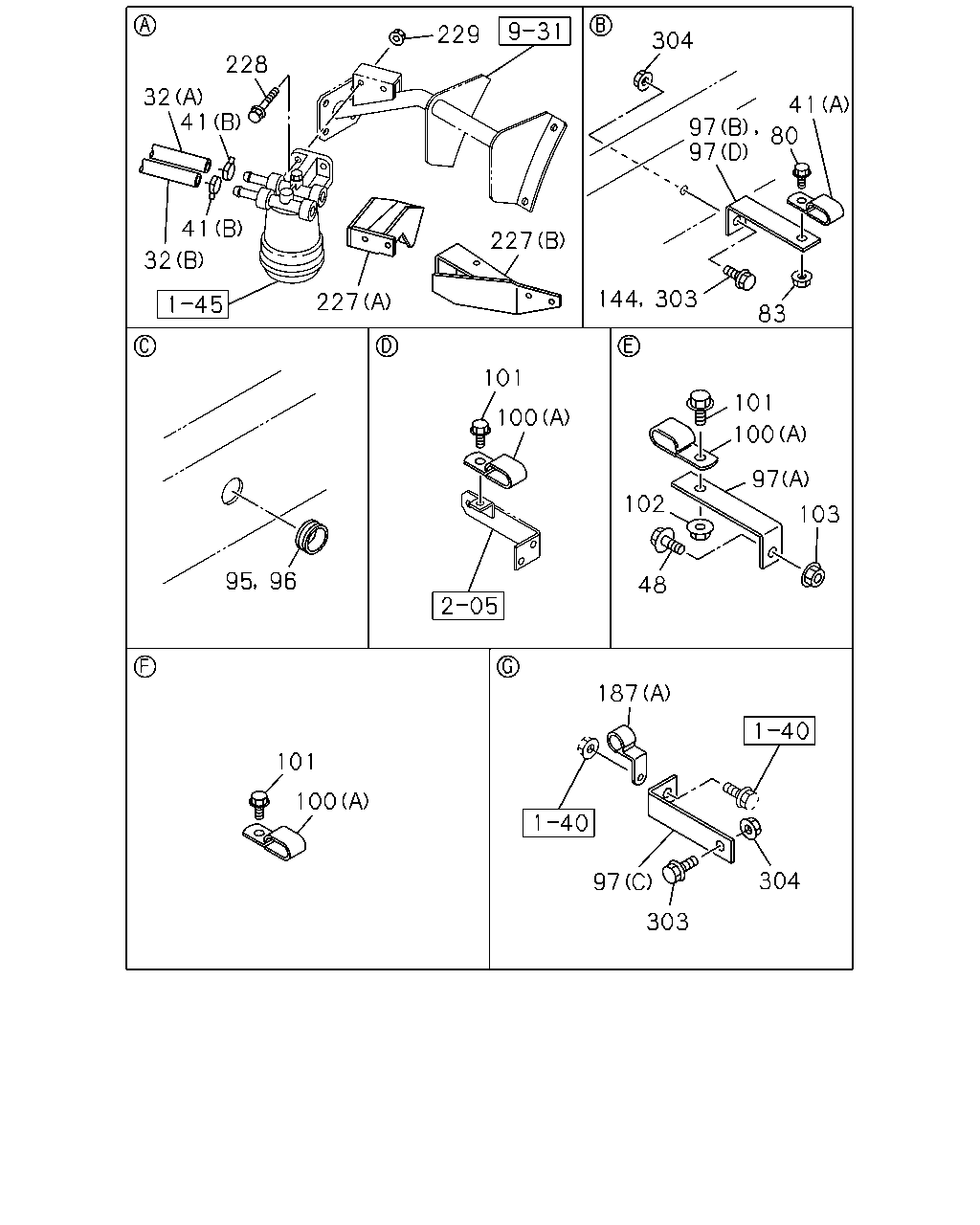

229 304 228 32 41 41 97 97 80 41 227 32 303 144 227 83 101 101 100 100 97 102 103 95 96 48 187 101 100 304 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (A) L=2350 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
32	PIPE; DELIVERY,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	06	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	04	1	0107-
41	CLIP; FUEL PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16X2 L=20	9-09535-536-0	01	1	0107-
48	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
80	BOLT; CLIP,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	01	1	0107-
83	NUT; CLIP,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
95	BUSHING; PIPE,FUEL TANK EXC. LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-
96	GROMMET; PIPE,FUEL TANK LIGHT DUTY PACKAGE TRUCK<Y21> ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (D) L=115	1-47475-305-0	01	1	0107-
97	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (C) L=145	1-47475-655-0	02	1	0107-
97	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-47475-927-0	01	1	0107-
97	BRACKET; CLIP LIGHT DUTY PACKAGE TRUCK<Y21> (A) L=95	1-82699-085-0	01	1	0107-
100	CLIP; FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (B) ID=14	1-09704-102-0	02	1	0107-
100	CLIP; FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=16X2 L=20	9-09535-536-0	04	1	0107-
101	BOLT; CLIP,FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8X20 FLANGE	0-28680-820-0	04	1	0107-
102	NUT; CLIP,FUEL PIPE LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91150-108-0	01	1	0107-
103	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	01	1	0107-
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL SEDIMENTER<PS9> M8X25 FLANGE	0-28680-825-0	01	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (B) L=250	5-09707-030-1	03	1	0107-
187	CLIP; FUEL PIPE TANK TO TANK LIGHT DUTY PACKAGE TRUCK<Y21> (C) ID=19	8-94238-569-0	02	1	0107-
227	BRACKET; FUEL SEDIMENTER FUEL SEDIMENTER<PS9> (A)	1-22518-180-0	01	1	0107-
227	BRACKET; FUEL SEDIMENTER EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> (B)	1-22518-179-0	01	1	0107-
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M14X45	0-20801-445-0	02	1	0107-
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M10X35 FLANGE	0-28681-035-0	04	1	0107-
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> M10X30 FLANGE	0-28681-030-0	02	1	0107-
228	BOLT; BRKT,SEDIMENTER LIGHT DUTY PACKAGE TRUCK<Y21> M10X35 FLANGE	0-28681-035-0	02	1	0107-
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> M10X35 FLANGE	0-28681-035-0	02	1	0107-
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M14	9-99110-414-0	02	1	0107-
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9>,LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	04	1	0107-
229	NUT; BRKT,FUEL FILTER LIGHT DUTY PACKAGE TRUCK<Y21> M10 FLANGE	0-91150-210-0	02	1	0107-
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0107-
303	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X25 FLANGE	0-28680-825-0	02	1	0107-
303	BOLT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8X30 FLANGE	0-28680-830-0	01	1	0107-
304	NUT; BRKT LIGHT DUTY PACKAGE TRUCK<Y21> M8 FLANGE	0-91150-108-0	03	1	0107-
