1-31 — AIR DUCT (#10669) — 89 parça

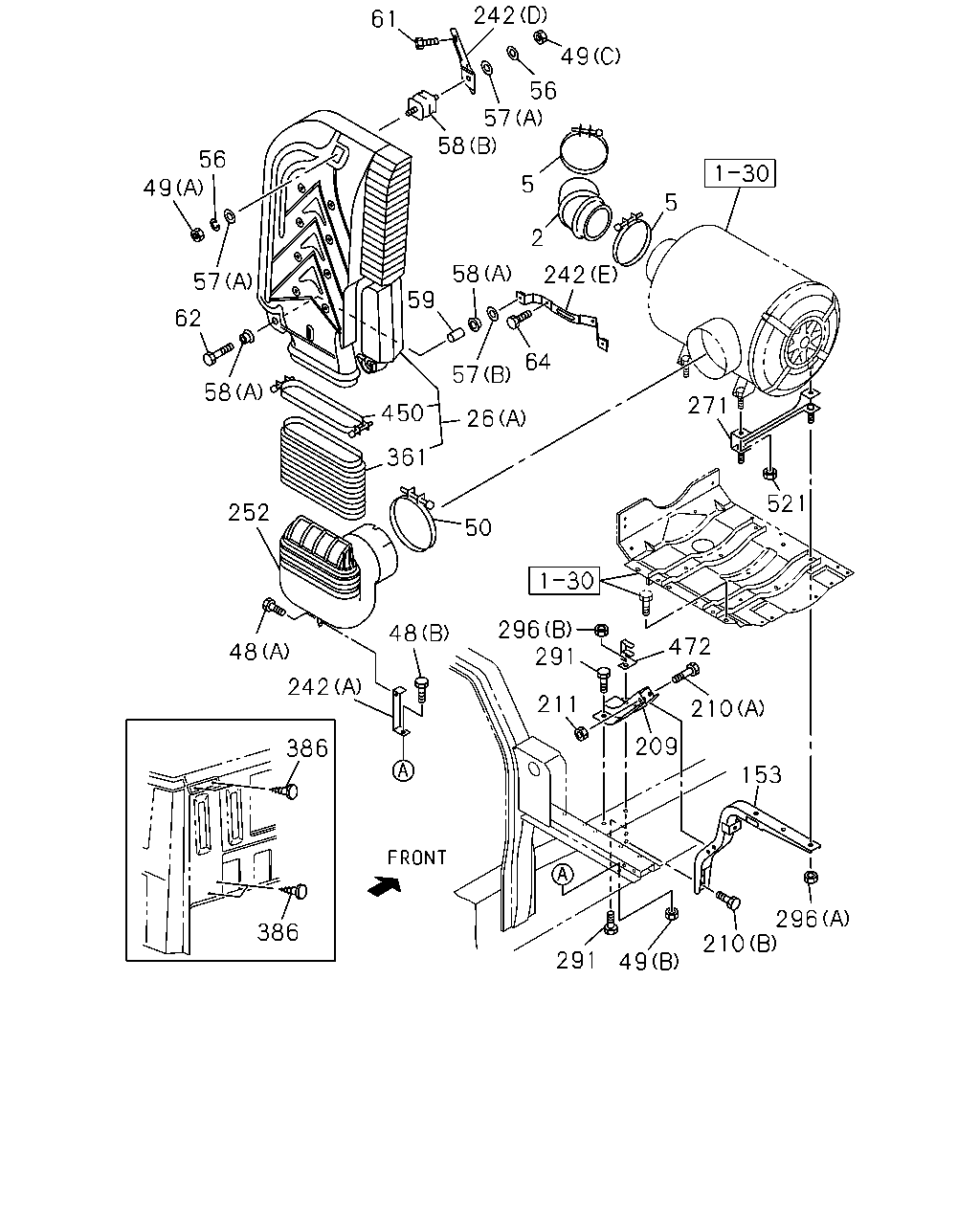

242 61 49 56 57 58 56 5 49 5 2 58 242 57 59 62 64 57 58 271 450 26 361 521 252 50 296 291 48 472 48 242 211 210 209 386 153 296 210 386 291 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-931-0	01	1	0107-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0107-	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-0	01	1	0107-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0107-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0107-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0107-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0107-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0107-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-	●	●
209	BRACKET; ACL	1-53419-276-0	01	1	0107-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0107-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0107-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0107-	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0107-	●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0107-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0107-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0107-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0107-	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0107-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0107-	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●
472	STOPPER; LINK ROD MJX16P M/T(Y3Z)	1-33659-173-1	01	1	0107-	●	●
472	STOPPER; LINK ROD TRANSMISSION-ZF 16S221 OD(Y1U),MJD7S M/T(Y2Y)	1-33659-227-0	01	1	0107-	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0107-	●	●

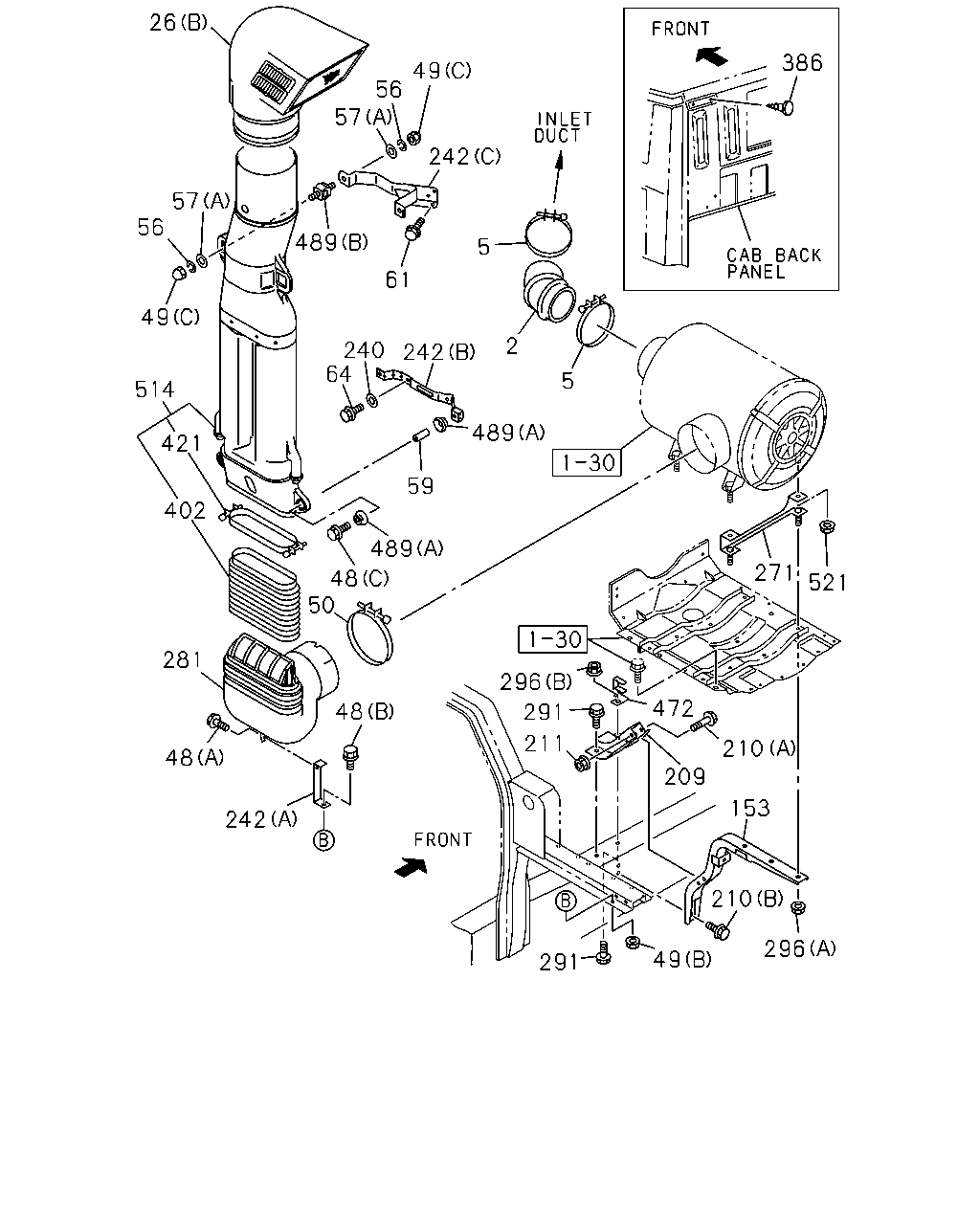

26 386 49 56 57 242 57 56 489 5 61 49 2 240 64 242 5 514 489 421 59 402 489 271 48 50 521 281 296 472 48 291 211 210 48 209 153 242 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-931-0	01	1	0107-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0107-	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-0	01	1	0107-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0107-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0107-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0107-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0107-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-	●	●
209	BRACKET; ACL	1-53419-276-0	01	1	0107-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0107-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0107-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-	●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0107-	●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0107-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0107-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0107-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0107-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0107-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0107-	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0107-	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●
472	STOPPER; LINK ROD MJX16P M/T(Y3Z)	1-33659-173-1	01	1	0107-	●	●
472	STOPPER; LINK ROD TRANSMISSION-ZF 16S221 OD(Y1U),MJD7S M/T(Y2Y)	1-33659-227-0	01	1	0107-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0107-	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0107-	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0107-	●	●
