◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#10668) — 25 parça

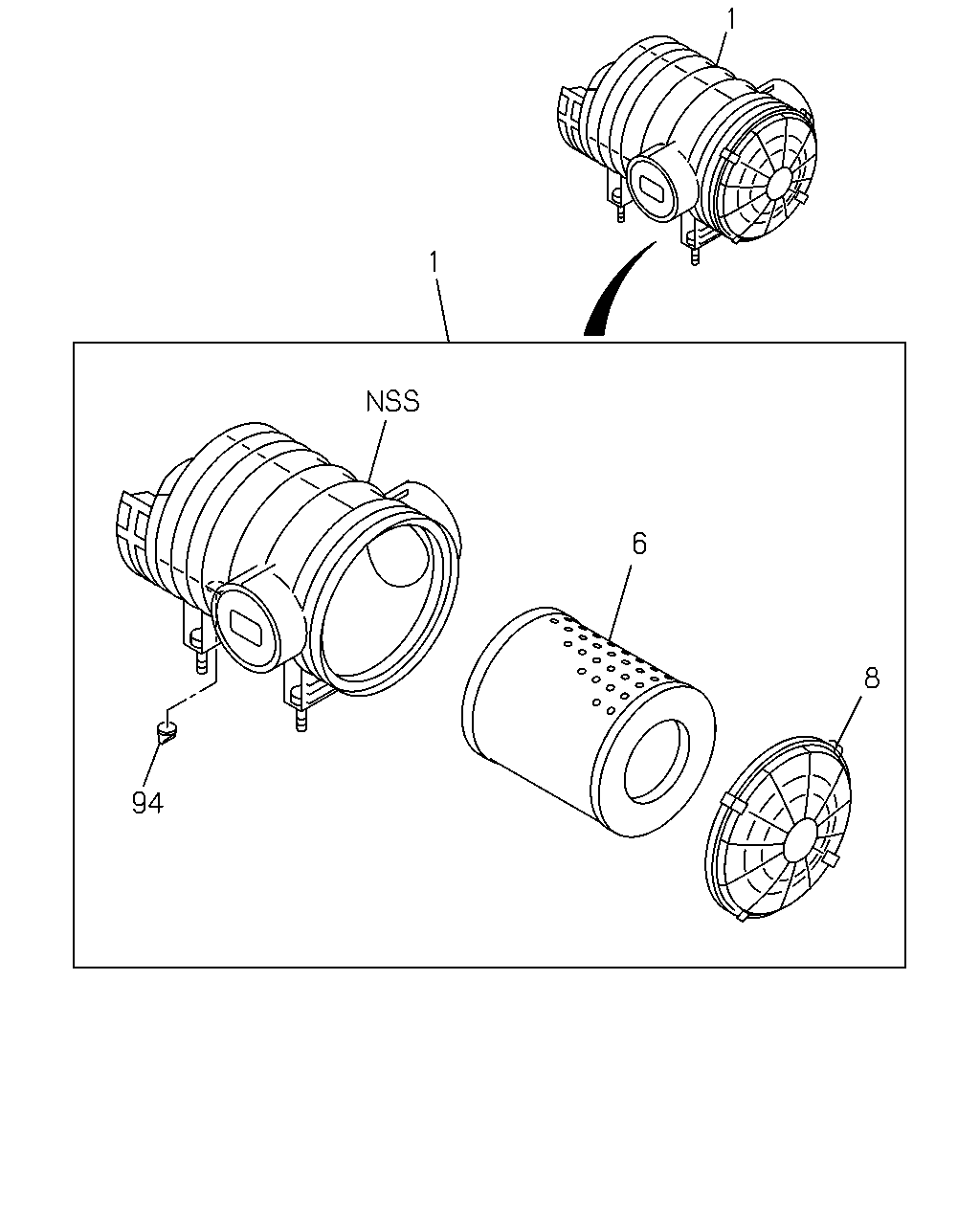

çizim 19850
1 1 6 8 94
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0107- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0107- ● ●

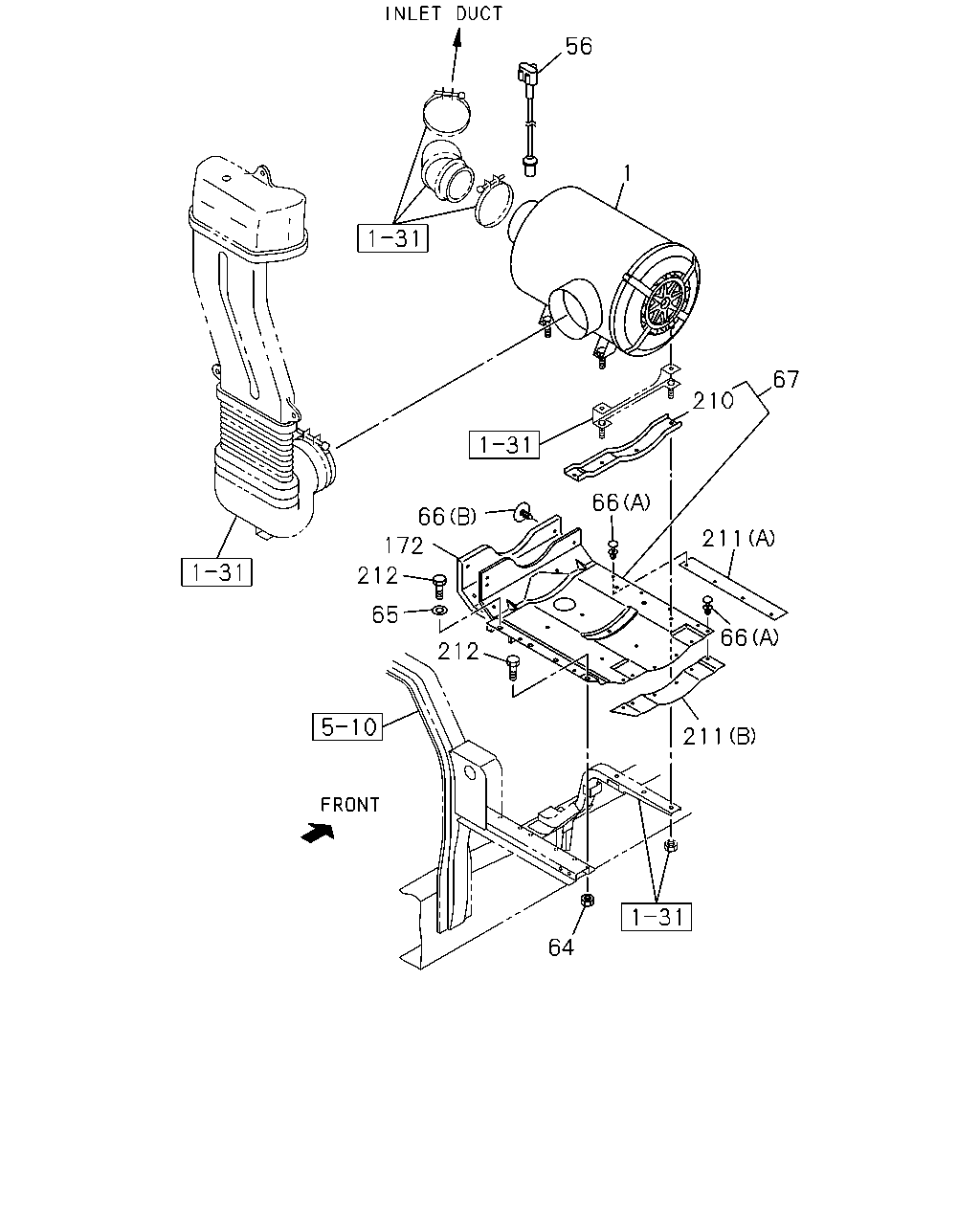

çizim 74809
56 1 67 210 66 66 211 172 212 212 65 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107- ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 0107- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 0107- ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0107- ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0107- ● ●
67 COVER; ACL 1-53419-304-0 01 1 0107- ● ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 0107- ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0107- ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0107- ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0107- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0107- ● ●

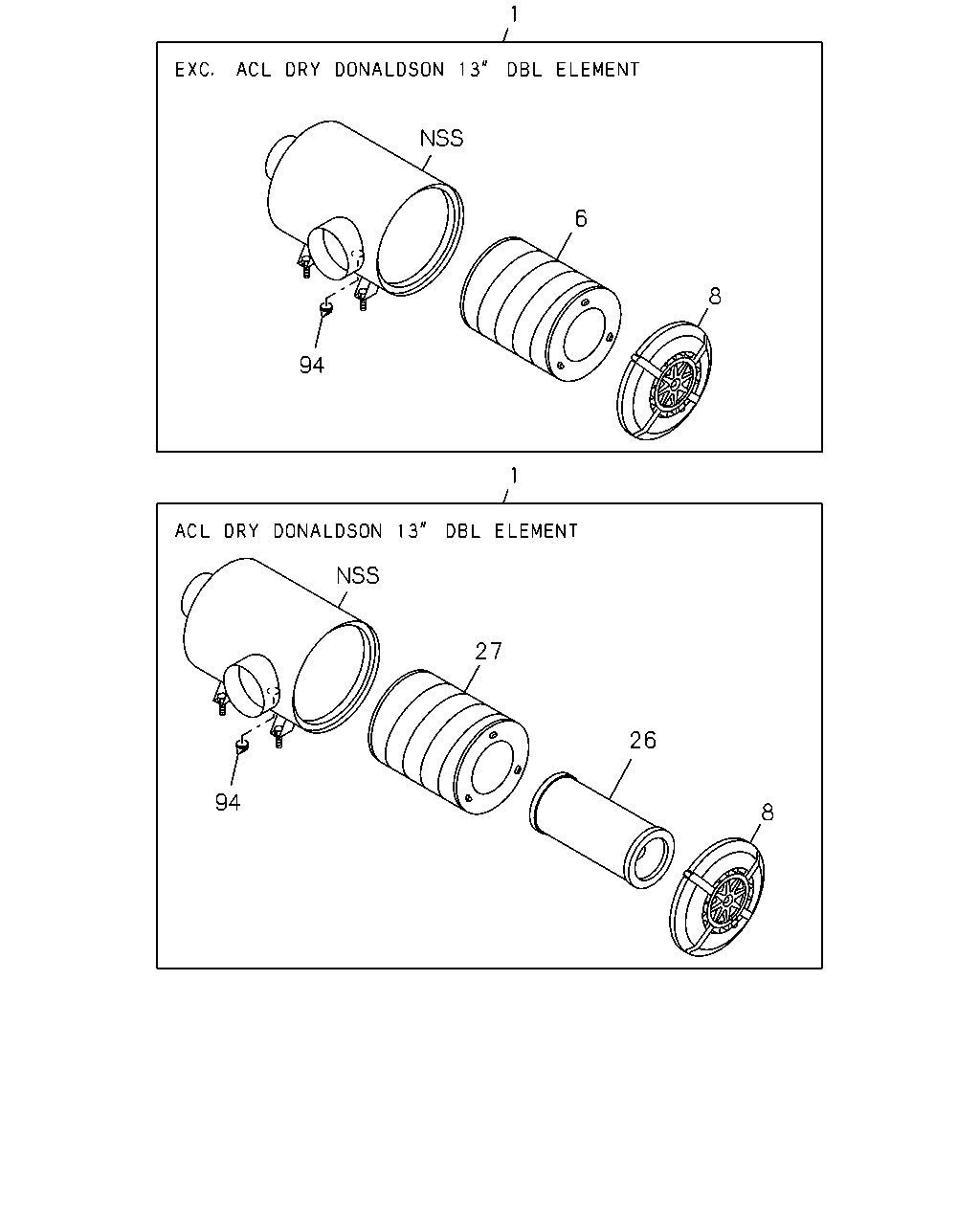

çizim 76785
1 6 8 94 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0107- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0107- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
