Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

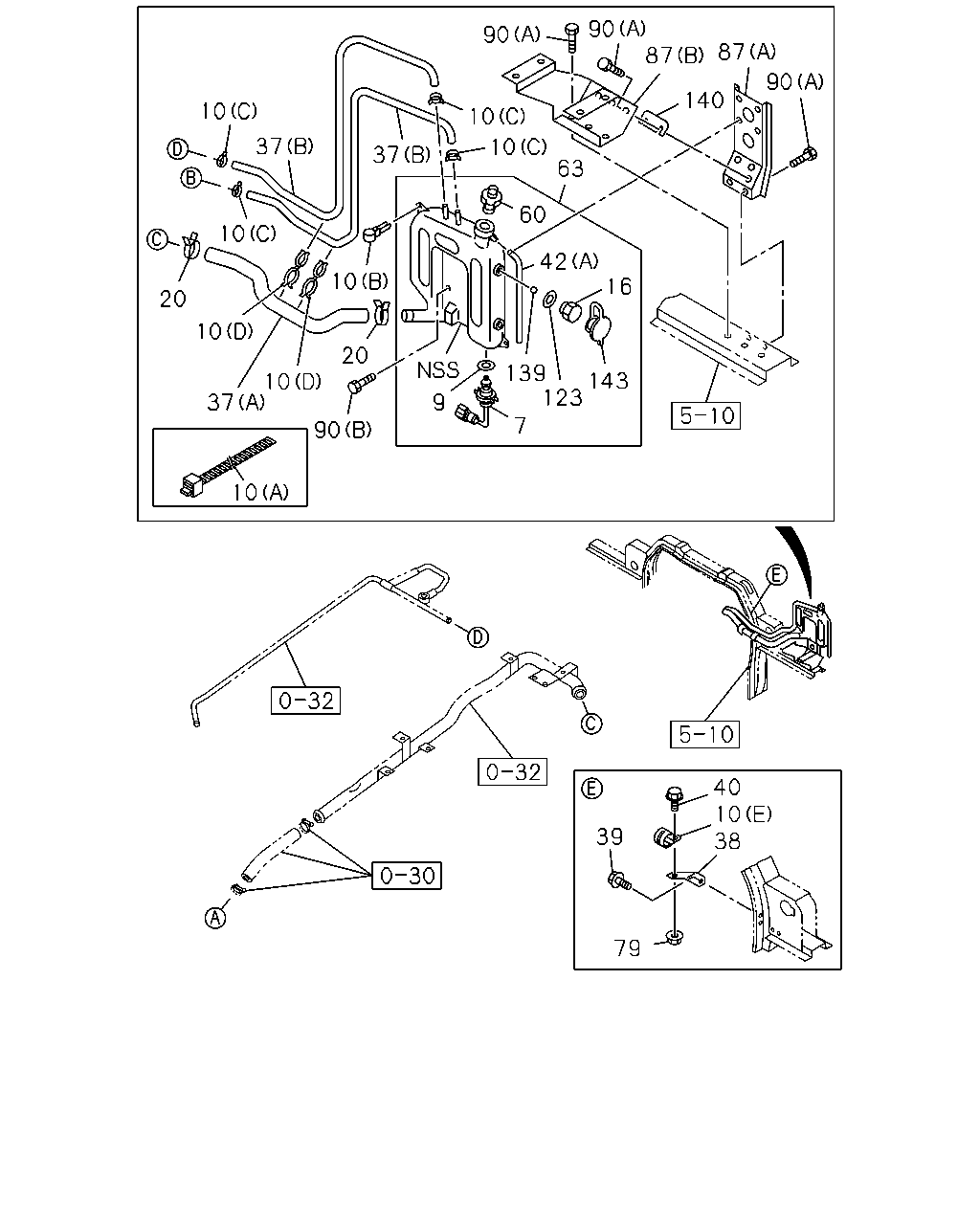

1-11 — RADIATOR HOSE AND SUB TANK
(#10667) — 37 parça
Tümü
A - 6WF1 TC-C
B - 6WF1 TC
◀
[111A] SUB TANK (27 parça)
[111A] HOSE;RAD (10 parça)
▶
90
87
90
87
90
140
10
10
37
10
37
63
60
10
42
16
10
20
10
20
139
143
123
10
37
9
7
90
10
40
10
38
39
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0107-
●
●
9
GASKET; SWITCH
EURO3 SPECIFICATION<NJX> ID=28 OD=35
1-09630-130-0
01
1
0107-
●
●
10
CLIP; RUBBER HOSE
(E) ID=43 L=40
1-09700-624-2
01
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (B) ID=28 L=58
1-09700-400-0
02
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (C) ID=14
1-09704-102-0
06
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (A) L=350
1-09707-183-0
01
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (D) ID=44 & 16
1-09709-125-0
08
1
0107-
●
●
16
PLUG; TANK
1-21464-514-0
02
1
0107-
●
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0107-
●
●
37
HOSE; RUBBER
(A)
1-21437-755-0
01
1
0107-
●
●
37
HOSE; RUBBER
EURO3 SPECIFICATION<NJX> (B) L=1350 SERVICED BY L=3000
0-03559-300-0
02
1
0107-
●
●
38
BRACKET; RUBBER HOSE
1-21489-180-0
01
1
0107-
●
●
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
01
1
0107-
●
●
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0107-
●
●
42
HOSE; RUBBER
(A) L=850
1-21489-154-0
01
1
0107-
●
●
42
HOSE; RUBBER
EURO3 SPECIFICATION<NJX> (B) L=290 SERVICED BY L=3000
0-03559-300-0
01
1
0107-
●
●
60
CAP; SUB TANK
1-21450-137-0
01
1
0107-
●
●
63
TANK ASM; SUB
EURO3 SPECIFICATION<NJX>
1-21481-143-1
01
1
0107-
●
●
79
NUT; CLIP,HOSE
M10 FLANGE
0-91150-210-0
01
1
0107-
●
●
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0107-
●
●
87
BRACKET; SUB TANK
(A)
1-21489-162-0
01
1
0107-
●
●
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0107-
●
●
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0107-
●
●
123
GASKET
ID=26.2
8-94399-716-1
02
1
0107-
●
●
139
FLOAT
1-21489-161-0
02
1
0107-
●
●
140
SHIM
T=0.8
1-53458-716-0
AR
1
0107-
●
●
143
COVER; PLUG
1-82389-017-0
02
1
0107-
●
●
56
10
55
56
10
56
42
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CLIP; RUBBER HOSE
(E) ID=43 L=40
1-09700-624-2
01
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (B) ID=28 L=58
1-09700-400-0
02
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (C) ID=14
1-09704-102-0
06
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (A) L=350
1-09707-183-0
01
1
0107-
●
●
10
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (D) ID=44 & 16
1-09709-125-0
08
1
0107-
●
●
42
HOSE; RUBBER
(A) L=850
1-21489-154-0
01
1
0107-
●
●
42
HOSE; RUBBER
EURO3 SPECIFICATION<NJX> (B) L=290 SERVICED BY L=3000
0-03559-300-0
01
1
0107-
●
●
55
HOSE; WATER,RAD OUTLET
1-21437-615-1
01
1
0107-
●
●
56
CLIP; WATER HOSE,RAD
EURO3 SPECIFICATION<NJX> ID=72
1-09704-068-0
04
1
0107-
●
●
128
HOSE; WATER,RAD INL
EURO3 SPECIFICATION<NJX>
1-21437-877-0
01
1
0107-
●
●
