Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

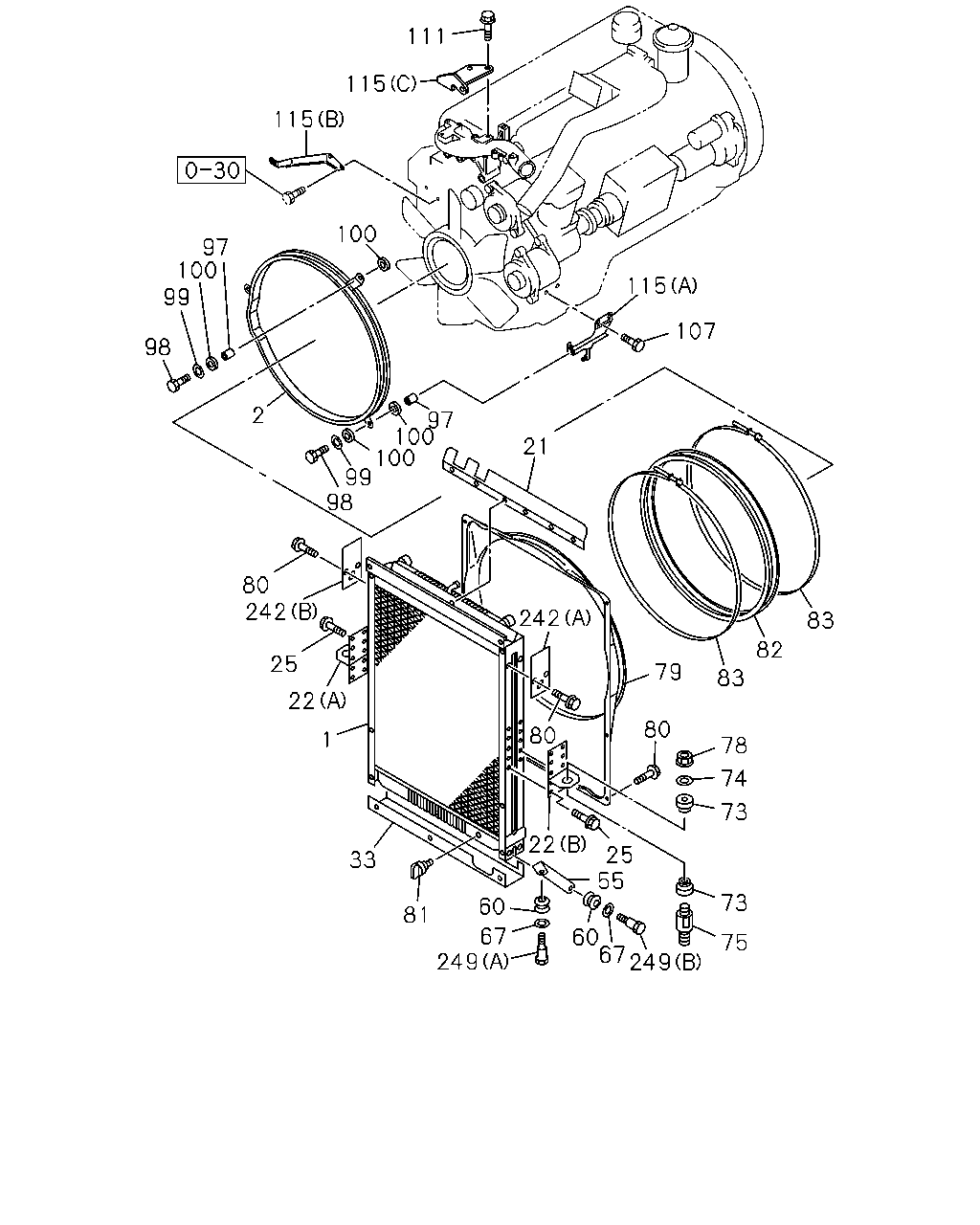

1-10 — RADIATOR
(#10666) — 32 parça
Tümü
A - 6WF1 TC-C
B - 6WF1 TC
111
115
115
100
97
100
99
115
107
98
2
97
100
100
99
98
21
80
242
242
83
82
25
79
83
22
80
80
1
78
74
73
22
25
55
33
73
60
81
67
249
60
67
249
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
1-21410-871-0
01
1
0107-
●
●
2
GUIDE; FAN
1-21551-500-0
01
1
0107-
●
●
21
SEAL; RAD
1-21460-124-0
01
1
0107-
●
●
22
BRACKET; RAD MTG
(A)
1-21464-503-0
01
1
0107-
●
●
22
BRACKET; RAD MTG
(B)
1-21464-504-0
01
1
0107-
●
●
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
20
1
0107-
●
●
33
PROTECTOR; RAD
1-21419-050-0
01
1
0107-
●
●
55
STAY; RAD TO UPR MBR
1-21464-473-0
01
1
0107-
●
●
55
STAY; RAD TO UPR MBR
1-21464-472-0
01
1
0107-
●
●
60
GROMMET
1-09332-117-0
04
1
0107-
●
●
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0107-
●
●
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0107-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-1
02
1
0107-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0107-
●
●
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0107-
●
●
79
GUIDE; FAN,RAD
1-21551-416-2
01
1
0107-
●
●
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
14
1
0107-
●
●
81
SCREW; FAN GUIDE,RAD
W/GASKET
1-09609-009-0
01
1
0107-
●
●
82
COVER; FAN,RAD
1-21559-262-1
01
1
0107-
●
●
83
CLIP; FAN COVER
1-09707-152-2
02
1
0107-
●
●
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0107-
●
●
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28081-045-0
03
1
0107-
●
●
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0107-
●
●
100
RUBBER; MTG
1-09337-017-0
06
1
0107-
●
●
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
02
1
0107-
●
●
111
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0107-
●
●
115
BRACKET; FAN GUIDE
(A)
1-21559-353-0
01
1
0107-
●
●
115
BRACKET; FAN GUIDE
(B)
1-21559-354-0
01
1
0107-
●
●
115
BRACKET; FAN GUIDE
(C)
1-21559-463-0
01
1
0107-
●
●
242
BRACKET; RAD
(A)
1-21464-731-1
01
1
0107-
●
●
242
BRACKET; RAD
(B)
1-21464-732-1
01
1
0107-
●
●
249
BOLT; STAY,RAD MBR
(A),(B) M8X30
1-09009-020-1
04
1
0107-
●
●
