0-81 — GOVERNOR; INJECTION PUMP (#10662) — 30 parça

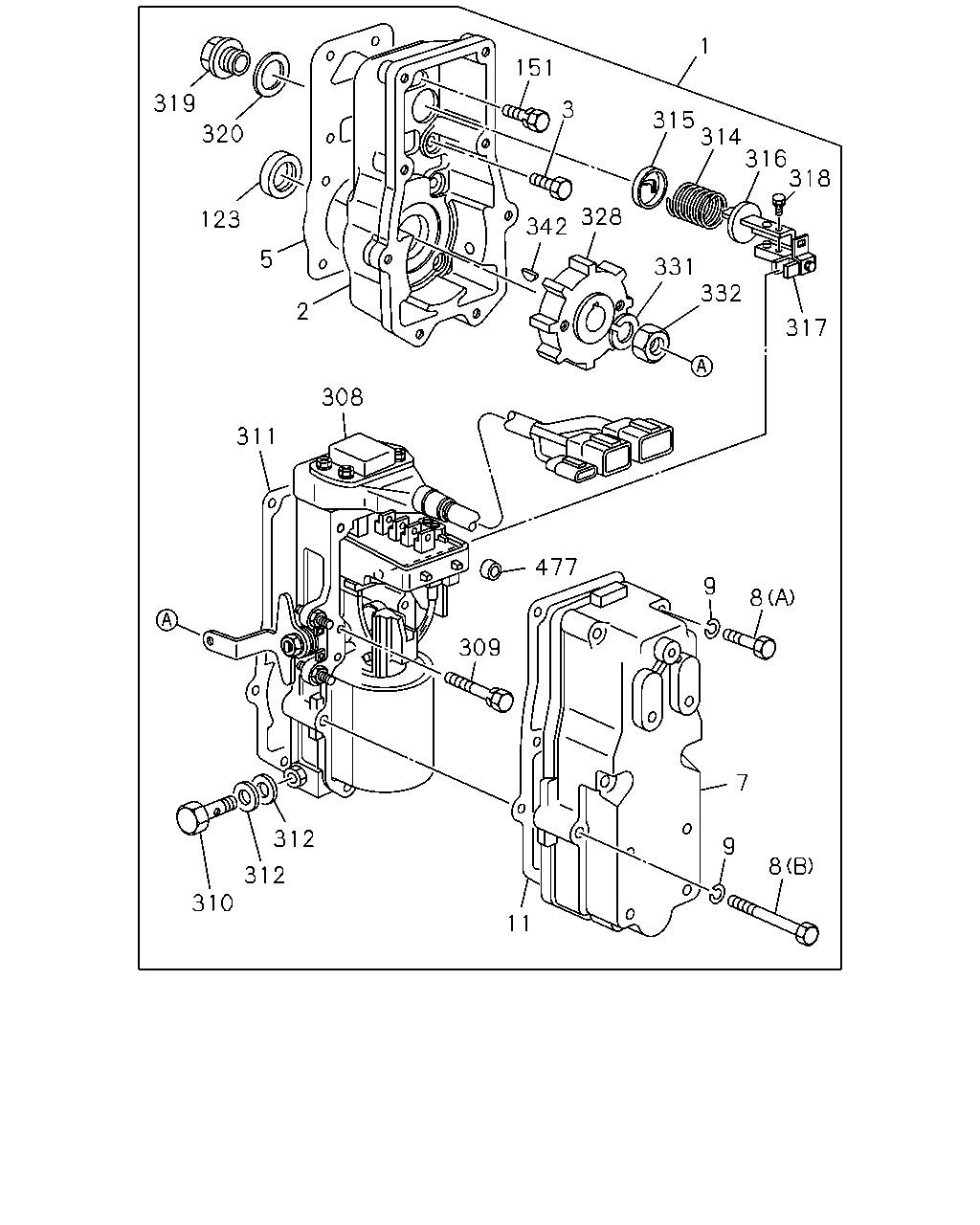

çizim 74365
1 151 319 3 315 314 316 318 320 328 123 342 5 331 332 2 317 308 311 477 9 8 309 7 312 9 8 312 310 11
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15603-414-1 		1-15790-104-0 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15603-414-1 		1-15721-359-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-1 		1-15729-846-0 10 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15603-414-1 		1-15779-636-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-1 		1-15721-360-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 1-15603-414-1 		1-15729-251-0 06 1 -
8 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: A = 1-15603-414-1 		1-15729-683-0 02 1 -
9 WASHER; LK,GOV COVER
ID=6.1 ASM PART: A = 1-15603-414-1 		9-09150-506-0 08 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15603-414-1 		1-15779-637-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15603-414-1 		1-15639-012-0 01 1 -
151 BOLT; ADAPTER,GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-1 		1-15779-281-0 01 1 -
308 ACTUATOR; GOV,ELEC
ASM PART: A = 1-15603-414-1 		1-15779-635-2 01 1 -
309 BOLT; ACTUATOR FIX,ELEC GOV
ASM PART: A = 1-15603-414-1 		1-15729-535-0 02 1 -
310 BOLT; EYE,ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-414-1 		1-15729-538-0 01 1 -
311 GASKET; ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-414-1 		1-15779-147-0 01 1 -
312 GASKET; EYE BOLT,ACTUATOR,GOV
ID=14.2 OD=19.2 ASM PART: A = 1-15603-414-1 		1-09630-085-0 02 1 -
314 SPRING; CONT RACK,GOV
ASM PART: A = 1-15603-414-1 		1-15723-575-0 01 1 -
315 SEAT; SPRING,CONT RACK,HSG SIDE
ASM PART: A = 1-15603-414-1 		1-15723-307-0 01 1 -
316 SEAT; SPRING,CONT RACK,CONNECTOR SIDE
ASM PART: A = 1-15603-414-1 		1-15723-576-0 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=3.5 ASM PART: A = 1-15603-414-1 		1-15779-685-0 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.0 ASM PART: A = 1-15603-414-1 		1-15779-686-0 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.5 ASM PART: A = 1-15603-414-1 		1-15779-687-0 01 1 -
318 BOLT; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-414-1 		1-83569-079-0 01 1 -
319 CAP; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-414-1 		1-15779-152-0 01 1 -
320 GASKET; CAP,CONT RACK,GOV
ASM PART: A = 1-15603-414-1 		1-15629-056-0 01 1 -
328 GEAR; HSG TO MAGNET
ASM PART: A = 1-15603-414-1 		1-15779-711-0 01 1 -
331 WASHER; LK,GEAR
ASM PART: A = 1-15603-414-1 		1-15749-007-0 01 1 -
332 NUT; GEAR
ASM PART: A = 1-15603-414-1 		1-15779-012-0 01 1 -
342 KEY; WOODRUFF,SHAFT
13MM ASM PART: A = 1-15603-414-1 		9-81325-030-0 01 1 -
477 BUSHING; GOVERNOR
ASM PART: A = 1-15603-414-1 		1-15779-643-0 02 1 -
