2-05 — CLUTCH PIPING (#1066) — 124 parça

58 57 58 58 60 67 176 67 66 58 65 13 64 175 17 10 167 113 1 112 167 175 10 17 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HOSE; FLEX,CLU CONT L=400	1-09364-263-0	01	1	9202-	●	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9202-	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47418-810-0	01	1	9202-9212	●	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47425-601-0	01	1	9301-		●		●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-47425-601-0	01	1	9301-	●		●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-47427-624-0	01	1	9401-	●		●
17	BOLT; BRKT (B) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●	●	●
17	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●	●	●	●
17	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=1800	1-09360-320-0	01	1	9202-	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=16	1-09707-171-0	02	1	9202-	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9202-	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=13 L=20	9-09525-232-0	01	1	9202-	●	●	●	●	●
60	SCREW; RUBBER HOSE CLIP,CLU CONT M6X16 W/LK&PL WASHER	1-09981-439-0	01	1	9202-	●	●	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9202-	●	●	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9202-	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9202-	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9202-	●	●	●	●	●
112	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	9302-9304	●	●	●
113	CLIP; BAND L=250	1-09707-126-0	01	1	9302-9304	●	●	●
167	BRACKET; UNION (B)	1-47475-444-4	01	1	9202-9306	●	●	●	●	●
167	BRACKET; UNION (B)	1-47476-781-0	01	1	9307-	●	●	●	●	●
167	BRACKET; UNION (A)	1-79738-097-3	01	1	9202-	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9202-	●	●	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9202-	●	●	●	●	●

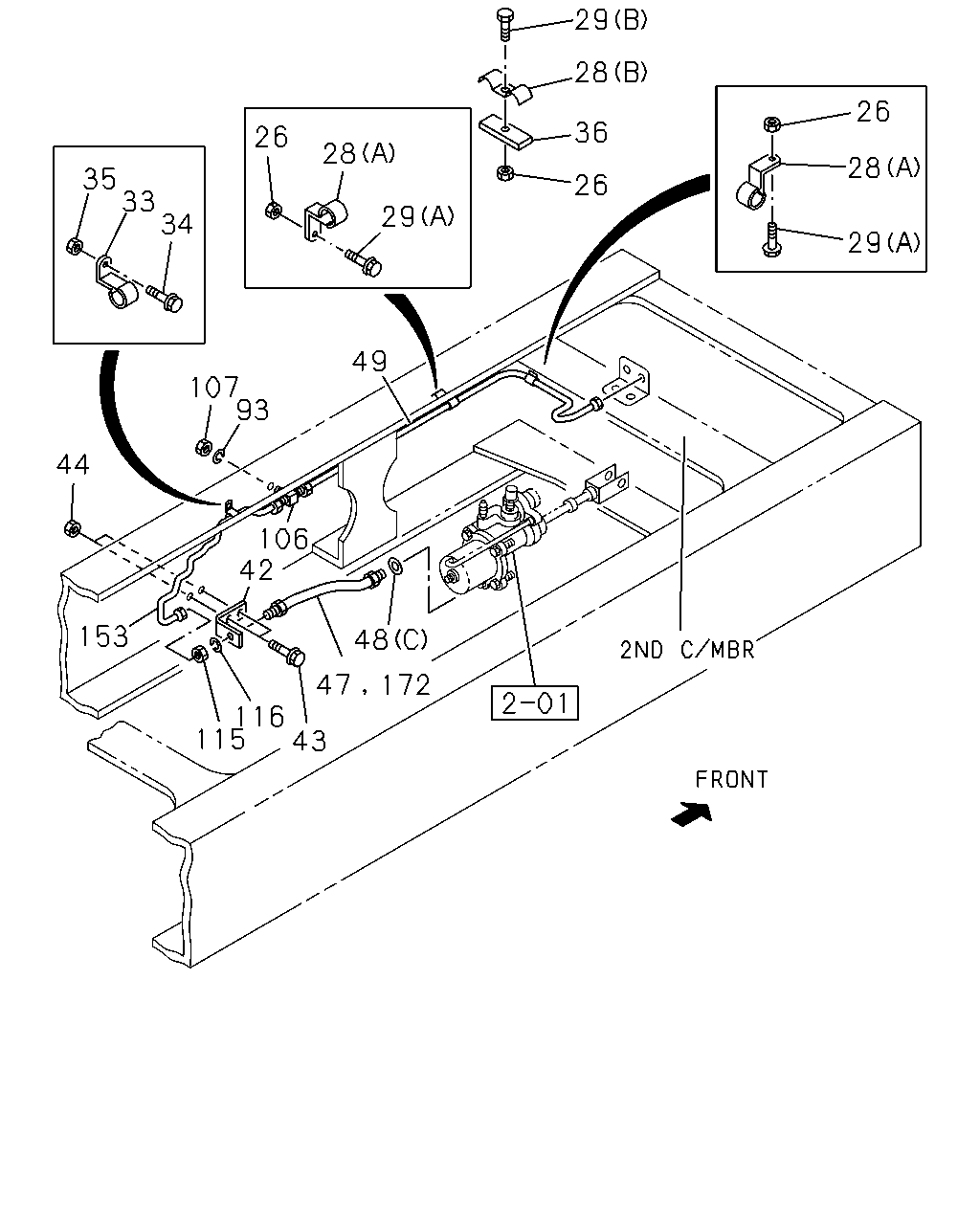

29 28 26 36 26 28 28 35 33 34 26 29 29 49 107 93 44 106 42 153 48 47 172 116 43 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9202-				●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-				●	●
28	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9305-				●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204				●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	9205-				●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> (B) M8X16 FLANGE	0-28080-816-0	01	1	9305-				●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●	●	●	●
36	BRACKET; CLIP AIR ASSIST CLUTCH<PK1> L=90 W/NUT	1-47475-520-0	01	1	9202-	●		●
36	BRACKET; CLIP L=50	1-47475-299-2	01	1	9305-				●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-806-0	01	1	9202-				●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9202-9305	●		●
47	HOSE; FLEX,CLU CONT L=250	1-09364-645-0	01	1	9202-9305				●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-				●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=1501 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9212				●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=1501 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9304				●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=1483 SERVICED BY L=1550	1-47426-390-0	01	1	9305-				●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9310-9312	●	●	●	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9202-	●	●	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9202-	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1374 SERVICED BY L=1400	1-47434-411-0	01	1	9202-9212				●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1374 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9304				●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1365 SERVICED BY L=1400	1-47426-389-0	01	1	9305-				●	●
172	HOSE; FLEX,CLU BOOSTER AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9306-	●		●
172	HOSE; FLEX,CLU BOOSTER L=250	1-09364-645-0	01	1	9306-				●	●

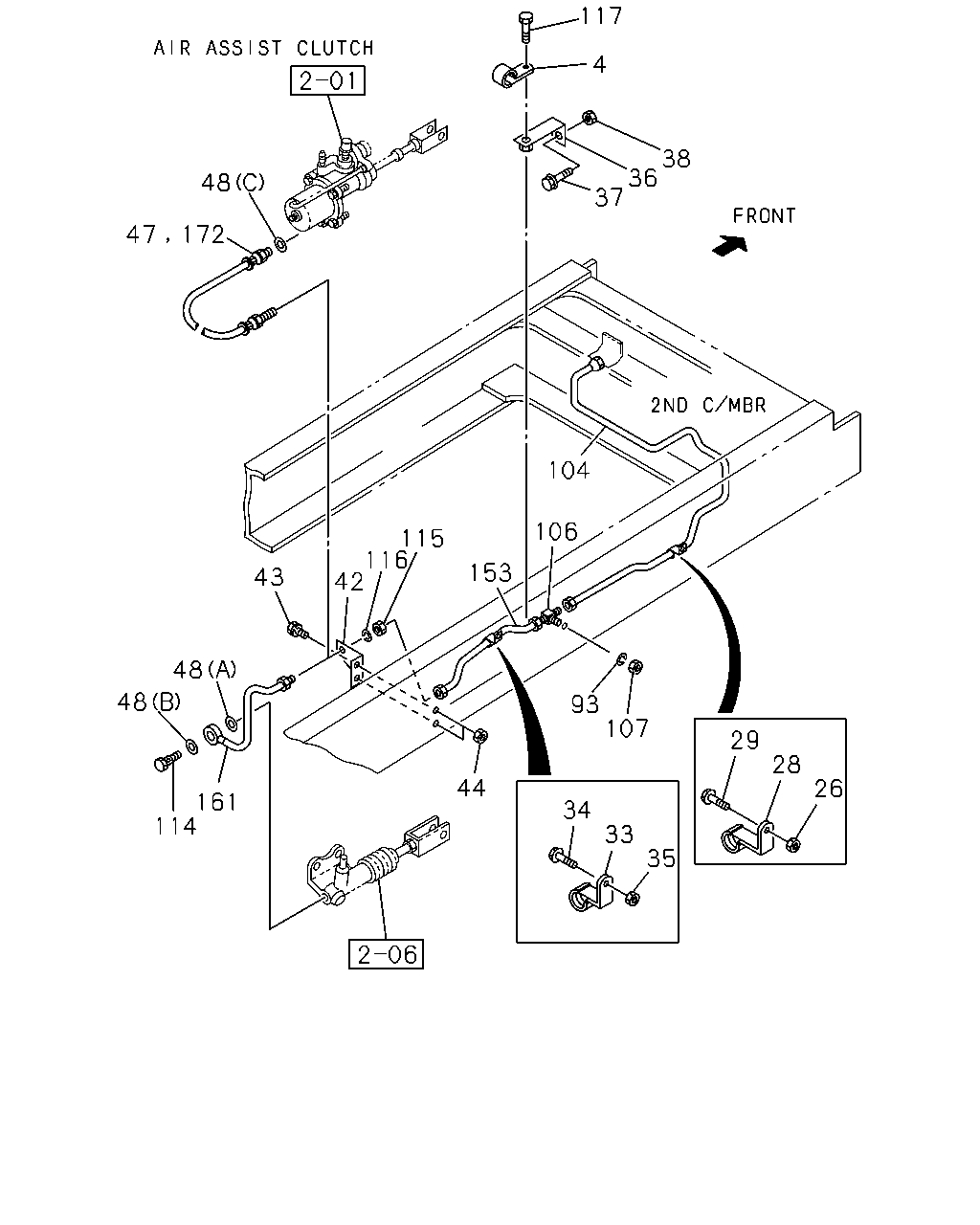

117 4 38 36 37 48 47 172 104 106 115 116 42 153 43 48 48 93 107 29 28 44 26 161 114 34 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	CLIP; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ID=18 L=28	1-09701-067-0	01	1	9202-	●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9202-				●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-				●	●
28	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9305-				●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204				●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	9205-				●	●
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> (B) M8X16 FLANGE	0-28080-816-0	01	1	9305-				●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●	●	●	●
36	BRACKET; CLIP AIR ASSIST CLUTCH<PK1> L=90 W/NUT	1-47475-520-0	01	1	9202-	●		●
36	BRACKET; CLIP L=50	1-47475-299-2	01	1	9305-				●	●
37	BOLT; CLIP BRKT AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●		●
37	BOLT; CLIP BRKT AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28080-830-0	01	1	9205-	●		●
38	NUT; CLIP BRKT AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	01	1	9202-	●		●
42	BRACKET; FLEX HOSE,CLU CONT	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-806-0	01	1	9202-				●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●	●
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9202-9305	●		●
47	HOSE; FLEX,CLU CONT L=250	1-09364-645-0	01	1	9202-9305				●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-				●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9310-9312	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1722 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47434-414-0	01	1	9206-9212	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9202-	●	●	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9202-	●	●	●	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9202-		●
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9202-	●		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●	●
117	BOLT; CLIP,FLEX HOSE AIR ASSIST CLUTCH<PK1> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●		●
117	BOLT; CLIP,FLEX HOSE AIR ASSIST CLUTCH<PK1> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●		●
153	PIPE ASM; CLU,UNION TO FLEX L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1374 SERVICED BY L=1400	1-47434-411-0	01	1	9202-9212				●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1374 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9304				●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1365 SERVICED BY L=1400	1-47426-389-0	01	1	9305-				●	●
161	HOSE; FLEX,SLAVE CYL	0-05567-350-0	01	1	9202-		●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	0-05567-350-0	01	1	9202-	●		●
172	HOSE; FLEX,CLU BOOSTER AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9306-	●		●
172	HOSE; FLEX,CLU BOOSTER L=250	1-09364-645-0	01	1	9306-				●	●
