0-65 — STARTER (#10659) — 24 parça

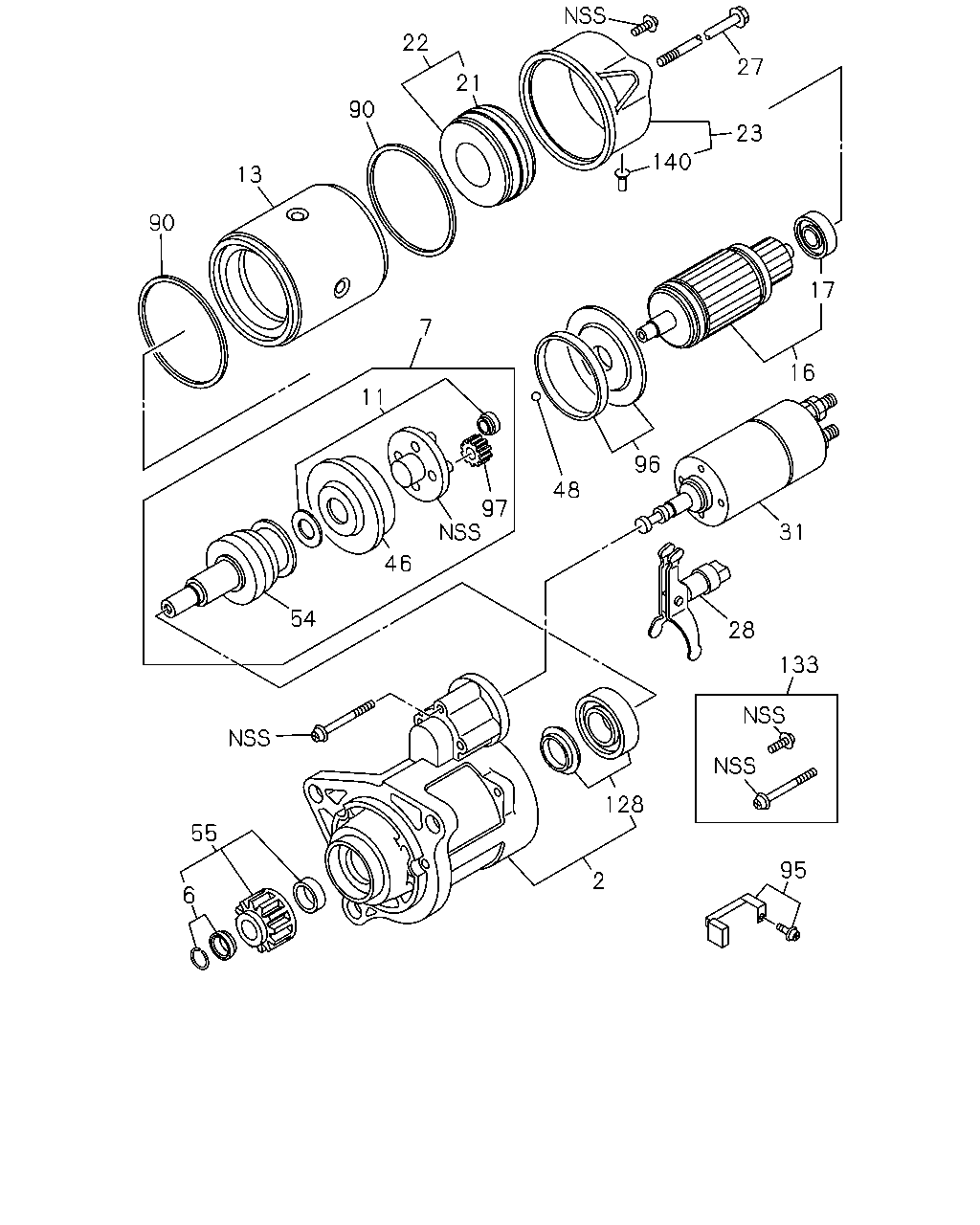

çizim 74462
22 27 21 90 23 140 13 90 17 7 16 11 96 48 97 31 46 54 28 133 128 55 95 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-341-1 		1-81123-065-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 1-81100-341-1 		1-81129-785-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-794-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 1-81100-341-1 		1-81129-781-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-341-1 		1-81129-840-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-341-1 		1-81121-067-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-790-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-341-1 		1-81129-828-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-341-1 		1-81121-071-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-341-1 		1-81115-233-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-783-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-341-1 		1-81151-115-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: A = 1-81100-341-1 		1-81123-061-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 1-81100-341-1 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-782-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 1-81100-341-1 		1-81129-784-0 01 1 -
90 GASKET; ARMATURE
ASM PART: A = 1-81100-341-1 		1-81129-827-0 02 1 -
95 BRUSH ASM; STARTER
ASM PART: A = 1-81100-341-1 		1-81116-067-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 1-81100-341-1 		1-81129-796-0 01 1 -
97 GEAR; STARTER
ASM PART: A = 1-81100-341-1 		1-81123-056-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 1-81100-341-1 		1-81129-780-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 1-81100-341-1 		1-81129-787-0 01 1 -
140 GROMMET; RR COVER
ASM PART: A = 1-81100-341-1 		8-97376-389-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
