0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#10658) — 116 parça

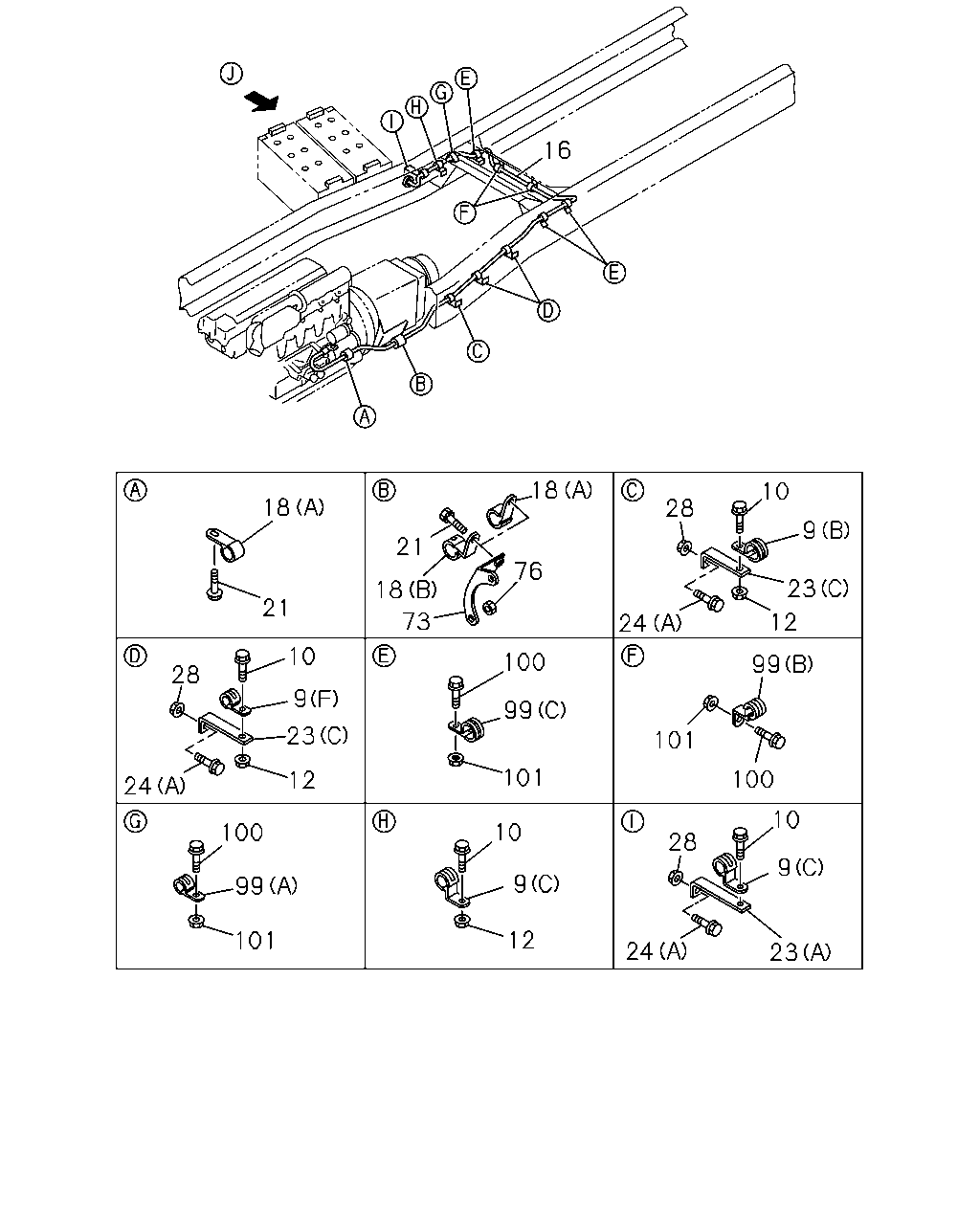

16 18 10 18 28 9 21 76 23 18 21 73 12 24 10 100 99 28 99 23 101 101 100 12 24 10 10 100 28 9 9 99 12 101 24 23 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (A) L=300	1-09707-001-1	02	1	0107-
9	CLIP; BATTERY CABLE (B) ID=19 L=32	9-09525-866-0	01	1	0107-
9	CLIP; BATTERY CABLE (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE ANTILOCK BRAKE SYSTEM(BFA) (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (D) ID=20 L=50	1-09700-679-1	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (E) ID=18 L=28	1-09701-067-0	03	1	0107-
9	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (F) ID=21 L=24	8-94176-807-1	02	1	0107-
10	BOLT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	01	1	0107-
10	BOLT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	07	1	0107-
10	BOLT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	04	1	0107-
12	NUT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	01	1	0107-
12	NUT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	07	1	0107-
12	NUT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	04	1	0107-
16	CABLE; STARTER TO RELAY IRELAND EQUIPMENT(NJY) L=4540	1-82652-719-2	01	1	0107-
16	CABLE; STARTER TO RELAY EXC. IRELAND EQUIPMENT(NJY) L=4910	1-82652-758-0	01	1	0107-
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	0107-
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=19 L=28	9-09525-856-0	01	1	0107-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=19 L=60	9-09525-896-0	01	1	0107-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0107-
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0107-
23	BRACKET; CABLE CLIP TO FRAME IRELAND EQUIPMENT(NJY) (B) L=55	1-47475-304-0	01	1	0107-
23	BRACKET; CABLE CLIP TO FRAME IRELAND EQUIPMENT(NJY) (C) L=95	1-82699-085-0	04	1	0107-
23	BRACKET; CABLE CLIP TO FRAME EXC. IRELAND EQUIPMENT(NJY) (C) L=95	1-82699-085-0	03	1	0107-
24	BOLT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-
24	BOLT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) (C) M8X30 FLANGE	0-28680-830-0	06	1	0107-
24	BOLT; BRKT TO FRAME EXC. IRELAND EQUIPMENT(NJY) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-
28	NUT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	06	1	0107-
28	NUT; BRKT TO FRAME EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	04	1	0107-
73	BRACKET; BATTERY CABLE MJD7S M/T(Y2Y)	1-82699-493-0	01	1	0107-
76	NUT; BATTERY CABLE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-
99	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (C) ID=18 L=28	1-09701-067-0	02	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (A) ID=18 L=28	1-09701-067-0	01	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (C) ID=18 L=25 H=50	1-09701-096-0	03	1	0107-
100	BOLT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8X25 FLANGE	0-28680-825-0	02	1	0107-
100	BOLT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8X25 FLANGE	0-28680-825-0	06	1	0107-
101	NUT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	02	1	0107-
101	NUT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	06	1	0107-

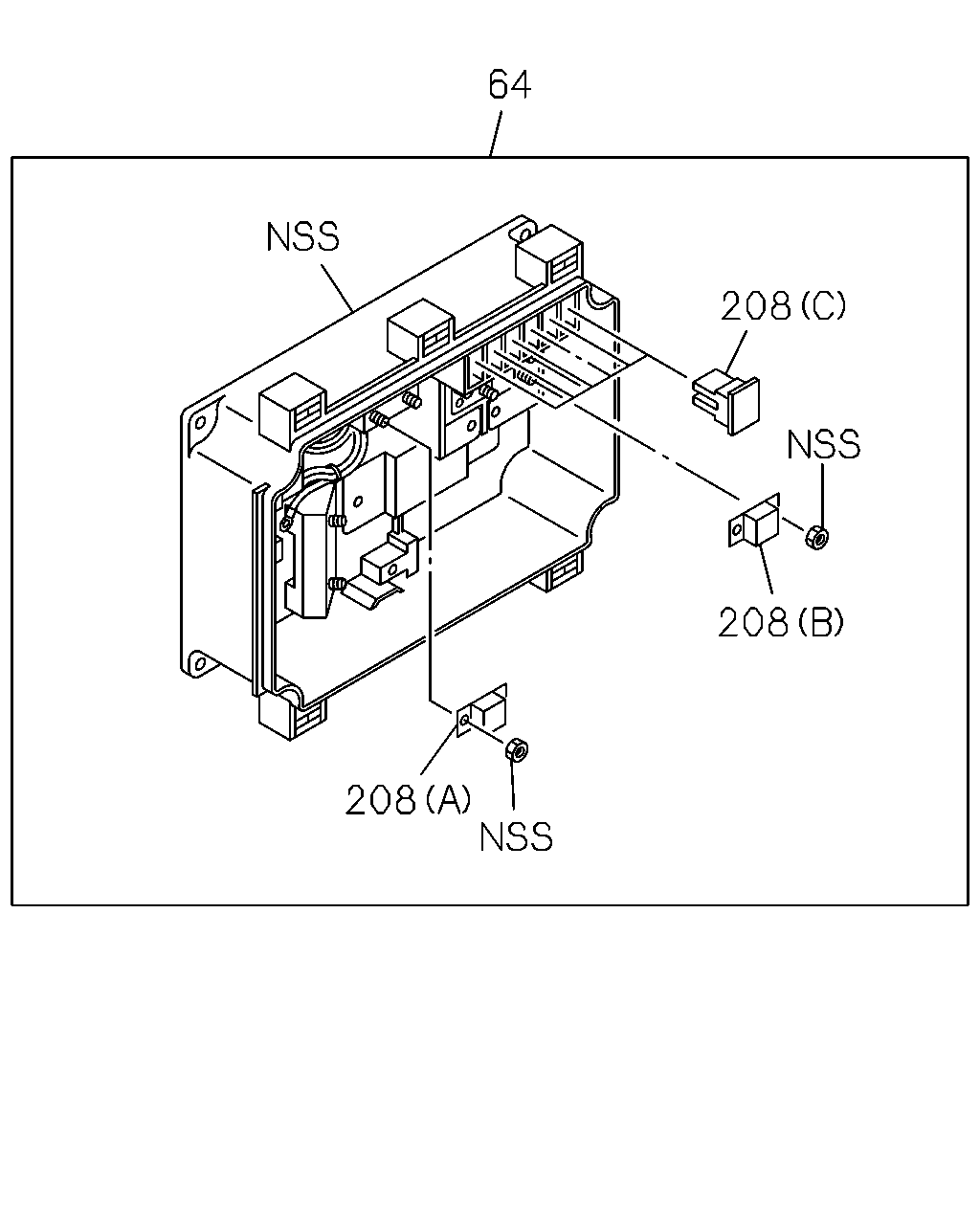

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0107-
208	FUSE (A) 80A	1-82516-031-0	01	1	0107-
208	FUSE (B) 100A	1-82516-032-0	01	1	0107-
208	FUSE (C) 40A GREEN	8-94468-662-0	05	1	0107-

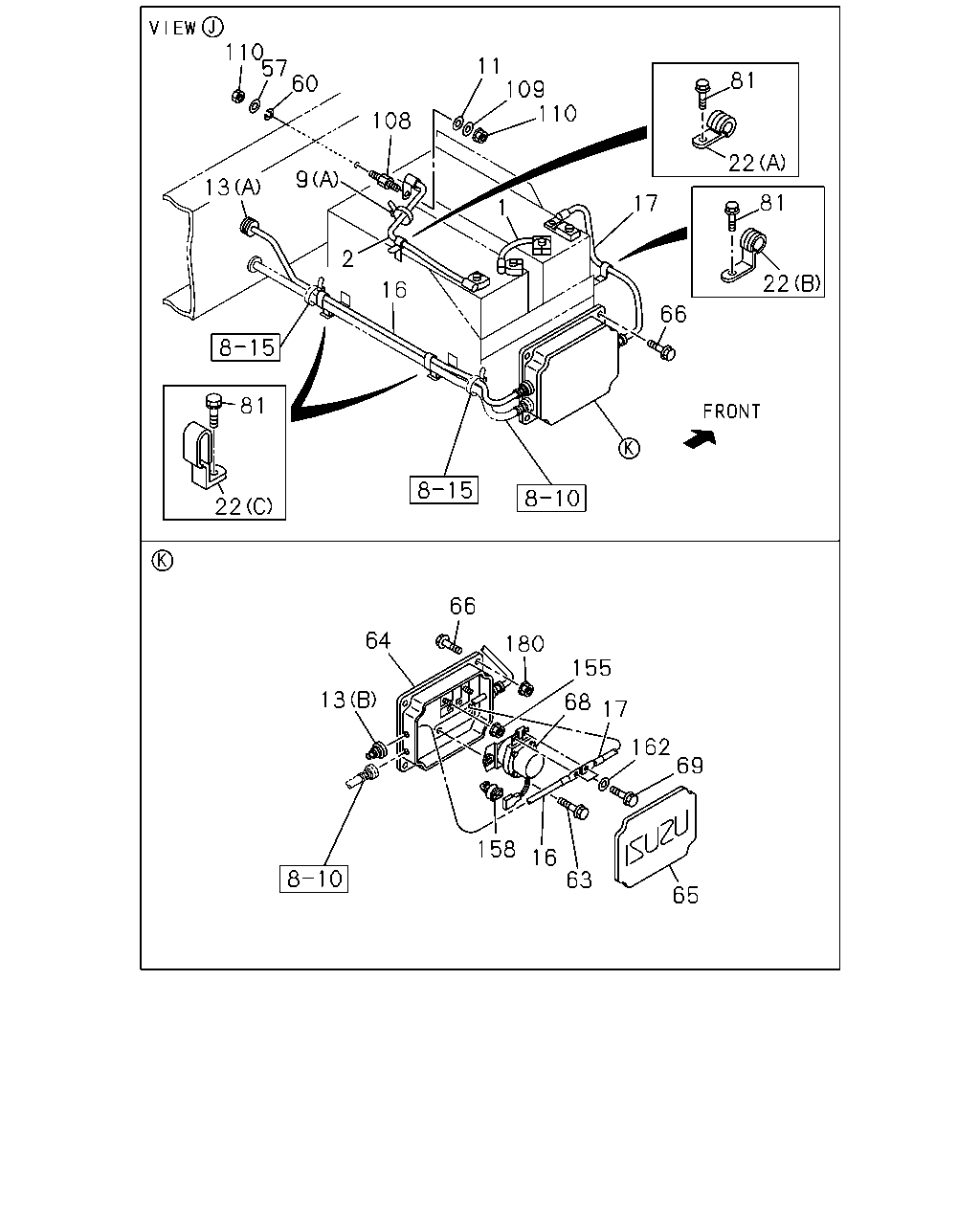

110 57 60 11 109 110 81 108 22 9 13 81 17 1 2 22 16 66 81 22 66 64 180 155 13 68 17 162 69 158 16 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> EXC. IRELAND EQUIPMENT(NJY) L=450	1-82650-281-2	01	1	0107-
1	CABLE; BATTERY IRELAND EQUIPMENT(NJY) BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-316-0	01	1	0107-
1	CABLE; BATTERY IRELAND EQUIPMENT(NJY) EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-315-0	01	1	0107-
1	CABLE; BATTERY EXC. IRELAND EQUIPMENT(NJY),BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	0107-
2	CABLE; BATTERY L=680	1-82650-319-0	01	1	0107-
9	CLIP; BATTERY CABLE (A) L=300	1-09707-001-1	02	1	0107-
9	CLIP; BATTERY CABLE (B) ID=19 L=32	9-09525-866-0	01	1	0107-
9	CLIP; BATTERY CABLE (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE ANTILOCK BRAKE SYSTEM(BFA) (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (D) ID=20 L=50	1-09700-679-1	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (E) ID=18 L=28	1-09701-067-0	03	1	0107-
9	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (F) ID=21 L=24	8-94176-807-1	02	1	0107-
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0107-
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	0107-
16	CABLE; STARTER TO RELAY IRELAND EQUIPMENT(NJY) L=4540	1-82652-719-2	01	1	0107-
16	CABLE; STARTER TO RELAY EXC. IRELAND EQUIPMENT(NJY) L=4910	1-82652-758-0	01	1	0107-
17	CABLE; BATTERY (+) TO RELAY L=530	1-82652-672-4	01	1	0107-
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0107-
22	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0107-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0107-
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0107-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0107-
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0107-
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0107-
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0107-
68	RELAY; BATTERY	1-82550-313-0	01	1	0107-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0107-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	04	1	0107-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0107-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0107-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0107-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0107-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0107-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0107-
180	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0107-

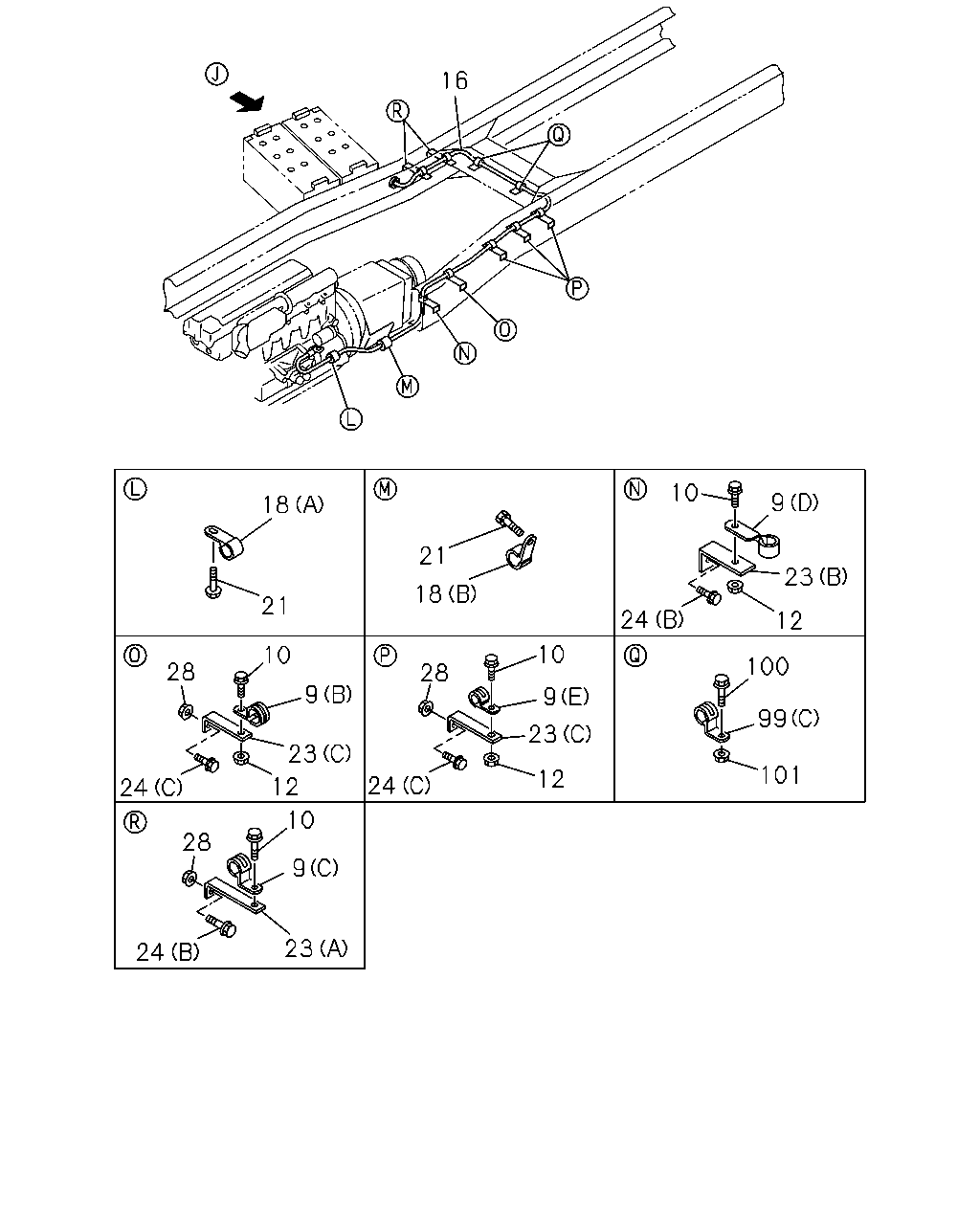

16 10 9 18 21 23 18 21 24 12 10 10 100 28 28 9 9 99 2 23 101 12 24 12 24 10 28 9 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CABLE; BATTERY L=680	1-82650-319-0	01	1	0107-
9	CLIP; BATTERY CABLE (A) L=300	1-09707-001-1	02	1	0107-
9	CLIP; BATTERY CABLE (B) ID=19 L=32	9-09525-866-0	01	1	0107-
9	CLIP; BATTERY CABLE (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE ANTILOCK BRAKE SYSTEM(BFA) (C) ID=18 H=23 L=28	1-09701-070-0	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (D) ID=20 L=50	1-09700-679-1	01	1	0107-
9	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (E) ID=18 L=28	1-09701-067-0	03	1	0107-
9	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (F) ID=21 L=24	8-94176-807-1	02	1	0107-
10	BOLT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	01	1	0107-
10	BOLT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	07	1	0107-
10	BOLT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	04	1	0107-
12	NUT; BATTERY CABLE CLIP ANTILOCK BRAKE SYSTEM(BFA) EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	01	1	0107-
12	NUT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	07	1	0107-
12	NUT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	04	1	0107-
16	CABLE; STARTER TO RELAY IRELAND EQUIPMENT(NJY) L=4540	1-82652-719-2	01	1	0107-
16	CABLE; STARTER TO RELAY EXC. IRELAND EQUIPMENT(NJY) L=4910	1-82652-758-0	01	1	0107-
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	0107-
18	CLIP; BATTERY CABLE ISUZU M/T<X9A> (A) ID=19 L=28	9-09525-856-0	01	1	0107-
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=19 L=60	9-09525-896-0	01	1	0107-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0107-
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	01	1	0107-
23	BRACKET; CABLE CLIP TO FRAME IRELAND EQUIPMENT(NJY) (B) L=55	1-47475-304-0	01	1	0107-
23	BRACKET; CABLE CLIP TO FRAME IRELAND EQUIPMENT(NJY) (C) L=95	1-82699-085-0	04	1	0107-
23	BRACKET; CABLE CLIP TO FRAME EXC. IRELAND EQUIPMENT(NJY) (C) L=95	1-82699-085-0	03	1	0107-
24	BOLT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) (B) M8X25 FLANGE	0-28680-825-0	01	1	0107-
24	BOLT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) (C) M8X30 FLANGE	0-28680-830-0	06	1	0107-
24	BOLT; BRKT TO FRAME EXC. IRELAND EQUIPMENT(NJY) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-
28	NUT; BRKT TO FRAME IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	06	1	0107-
28	NUT; BRKT TO FRAME EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	04	1	0107-
99	CLIP; BATTERY CABLE IRELAND EQUIPMENT(NJY) (C) ID=18 L=28	1-09701-067-0	02	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (A) ID=18 L=28	1-09701-067-0	01	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0107-
99	CLIP; BATTERY CABLE EXC. IRELAND EQUIPMENT(NJY) (C) ID=18 L=25 H=50	1-09701-096-0	03	1	0107-
100	BOLT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8X25 FLANGE	0-28680-825-0	02	1	0107-
100	BOLT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8X25 FLANGE	0-28680-825-0	06	1	0107-
101	NUT; BATTERY CABLE CLIP IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	02	1	0107-
101	NUT; BATTERY CABLE CLIP EXC. IRELAND EQUIPMENT(NJY) M8 FLANGE	0-91150-108-0	06	1	0107-
