Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#10657) — 76 parça

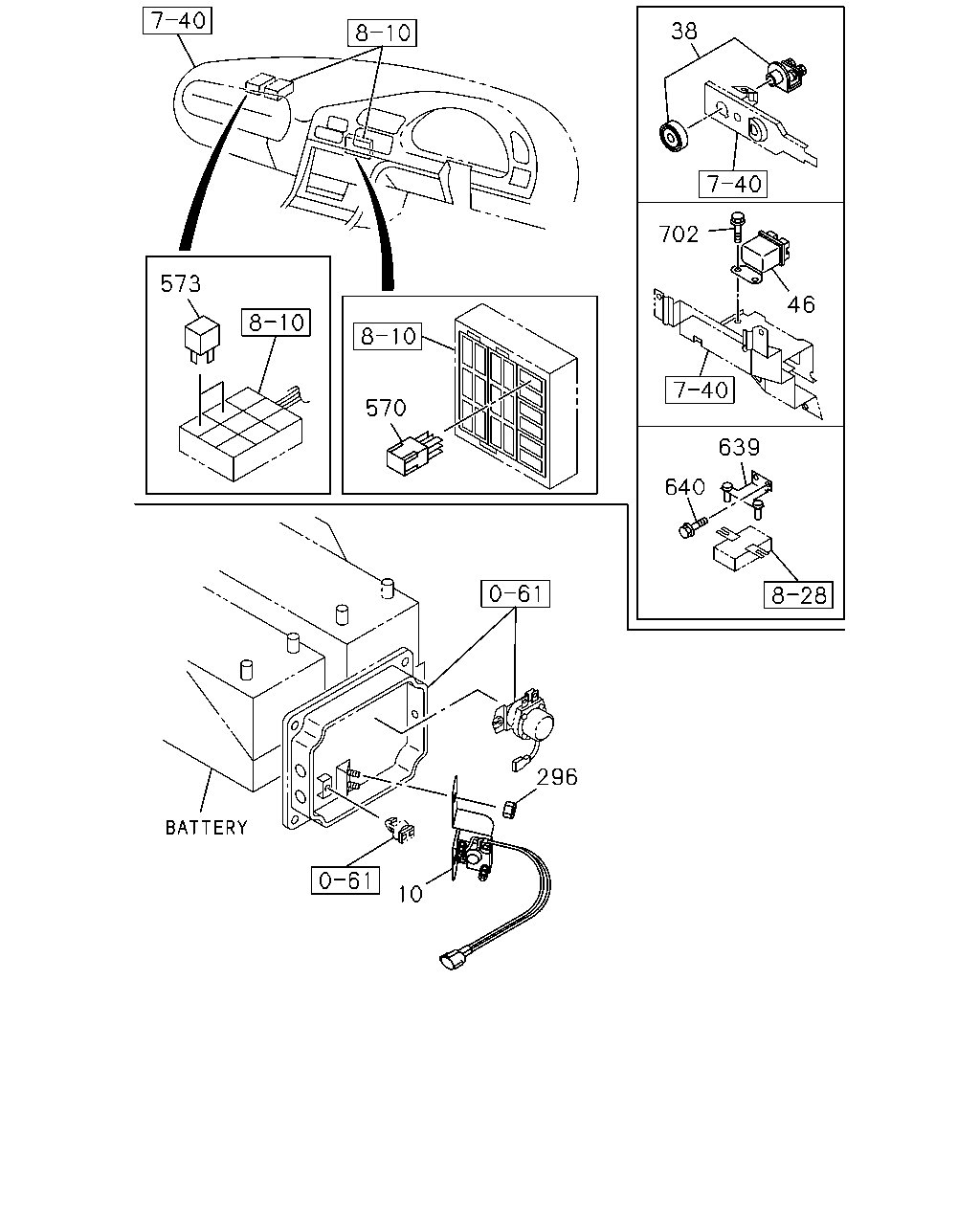

38 702 573 46 570 639 640 296 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER HITACHI	1-81171-088-0	01	1	0107-
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0107-
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0107-
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0107-
570	RELAY; EXH SHUTTER 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
573	RELAY; ELEC GOV 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-
639	BRACKET; QOS GLOW TIMER ANTILOCK BRAKE SYSTEM(BFA)	1-73908-161-0	01	1	0107-
640	BOLT; BRKT,QOS GLOW TIMER ANTILOCK BRAKE SYSTEM(BFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-

441 441 428 428 441 428 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0107-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0107-
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0107-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0107-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0107-
428	CLIP; HARNESS (C) L=100	5-09707-036-1	01	1	0107-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0107-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0107-
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
608	SENSOR; AIR TEMP	8-97177-549-0	01	1	0107-

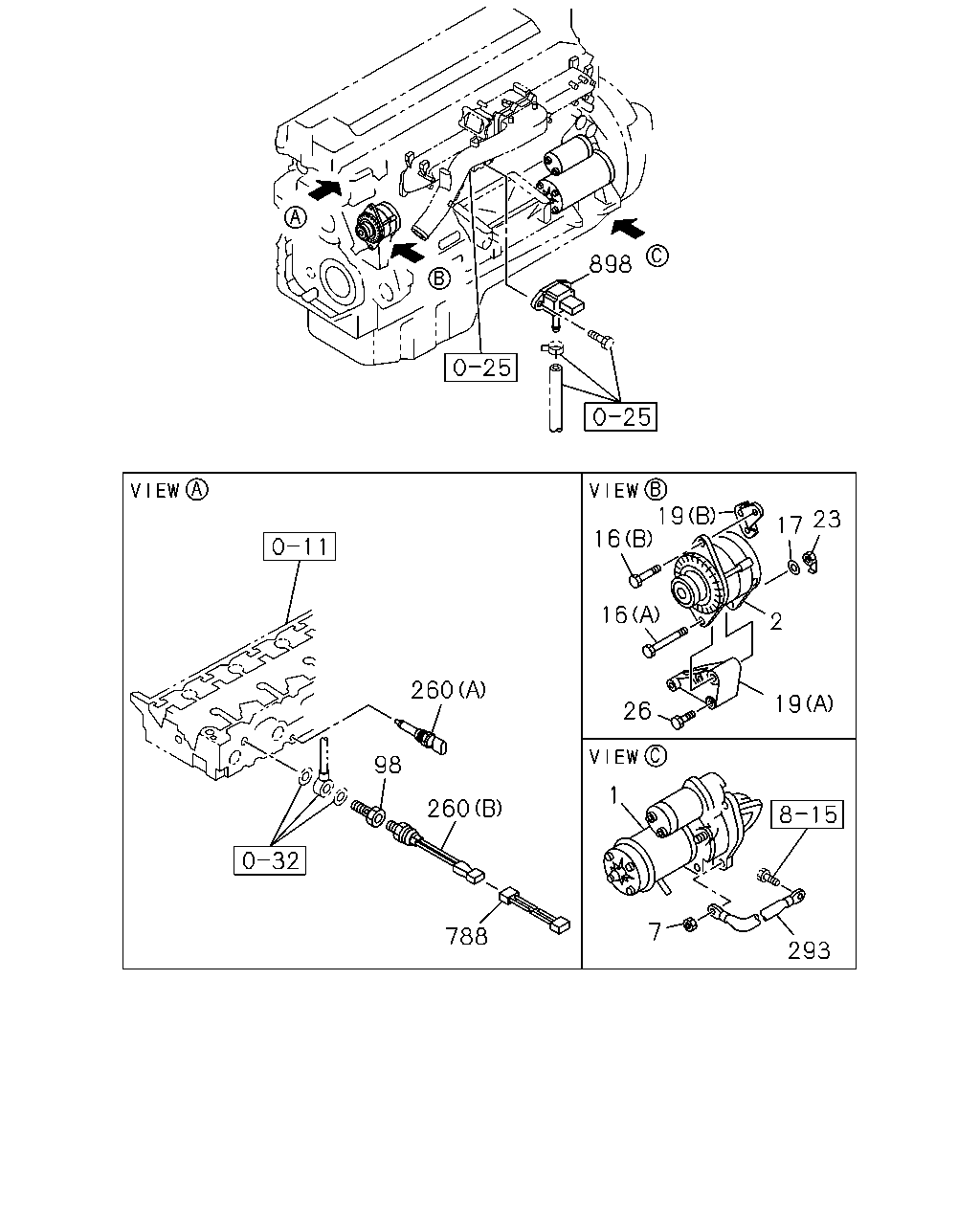

898 19 16 16 2 26 19 17 23 1 7 293 260 98 260 788

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	0107-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-1	01	1	0107-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-4	01	1	0107-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0107-
16	BOLT; GEN (B) M12X40 FLANGE	0-28081-240-0	01	1	0107-
16	BOLT; GEN (A) M14X123	1-09040-105-0	01	1	0107-
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0107-
19	BRACKET; GEN (B)	1-19711-101-0	01	1	0107-
19	BRACKET; GEN (A)	1-19711-143-0	01	1	0107-
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0107-
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	0107-
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0107-
260	SENSOR; WATER TEMP (A)	1-80210-005-0	01	1	0107-
260	SENSOR; WATER TEMP (B)	1-83161-040-0	01	1	0107-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0107-
788	HARNESS; EXT,WATER TEMP SENSOR	1-82641-183-0	01	1	0107-
898	SENSOR; BOOST	1-80220-014-0	01	1	0107-

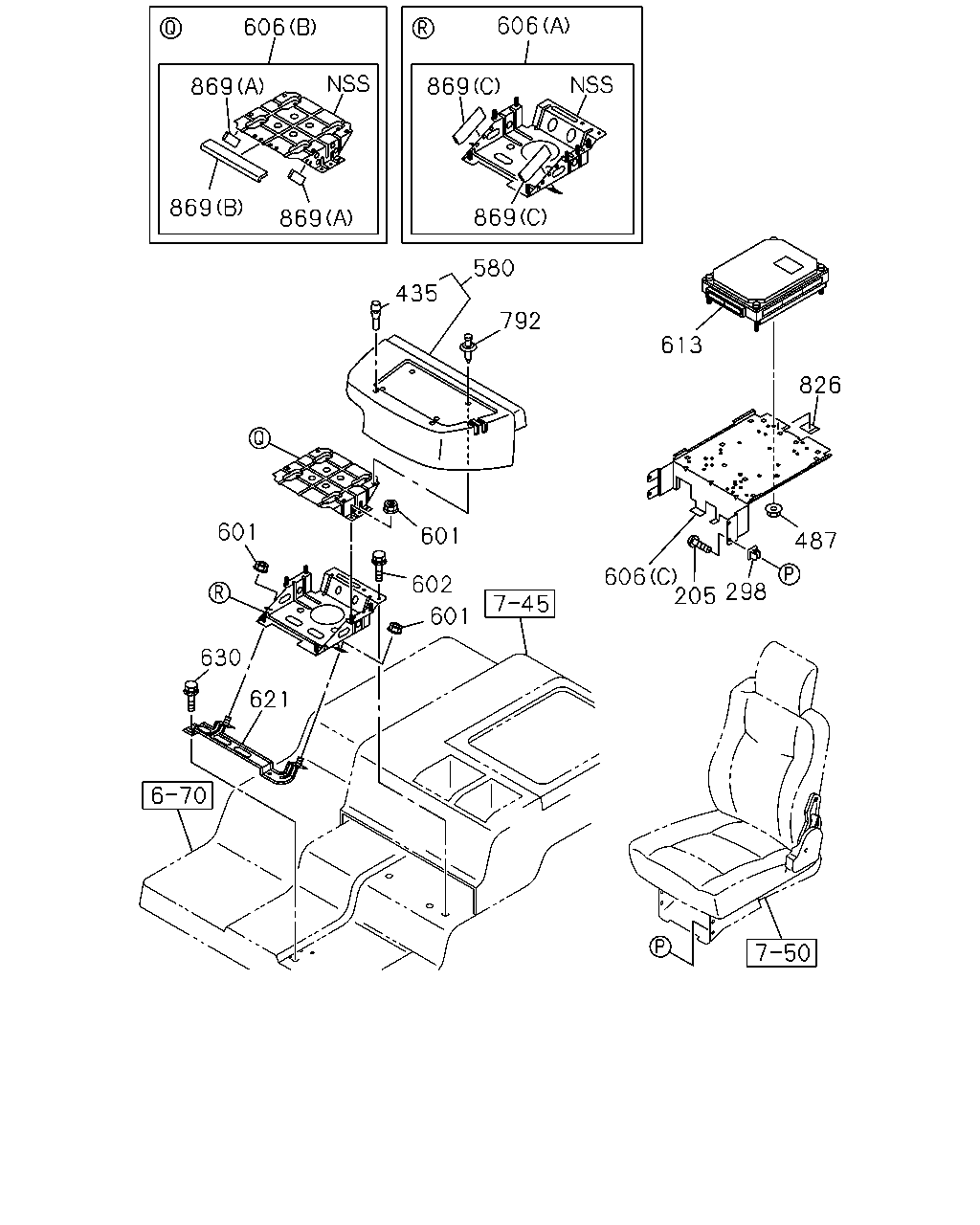

606 606 869 869 869 869 869 580 435 792 613 826 601 601 487 606 298 205 602 601 630 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0107-
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0107-
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	0107-
487	NUT M6 FLANGE	0-91150-106-0	04	1	0107-
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-191-0	01	1	0107-
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	04	1	0107-
601	NUT; UNIT ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	04	1	0107-
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	02	1	0107-
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
606	BRACKET; CONT UNIT (C)	1-75558-598-3	01	1	0107-
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	0107-
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-2	01	1	0107-
613	CONTROL UNIT; ENG 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-80110-765-1	01	1	0107-
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER VAR2<NFD>	1-80110-763-1	01	1	0107-
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) SPEED LIMITER VAR2<NFD> EURO3 SPECIFICATION<NJX> INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-80110-764-1	01	1	0107-
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	0107-
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-
792	FASTENER CENTER SEAT DELETE(SP9) D8X13.5	1-09987-270-0	04	1	0107-
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	0107-
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880	1-73948-003-0	01	1	0107-
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880	1-73948-003-0	02	1	0107-
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880	1-73948-003-0	02	1	0107-

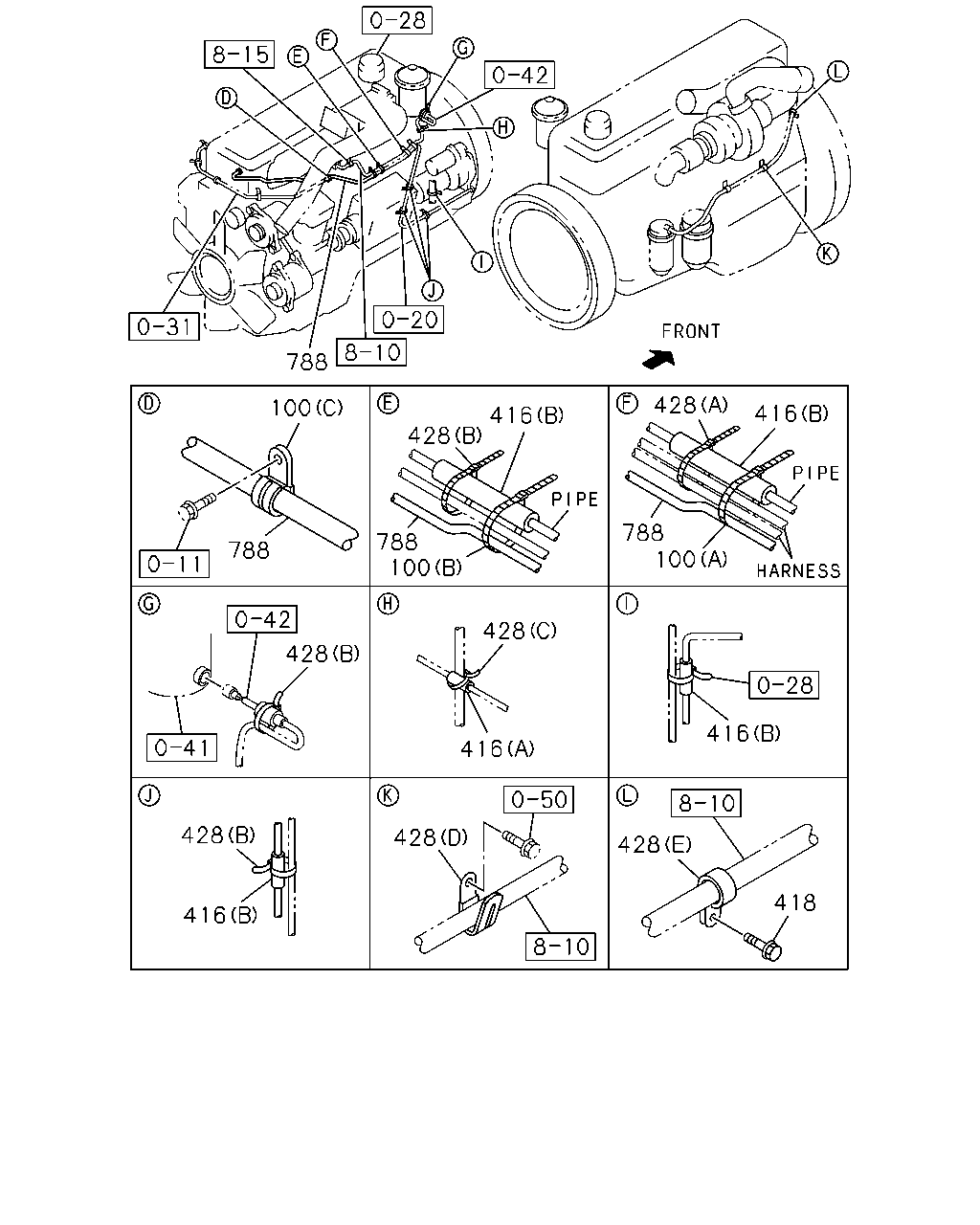

788 428 100 416 416 428 788 100 788 100 788 428 428 416 416 428 428 428 418 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0107-
100	CLIP; HARNESS (B) L=140	5-09707-031-1	01	1	0107-
100	CLIP; HARNESS (C) ID=11 L=20	9-09525-035-0	01	1	0107-
416	SLEEVE; RUBBER (A) ID=6 L=30	5-09360-352-0	01	1	0107-
416	SLEEVE; RUBBER (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0107-
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	0107-
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0107-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0107-
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0107-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0107-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0107-
428	CLIP; HARNESS (C) L=100	5-09707-036-1	01	1	0107-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0107-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0107-
788	HARNESS; EXT,WATER TEMP SENSOR	1-82641-183-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
