0-57 — EMISSION PIPING (#10656) — 22 parça

712 713 49 712 713

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	CLIP; HOSE EURO3 SPECIFICATION<NJX> ID=10 & 10	1-09709-277-1	01	1	0107-	●	●
712	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0107-	●	●
713	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	9-09150-512-0	02	1	0107-	●	●

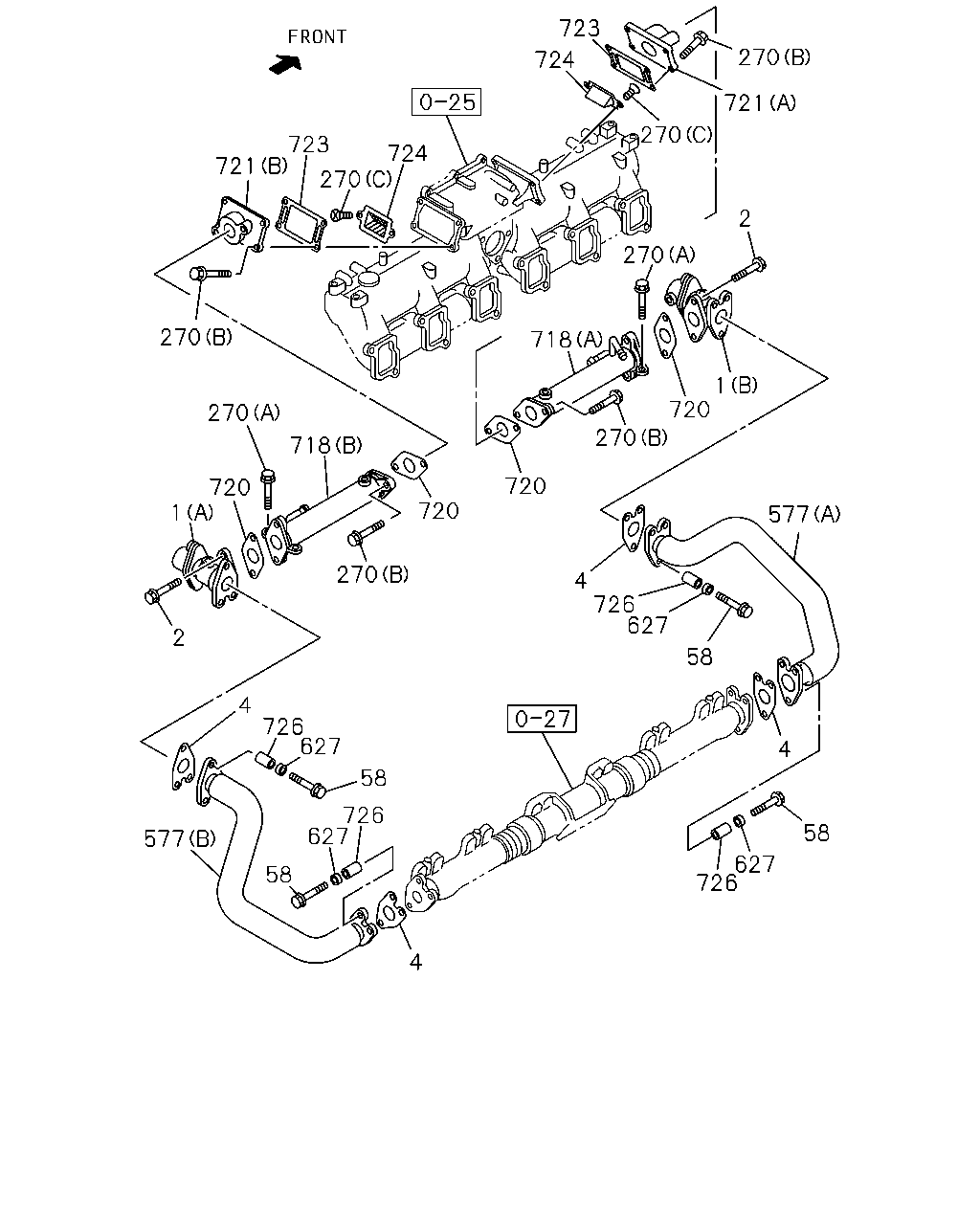

723 270 724 721 270 723 721 724 270 2 270 270 718 1 720 270 270 718 720 720 720 1 577 270 4 726 627 2 58 4 726 627 4 58 726 627 58 577 627 726 58 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR (A)	1-16110-015-0	01	1	0107-	●	●
1	VALVE; EGR (B)	1-16110-016-0	01	1	0107-	●	●
2	BOLT; EGR VLV M10X20 FLANGE	0-28181-020-0	04	1	0107-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-015-0	04	1	0107-	●	●
58	BOLT; PIPE M10X55 FLANGE	8-94399-863-1	12	1	0107-	●	●
270	BOLT (A) M10X20 FLANGE	0-28181-020-0	04	1	0107-	●	●
270	BOLT (B) M10X30 FLANGE	0-28181-030-0	12	1	0107-	●	●
270	BOLT (C) M6X12 HEX SOCKET	9-05820-612-0	04	1	0107-	●	●
577	PIPE; AIR,EGR (A)	1-16181-052-3	01	1	0107-	●	●
577	PIPE; AIR,EGR (B)	1-16181-053-3	01	1	0107-	●	●
627	WASHER; LK,EGR PIPE T=2.2	1-09556-015-0	12	1	0107-	●	●
718	COOLER; EGR (A)	1-16127-009-3	01	1	0107-	●	●
718	COOLER; EGR (B)	1-16127-011-2	01	1	0107-	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-16157-016-0	04	1	0107-	●	●
721	DUCT; COOLER (A)	1-16183-035-1	01	1	0107-	●	●
721	DUCT; COOLER (B)	1-16183-036-1	01	1	0107-	●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0107-	●	●
724	VALVE; REED	8-98186-738-0	02	1	0107-	●	●
726	TUBE; DISTANCE L=28	8-94395-679-0	12	1	0107-	●	●
