0-40 — FUEL INJECTION SYSTEM (#10650) — 61 parça

31 32 42 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-372-2	06	1	0107-	●	●
32	HOLDER ASM; NOZZLE	1-15330-122-2	06	1	0107-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-152-0	06	1	0107-	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-141-0	06	1	0107-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0107-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0107-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0107-	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0107-	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-128-0	06	1	0107-	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0107-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0107-	●	●
272	NOZZLE KIT; INJ	1-15319-007-1	12	1	0107-	●	●

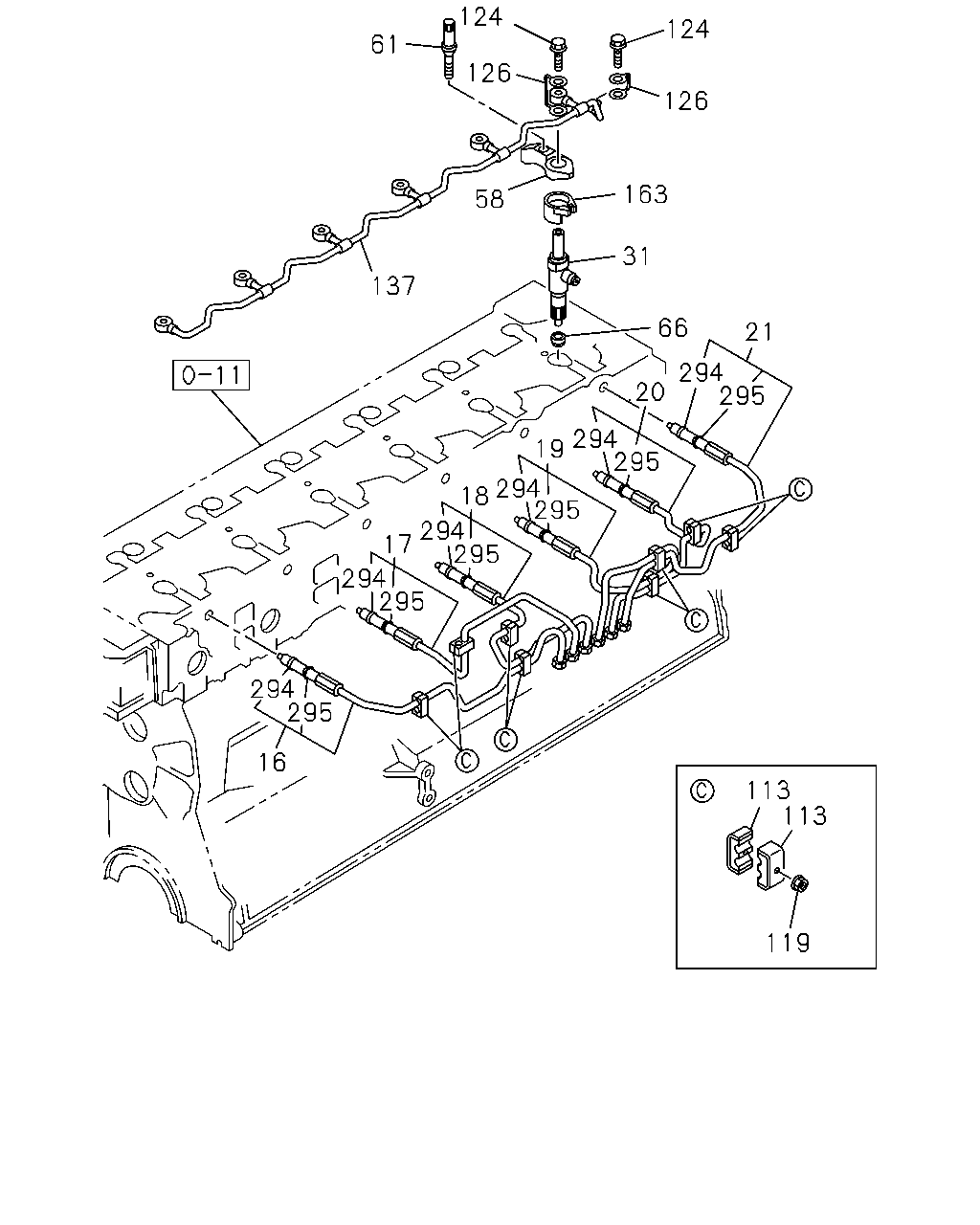

124 124 61 126 126 163 58 31 137 66 21 294 295 20 294 19 295 294 18 295 294 17 295 294 295 294 295 16 113 113 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15416-343-1	01	1	0107-	●	●
17	PIPE; INJ NO.2	1-15416-344-1	01	1	0107-	●	●
18	PIPE; INJ NO.3	1-15416-345-1	01	1	0107-	●	●
19	PIPE; INJ NO.4	1-15416-346-1	01	1	0107-	●	●
20	PIPE; INJ NO.5	1-15416-347-1	01	1	0107-	●	●
21	PIPE; INJ NO.6	1-15416-681-0	01	1	0107-	●	●
31	NOZZLE ASM; INJ	1-15300-372-2	06	1	0107-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	0107-	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0107-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	0107-	●	●
113	CLIP; INJ PIPE	1-09701-132-0	16	1	0107-	●	●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	08	1	0107-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0107-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0107-	●	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	0107-	●	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	0107-	●	●
294	SEAL; OIL,SLEEVE NUT	1-09625-544-0	06	1	0107-	●	●
295	GASKET; SLEEVE NUT	1-09623-564-0	06	1	0107-	●	●

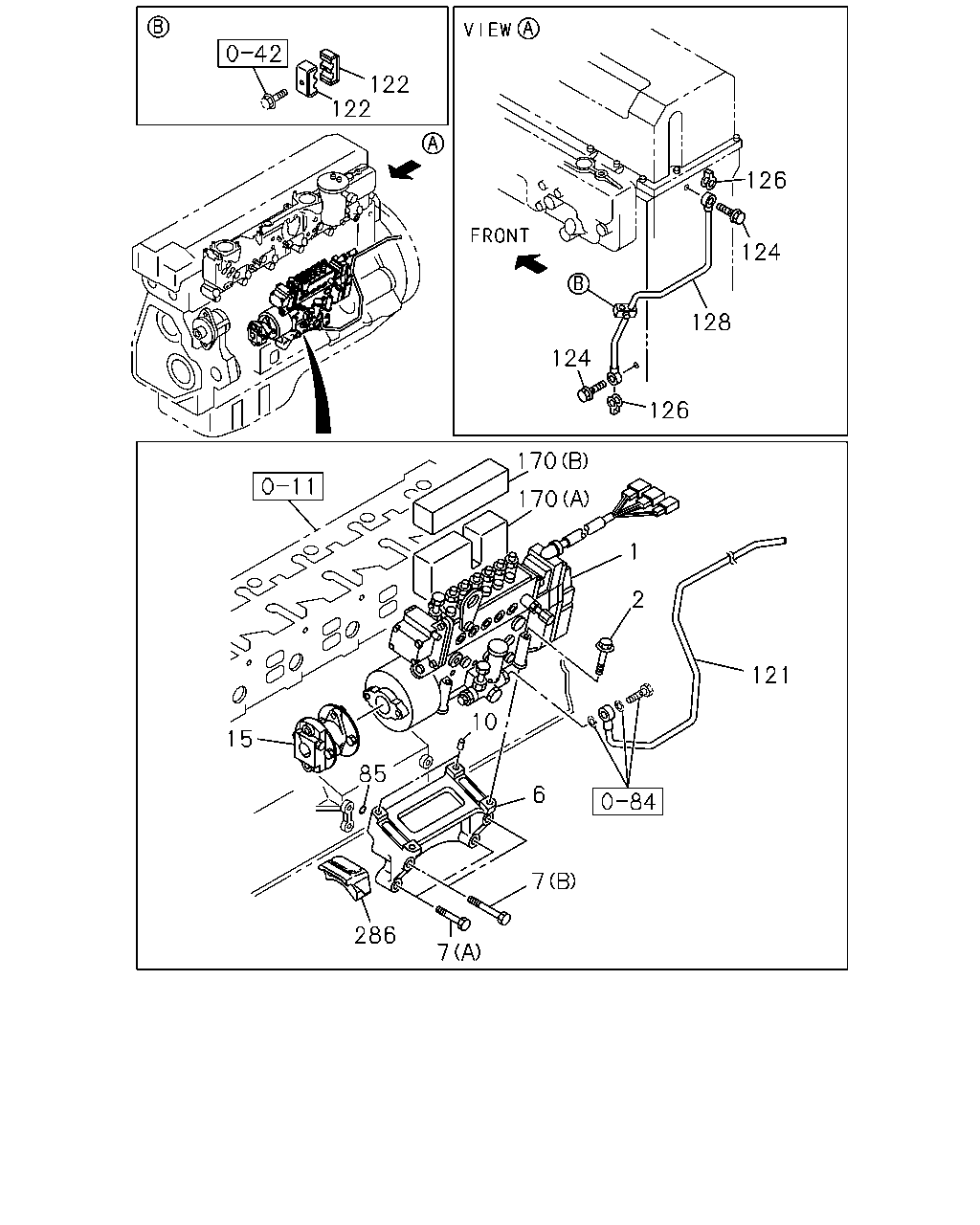

122 122 126 124 128 124 126 170 170 1 2 121 10 15 85 6 7 286 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-414-1	01	1	0107-	●	●
2	BOLT; INJ PUMP M10X90 FLANGE	0-28181-090-0	04	1	0107-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-160-2	01	1	0107-	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0107-	●	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0107-	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0107-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	0107-	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	01	1	0107-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-429-0	01	1	0107-	●	●
122	CLIP; LEAK OFF PIPE	1-09701-132-0	02	1	0107-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0107-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0107-	●	●
128	PIPE ASM; INJ	1-15416-391-0	01	1	0107-	●	●
170	INSULATOR; INJ PUMP GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-19389-160-0	01	1	0107-	●
170	INSULATOR; INJ PUMP GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B)	1-19389-224-0	01	1	0107-	●
286	INSULATOR; BRKT	1-19389-222-1	01	1	0107-	●	●
