0-39 — AIR COMPRESSOR; BRAKE (#10649) — 33 parça

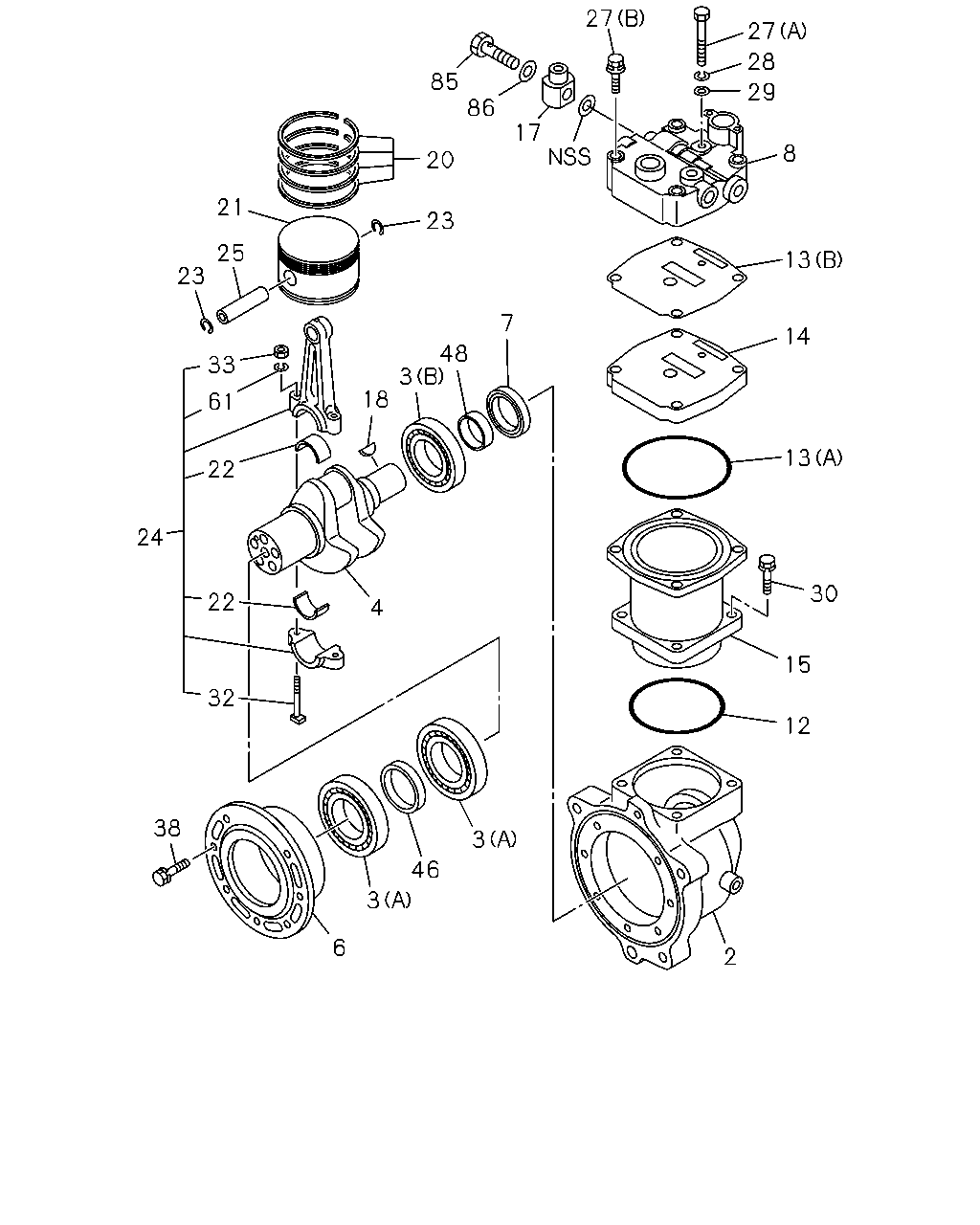

çizim 22064
27 27 28 85 86 29 17 8 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-286-2 01 1 0107- ● ●
3 BEARING; AIR CMPR
(B) 		8-98171-672-0 01 1 0107- ● ●
3 BEARING; AIR CMPR
(A) 		1-09800-281-0 02 1 0107- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-080-0 01 1 0107- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-079-1 01 1 0107- ● ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-619-0 01 1 0107- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-072-0 01 1 0107- ● ●
12 GASKET; AIR CMPR 1-09623-651-1 01 1 0107- ● ●
13 GASKET; AIR CMPR
(A) 		1-09623-650-1 01 1 0107- ● ●
13 GASKET; AIR CMPR
(B) 		1-19139-019-0 01 1 0107- ● ●
14 PLATE; AIR CMPR 1-19110-064-1 01 1 0107- ● ●
15 CYLINDER; AIR CMPR 1-19163-065-0 01 1 0107- ● ●
17 ADAPTER; AIR CMPR 1-19119-034-1 01 1 0107- ● ●
18 KEY; AIR CMPR 9-08055-622-0 01 1 0107- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-064-0 01 1 0107- ● ●
21 PISTON; AIR CMPR 1-19161-023-0 01 1 0107- ● ●
22 METAL; CONNROD,AIR CMPR 1-19179-025-0 02 1 0107- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-001-0 02 1 0107- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19171-078-0 01 1 0107- ● ●
25 PIN; PISTON,AIR CMPR 1-19167-004-0 01 1 0107- ● ●
27 BOLT; HD
(A) 		1-09044-071-0 01 1 0107- ● ●
27 BOLT; HD
(B) M10X80 		1-19119-024-0 04 1 0107- ● ●
28 WASHER; LK,HD BOLT
ID=8.2 		9-09150-508-0 01 1 0107- ● ●
29 WASHER; PL,HD BOLT
ID=8.4 		9-09160-508-0 01 1 0107- ● ●
30 BOLT; CYL TO CRANKCASE
M10X30 		1-19119-026-0 04 1 0107- ● ●
32 BOLT; CONNROD 1-19179-021-0 02 1 0107- ● ●
33 NUT; CONNROD BOLT 1-19179-026-0 02 1 0107- ● ●
38 BOLT; COVER FIX
M8X30 		0-20800-830-0 07 1 0107- ● ●
46 SPACER; BRG 1-19179-029-0 01 1 0107- ● ●
48 SLEEVE; CR/SHF 1-19179-027-0 01 1 0107- ● ●
61 WASHER; LK,CONNROD BOLT 1-19179-022-0 02 1 0107- ● ●
85 BOLT; ADAPTER
M14X39 FLANGE 		1-09675-089-0 01 1 0107- ● ●
86 GASKET; ADAPTER
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0107- ● ●
