0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#10648) — 57 parça

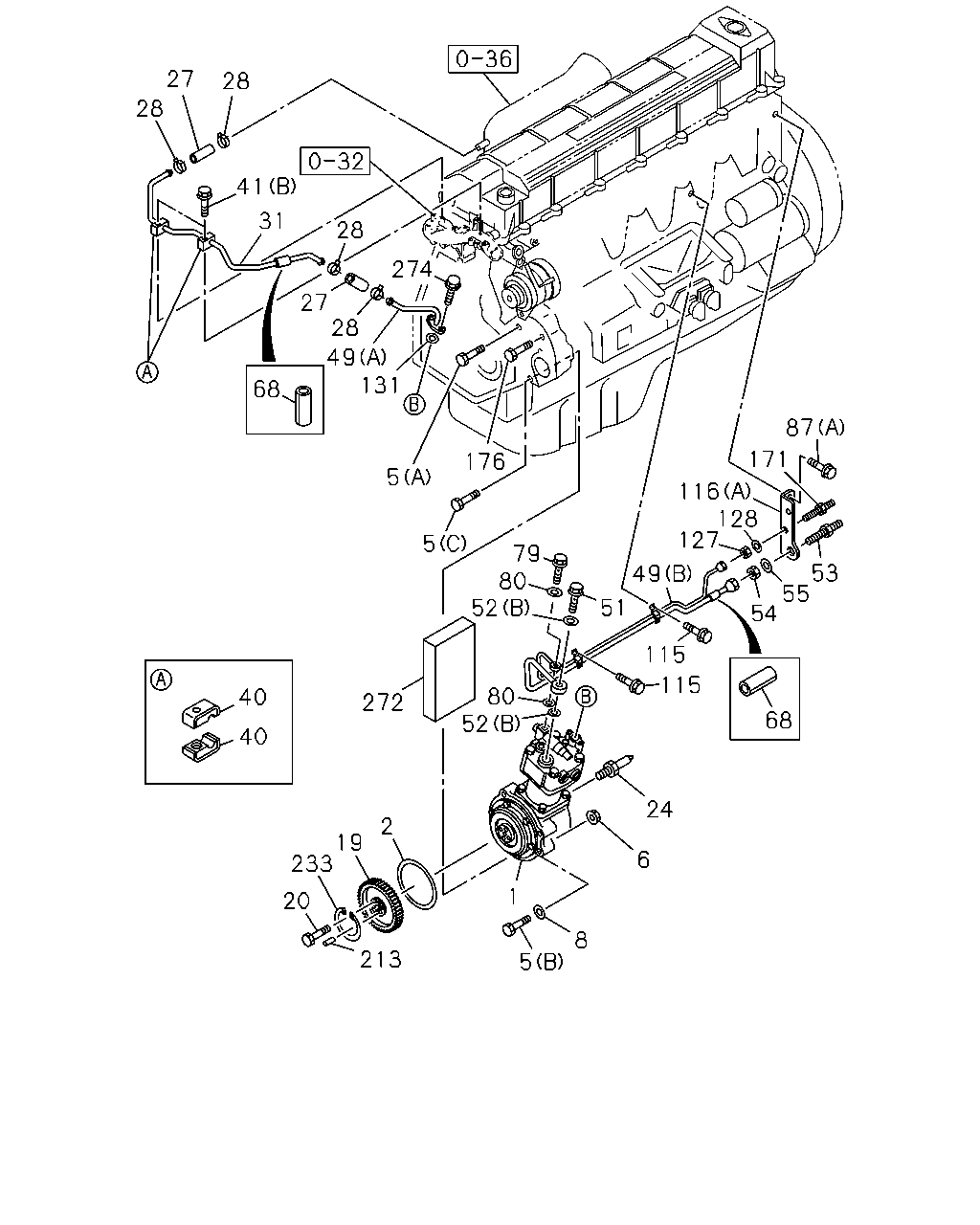

çizim 20093
27 28 28 41 274 31 28 27 28 49 131 68 87 171 176 5 116 128 127 5 79 80 52 53 55 54 49 51 115 115 80 52 40 272 68 40 24 2 19 233 6 1 20 8 213 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-328-1 01 1 0107- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 0107- ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 0107- ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 0107- ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150 		9-09804-172-1 01 1 0107- ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 0107- ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 0107- ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 01 1 0107- ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-151-0 01 1 0107- ● ●
20 BOLT; GEAR TO SHAFT
M12X39 FLANGE 		1-09070-116-0 05 1 0107- ● ●
24 POINTER; AIR CMPR 1-11327-017-0 01 1 0107- ● ●
27 HOSE; AIR CMPR,SUCTION
L=55 		1-09360-784-0 02 1 0107- ● ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 04 1 0107- ● ●
31 PIPE; AIR,AIR CMPR SUCTION 1-19193-279-0 01 1 0107- ● ●
40 CLIP; AIR PIPE 1-09701-281-0 04 1 0107- ● ●
41 BOLT; CLIP
(A) M6X30 FLANGE 		0-28080-630-0 04 1 0107- ● ●
41 BOLT; CLIP
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0107- ● ●
49 PIPE; AIR,CHARGE
(A) 		1-19193-122-1 01 1 0107- ● ●
49 PIPE; AIR,CHARGE
(B) 		1-19193-126-2 01 1 0107- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-1 01 1 0107- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 08 1 0107- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32 		9-09571-424-0 02 1 0107- ● ●
53 UNION; CHARGE PIPE
M22 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 0107- ● ●
54 NUT; PIPE UNION
M22 		9-09111-522-0 01 1 0107- ● ●
55 WASHER; LK,PIPE UNION
ID=22.5 		9-09150-522-0 01 1 0107- ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 0107- ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0107- ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0107- ● ●
87 BOLT; BRKT FIX
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0107- ● ●
87 BOLT; BRKT FIX
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0107- ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 0107- ● ●
116 BRACKET; AIR PIPE
(A) 		1-19199-308-0 01 1 0107- ● ●
116 BRACKET; AIR PIPE
(B) 		1-19199-339-1 01 1 0107- ● ●
127 NUT; UNION
M12 		9-09840-280-0 01 1 0107- ● ●
128 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0107- ● ●
131 GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 0107- ● ●
171 UNION
M12 L=62.5 		9-09223-206-1 01 1 0107- ● ●
176 BOLT; BRKT FIX
M10X130 FLANGE 		0-28196-013-0 01 1 0107- ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 0107- ● ●
233 RING; FRICTION 1-12529-003-0 01 1 0107- ● ●
272 INSULATOR; AIR CMPR
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-19389-238-0 01 1 0107- ●
274 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 0107- ● ●

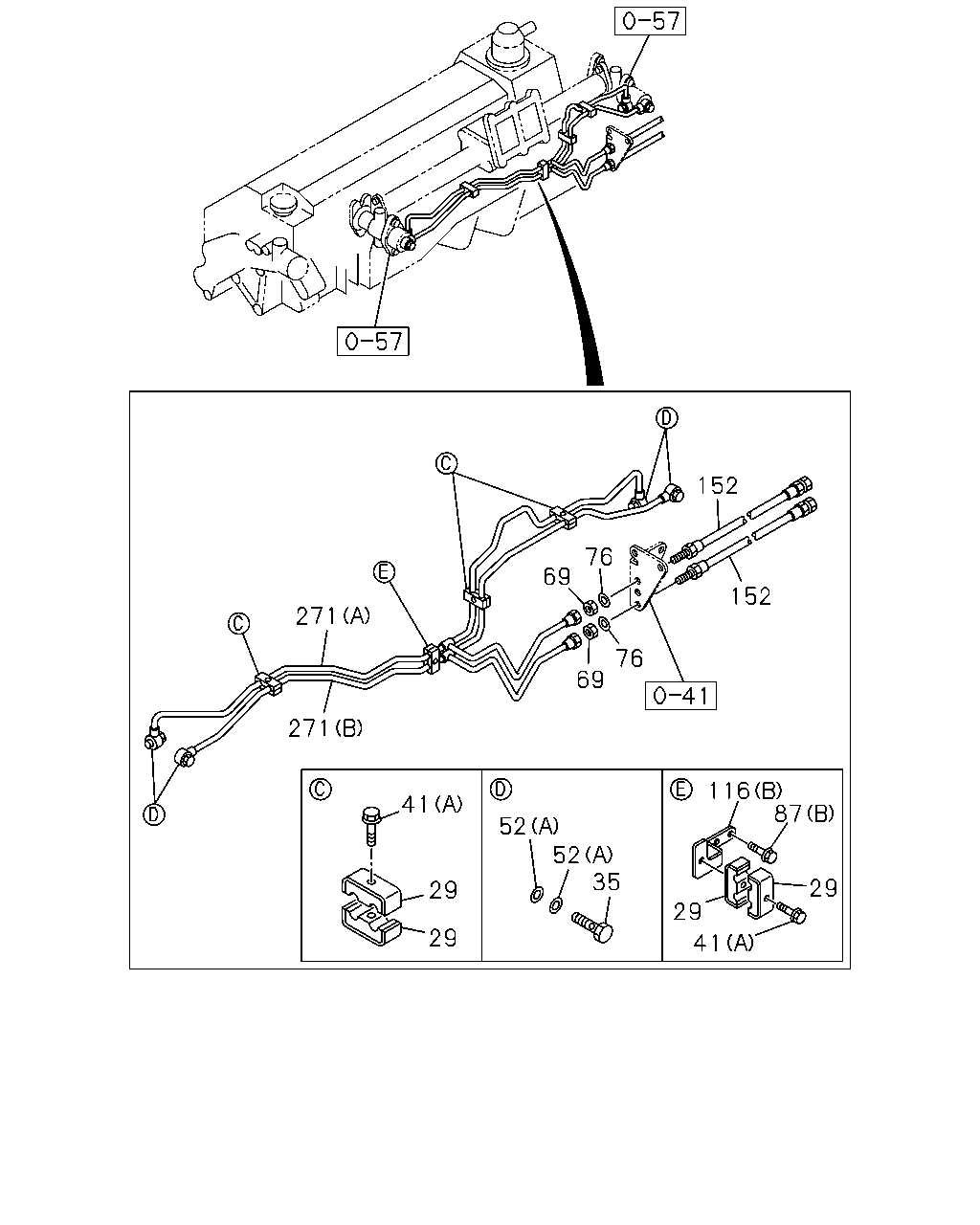

çizim 76842
152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; AIR PIPE 1-09701-132-0 08 1 0107- ● ●
35 BOLT; EYE,AIR PIPE
M10X21 FLANGE 		8-94396-711-0 04 1 0107- ● ●
41 BOLT; CLIP
(A) M6X30 FLANGE 		0-28080-630-0 04 1 0107- ● ●
41 BOLT; CLIP
(B) M8X45 FLANGE 		0-28080-845-0 02 1 0107- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 08 1 0107- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32 		9-09571-424-0 02 1 0107- ● ●
69 NUT; FLEX HOSE
M12 		9-09840-280-0 02 1 0107- ● ●
76 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 0107- ● ●
87 BOLT; BRKT FIX
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0107- ● ●
87 BOLT; BRKT FIX
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0107- ● ●
116 BRACKET; AIR PIPE
(A) 		1-19199-308-0 01 1 0107- ● ●
116 BRACKET; AIR PIPE
(B) 		1-19199-339-1 01 1 0107- ● ●
152 HOSE; FLEX
L=280 		1-09363-610-0 02 1 0107- ● ●
271 PIPE; AIR,EGR CONT
(A) 		1-19193-236-0 01 1 0107- ● ●
271 PIPE; AIR,EGR CONT
(B) 		1-19193-237-0 01 1 0107- ● ●
