◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#10647) — 19 parça

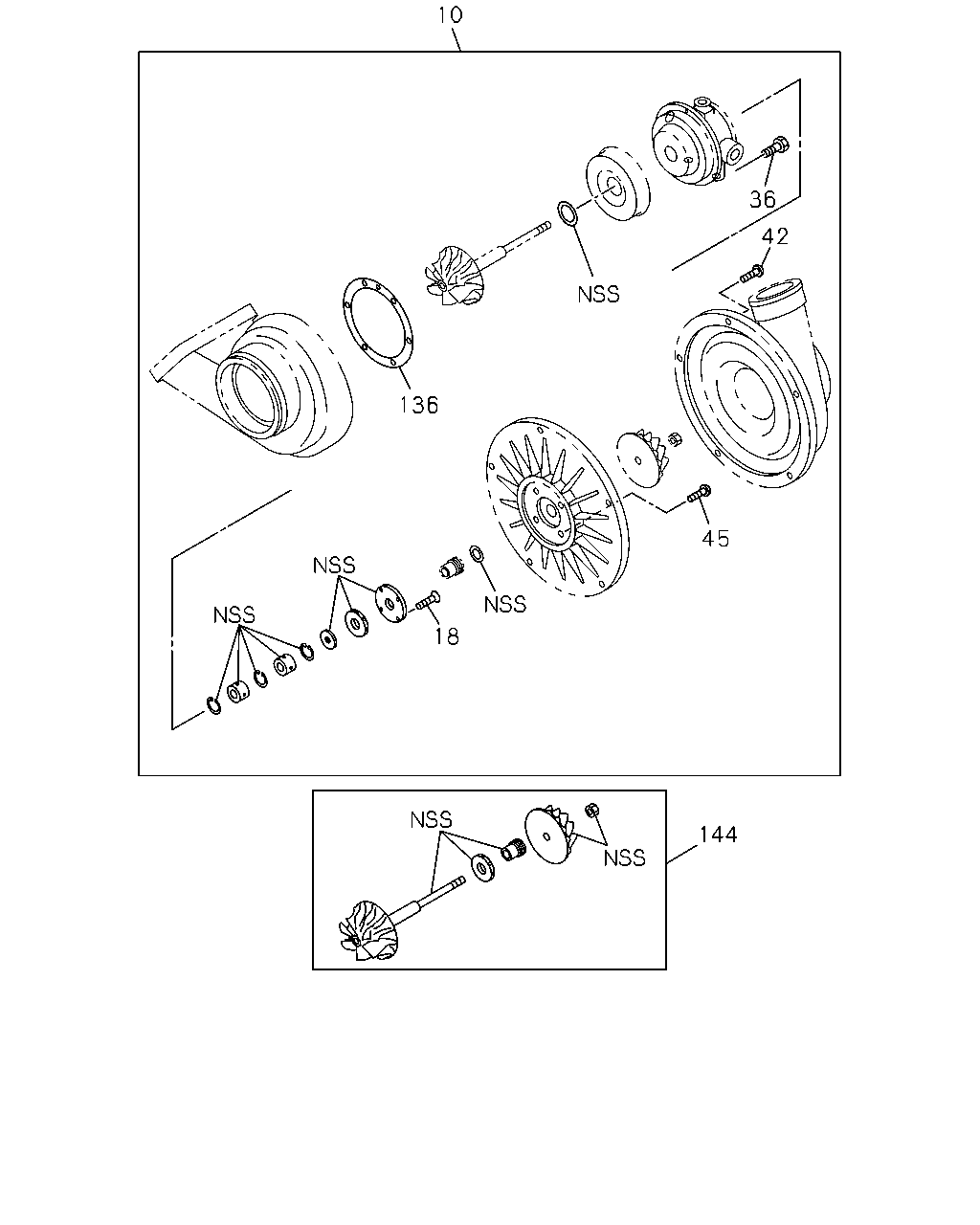

çizim 74384
10 36 42 136 45 18 144
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14453-111-0 01 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-037-0 04 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-402-1 		1-09100-044-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-038-0 05 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-038-0 04 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14419-177-0 01 1 -
144 TURBINE KIT; TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14453-110-0 01 1 -

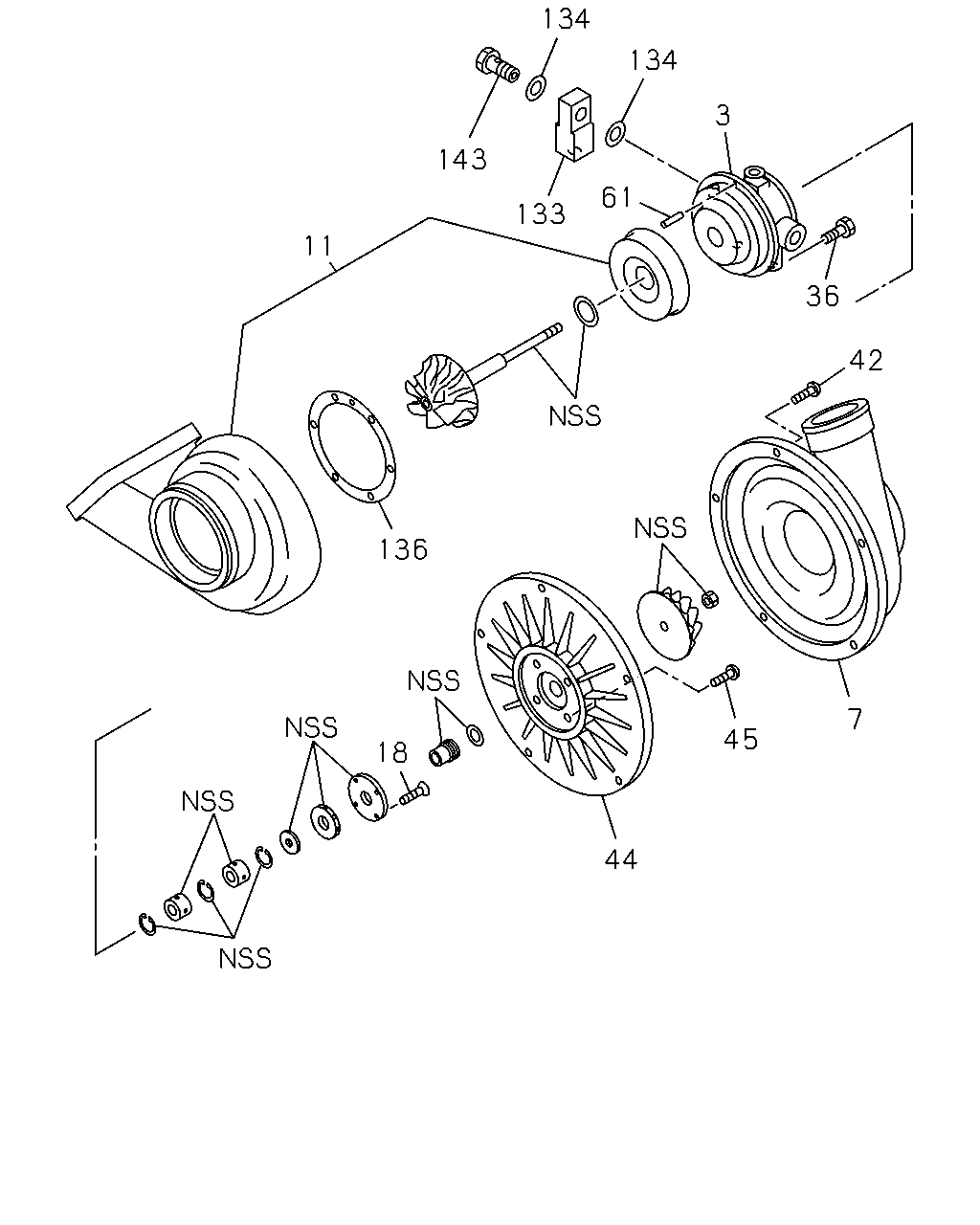

çizim 74430
134 134 3 143 61 133 11 36 42 136 7 45 18 44
BalonParca AdiParca NoAdetTipApplied Date
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14411-081-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14414-140-0 01 1 -
11 HOUSING ASM; TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14453-109-0 01 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-037-0 04 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-402-1 		1-09100-044-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-038-0 05 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14425-030-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-09100-038-0 04 1 -
61 PIN; TURBINE BRG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14425-051-0 01 1 -
134 GASKET; ADAPTER
ASM PART: A = 1-14400-402-1 		1-14419-158-0 02 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-402-1 		1-14419-177-0 01 1 -
143 BOLT; EYE
ASM PART: A = 1-14400-402-1 		1-09100-036-0 01 1 -
