0-36 — TURBOCHARGER SYSTEM (#10646) — 22 parça

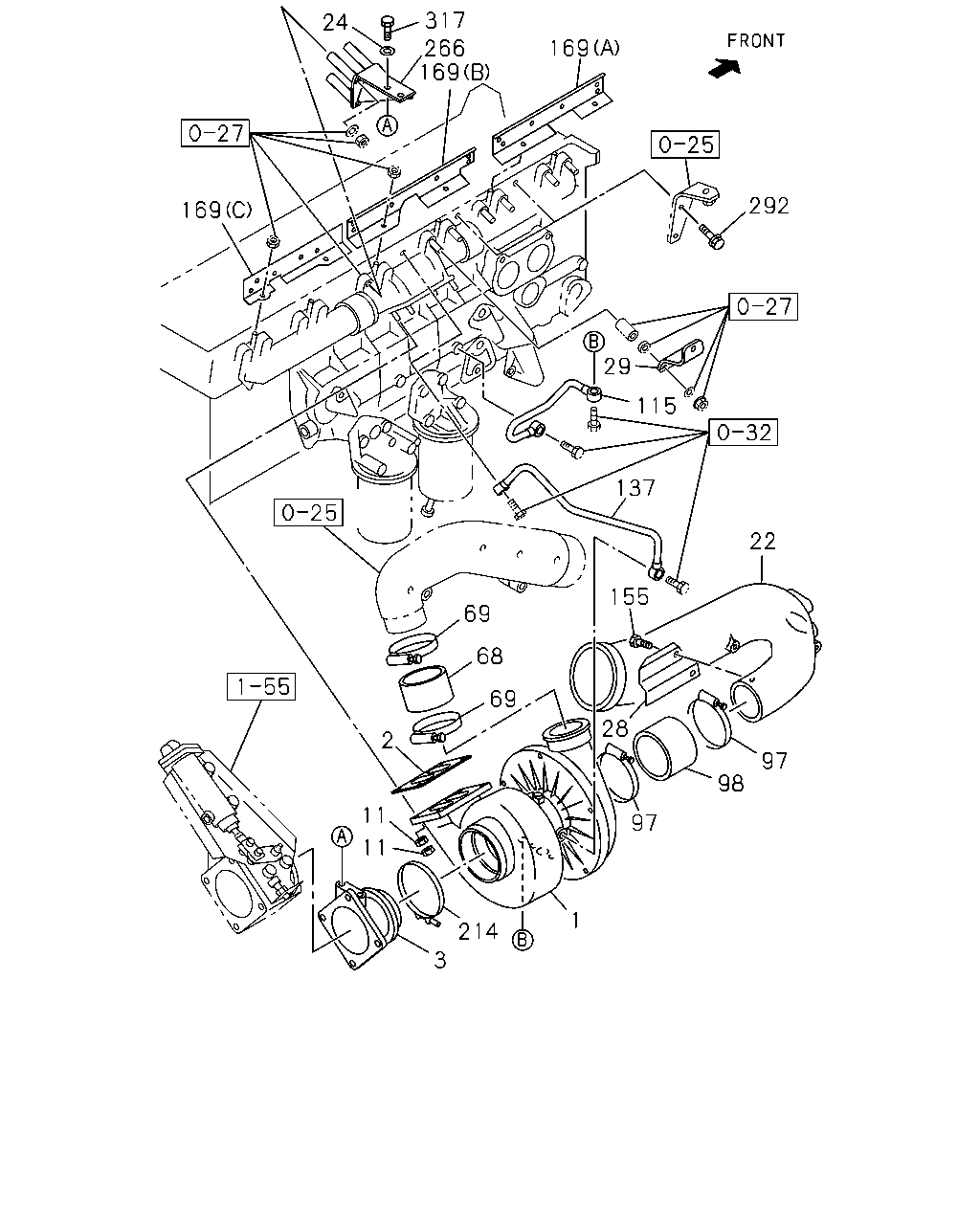

çizim 76848
317 266 169 24 169 292 169 29 115 137 22 155 69 68 69 28 2 97 98 11 97 11 1 214 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-402-1 01 1 0107- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0107- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-633-3 01 1 0107- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0107- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-331-1 01 1 0107- ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0107- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0107- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0107- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-990-0 01 1 0107- ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0107- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0107- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0107- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-797-0 01 1 0107- ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-968-0 01 1 0107- ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0107- ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 0107- ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0107- ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 0107- ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0107- ● ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0107- ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0107- ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0107- ● ●
