0-33 — FAN AND FAN BELT (#10644) — 29 parça

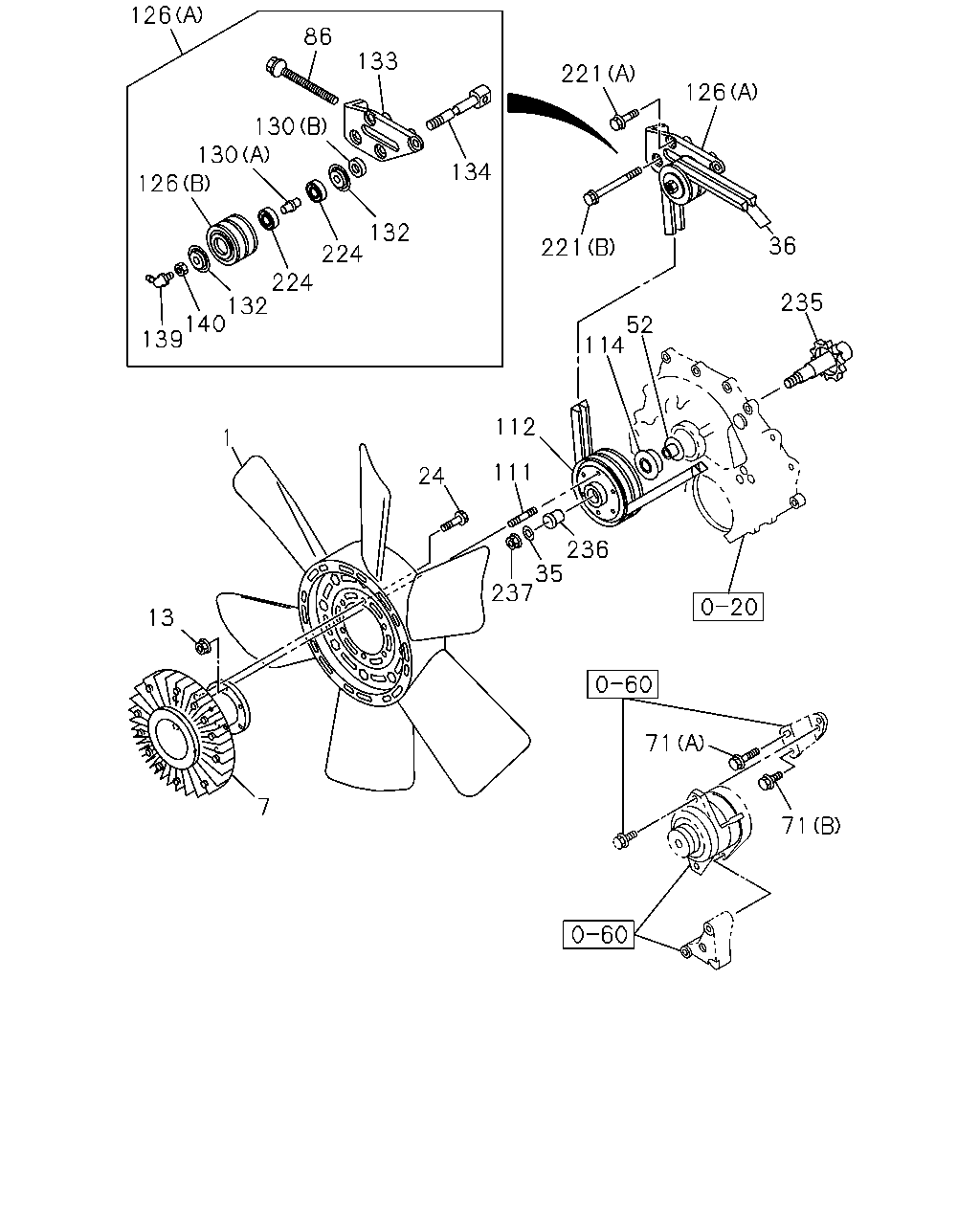

çizim 75033
126 86 133 221 126 130 130 126 134 132 224 224 132 140 139 36 221 235 52 114 112 1 111 24 236 35 237 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING 1-13660-286-1 01 1 0107- ● ●
7 COUPLING; FAN 1-21650-209-0 01 1 0107- ● ●
13 NUT; COOLING FAN
M10 FLANGE 		0-91150-210-0 06 1 0107- ● ●
24 BOLT; FAN
M10X35 		0-28191-035-0 06 1 0107- ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0107- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0107- ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0107- ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X25 FLANGE 		0-28181-025-0 01 1 0107- ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0107- ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0107- ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0107- ● ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0107- ● ●
114 SEAL; OIL 1-09625-570-0 01 1 0107- ● ●
126 PULLEY; IDLE
(A) 		1-13660-364-0 01 1 0107- ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-1 01 1 0107- ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0107- ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0107- ● ●
132 COVER; DUST 1-13664-009-1 02 1 0107- ● ●
133 BRACKET; IDLE PULLEY 1-13669-198-2 01 1 0107- ● ●
134 SPINDLE; IDLE PULLEY 1-13665-064-0 01 1 0107- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0107- ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0107- ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0107- ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 02 1 0107- ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0107- ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0107- ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 0107- ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0107- ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0107- ● ●
