Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#10643) — 82 parça

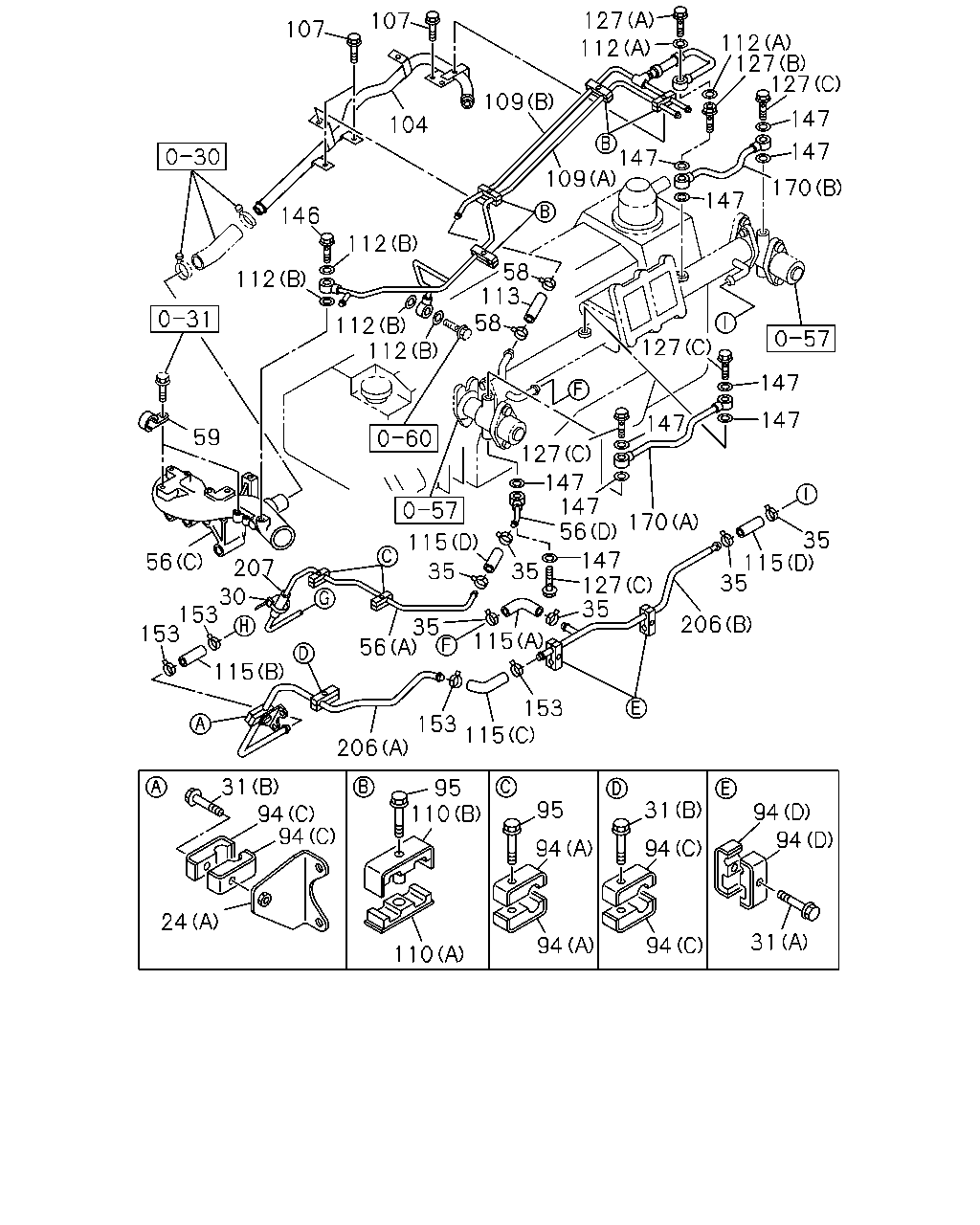

127 112 107 107 112 127 127 109 147 104 147 147 109 170 147 146 112 58 113 112 58 112 112 127 147 147 147 59 127 147 147 56 35 170 35 115 35 115 147 127 35 56 207 35 30 153 153 206 35 115 56 115 153 115 153 206 31 94 94 95 110 95 31 94 94 94 94 24 31 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0107-	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0107-	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0107-	●	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-	●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28080-640-0	02	1	0107-	●	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28080-840-0	02	1	0107-	●	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0107-	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0107-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0107-	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0107-	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0107-	●	●
104	PIPE; WATER CHARGE	1-13721-847-2	01	1	0107-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0107-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-833-1	01	1	0107-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0107-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0107-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	0107-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0107-	●	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03259-300-0	01	1	0107-	●	●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03266-300-0	01	1	0107-	●	●
115	HOSE; RUBBER (C)	1-09360-378-0	01	1	0107-	●	●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0107-	●	●
115	HOSE; RUBBER (D) L=60	8-97079-996-0	02	1	0107-	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0107-	●	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0107-	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0107-	●	●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0107-	●	●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0107-	●	●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0107-	●	●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0107-	●	●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0107-	●	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0107-	●	●

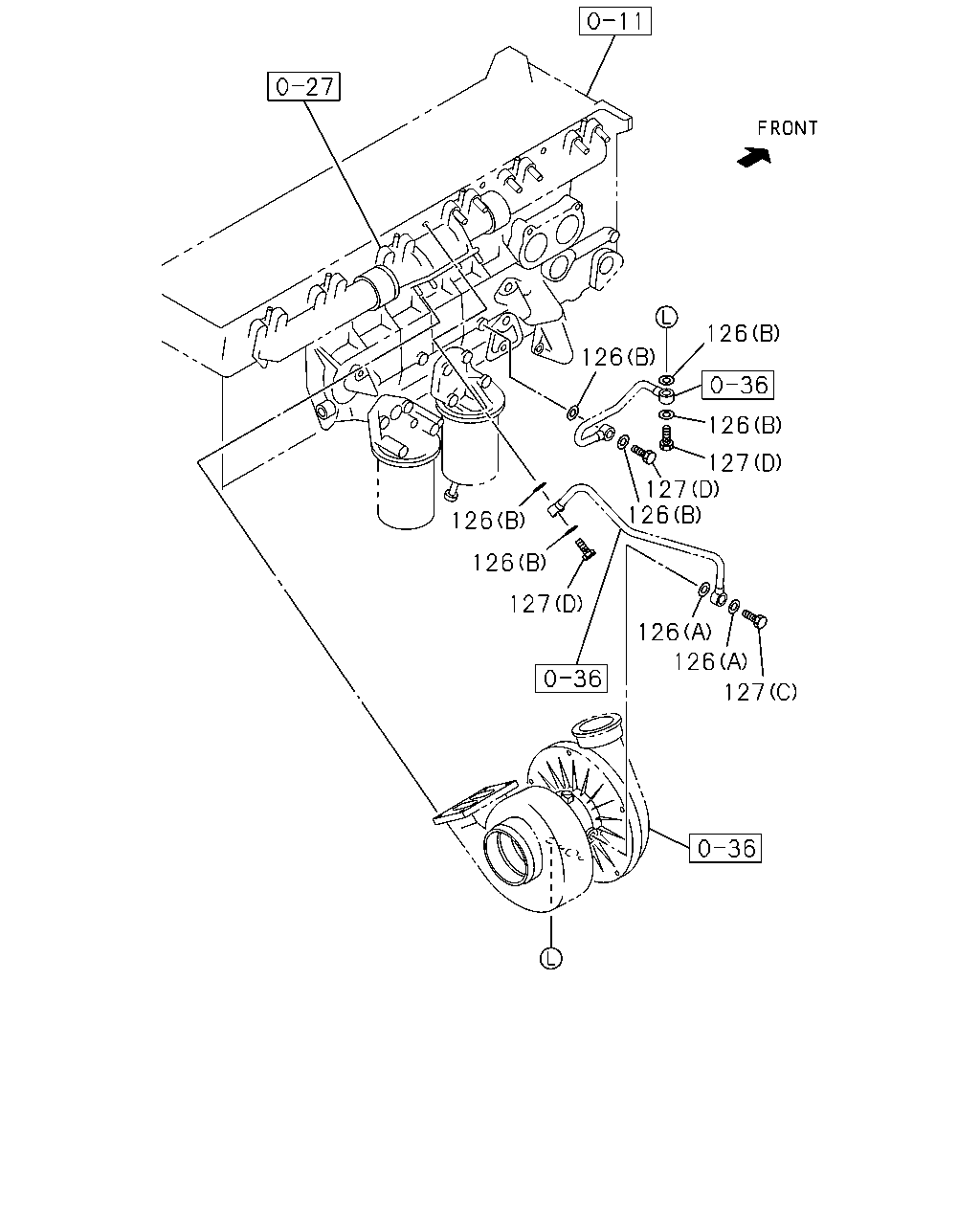

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2	1-09630-086-0	02	1	0107-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	06	1	0107-	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0107-	●	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0107-	●	●

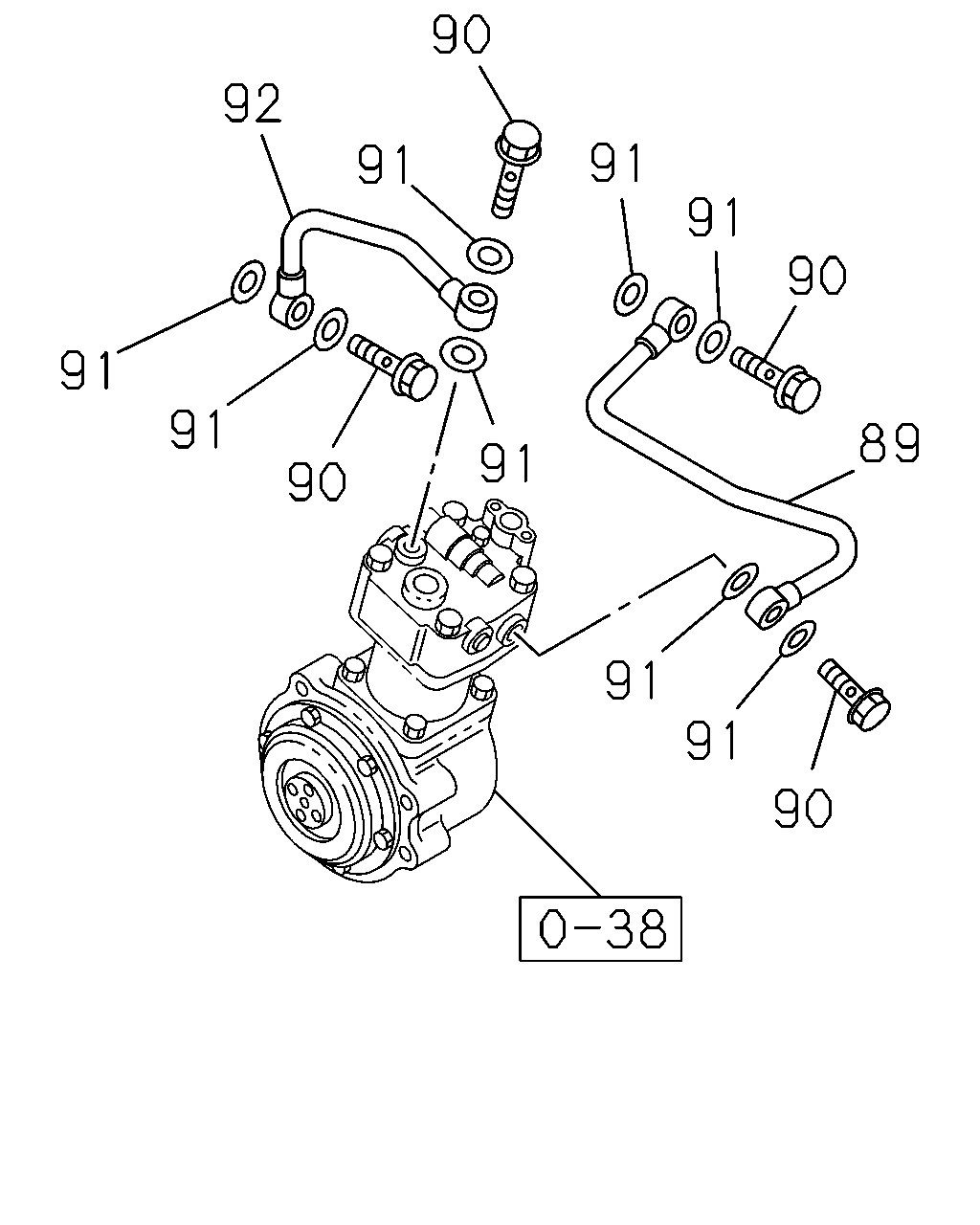

90 92 91 91 91 90 91 91 89 91 90 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN	1-13721-794-0	01	1	0107-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0107-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0107-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0107-	●	●

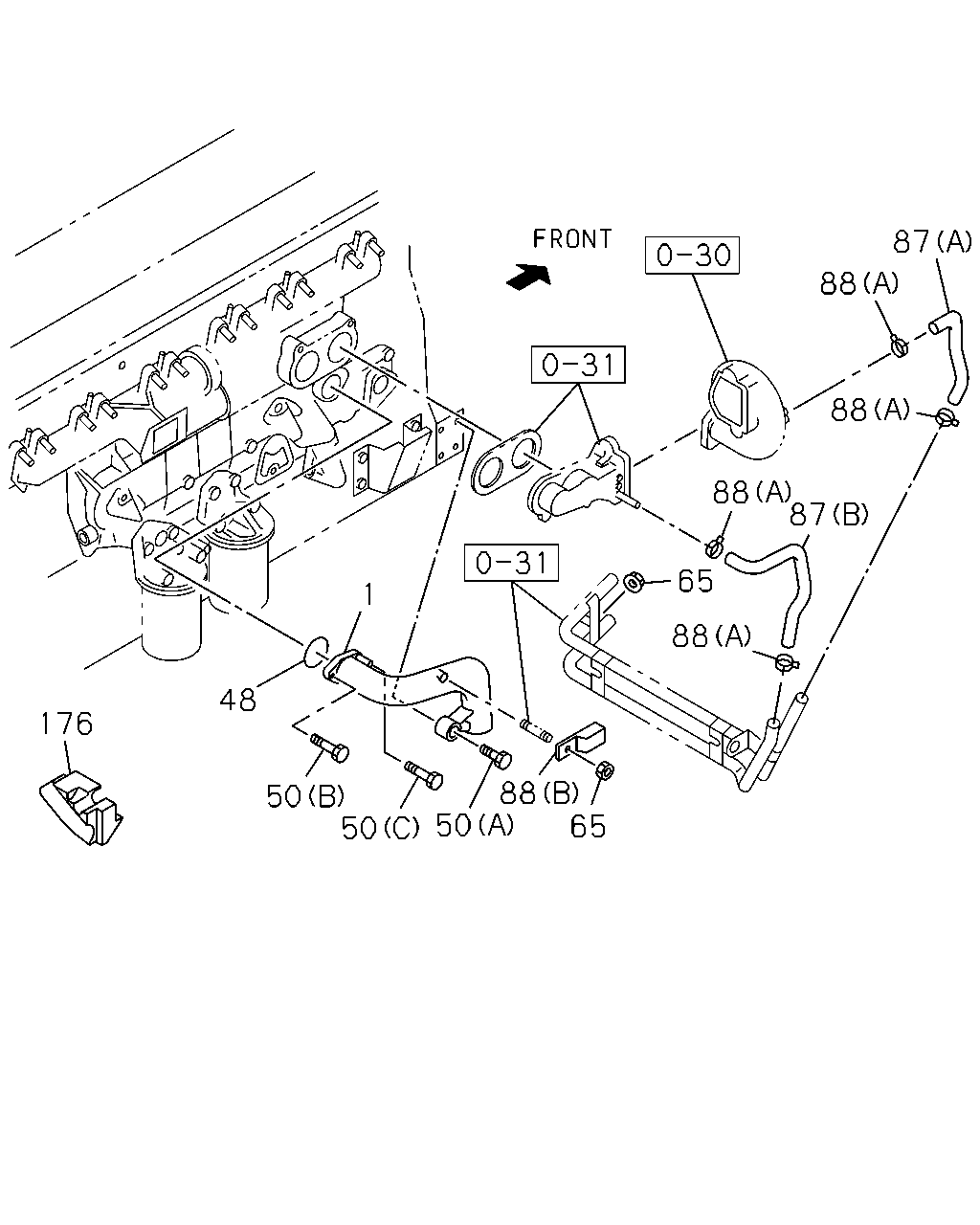

87 88 88 88 87 65 1 88 48 176 88 50 65 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	0107-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0107-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0107-	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0107-	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0107-	●	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0107-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0107-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0107-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0107-	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0107-	●	●
176	INSULATOR; WATER PIPE GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19389-189-1	01	1	0107-	●

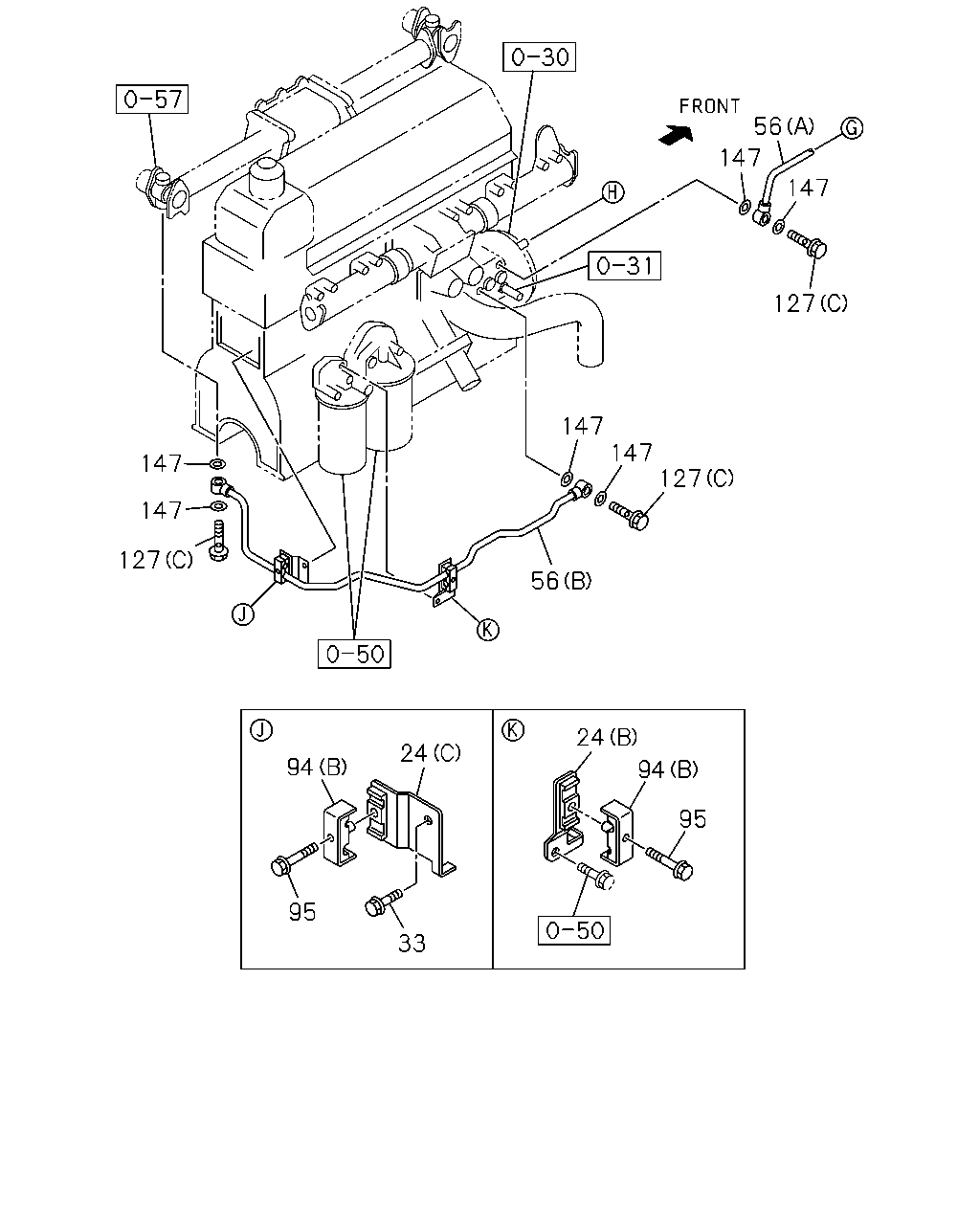

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	1-13729-023-0	01	1	0107-	●	●
24	BRACKET; WATER PIPE (C)	1-13729-024-0	01	1	0107-	●	●
24	BRACKET; WATER PIPE (A)	1-13729-060-0	01	1	0107-	●	●
33	BOLT; BRKT M14X20 FLANGE	0-28981-420-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (B)	1-13721-747-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (D)	1-13721-855-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (A)	1-13721-958-0	01	1	0107-	●	●
56	PIPE; WATER OUTLET (C)	1-13721-960-0	01	1	0107-	●	●
94	CLIP; WATER PIPE (D)	1-09701-210-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (A)	1-09701-282-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0107-	●	●
94	CLIP; WATER PIPE (B)	8-94393-037-0	02	1	0107-	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	08	1	0107-	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-	●	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	08	1	0107-	●	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0107-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0107-	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0107-	●	●
