0-30 — WATER PUMP AND CORROSION RESISTOR (#10641) — 20 parça

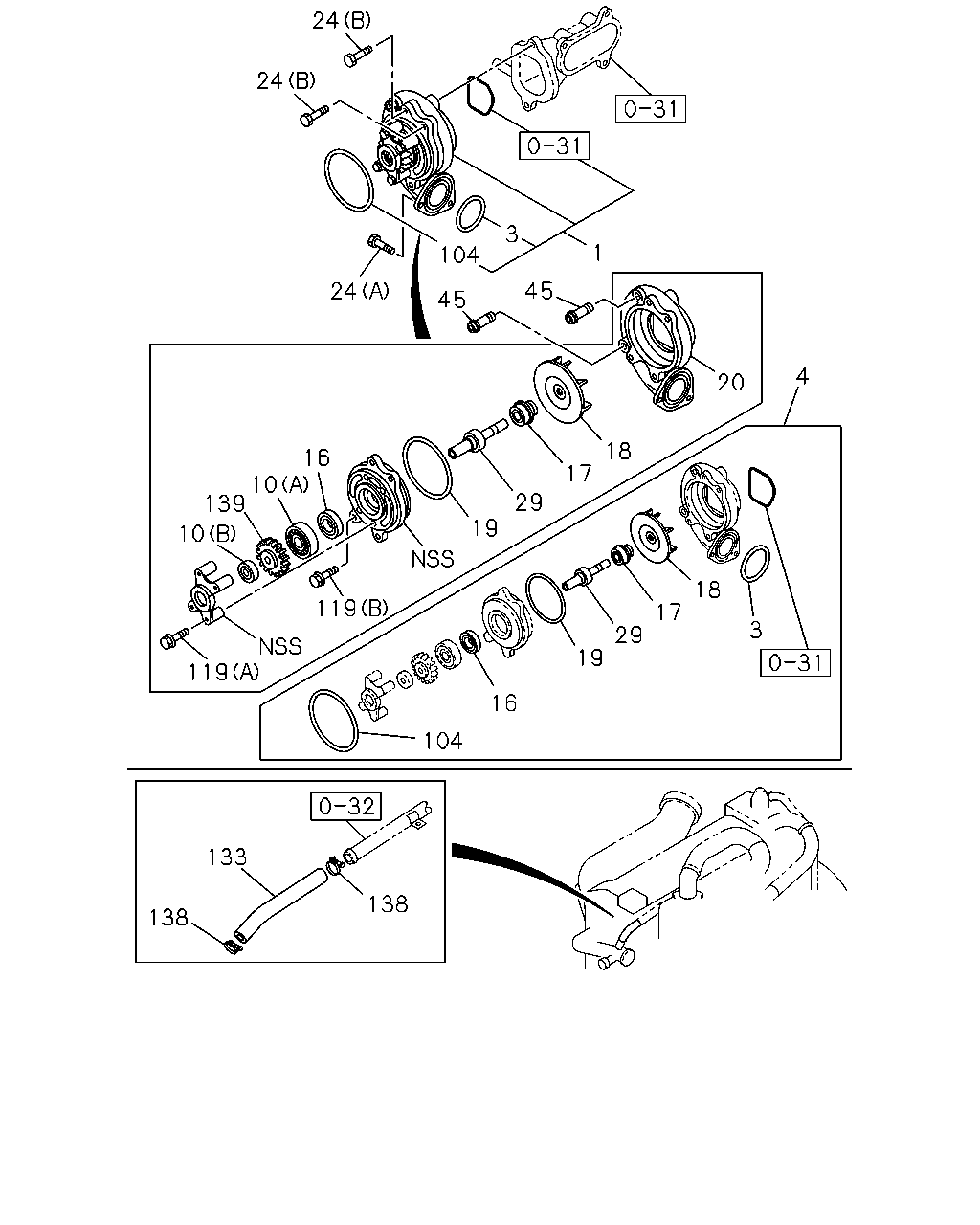

çizim 77100
24 24 3 1 104 45 24 45 4 20 18 16 17 10 139 29 19 10 18 119 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 1-13650-151-0 01 1 0107- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0107- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 0107- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0107- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0107- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0107- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0107- ● ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 0107- ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0107- ● ●
20 COVER; WATER PUMP 1-13612-052-0 01 1 0107- ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0107- ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 04 1 0107- ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0107- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94119-532-0 02 1 0107- ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0107- ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0107- ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107- ● ●
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=270 		0-03230-270-0 01 1 0107- ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0107- ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0107- ● ●
