Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#1064) — 225 parça

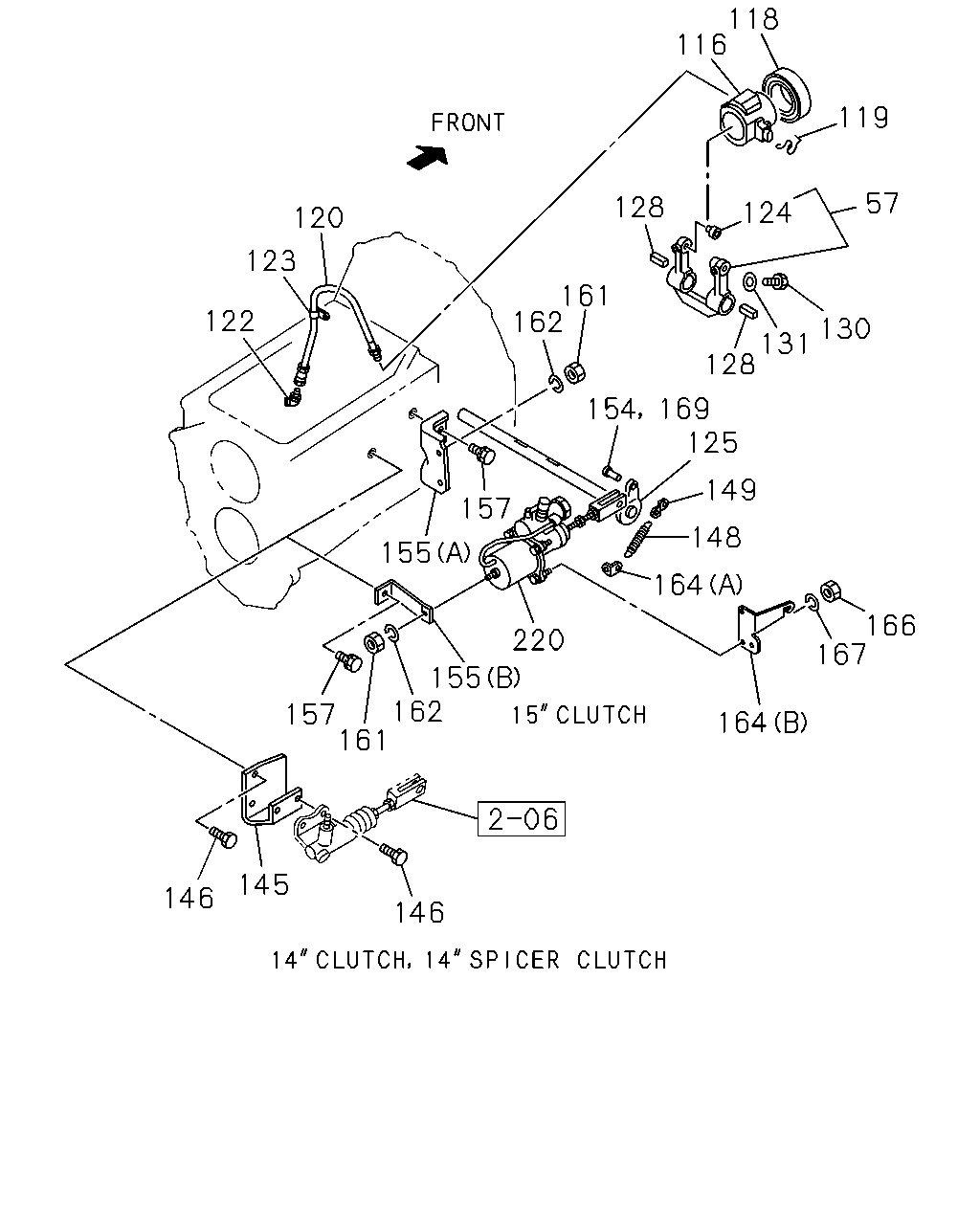

118 116 119 57 128 124 120 123 161 162 122 130 131 128 154 169 125 149 157 148 155 164 166 167 220 155 157 162 161 164 145 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9202-				●	●
116	BLOCK; SHIFT,CLU 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-31321-052-2	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU 14" SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9202-	●	●
116	BLOCK; SHIFT,CLU	1-31321-063-1	01	1	9202-				●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=204	1-09364-633-0	01	1	9202-				●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=22	1-09700-644-1	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=15.5	1-09700-814-1	01	1	9202-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-	●	●	●
125	SHAFT; CLU 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-31342-169-1	01	1	9202-	●	●	●
125	SHAFT; CLU 14" SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9202-	●	●
125	SHAFT; CLU	1-31342-255-0	01	1	9202-				●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9202-				●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU 14" SPICER CLUTCH(SFF)	1-47579-038-0	01	1	9202-	●	●
145	BRACKET; SLAVE CYL,OIL CLU 14" CLUTCH(WF6)	1-47579-044-0	01	1	9202-9206	●	●
145	BRACKET; SLAVE CYL,OIL CLU 14" CLUTCH(WF6)	1-47579-051-0	01	1	9207-	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205		●
146	BOLT; SLAVE CYL TO TRANS CASE 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9206-		●
146	BOLT; SLAVE CYL TO TRANS CASE 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) M10X25 FLANGE	0-28181-025-0	04	1	9206-	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9202-		●
148	SPRING; CLU RETURN 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-09583-249-0	01	1	9202-	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9202-			●
148	SPRING; CLU RETURN 15" CLUTCH(RE9)	9-09942-530-1	01	1	9202-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9202-				●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9202-		●
149	EYE; SPRING,RETURN SPRING 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31426-019-1	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	9202-		●
149	EYE; SPRING,RETURN SPRING 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) T=2.3	1-47324-005-1	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING	1-31426-025-0	01	1	9202-				●	●
154	PIN; JAW JOINT L=30	1-31424-001-1	01	1	9202-9312		●
154	PIN; JAW JOINT 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) L=30	1-31424-001-1	01	1	9202-9312	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-		●
154	PIN; JAW JOINT 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31424-009-0	01	1	9401-	●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	9202-				●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-175-2	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-176-0	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-174-0	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-217-0	01	1	9202-	●		●
155	BRACKET; MINIPACK (A)	1-31429-066-0	01	1	9202-				●	●
155	BRACKET; MINIPACK (B)	1-31429-322-0	01	1	9202-				●	●
155	BRACKET; MINIPACK (C)	1-31429-332-0	01	1	9202-				●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205			●
157	BOLT; BRKT 15" CLUTCH(RE9) M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-			●
157	BOLT; BRKT 15" CLUTCH(RE9) M10X18 FLANGE	0-28181-018-0	03	1	9206-	●
157	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9202-				●	●
157	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	9202-				●	●
161	NUT; BRKT M8	9-09110-408-0	03	1	9202-9205			●
161	NUT; BRKT 15" CLUTCH(RE9) M8	9-09110-408-0	03	1	9202-9205	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9206-			●
161	NUT; BRKT 15" CLUTCH(RE9) M8 FLANGE	0-91150-208-0	03	1	9206-	●
161	NUT; BRKT M10	9-09110-510-0	04	1	9202-				●	●
162	WASHER; LK,BRKT ID=8.2	9-09150-508-0	03	1	9202-9205			●
162	WASHER; LK,BRKT 15" CLUTCH(RE9) ID=8.2	9-09150-508-0	03	1	9202-9205	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9202-				●	●
164	EYE; SPRING (A)	1-31426-019-1	01	1	9202-			●
164	EYE; SPRING 15" CLUTCH(RE9) (A)	1-31426-019-1	01	1	9202-	●
164	EYE; SPRING (B) ID=9X2 & 13	1-47475-658-0	01	1	9202-			●
164	EYE; SPRING 15" CLUTCH(RE9) (B) ID=9X2 & 13	1-47475-658-0	01	1	9202-	●
166	NUT; SPRING EYE M8	9-09110-408-0	02	1	9202-9205			●
166	NUT; SPRING EYE 15" CLUTCH(RE9) M8	9-09110-408-0	02	1	9202-9205	●
166	NUT; SPRING EYE M8 FLANGE	0-91150-208-0	02	1	9206-			●
166	NUT; SPRING EYE 15" CLUTCH(RE9) M8 FLANGE	0-91150-208-0	02	1	9206-	●
167	WASHER; LK,SPRING EYE ID=8.2	9-09150-508-0	02	1	9202-9205			●
167	WASHER; LK,SPRING EYE 15" CLUTCH(RE9) ID=8.2	9-09150-508-0	02	1	9202-9205	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9202-9312			●
169	PIN; JOINT,MINIPACK 15" CLUTCH(RE9)	1-31424-001-1	01	1	9202-9312	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-			●
169	PIN; JOINT,MINIPACK 15" CLUTCH(RE9)	1-31424-009-0	01	1	9401-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-364-0	01	1	9202-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-364-0	01	1	9202-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-350-0	01	1	9202-				●	●

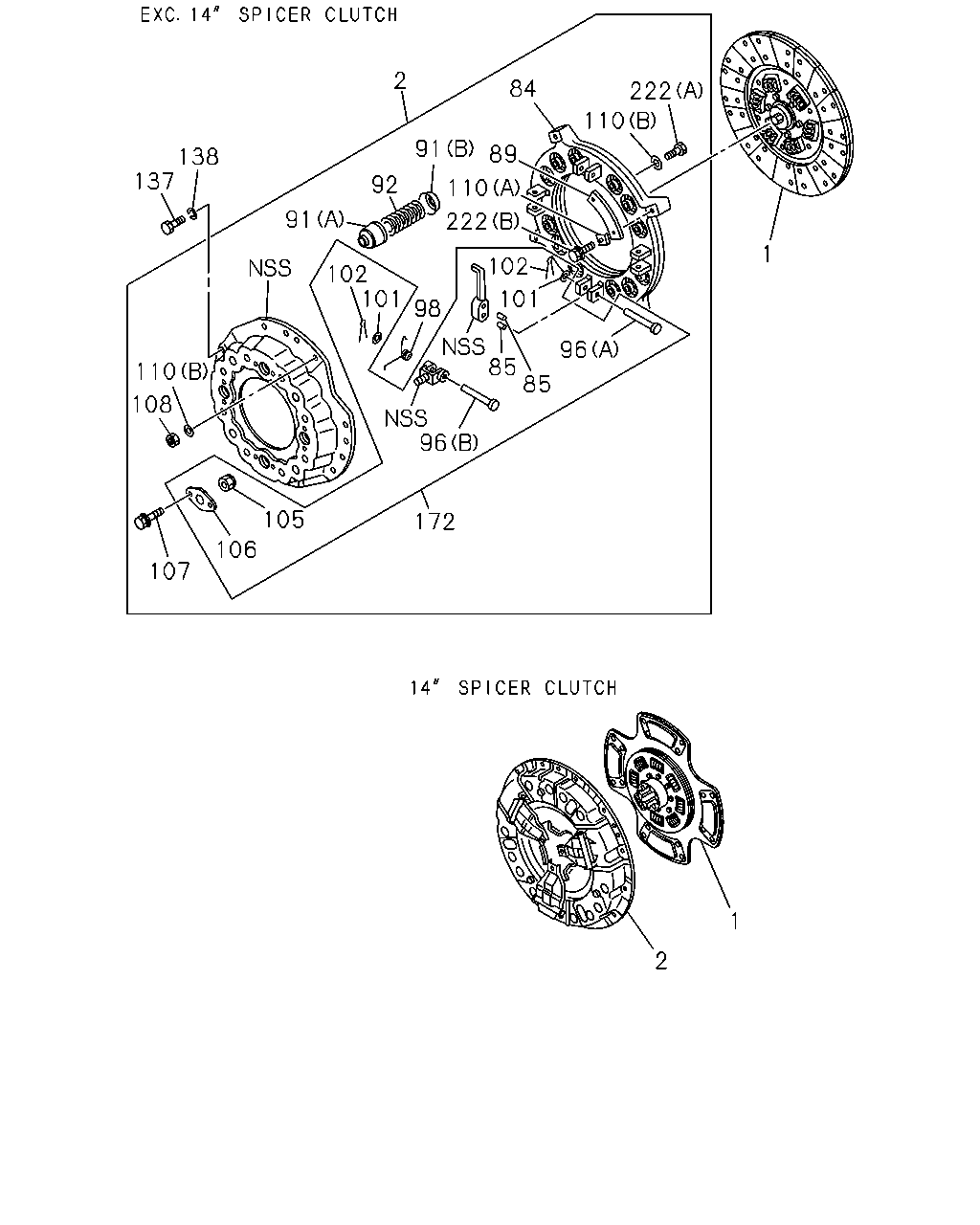

2 84 222 110 91 89 138 137 92 110 91 222 1 102 102 101 101 98 110 85 85 96 108 96 105 172 106 107 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14" SPICER CLUTCH(SFF) 14"	1-31240-433-0	01	1	9202-	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) 14"	1-31240-515-0	01	1	9202-9309	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) 14"	1-31240-662-0	01	1	9310-9310	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) '93/10/11- 14"	1-31240-671-0	01	1	9310-	●	●
1	DISC; CLUTCH 15"	1-31240-585-0	01	1	9202-9309			●
1	DISC; CLUTCH 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) 15"	1-31240-585-0	01	1	9202-9309	●
1	DISC; CLUTCH 15"	1-31240-676-0	01	1	9310-			●
1	DISC; CLUTCH 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) 15"	1-31240-676-0	01	1	9310-	●
1	DISC; CLUTCH 15"	1-31240-547-0	01	1	9202-9309				●	●
1	DISC; CLUTCH 15"	1-31240-657-0	01	1	9310-				●	●
2	PLATE ASM; PRESSURE,CLU 14" SPICER CLUTCH(SFF) 14"	1-31220-274-0	01	1	9202-9304	●	●
2	PLATE ASM; PRESSURE,CLU 14" SPICER CLUTCH(SFF) 14"	1-31220-284-0	01	1	9305-	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) 14"	1-31220-168-1	01	1	9202-	●	●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-170-1	01	1	9202-9211			●
2	PLATE ASM; PRESSURE,CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) 15"	1-31220-170-1	01	1	9202-9211	●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-285-0	01	1	9212-			●
2	PLATE ASM; PRESSURE,CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) 15"	1-31220-285-0	01	1	9212-	●
2	PLATE ASM; PRESSURE,CLU 15"	1-31220-207-1	01	1	9202-				●	●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF)	1-31221-044-0	01	1	9202-	●	●
84	PLATE; PRESSURE 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF)	1-31221-051-0	01	1	9202-	●		●
84	PLATE; PRESSURE	1-31221-067-0	01	1	9202-				●	●
85	BUSHING; RELEASE LEVER EXC. 14" SPICER CLUTCH(SFF)	9-31239-116-0	08	1	9202-	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	9202-			●	●	●
89	PLATE; STRAP 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF)	1-31229-001-0	08	1	9202-	●	●
89	PLATE; STRAP	1-31229-001-0	12	1	9202-			●	●	●
89	PLATE; STRAP 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF)	1-31229-001-0	12	1	9202-	●
91	SEAT; SPR EXC. 14" SPICER CLUTCH(SFF) (A) ID=37 H=25	1-31219-012-0	12	1	9202-	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	9202-				●	●
91	SEAT; SPR EXC. 14" SPICER CLUTCH(SFF) (B) ID=37 H=15	1-31219-013-0	12	1	9202-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	9202-				●	●
92	SPRING; CLU 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF)	1-09580-234-0	12	1	9202-	●	●
92	SPRING; CLU	1-09580-239-0	12	1	9202-9211			●
92	SPRING; CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF)	1-09580-239-0	12	1	9202-9211	●
92	SPRING; CLU	1-31214-050-0	12	1	9212-			●
92	SPRING; CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF)	1-31214-050-0	12	1	9212-	●
92	SPRING; CLU	1-31214-019-0	12	1	9202-				●	●
96	PIN; RELEASE LEVER EXC. 14" SPICER CLUTCH(SFF) (B) L=49.0	1-31232-005-0	04	1	9202-	●	●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	9202-			●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) (A) L=57.0	1-31232-008-0	04	1	9202-	●	●
96	PIN; RELEASE LEVER (A) L=57	1-31232-004-0	04	1	9202-			●	●	●
96	PIN; RELEASE LEVER 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) (A) L=57	1-31232-004-0	04	1	9202-	●
98	SPRING; RETURN EXC. 14" SPICER CLUTCH(SFF)	1-31233-003-0	04	1	9202-	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	9202-			●	●	●
101	WASHER; RELEASE LEVER EXC. 14" SPICER CLUTCH(SFF)	9-31239-039-0	08	1	9202-	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	9202-			●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	9202-			●	●	●
102	PIN; SPLIT,RELEASE LEVER 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) OD=2.7 L=22	9-08103-022-0	08	1	9202-	●
105	NUT; SUPPORT EXC. 14" SPICER CLUTCH(SFF)	9-31235-061-0	04	1	9202-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	9202-			●	●	●
106	PLATE; LK,LEVER SUPPORT EXC. 14" SPICER CLUTCH(SFF)	1-31239-019-0	04	1	9202-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9202-			●	●	●
107	BOLT; LK PLATE EXC. 14" SPICER CLUTCH(SFF) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-			●	●	●
108	NUT; STRAP EXC. 14" SPICER CLUTCH(SFF)	1-09449-036-0	04	1	9202-	●	●
108	NUT; STRAP	1-09449-036-0	04	1	9202-			●	●	●
110	WASHER; SPECIAL,STRAP EXC. 14" SPICER CLUTCH(SFF) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	9202-			●	●	●
110	WASHER; SPECIAL,STRAP EXC. 14" SPICER CLUTCH(SFF) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	9202-			●	●	●
137	BOLT; CLU COVER 14" SPICER CLUTCH(SFF) M8X20	9-02060-820-0	12	1	9202-	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9202-9504	●	●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9202-9504			●	●	●
137	BOLT; CLU COVER 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) M10X25	0-23801-025-0	12	1	9202-9504	●
137	BOLT; CLU COVER EXC. 14" SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-			●	●	●
138	WASHER; LK,CLU COVER 14" SPICER CLUTCH(SFF) ID=8.2	9-09150-508-0	12	1	9202-	●	●
138	WASHER; LK,CLU COVER EXC. 14" SPICER CLUTCH(SFF) ID=10.2	9-09150-510-0	12	1	9202-9504	●	●
138	WASHER; LK,CLU COVER ID=10.2	9-09150-510-0	12	1	9202-9504			●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-620-0	01	1	9202-		●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L) EXC. 14" SPICER CLUTCH(SFF)	1-87830-620-0	01	1	9202-	●
172	LEVER KIT; RELEASE,CLU 15"	1-87410-042-0	01	1	9202-9412			●
172	LEVER KIT; RELEASE,CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF) 15"	1-87410-042-0	01	1	9202-9412	●
172	LEVER KIT; RELEASE,CLU	1-87830-808-0	01	1	9501-			●
172	LEVER KIT; RELEASE,CLU 6SA1 STD ENG(06L) EXC. 14" SPICER CLUTCH(SFF)	1-87830-808-0	01	1	9501-	●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-0	01	1	9202-				●	●
222	BOLT; STRAP EXC. 14" SPICER CLUTCH(SFF) (B) M10X23.2	1-09040-042-0	04	1	9202-	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	9202-			●	●	●
222	BOLT; STRAP EXC. 14" SPICER CLUTCH(SFF) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-			●	●	●

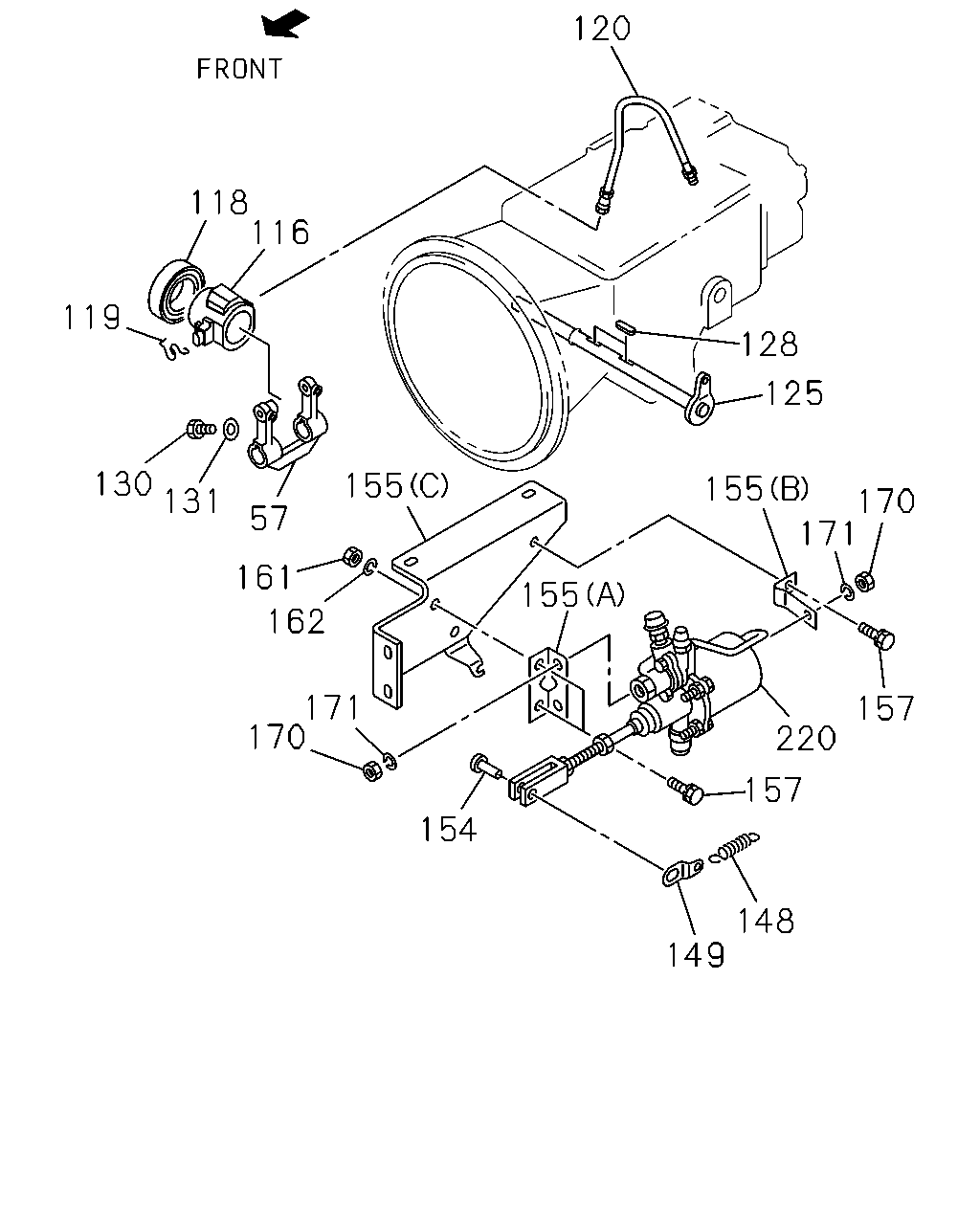

120 118 116 119 128 125 130 131 155 155 170 171 57 161 155 162 171 170 157 220 157 154 148 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	9202-				●	●
116	BLOCK; SHIFT,CLU 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-31321-052-2	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU 14" SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9202-	●	●
116	BLOCK; SHIFT,CLU	1-31321-063-1	01	1	9202-				●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=204	1-09364-633-0	01	1	9202-				●	●
125	SHAFT; CLU 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-31342-169-1	01	1	9202-	●	●	●
125	SHAFT; CLU 14" SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9202-	●	●
125	SHAFT; CLU	1-31342-255-0	01	1	9202-				●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	9202-				●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9202-		●
148	SPRING; CLU RETURN 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-09583-249-0	01	1	9202-	●
148	SPRING; CLU RETURN	9-09942-530-1	01	1	9202-			●
148	SPRING; CLU RETURN 15" CLUTCH(RE9)	9-09942-530-1	01	1	9202-	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9202-				●	●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	9202-		●
149	EYE; SPRING,RETURN SPRING 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31426-019-1	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING T=2.3	1-47324-005-1	01	1	9202-		●
149	EYE; SPRING,RETURN SPRING 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) T=2.3	1-47324-005-1	01	1	9202-	●
149	EYE; SPRING,RETURN SPRING	1-31426-025-0	01	1	9202-				●	●
154	PIN; JAW JOINT L=30	1-31424-001-1	01	1	9202-9312		●
154	PIN; JAW JOINT 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6) L=30	1-31424-001-1	01	1	9202-9312	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-		●
154	PIN; JAW JOINT 14" SPICER CLUTCH(SFF),14" CLUTCH(WF6)	1-31424-009-0	01	1	9401-	●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	9202-				●	●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-175-2	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-176-0	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-31429-174-0	01	1	9202-	●		●
155	BRACKET; MINIPACK 15" CLUTCH(RE9) EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-31429-217-0	01	1	9202-	●		●
155	BRACKET; MINIPACK (A)	1-31429-066-0	01	1	9202-				●	●
155	BRACKET; MINIPACK (B)	1-31429-322-0	01	1	9202-				●	●
155	BRACKET; MINIPACK (C)	1-31429-332-0	01	1	9202-				●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205			●
157	BOLT; BRKT 15" CLUTCH(RE9) M10X20 W/LK WASHER	0-50051-020-0	03	1	9202-9205	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-			●
157	BOLT; BRKT 15" CLUTCH(RE9) M10X18 FLANGE	0-28181-018-0	03	1	9206-	●
157	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9202-				●	●
157	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	9202-				●	●
161	NUT; BRKT M8	9-09110-408-0	03	1	9202-9205			●
161	NUT; BRKT 15" CLUTCH(RE9) M8	9-09110-408-0	03	1	9202-9205	●
161	NUT; BRKT M8 FLANGE	0-91150-208-0	03	1	9206-			●
161	NUT; BRKT 15" CLUTCH(RE9) M8 FLANGE	0-91150-208-0	03	1	9206-	●
161	NUT; BRKT M10	9-09110-510-0	04	1	9202-				●	●
162	WASHER; LK,BRKT ID=8.2	9-09150-508-0	03	1	9202-9205			●
162	WASHER; LK,BRKT 15" CLUTCH(RE9) ID=8.2	9-09150-508-0	03	1	9202-9205	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9202-				●	●
170	NUT; BOOSTER FIX M8	9-09110-408-0	03	1	9202-				●	●
171	WASHER; LK,BOOSTER FIX ID=8.2	9-09150-508-0	03	1	9202-				●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-364-0	01	1	9202-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9)	1-31800-364-0	01	1	9202-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-350-0	01	1	9202-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
