0-13 — OIL PAN AND LEVEL GAUGE (#10633) — 26 parça

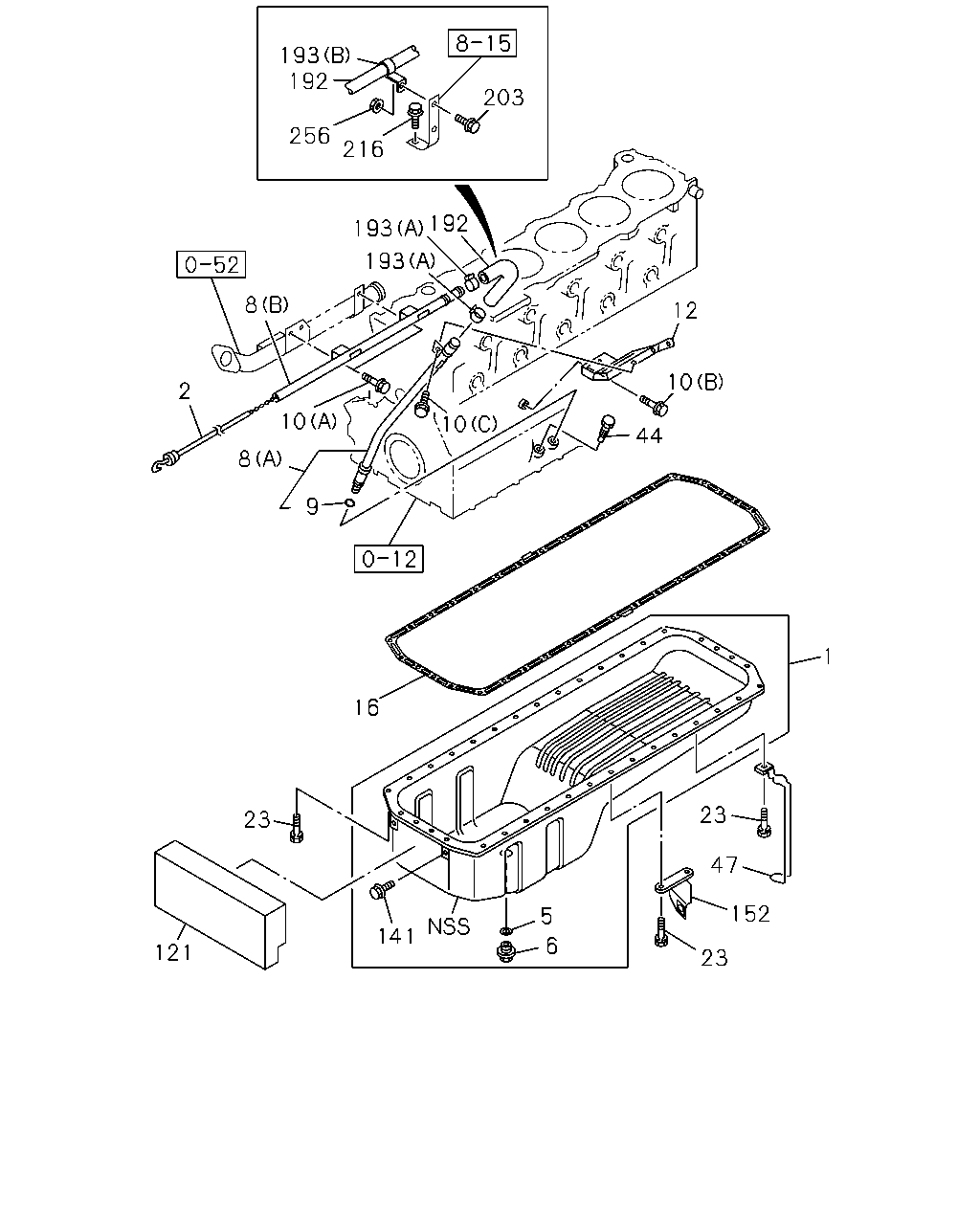

çizim 76881
193 192 203 256 216 192 193 193 8 12 10 2 10 10 44 8 9 1 16 23 23 47 152 5 141 6 121 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 1-11360-862-0 01 1 0107- ● ●
2 GAUGE; OIL LEVEL 1-11760-427-0 01 1 0107- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0107- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0107- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-470-0 01 1 0107- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-578-0 01 1 0107- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 01 1 0107- ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 01 1 0107- ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 0107- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 0107- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0107- ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0107- ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0107- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0107- ●
47 CLIP; HOSE,AIR BREATHER
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11369-147-1 01 1 0107- ●
47 CLIP; HOSE,AIR BREATHER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-11369-155-0 01 1 0107- ●
121 COVER; OIL PAN
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-19389-209-0 01 1 0107- ●
141 BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE 		0-28081-020-0 02 1 0107- ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0107- ● ●
192 HOSE; GUIDE TUBE
L=600 L=430 		0-02361-300-0 01 1 0107- ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0107- ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0107- ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28690-820-0 01 1 0107- ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28690-830-0 01 1 0107- ● ●
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107- ● ●
