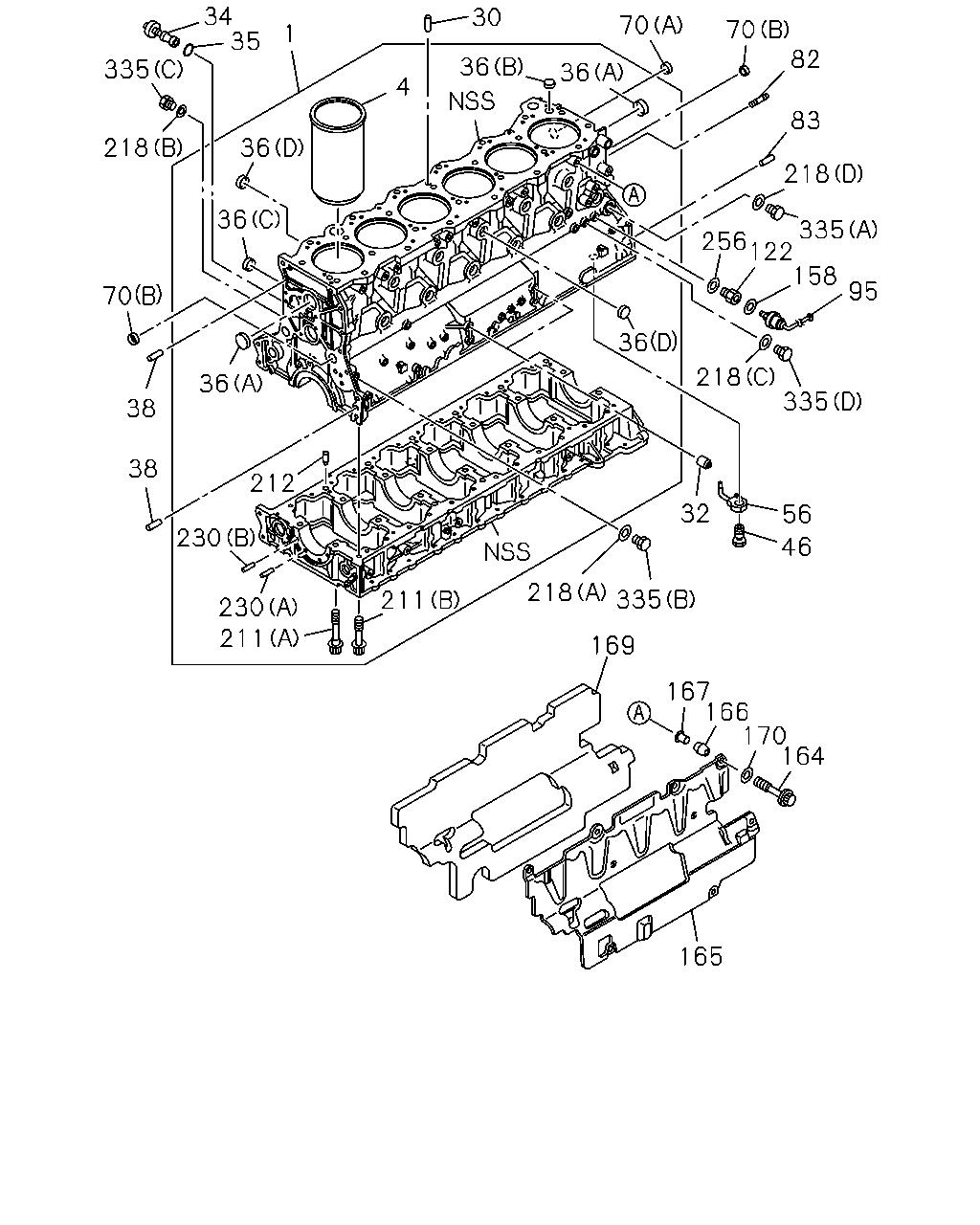

0-12 — CYLINDER BLOCK (#10632) — 45 parça

34 35 30 70 70 82 1 36 335 36 4 83 218 36 218 36 335 256 122 158 95 70 36 212 230 218 335 36 38 38 211 32 56 46 218 335 230 211 169 167 166 170 164 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-656-2	01	1	0107-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-0	06	1	0107-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-0	06	1	0107-	●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0107-	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0107-	●	●
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	0107-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	0107-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	0107-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0107-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-0	02	1	0107-	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0107-	●	●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0107-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0107-	●	●
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	0107-	●	●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-1	01	1	0107-	●	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	0107-	●	●
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	0107-	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	0107-	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0107-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0107-	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-	●	●
164	BOLT; COVER BLOCK SKIRT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M10X35 FLANGE	0-28181-035-0	08	1	0107-	●
165	COVER; C/BL SKIRT GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19381-376-0	01	1	0107-	●
166	MOUNT; COVER BLOCK SKIRT GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-09337-020-0	08	1	0107-	●
167	TUBE; DIST,SIDE COVER GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19389-134-1	08	1	0107-	●
169	INSULATOR; SIDE COVER GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19389-191-0	01	1	0107-	●
170	WASHER; COVER GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=10.5 OD=26	9-09160-710-0	08	1	0107-	●
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-2	28	1	0107-	●	●
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	0107-	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	0107-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0107-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22	1-09630-089-0	01	1	0107-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=25	1-09630-141-0	01	1	0107-	●	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0107-	●	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0107-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0107-	●	●
335	PLUG; C/BL,SIDE (A) LH SIDE M22X12	1-09604-035-0	01	1	0107-	●	●
335	PLUG; C/BL,SIDE (B) LH SIDE M10X7	1-09604-094-0	01	1	0107-	●	●
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	1-09604-095-0	01	1	0107-	●	●
335	PLUG; C/BL,SIDE (D) LH SIDE M14X9	9-99202-314-0	01	1	0107-	●	●

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-998-0	06	1	0107-	●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-999-0	06	1	0107-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-0	06	1	0107-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-0	06	1	0107-	●	●
