Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#1063) — 44 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀

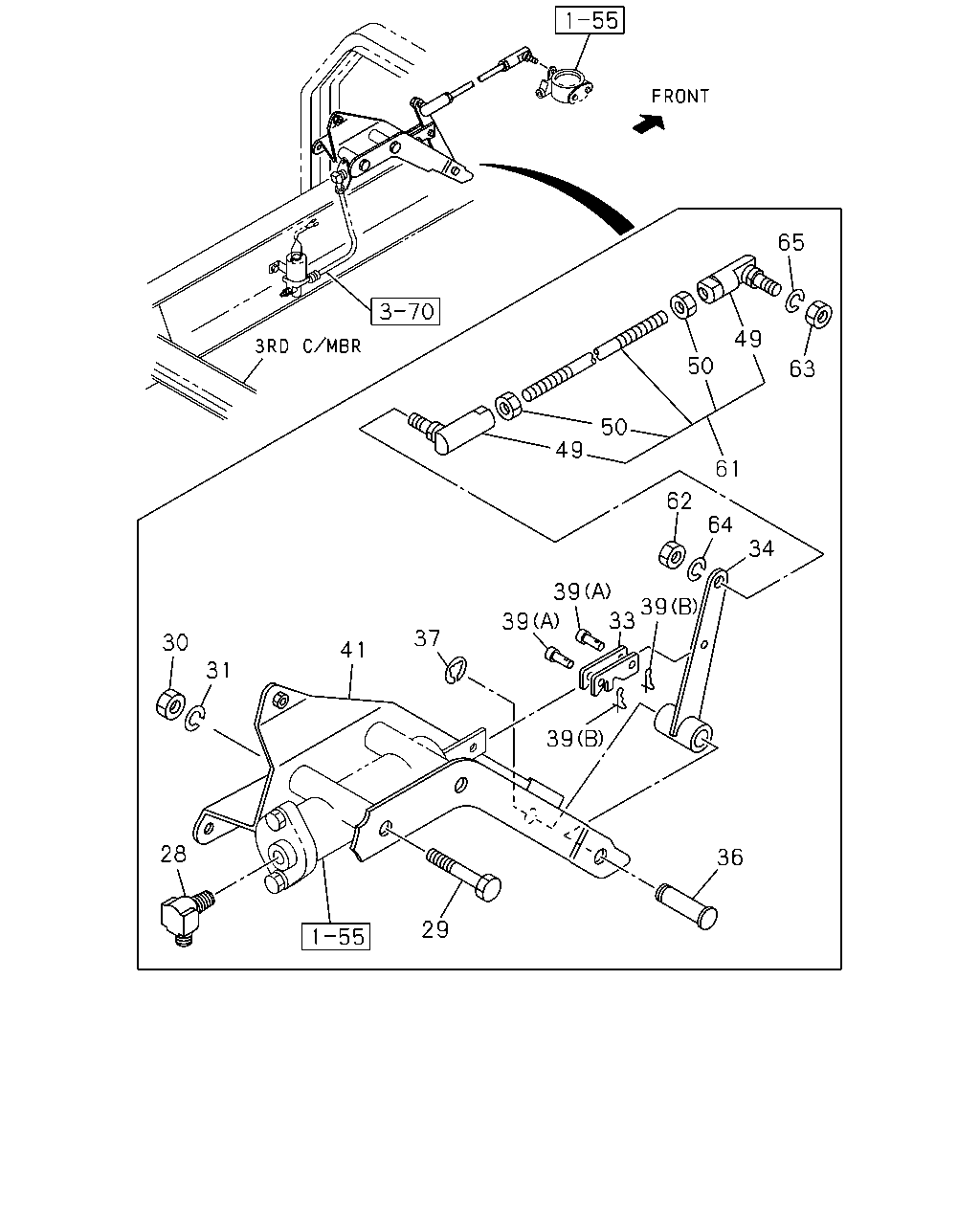

[156A] NO.1 (19 parça)
[156A] NO.2 (25 parça)
▶
65
49
50
63
50
49
61
62
64
34
39
39
33
39
37
30
41
31
39
28
36
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
28
CONNECTOR; ELBOW,CONT CYL
EXHAUST BRAKE<NF8>
1-09650-247-2
01
1
9202-
●
●
29
BOLT; CONT CYL
EXHAUST BRAKE<NF8> M10X60
9-01046-060-0
02
1
9202-9204
●
●
29
BOLT; CONT CYL
EXHAUST BRAKE<NF8> M10X60
0-10806-060-0
02
1
9205-
●
●
30
NUT; CONT CYL
EXHAUST BRAKE<NF8> M10
9-09110-410-0
02
1
9202-
●
●
31
WASHER; PL,CONT CYL
EXHAUST BRAKE<NF8> ID=10.2
9-09150-510-0
02
1
9202-
●
●
33
JOINT; YOKE,POWER CHAMBER
EXHAUST BRAKE<NF8>
1-22199-053-0
01
1
9202-
●
●
34
LEVER; CONT BOX
EXHAUST BRAKE<NF8>
1-22196-149-0
01
1
9202-
●
●
36
PIN; JOINT,CONT LEVER
EXHAUST BRAKE<NF8>
9-08204-241-0
01
1
9202-
●
●
37
RING; SNAP,CONT LEVER
EXHAUST BRAKE<NF8> ID=9
9-09185-409-0
01
1
9202-
●
●
39
PIN; JOINT YOKE
EXHAUST BRAKE<NF8> (A)
1-22199-054-0
02
1
9202-
●
●
39
PIN; JOINT YOKE
EXHAUST BRAKE<NF8> (B) L=21.2
8-94157-840-0
02
1
9202-
●
●
41
BRACKET
EXHAUST BRAKE<NF8>
1-22186-103-0
01
1
9202-
●
●
49
JOINT; BALL,LINK ROD
EXHAUST BRAKE<NF8> RH THREAD
1-09760-009-0
02
1
9202-
●
●
50
NUT; JOINT BALL,LK
EXHAUST BRAKE<NF8> M8
9-09110-408-0
02
1
9202-
●
●
61
ROD; LINK,EXH BRK
EXHAUST BRAKE<NF8>
1-22190-515-0
01
1
9202-
●
●
62
NUT; LINK ROD
EXHAUST BRAKE<NF8> M8
9-09110-408-0
01
1
9202-
●
●
63
NUT; LINK ROD,EXH BRK VLV
EXHAUST BRAKE<NF8> M8
9-09110-408-0
01
1
9202-
●
●
64
WASHER; LK,LINK ROD
EXHAUST BRAKE<NF8> ID=8.2
9-09150-508-0
01
1
9202-
●
●
65
WASHER; LK,LINK ROD,EXH BRK VLV
EXHAUST BRAKE<NF8> ID=8.2
9-09150-508-0
01
1
9202-
●
●
59
59
93
60
96
95
92
85
84
93
87
84
87
94
87
92
86
86
86
87
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
59
BOLT; CONT BOX TO BRKT
EXHAUST BRAKE<NF8> M8X25 FLANGE
0-28010-825-0
03
1
9202-9204
●
●
59
BOLT; CONT BOX TO BRKT
EXHAUST BRAKE<NF8> M8X25 FLANGE
0-28080-825-0
03
1
9205-9205
●
●
59
BOLT; CONT BOX TO BRKT
EXHAUST BRAKE<NF8> M8X20 FLANGE
0-28080-820-0
03
1
9206-
●
●
60
NUT; CONT BOX
EXHAUST BRAKE<NF8> M8
9-09110-408-0
01
1
9202-
●
●
84
CLIP; HARNESS
THAILAND EQUIPMENT(PM9) (A) ID=21 L=28
1-09700-673-1
01
1
9408-
●
●
84
CLIP; HARNESS
EXHAUST BRAKE<NF8> (B)
1-09700-511-0
01
1
9202-9207
●
84
CLIP; HARNESS
EXHAUST BRAKE<NF8> (B)
8-94332-786-0
01
1
9208-
●
85
SCREW; GEN HARNESS CLIP
THAILAND EQUIPMENT(PM9) M5X10 W/LK+PL WASHER
9-03920-510-0
01
1
9408-
●
●
86
VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8>
1-82563-196-0
01
1
9202-
●
●
●
87
CONNECTOR
EXHAUST BRAKE<NF8> (C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9202-
●
●
87
CONNECTOR
PTO CONTROL<SV6> (A)
1-09660-552-0
01
1
9202-
●
●
87
CONNECTOR
EXC. PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8> (B) 17/32" PT1/4
1-09660-573-0
01
1
9202-
●
●
87
CONNECTOR
EXHAUST BRAKE<NF8> (D) PT1/4 & M12 ELBOW
1-09650-117-1
01
1
9202-9302
●
87
CONNECTOR
EXHAUST BRAKE<NF8> (D) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9303-
●
87
CONNECTOR
EXHAUST BRAKE<NF8> (E) 17/32" PT1/4 ELBOW
1-09660-551-0
01
1
9202-
●
92
BOLT; MAG VLV
EXHAUST BRAKE<NF8> M8X30 FLANGE
0-28010-830-0
02
1
9202-9204
●
●
92
BOLT; MAG VLV
EXHAUST BRAKE<NF8> M8X30 FLANGE
0-28080-830-0
02
1
9205-
●
●
92
BOLT; MAG VLV
EXHAUST BRAKE<NF8> M8X20 FLANGE
0-28010-820-0
02
1
9202-9204
●
92
BOLT; MAG VLV
EXHAUST BRAKE<NF8> M8X20 FLANGE
0-28080-820-0
02
1
9205-
●
93
NUT; MAG VLV
EXHAUST BRAKE<NF8> M8
9-09110-408-0
02
1
9202-
●
●
●
94
BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8>
1-82569-104-0
01
1
9202-
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> M8X18
0-28010-818-0
02
1
9202-9204
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> M8X18 FLANGE
0-28080-818-0
02
1
9205-9205
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> M8X20 FLANGE
0-28080-820-0
02
1
9206-
●
96
NUT; BRKT,MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> M8
9-09110-408-0
02
1
9202-
●
