Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#10620) — 40 parça
◀
[852A] CAB SIDE;EXC.A/C MANUAL CONTROL (4 parça)
[852A] CAB SIDE;A/C MAN CONT (12 parça)
[852A] FRAME SIDE;A/C MAN CONT (24 parça)
▶
189
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83572-411-0
01
1
0105-0105
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83572-635-0
01
1
0106-
15
HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-83572-412-0
01
1
0105-
189
GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
9-09575-397-0
01
1
0105-

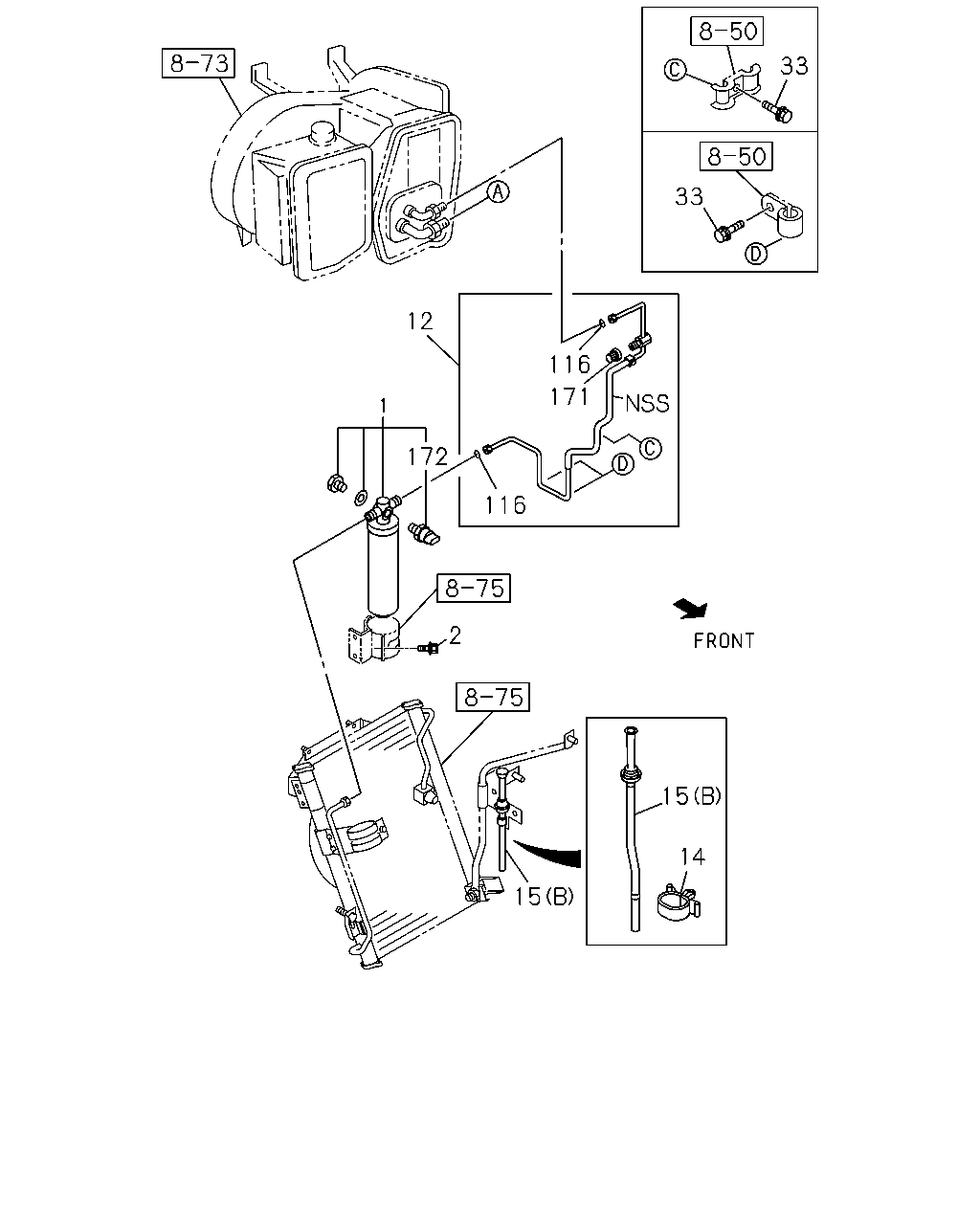

33
33
12
116
171
172
116
2
15
14
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-087-0
01
1
0105-
2
BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0105-
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-538-0
01
1
0105-
14
CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20
8-94410-200-0
02
1
0105-0105
14
CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20
8-94410-200-0
01
1
0106-
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83572-411-0
01
1
0105-0105
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83572-635-0
01
1
0106-
15
HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
1-83572-412-0
01
1
0105-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0105-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97161-776-0
02
1
0105-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97080-101-0
01
1
0105-
172
SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83544-044-0
01
1
0105-

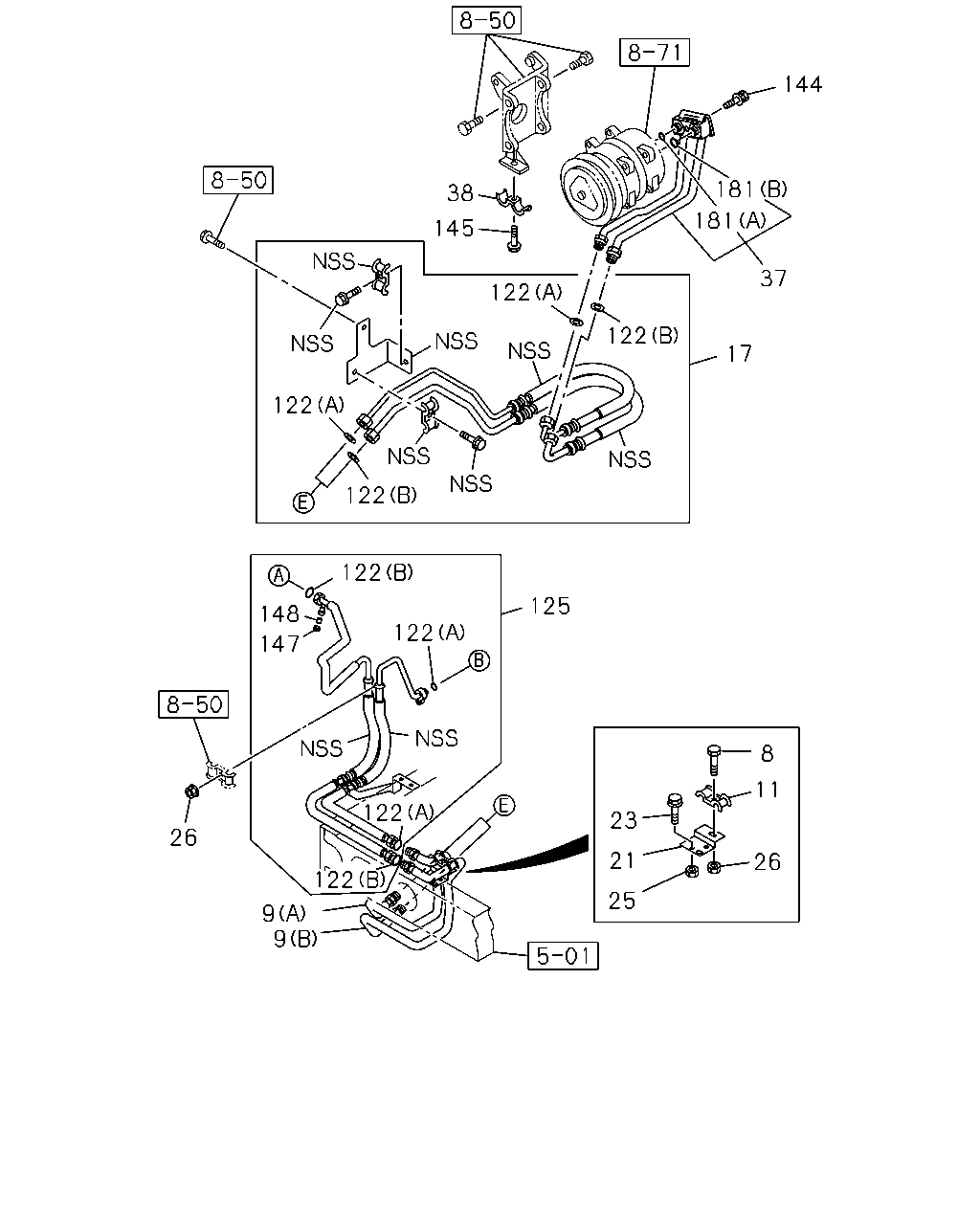

144
181
38
181
145
37
122
122
17
122
122
122
125
148
122
147
8
122
11
23
26
122
21
26
25
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE
0-28080-818-0
01
1
0105-
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A)
1-83567-796-0
01
1
0105-
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B)
1-83567-797-0
01
1
0105-
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A)
1-83572-550-0
01
1
0105-
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B)
1-83572-554-0
01
1
0105-
11
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20
1-83574-195-1
01
1
0105-
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-646-0
01
1
0105-
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-930-1
01
1
0105-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE
0-28080-816-0
02
1
0105-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8
9-09110-408-0
02
1
0105-
26
NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
02
1
0105-
37
CONNECTOR; CMPR TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83563-173-0
01
1
0105-
38
CLIP; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-177-0
01
1
0105-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5
8-97161-777-0
02
1
0105-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5
8-97161-777-0
02
1
0105-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3
8-97161-778-0
02
1
0105-
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3
8-97161-778-0
02
1
0105-
125
HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-545-0
01
1
0105-
144
BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45
9-01961-045-0
01
1
0105-
145
BOLT; CLIP,CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER
9-01900-816-0
01
1
0105-
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
8-97083-102-0
01
1
0105-
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97083-100-0
01
1
0105-
181
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5
8-97161-777-0
01
1
0105-
181
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3
8-97161-778-0
01
1
0105-
