8-50 — AIR CONDITIONING SYSTEM; FRONT (#10619) — 34 parça

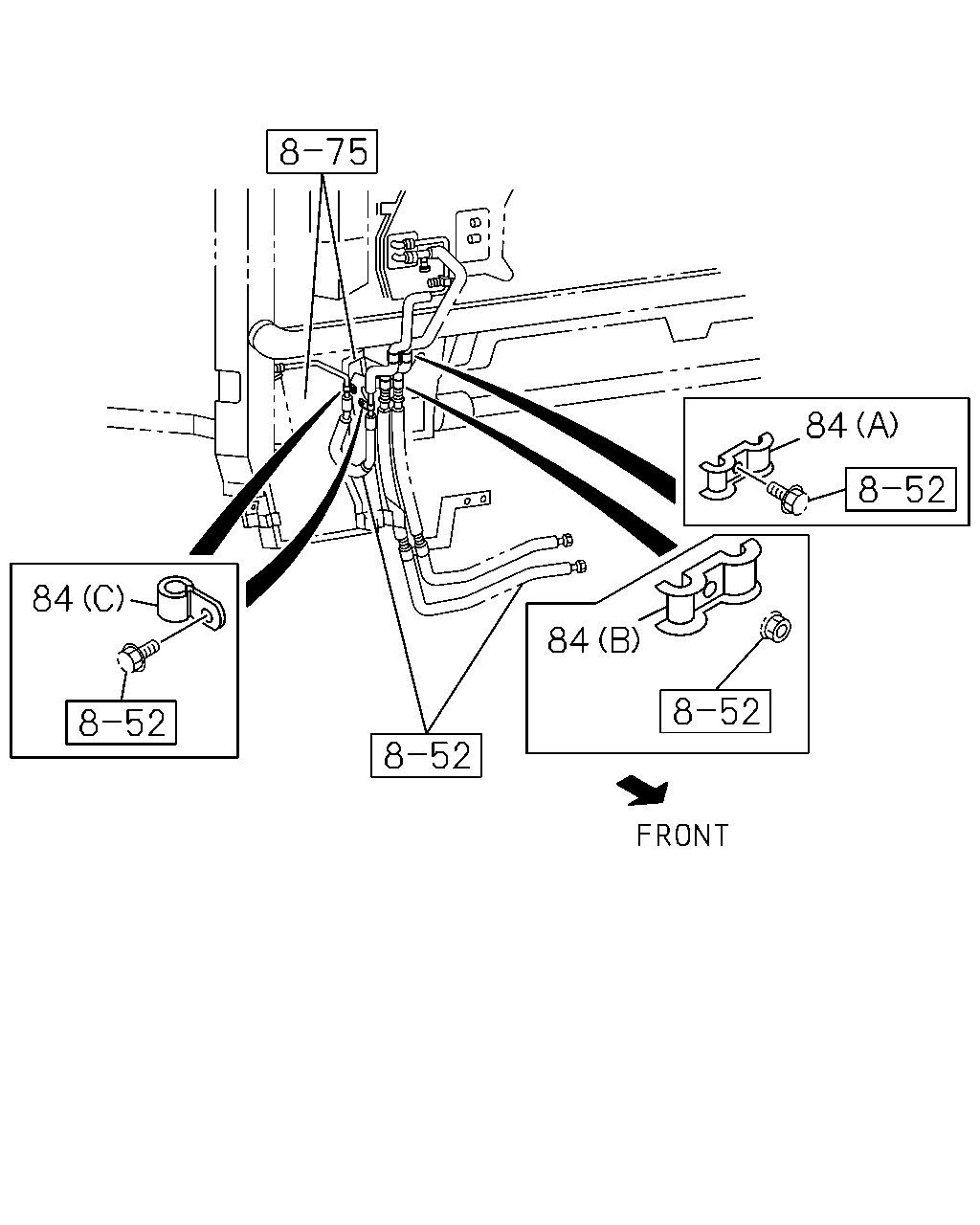

çizim 20901
84 84 84
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0105-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 0105-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 0105-

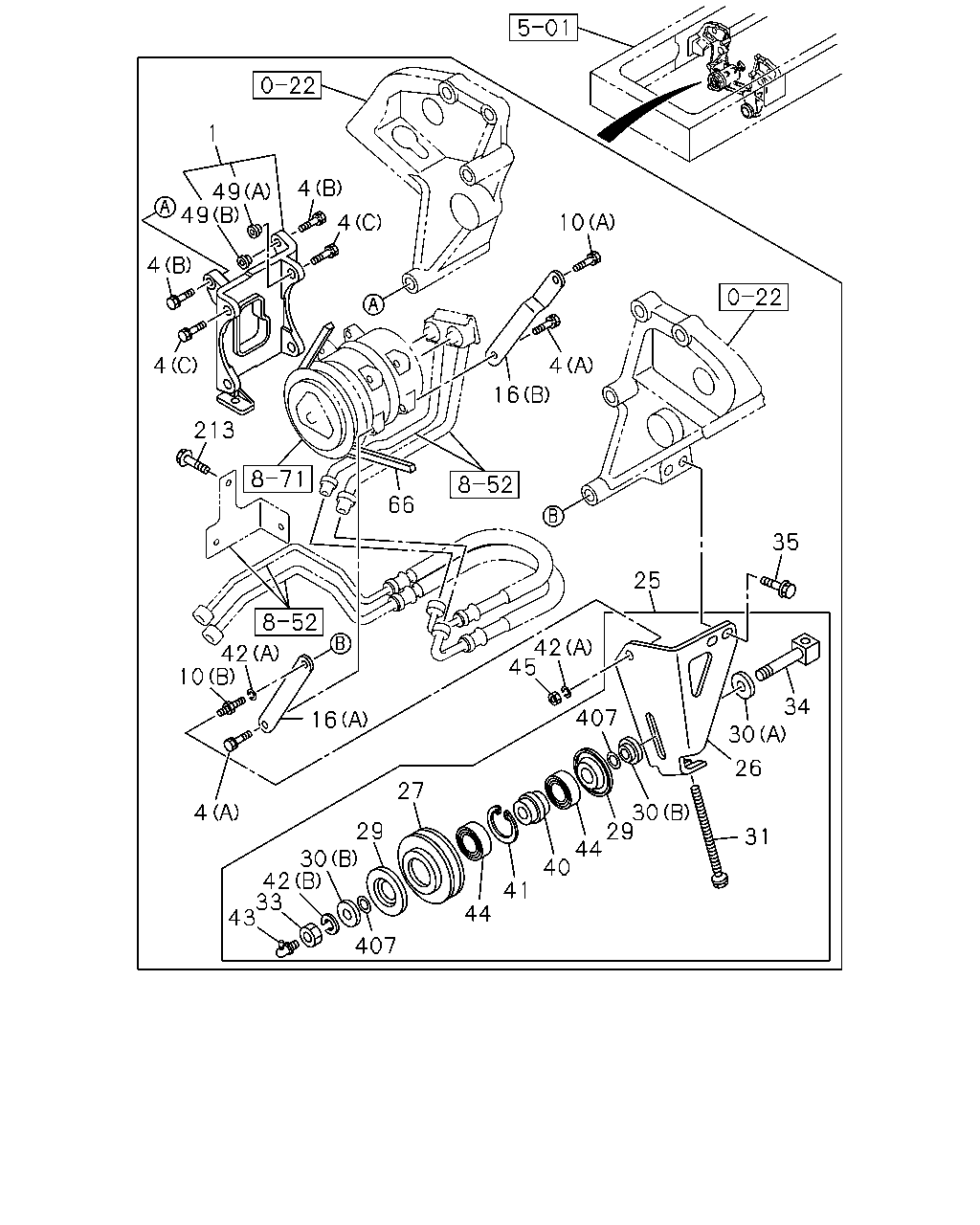

çizim 21304
1 4 49 49 10 4 4 4 4 16 213 66 35 25 42 45 42 10 34 407 16 30 26 27 30 29 44 40 4 29 30 42 33 43 31 41 44 407
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X20 FLANGE 		0-28081-020-0 02 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X40 FLANGE 		0-28081-240-0 02 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X30 W/LK WASHER 		9-01911-030-0 02 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X40 W/LK WASHER 		9-01911-040-0 02 1 0105-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28681-225-0 01 1 0105-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X19,M12X19 L=60 		1-09029-055-3 01 1 0105-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 0105-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 0105-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13660-298-1 01 1 0105-
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13668-028-0 01 1 0105-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13663-057-1 01 1 0105-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-175-0 02 1 0105-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13666-021-1 01 1 0105-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-040-0 02 1 0105-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M10X135 		1-09009-113-1 01 1 0105-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M18 		9-99111-518-0 01 1 0105-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-2 01 1 0105-
35 BOLT; IDLER PULLEY TO C/BL
AIR CONDITIONER MANUAL CONTROL(C60) M12X35 FLANGE 		0-28091-235-0 02 1 0105-
40 BUSHING; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-128-0 01 1 0105-
41 RING; SNAP,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2 		9-09180-152-0 01 1 0105-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 		9-09150-512-0 02 1 0105-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 		9-09150-818-0 01 1 0105-
43 NIPPLE; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW 		9-09031-210-0 01 1 0105-
44 BEARING; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09800-217-0 02 1 0105-
45 NUT; BOLT,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M12 		9-99110-412-0 01 1 0105-
49 COLLAR; BRKT,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-601-0 02 1 0105-
49 COLLAR; BRKT,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-602-0 01 1 0105-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1335 		1-13671-404-0 01 1 0105-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
407 RUBBER; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-174-0 02 1 0105-
