Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#10616) — 69 parça
◀
[828A] SEAT SIDE (1 parça)
[828A] FRAME SIDE;NO.3 (3 parça)
[828A] INST PANEL SIDE;NO.2 (12 parça)
[828A] INST PANEL SIDE;NO.1 (17 parça)
[828A] FRAME SIDE;NO.1 (10 parça)
[828A] HORN ASM (9 parça)
[828A] FRAME SIDE;NO.2 (17 parça)
▶
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74110-510-0
02
1
0105-
52
312
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO
1-83460-088-1
01
1
0105-
58
BUZZER; AIR PRESSURE WARNING
METRO
1-83460-074-1
01
1
0105-
312
BOLT; BUZZER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0105-

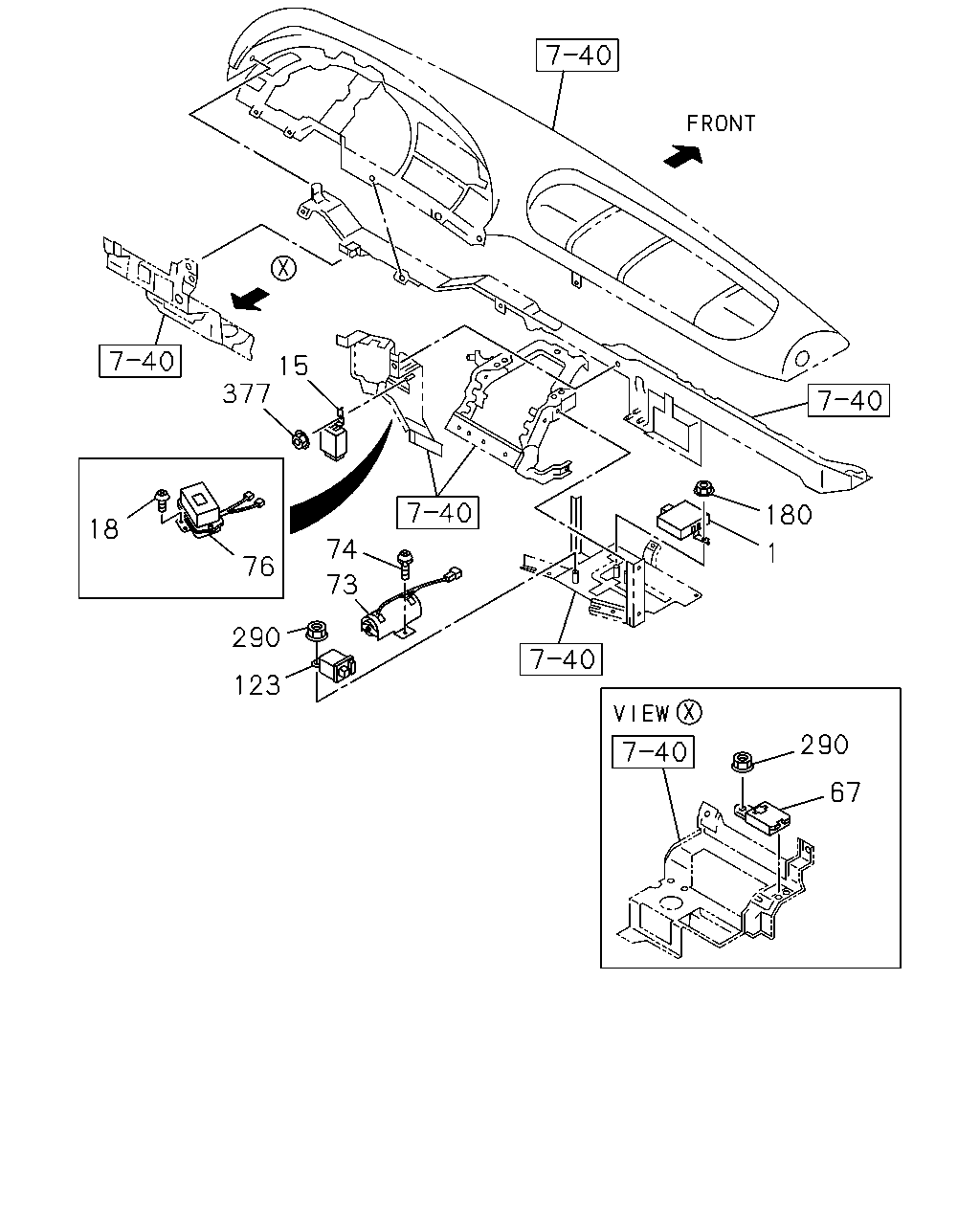

15
377
180
18
74
1
76
73
290
123
290
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
1-83470-062-1
01
1
0105-
15
RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2
1-82550-299-0
01
1
0105-
18
SCREW; TIMER
INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER
9-03920-510-0
03
1
0105-
67
BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4>
1-83460-051-1
01
1
0105-
73
RESISTOR; RELAY
INTAKE HEATER<SL2>
1-81375-004-1
01
1
0105-
74
SCREW; RESISTOR
INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER
9-03920-510-0
02
1
0105-
76
TIMER; INT HTR
INTAKE HEATER<SL2>
1-82550-132-1
01
1
0105-
123
RELAY; HTR
INTAKE HEATER<SL2>
8-94128-857-0
02
1
0105-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91150-106-0
01
1
0105-
290
NUT
ENGINE OVERRUN BUZZER<SK4> M6 FLANGE
0-91150-106-0
01
1
0105-
290
NUT
INTAKE HEATER<SL2> M6 FLANGE
0-91150-106-0
02
1
0105-
377
NUT; RELAY
M6 FLANGE
0-91150-106-0
01
1
0105-

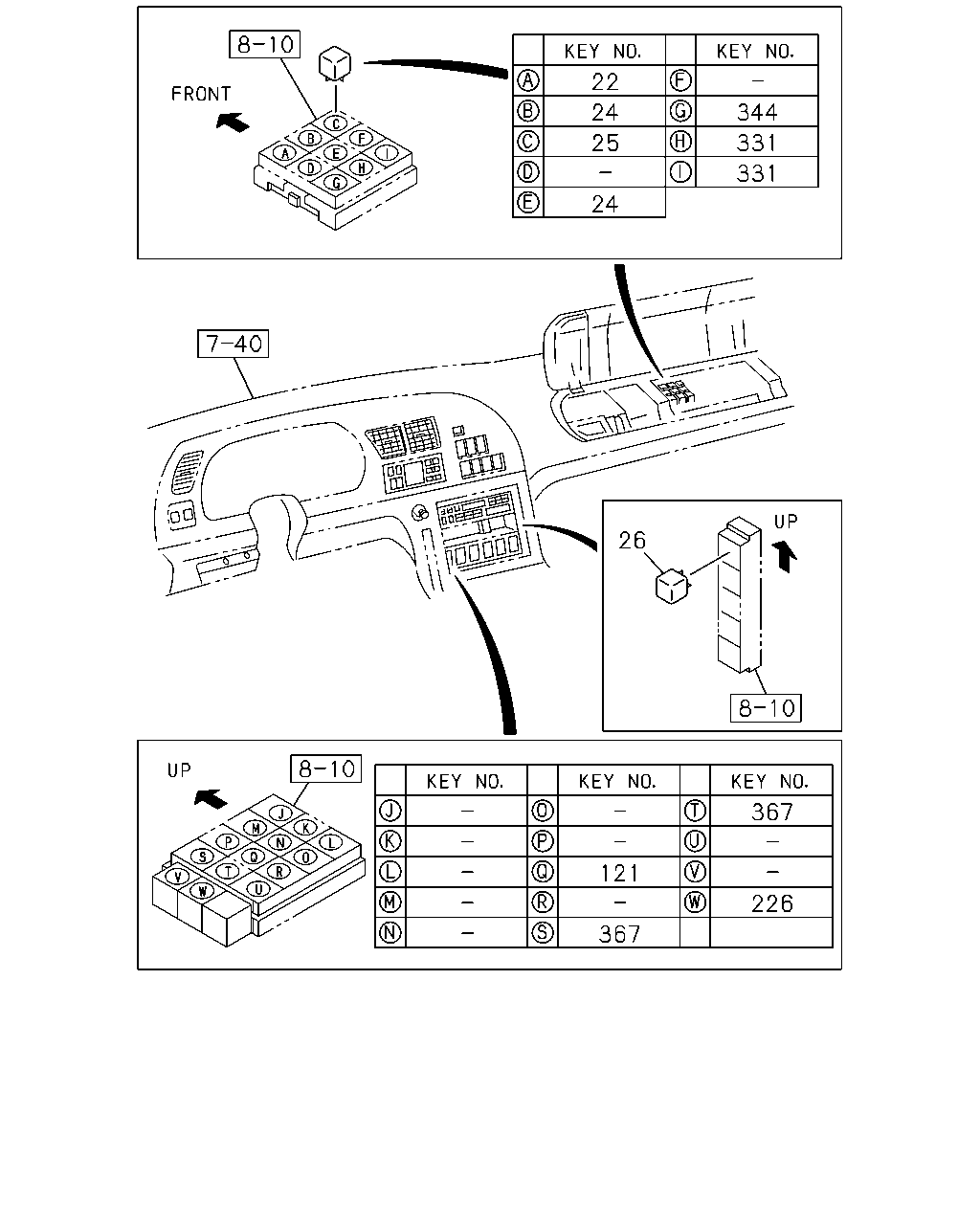

22
24
344
25
331
331
24
26
367
121
226
367
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
24
RELAY; LIGHTING
24V 12.5A JIDECO
8-97062-815-1
02
1
0105-0111
24
RELAY; LIGHTING
24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
25
RELAY; TAIL LAMP
24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
25
RELAY; TAIL LAMP
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
26
RELAY; CONSENT
24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
26
RELAY; CONSENT
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
121
RELAY; PARKING BRK
24V 10A MATSUSHITA
8-97173-035-1
01
1
0105-
226
RELAY; EXH BRK
24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
226
RELAY; EXH BRK
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO
8-97062-815-1
02
1
0105-0111
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA
8-97262-933-0
02
1
0112-
344
RELAY; LAMP
CORNERING LAMP<TDS> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
344
RELAY; LAMP
CORNERING LAMP<TDS> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
367
RELAY; NEUTRAL
24V 10A MATSUSHITA
8-97173-035-1
01
1
0105-
367
RELAY; NEUTRAL
AUTO CAB TILT<WV2> 24V 10A MATSUSHITA
8-97173-035-1
01
1
0105-

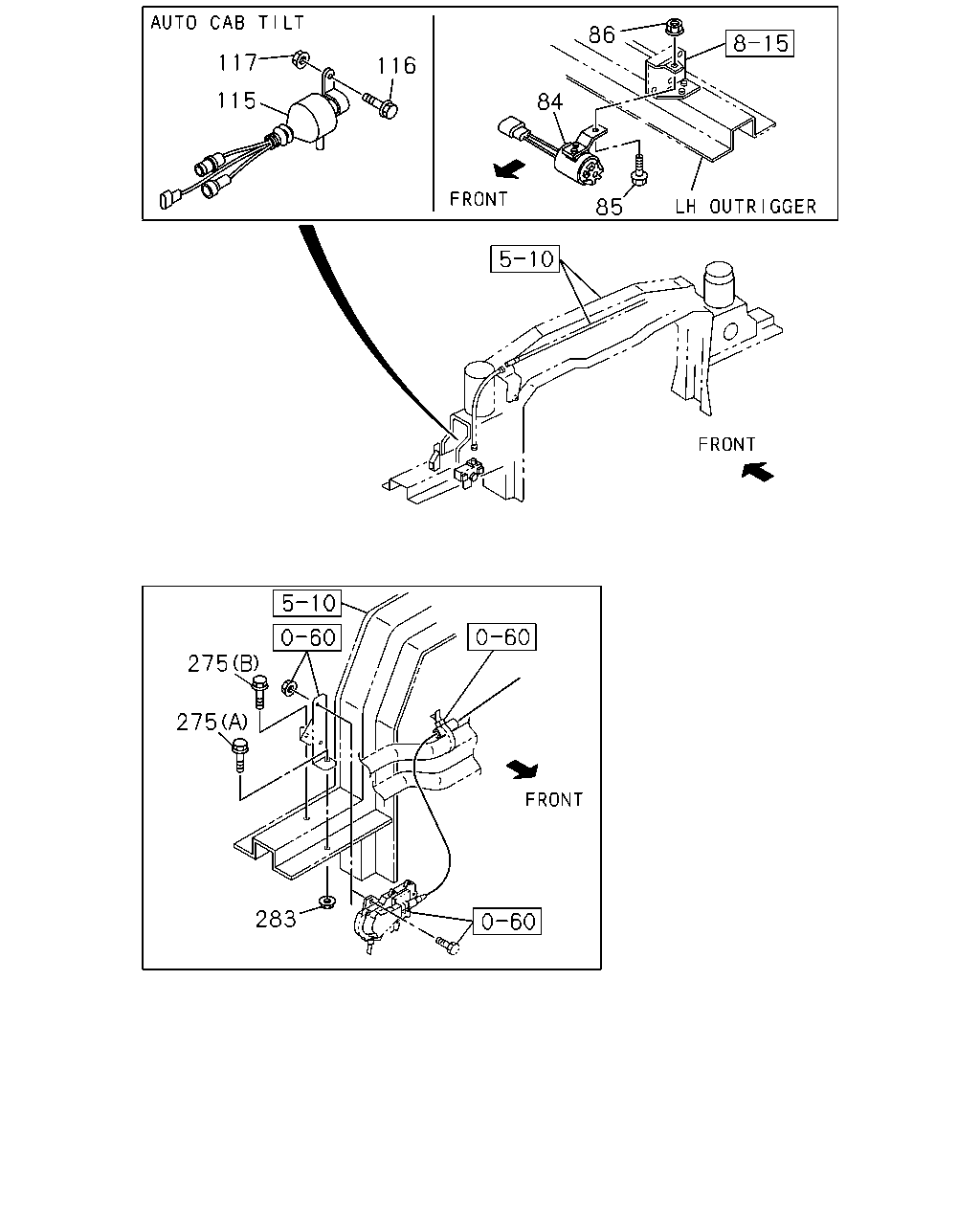

86
117
116
115
84
85
275
275
283
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
BUZZER; POWER CAB TILT
METRO
1-83460-096-2
01
1
0105-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 W/LK&PL WASHER
0-50140-820-0
01
1
0105-0201
85
BOLT; BUZZER,POWER CAB TILT
M8X16 FLANGE
0-28080-816-0
01
1
0202-
86
NUT; BUZZER
M8 FLANGE
0-91150-108-0
01
1
0105-
115
RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> HITACHI
1-81171-087-0
01
1
0105-
116
BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X16 FLANGE
0-28080-816-0
02
1
0105-
117
NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 FLANGE
0-91150-108-0
02
1
0105-
275
BOLT; BRKT
(A) M10X25 FLANGE
0-28681-025-0
01
1
0105-
275
BOLT; BRKT
(B) M8X25 FLANGE
0-28690-825-0
01
1
0105-
283
NUT; BRKT
M10 FLANGE
0-91150-210-0
01
1
0105-
456
78
424
40
505
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
40
BRACKET; MAG VLV
(B)
1-53458-742-1
01
1
0105-0110
40
BRACKET; MAG VLV
PTO ZF TRANS RR(BDM) (C)
1-82569-278-0
01
1
0105-
40
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-82569-279-0
01
1
0105-
77
HORN ASM
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
1-83430-039-3
01
1
0105-
77
HORN ASM
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)
1-83430-041-2
01
1
0105-
78
BOLT; AIR HORN
M8X20 FLANGE
0-28680-820-0
02
1
0105-
424
ADAPTER
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0105-0110
456
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
02
1
0105-0110
505
JOINT; AIR HORN
1-83439-006-0
01
1
0105-

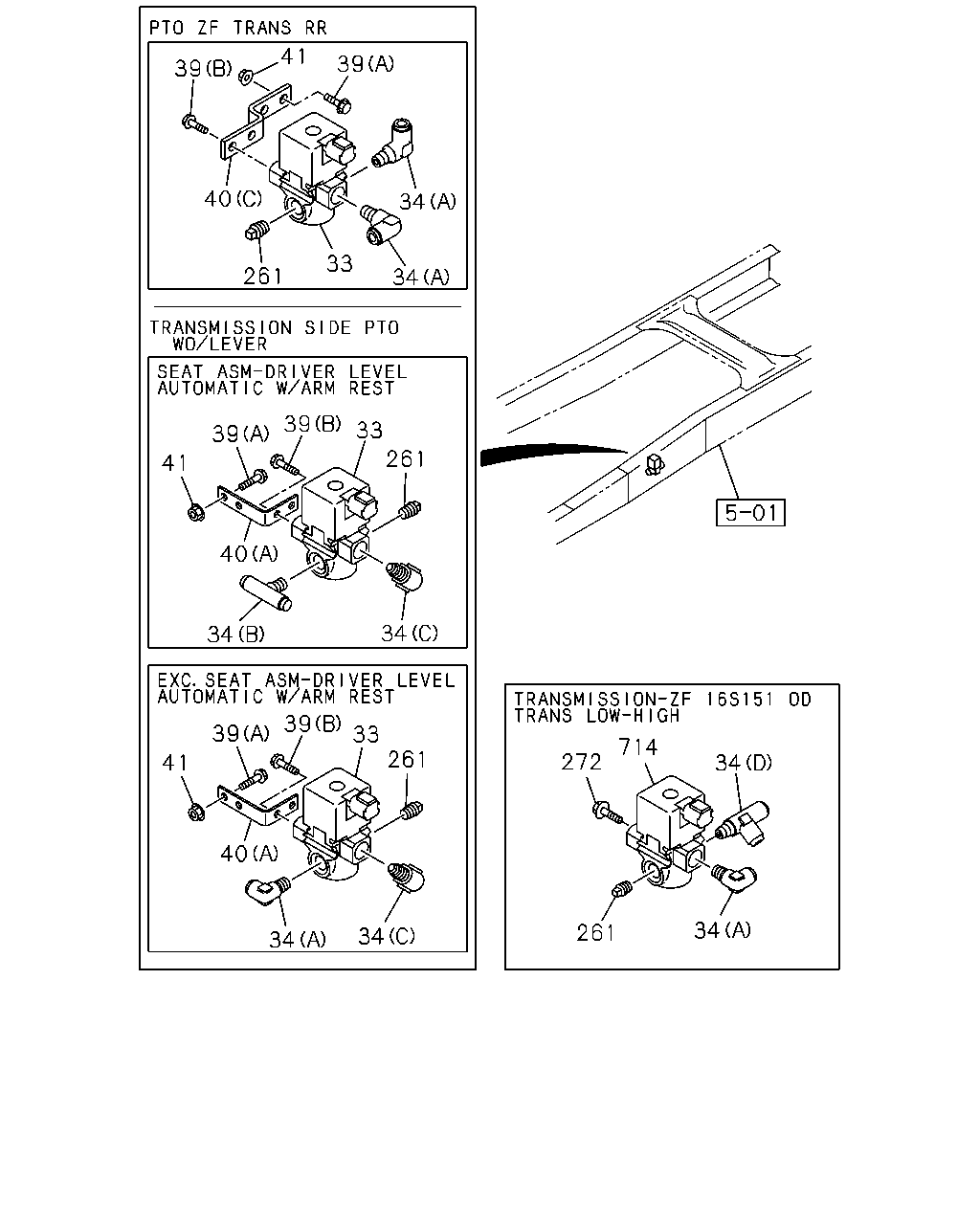

41
39
39
40
34
33
261
34
39
33
39
261
41
40
34
34
39
39
33
261
714
272
41
34
40
34
261
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82563-871-2
01
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R1/4 3WAY
1-09661-004-0
01
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0105-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0105-
39
BOLT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE
0-28680-820-0
02
1
0105-
39
BOLT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE
0-28680-830-0
02
1
0105-
40
BRACKET; MAG VLV
(B)
1-53458-742-1
01
1
0105-0110
40
BRACKET; MAG VLV
PTO ZF TRANS RR(BDM) (C)
1-82569-278-0
01
1
0105-
40
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-82569-279-0
01
1
0105-
41
NUT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91150-108-0
02
1
0105-
261
PLUG; MAG VLV
TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4
9-99204-513-0
01
1
0105-
261
PLUG; MAG VLV
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
0105-
272
BOLT; MAG VLV
TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE
0-28680-825-0
02
1
0105-
714
VALVE; MAG,TRANS,LOW TO HIGH
TRANSMISSION-ZF 16S151 OD(Y2N)
1-82563-871-2
01
1
0105-
