Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#10614) — 41 parça
◀
[825A] INST PANEL SIDE;NO.1 (19 parça)
[825A] INST PANEL SIDE;NO.2 (10 parça)
[825A] FRAME SIDE;NO.2 (2 parça)
[825A] FRAME SIDE;NO.1 (10 parça)
▶

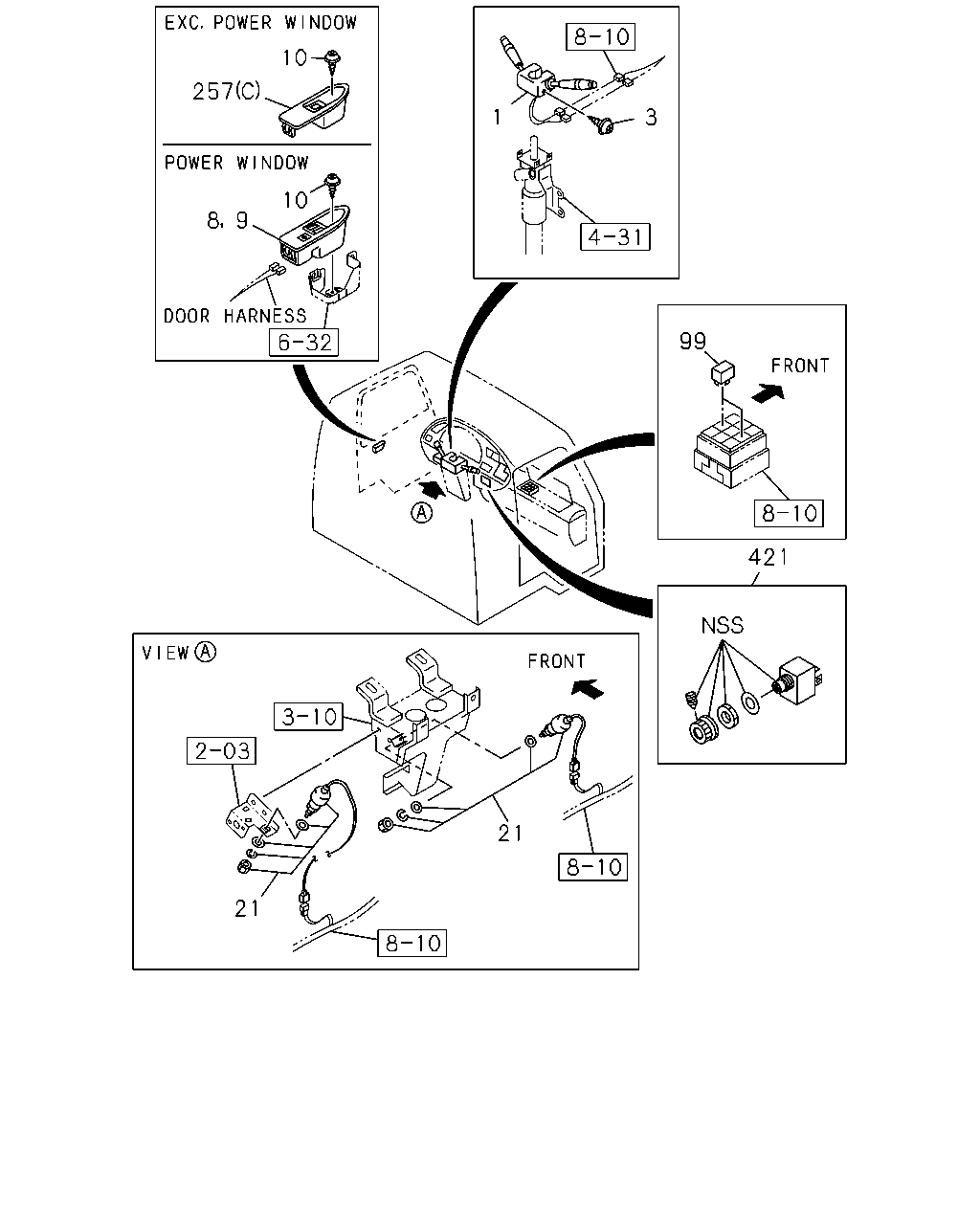

10
257
3
1
10
8
9
99
421
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
FOG LAMP REAR<NHD>
1-82360-654-0
01
1
0105-
1
SWITCH; COMB
EXC. FOG LAMP REAR<NHD>
1-82360-647-0
01
1
0105-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0105-
8
SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER
1-82380-157-3
01
1
0105-
9
SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER
1-82380-158-3
01
1
0105-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0105-
21
SWITCH; CLU
1-82380-114-3
01
1
0105-
21
SWITCH; CLU
ZF M/T<X9E>
1-82380-114-3
01
1
0105-
99
RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A JIDECO
8-97062-815-1
01
1
0105-0111
99
RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0112-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0105-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0105-
421
SWITCH ASM; INT HTR
INTAKE HEATER<SL2>
1-82330-030-0
01
1
0105-

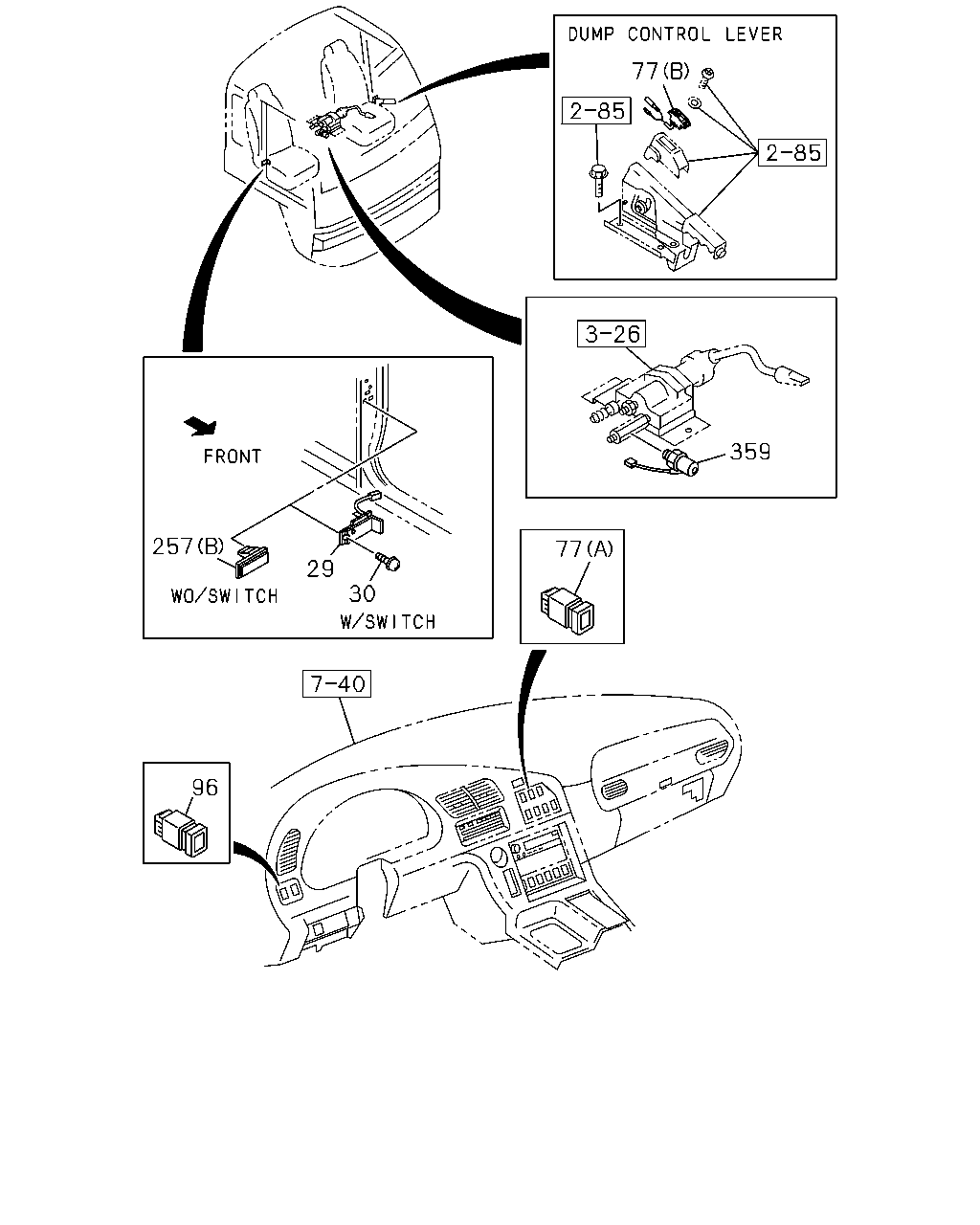

77
359
257
77
29
30
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0105-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0105-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
0105-
77
SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
1-82340-413-0
01
1
0105-
96
SWITCH; FOG LAMP
FOG LAMP REAR<NHD>
1-82340-676-0
01
1
0105-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0105-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0105-
359
SWITCH; TRAILER PARKING
GREEN
1-82410-176-0
01
1
0105-
255
258
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82340-360-1
01
1
0105-
258
SWITCH; FLASHER UNIT
1-82410-137-0
01
1
0105-

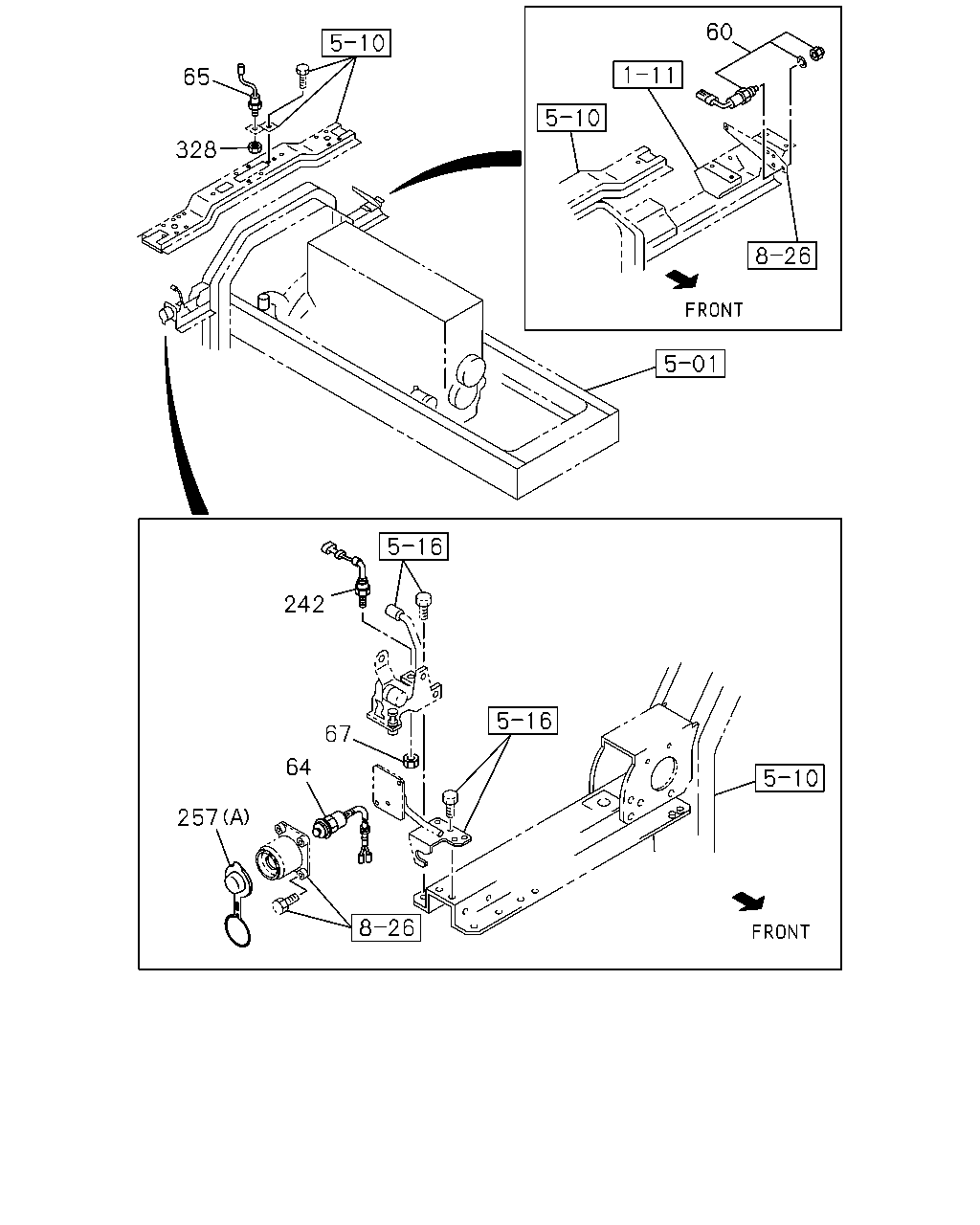

60
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; IGNITION SUB
1-82380-107-1
01
1
0105-
64
SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2>
1-82380-108-0
01
1
0105-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0105-
67
NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5
1-09409-013-0
01
1
0105-
242
SWITCH
AUTO CAB TILT<WV2> STAMP NO
1-82380-126-0
01
1
0105-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0105-
257
COVER; HOLE,SW
AUTO CAB TILT<WV2> (A)
1-82389-008-0
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-012-2
01
1
0105-
257
COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C)
1-82389-011-2
01
1
0105-
328
NUT; SW
M16
9-99110-416-0
01
1
0105-
