◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10864 - EXR LHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#10610) — 85 parça

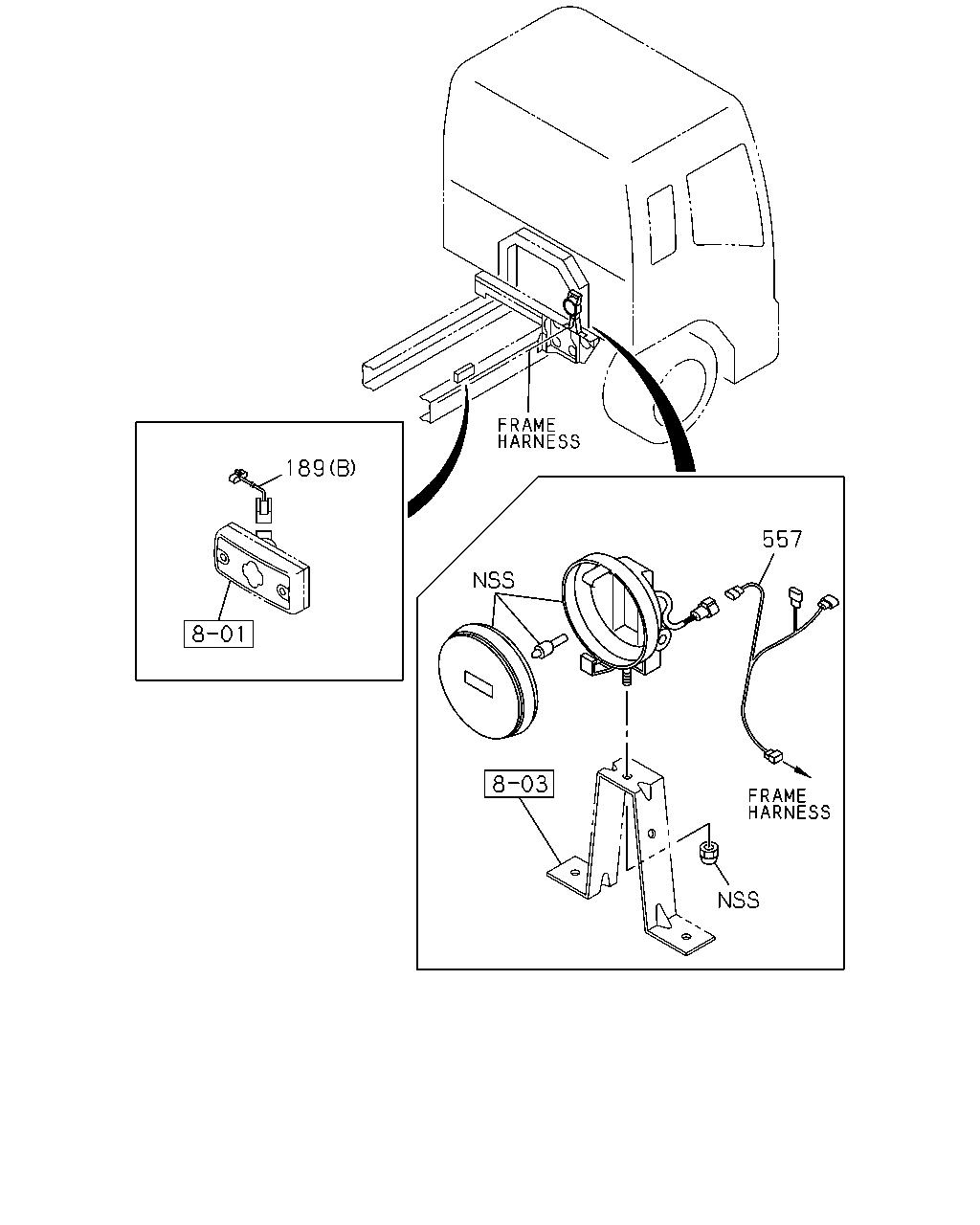

çizim 22013
189 557
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=890 		1-82636-373-0 01 1 0105-
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 06 1 0105-
557 HARNESS; TR,BOARD 1-82674-462-0 01 1 0105-
çizim 22014
13 199
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
INTAKE HEATER<SL2> 		1-82639-272-0 01 1 0105-
199 HARNESS; STARTER 1-82640-733-2 01 1 0105-

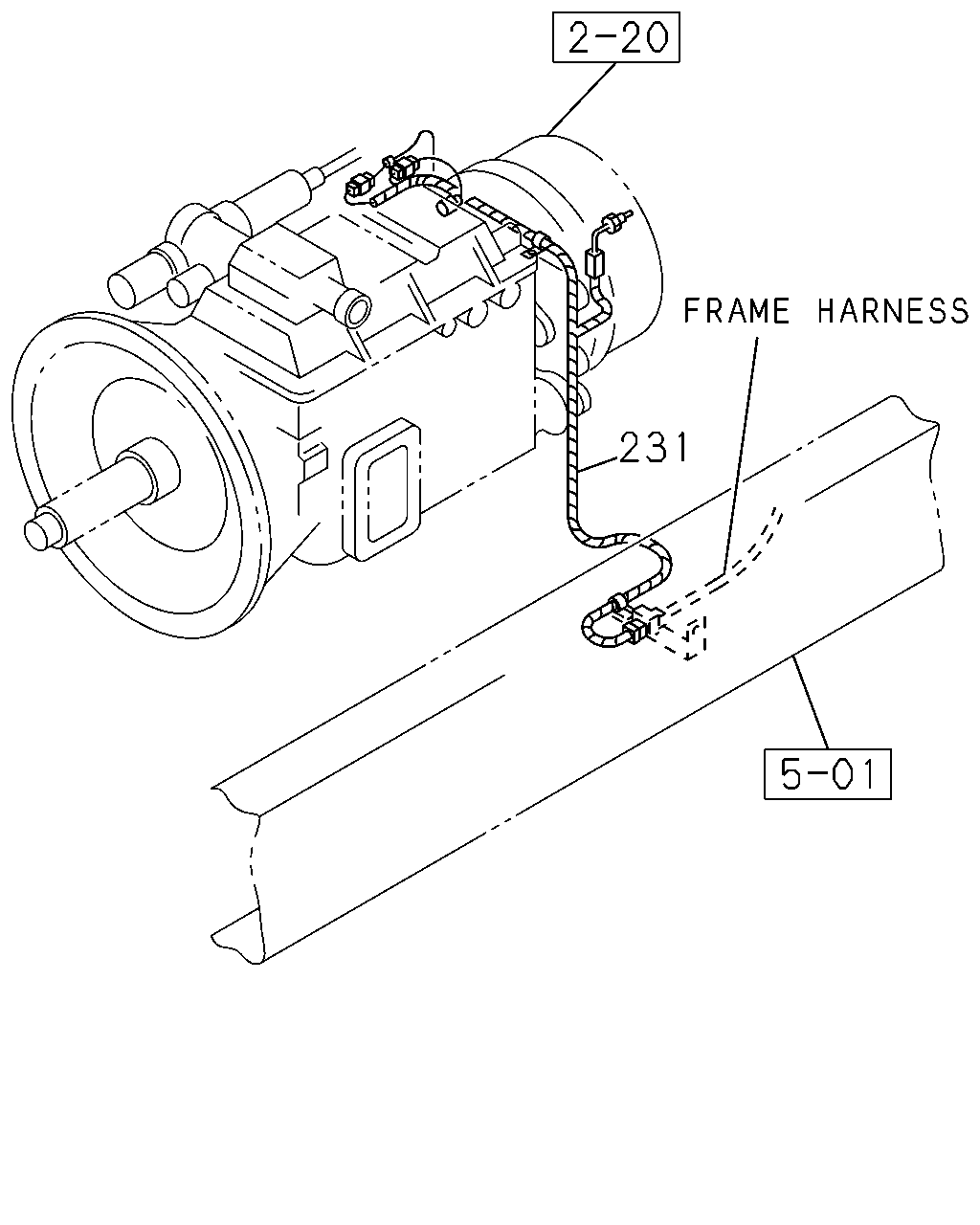

çizim 22015
231
BalonParca AdiParca NoAdetTipApplied Date
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82671-661-1 01 1 0105-

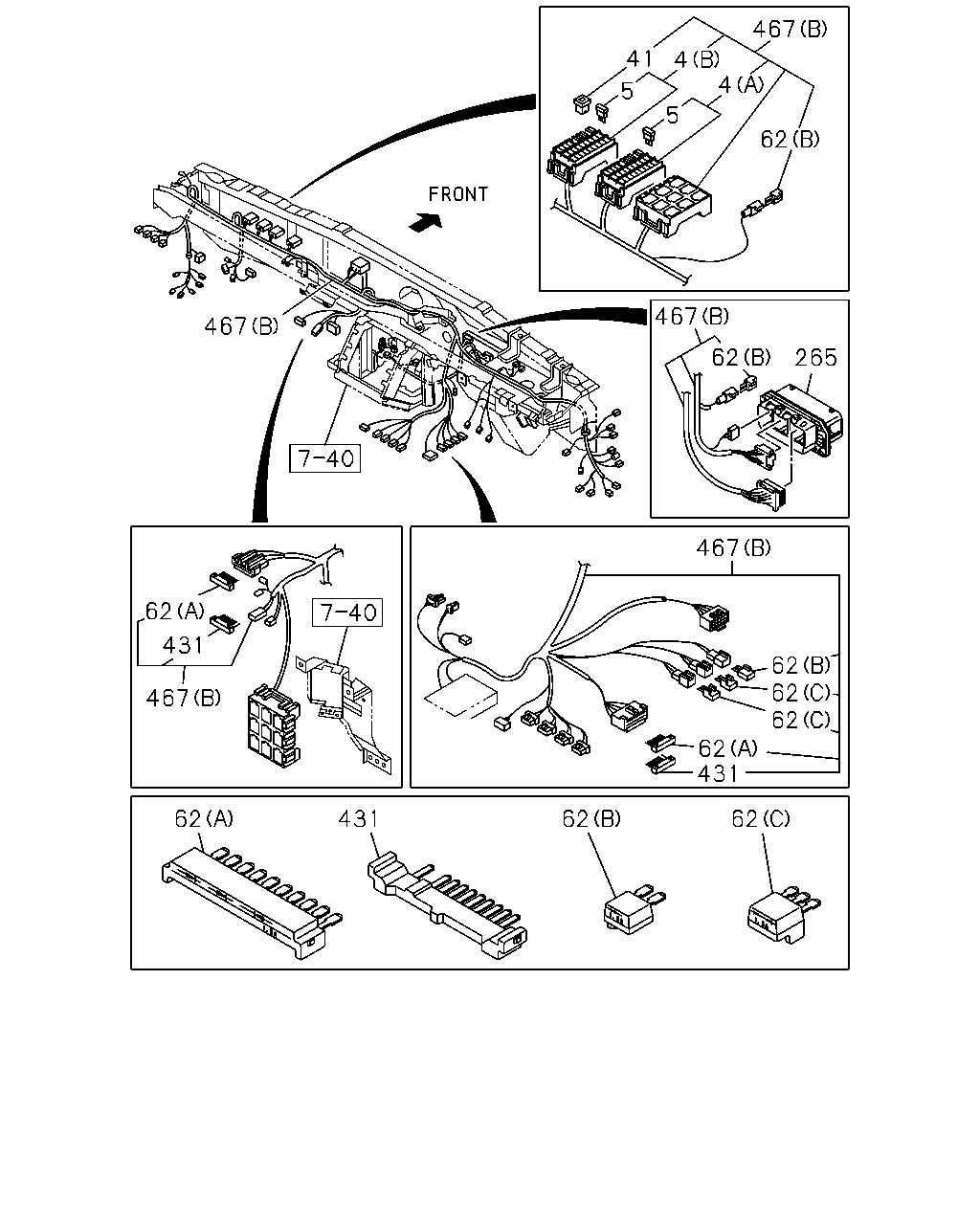

çizim 72542
467 41 4 4 5 5 62 467 467 62 265 467 62 431 62 62 62 467 62 431 62 431 62 62
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX18 		1-82510-422-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (A) 7.5AX18 		1-82510-422-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX19 		1-82510-436-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
DELUXE CAB(W14) (B) 15AX19 		1-82510-436-0 01 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 19 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 19 1 0105-
5 FUSE; FACIA HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 18 1 0105-
5 FUSE; FACIA HARNESS
DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 18 1 0105-
41 PULLER; FUSE
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
41 PULLER; FUSE
DELUXE CAB(W14) L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) BLACK 10P 		1-82699-703-0 02 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) (A) BLACK 10P 		1-82699-703-0 02 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0105-
62 DIODE; HARNESS
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) (B) BLACK 2P-1.5A 		8-94422-639-1 05 1 0105-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
431 CONNECTOR; JOINT
EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) BROWN 10P 		1-82699-601-0 02 1 0105-
431 CONNECTOR; JOINT
DELUXE CAB(W14) BROWN 10P 		1-82699-601-0 02 1 0105-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. INTAKE HEATER<SL2> (B) 		1-82660-412-3 01 1 0105-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) 		1-82660-413-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-409-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-411-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-410-3 01 1 0105-
467 HARNESS; FACIA
EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-414-3 01 1 0105-

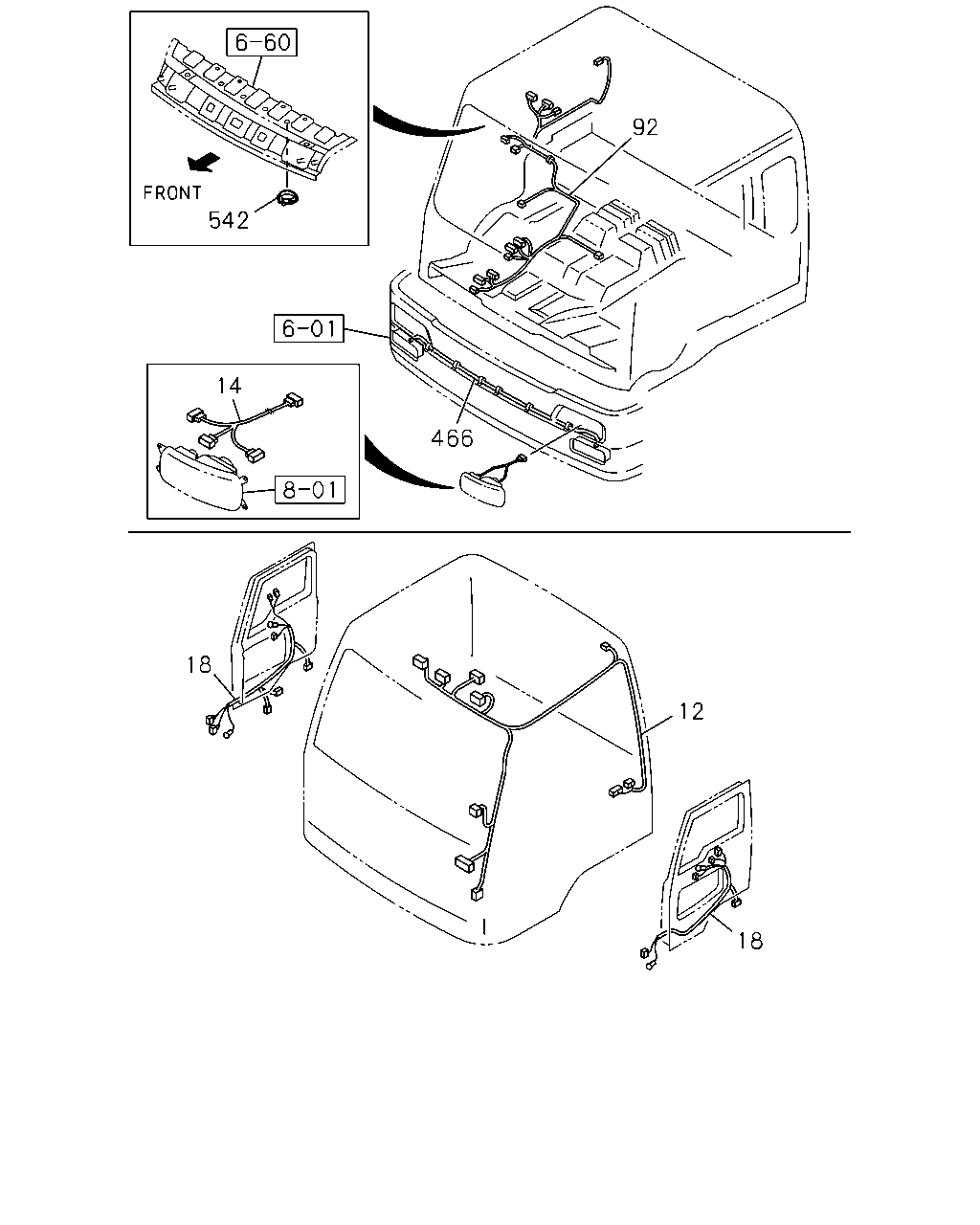

çizim 74319
92 542 14 466 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82629-925-2 01 1 0105-
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82629-924-2 01 1 0105-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82629-920-2 01 1 0105-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82629-921-2 01 1 0105-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> DRIVER SIDE 		1-82628-107-0 01 1 0105-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82670-022-2 02 1 0105-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> 		1-82625-150-2 02 1 0105-
14 HARNESS; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82639-226-2 02 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> ASSIST SIDE 		1-82628-582-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> DRIVER SIDE 		1-82628-584-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
92 HARNESS; FLOOR 1-82660-394-2 01 1 0105-
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82639-227-3 01 1 0105-
466 HARNESS; BUMPER
EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82639-281-0 01 1 0105-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0105-

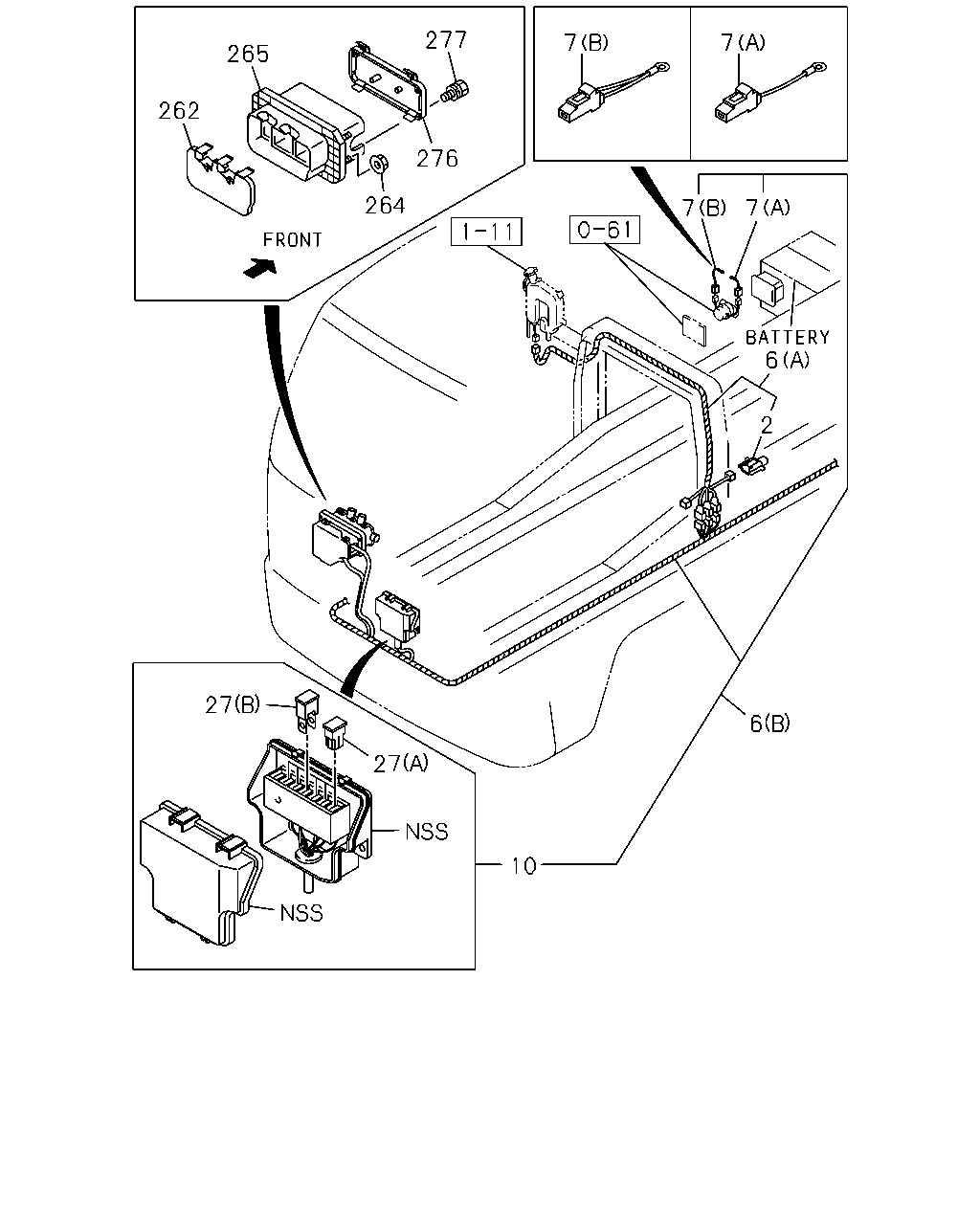

çizim 74559
277 7 7 265 262 276 264 7 7 6 2 27 6 27 10
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> (A) 		1-82674-087-0 01 1 0105-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2> (A) 		1-82674-086-0 01 1 0105-
6 HARNESS; FRAME
INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) 		1-82674-796-3 01 1 0105-
6 HARNESS; FRAME
INTAKE HEATER<SL2> ZF M/T<X9E> (B) 		1-82674-798-3 01 1 0105-
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) 		1-82674-795-3 01 1 0105-
6 HARNESS; FRAME
ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) 		1-82674-797-3 01 1 0105-
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 0105-
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 0105-
10 BOX; FUSE,HARNESS 1-82510-466-0 01 1 0105-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 0105-
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 0105-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0105-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
276 COVER; BOX,FRAME HARNESS 1-82699-892-1 01 1 0105-
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0105-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-

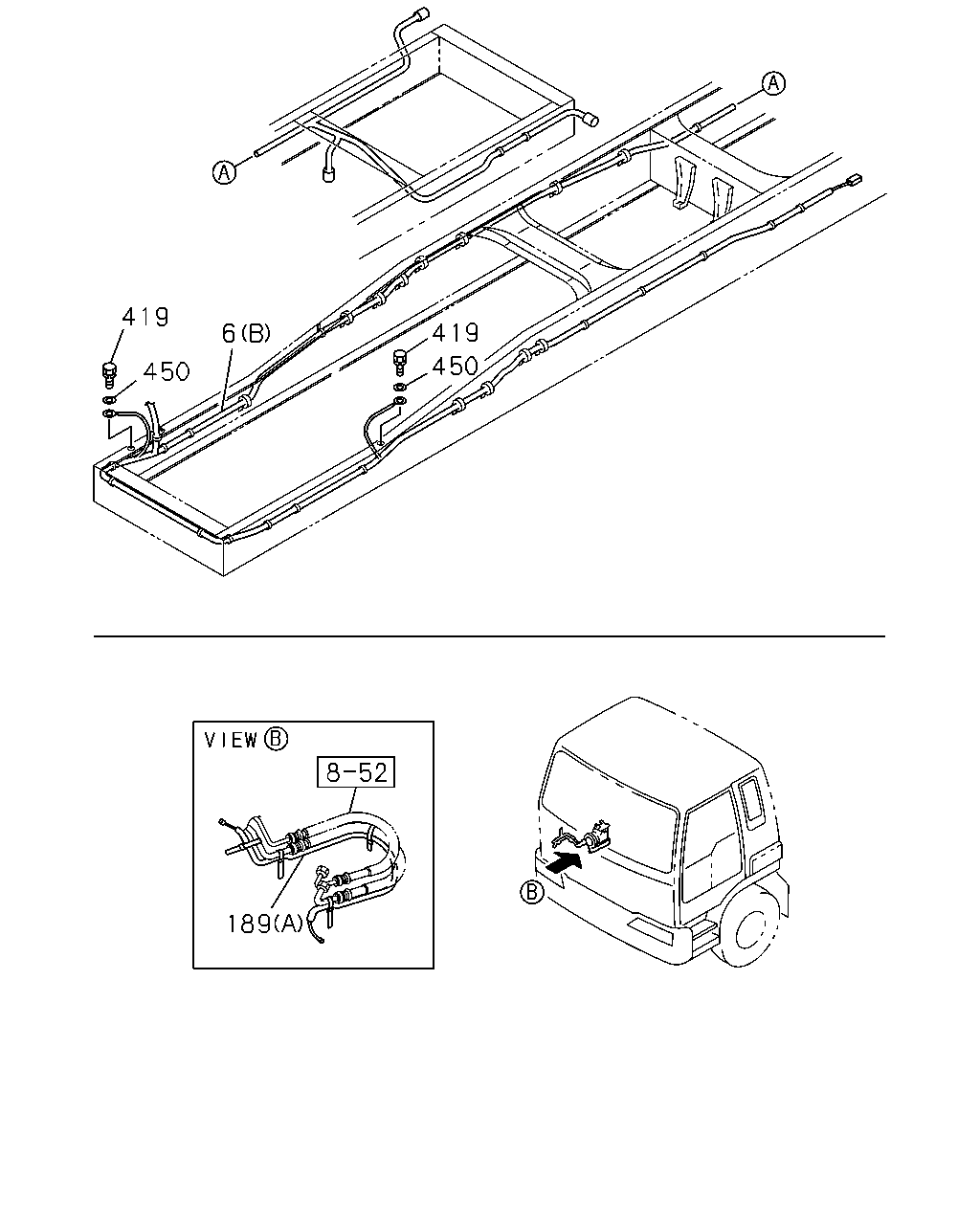

çizim 74767
419 419 6 450 450 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
AUTO CAB TILT<WV2> (A) 		1-82674-087-0 01 1 0105-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2> (A) 		1-82674-086-0 01 1 0105-
6 HARNESS; FRAME
INTAKE HEATER<SL2> ISUZU M/T<X9A> (B) 		1-82674-796-3 01 1 0105-
6 HARNESS; FRAME
INTAKE HEATER<SL2> ZF M/T<X9E> (B) 		1-82674-798-3 01 1 0105-
6 HARNESS; FRAME
ISUZU M/T<X9A> EXC. INTAKE HEATER<SL2> (B) 		1-82674-795-3 01 1 0105-
6 HARNESS; FRAME
ZF M/T<X9E> EXC. INTAKE HEATER<SL2> (B) 		1-82674-797-3 01 1 0105-
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=890 		1-82636-373-0 01 1 0105-
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82673-735-0 06 1 0105-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105-

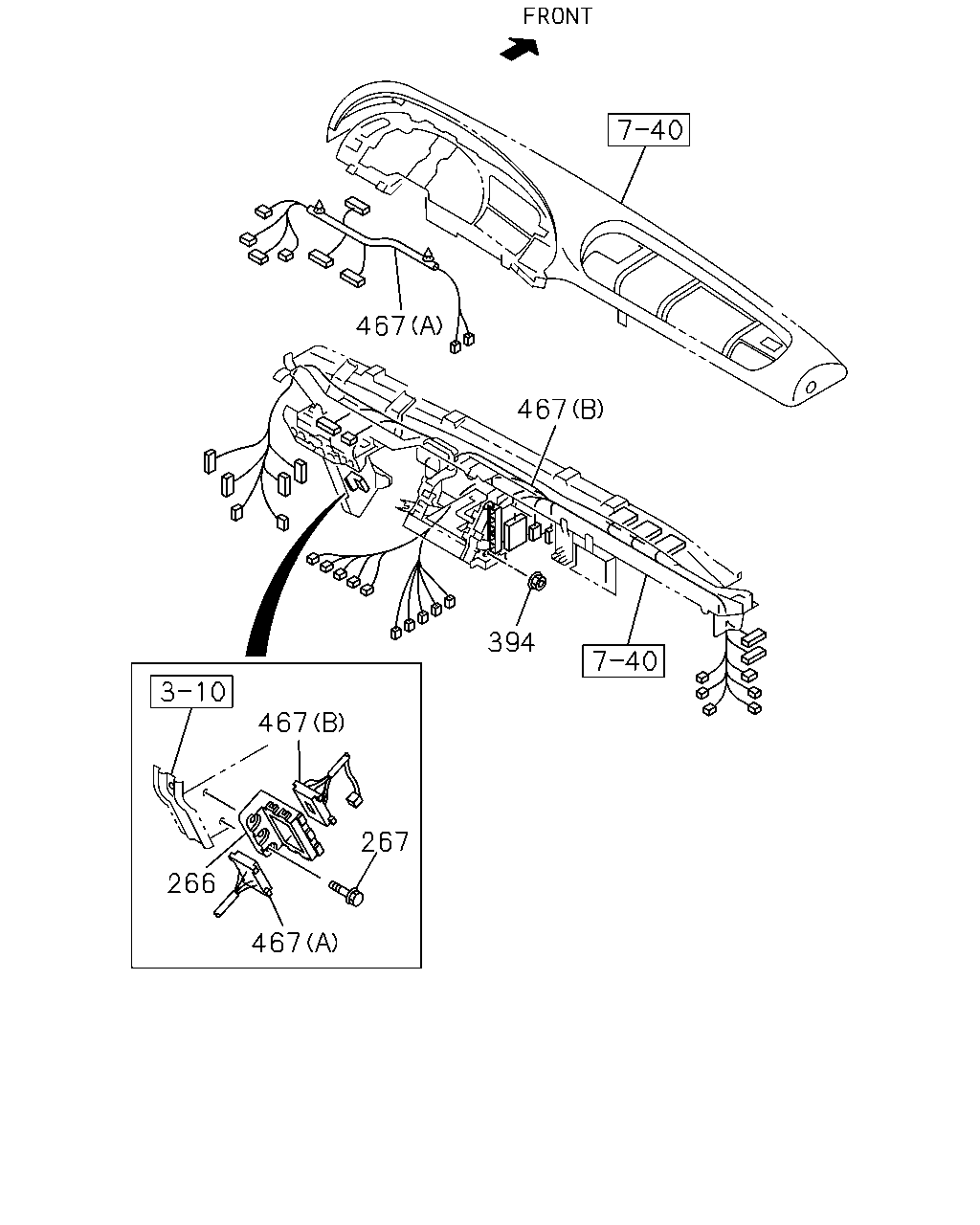

çizim 74768
467 467 467 267 266 467 394
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. INTAKE HEATER<SL2> (B) 		1-82660-412-3 01 1 0105-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS> (B) 		1-82660-413-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> CORNERING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-409-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-411-3 01 1 0105-
467 HARNESS; FACIA
INTAKE HEATER<SL2> DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) 		1-82660-410-3 01 1 0105-
467 HARNESS; FACIA
EXC. INTAKE HEATER<SL2>,CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-414-3 01 1 0105-
