Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#1061) — 454 parça

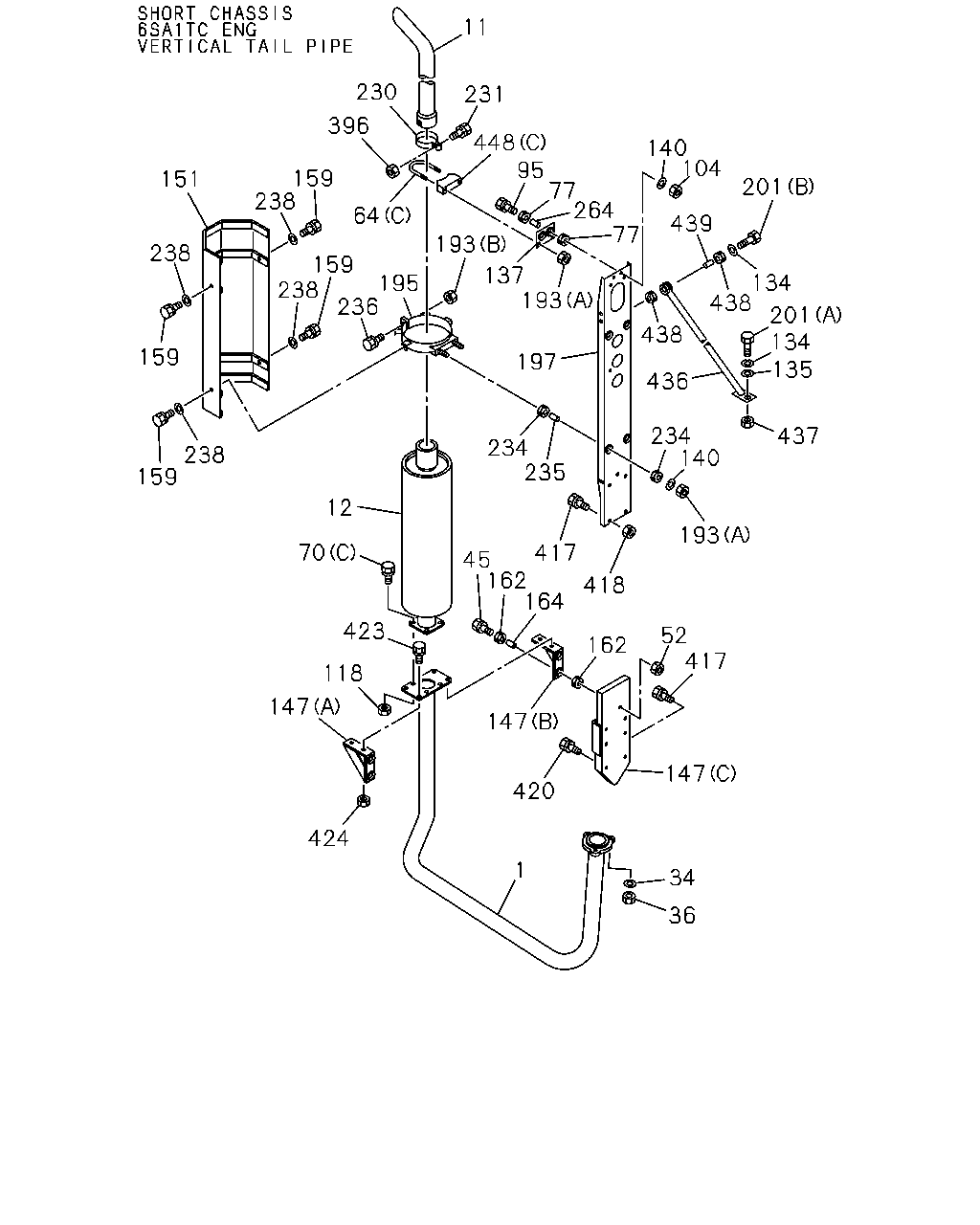

11 230 231 396 448 95 77 264 77 140 104 159 238 151 201 64 439 193 238 159 238 137 193 134 438 195 236 201 134 135 438 159 197 436 234 140 437 234 235 238 159 12 193 70 417 45 162 164 418 423 52 417 162 118 147 147 147 420 424 1 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR E<SLK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-355-0	01	1	9206-	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-084-2	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9202-9205	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENTVAR E<SLK>	1-22122-158-2	01	1	9206-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-157-2	01	1	9202-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-22121-579-1	01	1	9202-9404		●
1	PIPE; EXH	1-22122-085-1	01	1	9202-			●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-967-1	01	1	9202-	●
11	PIPE; EXH,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-967-1	01	1	9202-		●
11	PIPE; EXH,RR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22112-566-1	01	1	9202-9208		●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-606-3	01	1	9202-	●
12	SILENCER ASM; EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9202-9208		●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-			●
45	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X50	0-10806-050-0	04	1	9202-9208		●
52	NUT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	04	1	9202-9208		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22139-033-1	01	1	9202-	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22139-033-1	01	1	9202-		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22139-053-0	02	1	9202-9502	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22139-053-0	02	1	9202-9502		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) L=140	1-22113-030-1	02	1	9503-	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) L=140	1-22113-030-1	02	1	9503-		●
64	U-BOLT; EXH PIPE,RR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C)	1-22113-063-1	01	1	9202-9208		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C) M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-9208		●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10X55	0-10806-055-0	01	1	9202-			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 FLANGE	0-28081-030-0	02	1	9308-			●
77	RUBBER; CUSHION,BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9202-9208		●
95	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X50	0-10806-050-0	02	1	9202-9208		●
104	NUT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	02	1	9202-9208		●
118	NUT; SILENCER MTG BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	9202-9208		●
134	WASHER; LK,STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	9202-9208		●
134	WASHER; LK,STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=14.2	9-09150-614-0	01	1	9202-9208		●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●
135	WASHER; PL,STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=22	9-09160-610-0	01	1	9202-		●
135	WASHER; PL,STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=15	9-09160-514-0	01	1	9202-9208		●
137	BRACKET; TAIL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22131-169-0	01	1	9202-9208		●
140	WASHER; LK,BRKT TO FRAME SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	06	1	9202-9208		●
147	BRACKET; VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (A)	1-22151-405-2	01	1	9202-9208		●
147	BRACKET; VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (B)	1-22151-409-2	01	1	9202-9208		●
147	BRACKET; VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C)	1-22151-645-1	01	1	9202-9208		●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22159-169-3	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22159-169-3	01	1	9202-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-099-1	01	1	9202-9208		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22	9-01900-822-0	10	1	9202-9204	●
159	BOLT; HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22	9-01900-822-0	10	1	9202-9204		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●
159	BOLT; HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	08	1	9202-9208		●
162	RUBBER; SUPPORT,TAIL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	04	1	9202-9208		●
164	COLLAR; DIST,TAIL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	02	1	9202-9208		●
193	NUT; BRKT,VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-410-0	06	1	9202-9208		●
193	NUT; BRKT,VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (B) M12	9-99110-412-0	02	1	9202-9208		●
195	CLAMP; EXH PIPE,VERTICAL SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22133-163-0	02	1	9202-9208		●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-607-2	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-408-4	01	1	9202-9208		●
197	BRACKET; EXH PIPE,VERTICAL MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-605-2	01	1	9202-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●
201	BOLT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●
201	BOLT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-		●
201	BOLT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (B) M10X55	9-01066-055-0	01	1	9202-9208		●
201	BOLT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (A) M14X45	9-92061-445-0	01	1	9202-9208		●
230	CLAMP; TAIL & VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=97	1-22133-043-1	01	1	9202-9208		●
231	BOLT; CLAMP SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X40	9-01901-040-0	01	1	9202-9202		●
231	BOLT; CLAMP SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	01	1	9203-9208		●
234	RUBBER; SUPPORT,CLAMP SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	08	1	9202-9208		●
235	TUBE; DIST,SUPPORT RUBBER SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9202-9208		●
236	BOLT; PIPE CLAMP TO BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X40	9-01901-040-0	02	1	9202-9202		●
236	BOLT; PIPE CLAMP TO BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	02	1	9203-9208		●
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=22	9-09160-708-0	10	1	9202-	●
238	WASHER; LK,HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=22	9-09160-708-0	10	1	9202-		●
238	WASHER; LK,HEAT PROTECTOR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=26	9-09164-808-0	08	1	9202-9208		●
264	TUBE; DIST,SUPPORT RUBBER SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	04	1	9202-9208		●
396	NUT; CLAMP SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	01	1	9202-9208		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 W/LK WASHER	0-50041-035-0	05	1	9202-9307	●
417	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 W/LK WASHER	0-50041-035-0	05	1	9202-9307		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 FLANGE	0-28081-035-0	05	1	9308-	●
417	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 FLANGE	0-28081-035-0	05	1	9308-		●
417	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12X25 W/LK WASHER	0-50041-225-0	04	1	9202-9208		●
418	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	05	1	9202-	●
418	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	05	1	9202-		●
418	NUT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9202-9208		●
420	BOLT; BRKT,VERTICAL PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12X35 W/LK WASHER	0-50041-235-0	05	1	9202-9208		●
423	BOLT; PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-9208		●
424	NUT; BRKT TO PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12	9-99110-412-0	04	1	9202-9208		●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-659-0	01	1	9202-	●
436	STAY; SUPPORT,EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-659-0	01	1	9202-		●
436	STAY; SUPPORT,EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-481-1	01	1	9202-9202		●
436	STAY; SUPPORT,EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-657-0	01	1	9203-9208		●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	01	1	9202-	●
437	NUT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	01	1	9202-		●
437	NUT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M14	9-99110-414-0	01	1	9202-9208		●
438	RUBBER; SUPPORT,STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-119-0	02	1	9202-9208		●
439	TUBE; DIST,SUPPORT RUBBER SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9202-9208		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22113-074-0	02	1	9202-	●
448	PIECE; DIST,U-BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22113-074-0	02	1	9202-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22119-214-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22119-214-0	01	1	9202-		●
448	PIECE; DIST,U-BOLT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C)	1-22113-064-0	01	1	9202-9208		●

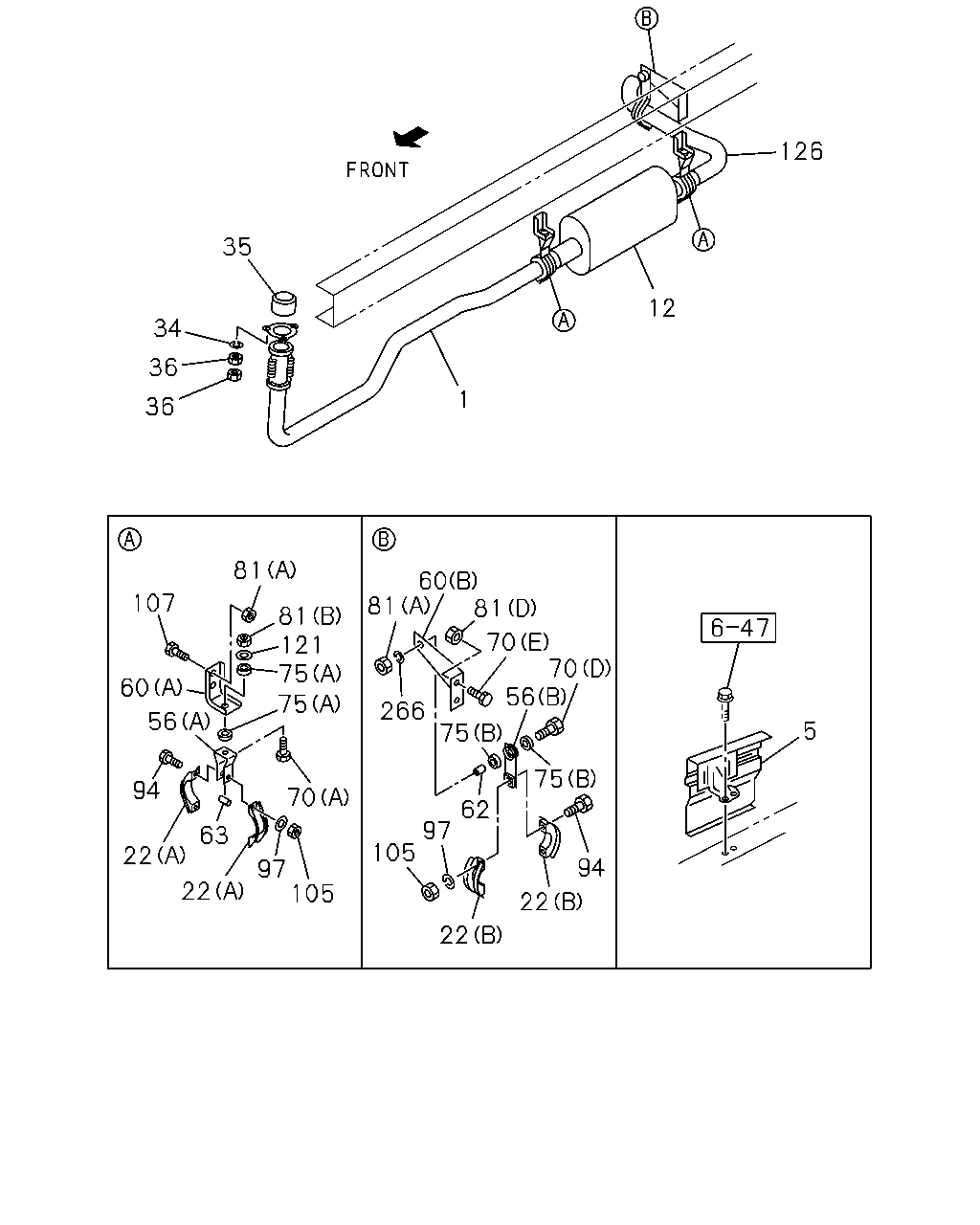

126 35 12 34 36 1 36 81 60 81 107 81 81 121 75 75 70 70 56 60 266 56 5 75 75 94 70 62 97 105 63 22 94 97 105 22 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR E<SLK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-355-0	01	1	9206-	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-084-2	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9202-9205	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENTVAR E<SLK>	1-22122-158-2	01	1	9206-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-157-2	01	1	9202-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-22121-579-1	01	1	9202-9404		●
1	PIPE; EXH	1-22122-085-1	01	1	9202-			●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9202-			●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-606-3	01	1	9202-	●
12	SILENCER ASM; EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9202-9208		●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-			●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9202-	●	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=120	1-22133-231-0	02	1	9202-			●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) ID=75-78	1-22133-232-0	04	1	9202-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●	●
35	GASKET; EXH PIPE TO MANIF EXC. EXHAUST BRAKE<NF8>	1-22116-024-0	01	1	9202-			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-		●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=174	1-22131-517-1	01	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=107	1-22139-047-0	02	1	9202-			●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-	●
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-		●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	02	1	9202-	●	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22131-435-1	01	1	9202-			●
62	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=22	9-22159-024-0	01	1	9202-			●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	02	1	9202-	●	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C) M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-9208		●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10X55	0-10806-055-0	01	1	9202-			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 FLANGE	0-28081-030-0	02	1	9308-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22159-119-0	02	1	9202-			●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-		●
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10	9-09110-510-0	02	1	9202-			●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	01	1	9202-			●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●
94	BOLT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-		●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9202-			●
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-	●
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-		●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	06	1	9202-			●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-		●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	04	1	9202-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	06	1	9202-9407			●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9408-			●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307		●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-		●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
121	WASHER; PL,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-981-1	01	1	9202-	●	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-777-2	01	1	9202-9207			●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22126-073-0	01	1	9208-			●
266	WASHER; LK,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.2	9-09150-510-0	01	1	9202-			●

12 126 34 36 1 81 107 121 75 81 60 75 70 105 97 56 22 63 94 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR E<SLK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-355-0	01	1	9206-	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-084-2	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9202-9205	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENTVAR E<SLK>	1-22122-158-2	01	1	9206-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-157-2	01	1	9202-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-22121-579-1	01	1	9202-9404		●
1	PIPE; EXH	1-22122-085-1	01	1	9202-			●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-606-3	01	1	9202-	●
12	SILENCER ASM; EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9202-9208		●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-			●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9202-	●	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=120	1-22133-231-0	02	1	9202-			●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) ID=75-78	1-22133-232-0	04	1	9202-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-		●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=174	1-22131-517-1	01	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=107	1-22139-047-0	02	1	9202-			●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-	●
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-		●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	02	1	9202-	●	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22131-435-1	01	1	9202-			●
63	TUBE; DIST,BRKT EXC. VERTICAL TAIL PIPE<NC4> L=11	1-22139-026-0	02	1	9202-	●	●	●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C) M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-9208		●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10X55	0-10806-055-0	01	1	9202-			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 FLANGE	0-28081-030-0	02	1	9308-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22159-119-0	02	1	9202-			●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-		●
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10	9-09110-510-0	02	1	9202-			●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	01	1	9202-			●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●
94	BOLT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-		●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9202-			●
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-	●
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-		●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	06	1	9202-			●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-		●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	04	1	9202-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	06	1	9202-9407			●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9408-			●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307		●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-		●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
121	WASHER; PL,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-981-1	01	1	9202-	●	●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22112-777-2	01	1	9202-9207			●
126	PIPE; EXH,RR EXC. VERTICAL TAIL PIPE<NC4>	1-22126-073-0	01	1	9208-			●

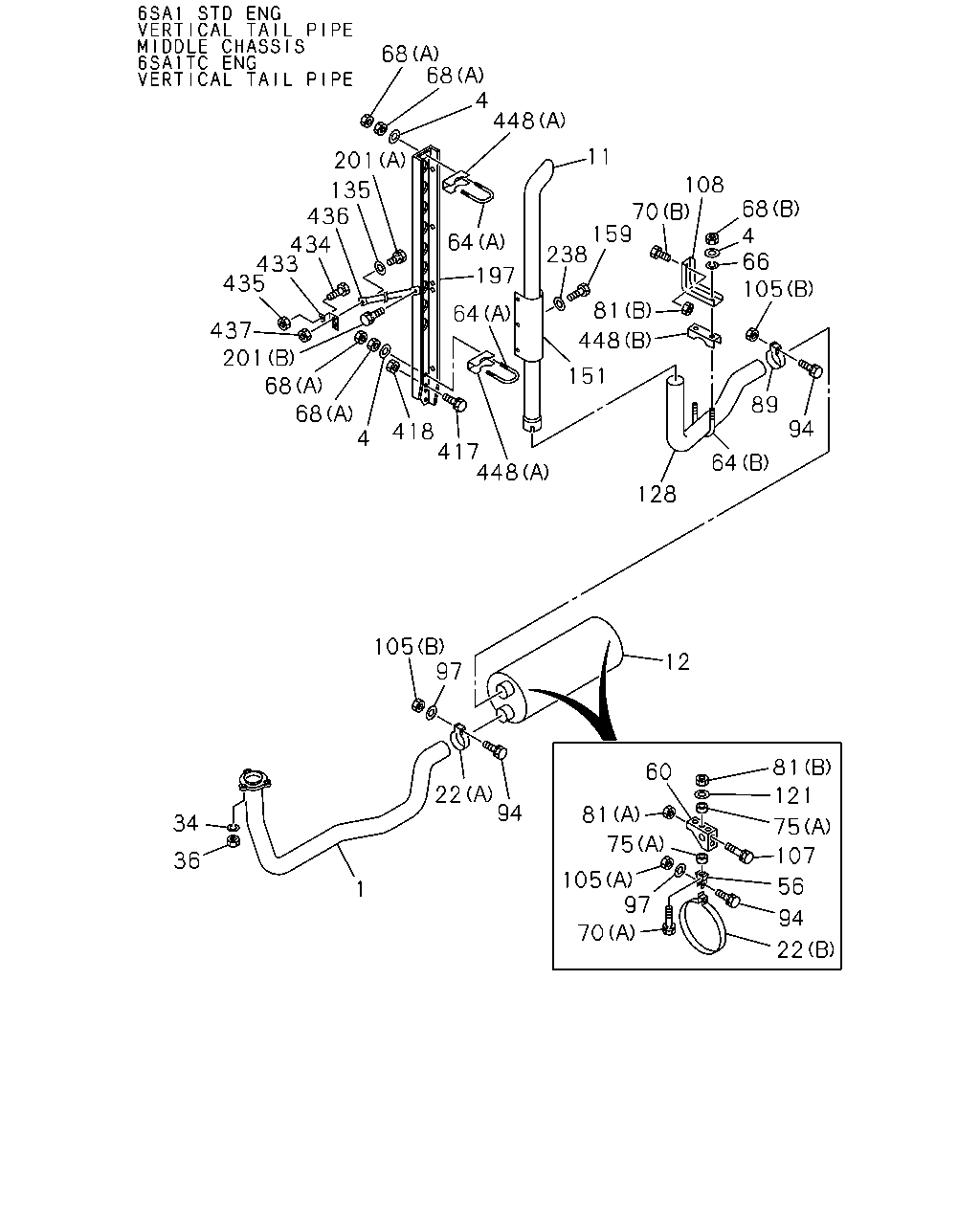

68 68 4 448 201 11 108 70 159 238 135 436 68 4 66 105 64 434 433 435 197 81 64 437 201 68 68 448 151 89 4 94 418 417 448 64 128 105 97 12 81 121 60 22 94 81 34 75 75 107 36 105 97 70 56 1 94 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH ANTI NOISE EQUIPMENT VAR E<SLK> EXC. VERTICAL TAIL PIPE<NC4>	1-22122-355-0	01	1	9206-	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-084-2	01	1	9202-	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22122-158-2	01	1	9202-9205	●	●
1	PIPE; EXH EXC. VERTICAL TAIL PIPE<NC4>,ANTI NOISE EQUIPMENTVAR E<SLK>	1-22122-158-2	01	1	9206-	●	●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22122-157-2	01	1	9202-9404		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4>	1-22122-557-0	01	1	9405-		●
1	PIPE; EXH VERTICAL TAIL PIPE<NC4> EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-22121-579-1	01	1	9202-9404		●
1	PIPE; EXH	1-22122-085-1	01	1	9202-			●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-	●
4	WASHER; PL,U BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	04	1	9202-		●
4	WASHER; PL,U BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	02	1	9202-	●
4	WASHER; PL,U BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4	9-09160-508-0	02	1	9202-		●
11	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-967-1	01	1	9202-	●
11	PIPE; EXH,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-967-1	01	1	9202-		●
11	PIPE; EXH,RR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22112-566-1	01	1	9202-9208		●
12	SILENCER ASM; EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-	●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22140-735-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-606-3	01	1	9202-	●
12	SILENCER ASM; EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22140-531-3	01	1	9202-9208		●
12	SILENCER ASM; EXH MIDDLE CHASSIS(FVR5MF) EXC. VERTICAL TAIL PIPE<NC4>	1-22140-649-0	01	1	9202-		●
12	SILENCER ASM; EXH EXC. VERTICAL TAIL PIPE<NC4>	1-22140-715-2	01	1	9202-			●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=83.5	1-22133-178-1	01	1	9202-		●
22	CLAMP; EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-	●
22	CLAMP; EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=284	1-22133-185-0	02	1	9202-		●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> ID=80-84	1-22133-233-0	04	1	9202-	●	●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=120	1-22133-231-0	02	1	9202-			●
22	CLAMP; EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) ID=75-78	1-22133-232-0	04	1	9202-			●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9202-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9202-	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-	●
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> H=84	1-22139-042-0	02	1	9202-		●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> H=92	1-22139-076-0	02	1	9202-	●	●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (B) L=174	1-22131-517-1	01	1	9202-			●
56	BRACKET; CLAMP,EXH PIPE EXC. VERTICAL TAIL PIPE<NC4> (A) H=107	1-22139-047-0	02	1	9202-			●
60	BRACKET; FRAME TO BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-	●
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22151-397-1	02	1	9202-		●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (A)	1-22151-512-2	02	1	9202-	●	●	●
60	BRACKET; FRAME TO BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22131-435-1	01	1	9202-			●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22139-033-1	01	1	9202-	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22139-033-1	01	1	9202-		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22139-053-0	02	1	9202-9502	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22139-053-0	02	1	9202-9502		●
64	U-BOLT; EXH PIPE,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) L=140	1-22113-030-1	02	1	9503-	●
64	U-BOLT; EXH PIPE,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) L=140	1-22113-030-1	02	1	9503-		●
64	U-BOLT; EXH PIPE,RR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C)	1-22113-063-1	01	1	9202-9208		●
66	WASHER; LK,U BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.2	9-09150-508-0	02	1	9202-	●
66	WASHER; LK,U BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.2	9-09150-508-0	02	1	9202-		●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	9-09110-408-0	02	1	9202-	●
68	NUT; U BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	9-09110-408-0	02	1	9202-		●
68	NUT; U BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	9-09110-408-0	08	1	9202-	●
68	NUT; U BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	9-09110-408-0	08	1	9202-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●
70	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	9202-	●	●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X50	0-10806-050-0	02	1	9202-		●
70	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C) M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-9208		●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10X55	0-10806-055-0	01	1	9202-			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-9307			●
70	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (E) M10X30 FLANGE	0-28081-030-0	02	1	9308-			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9202-	●	●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) OD=30	1-22159-106-1	04	1	9202-		●
75	RUBBER; SUPPORT,BRKT EXC. VERTICAL TAIL PIPE<NC4> (B)	1-22159-119-0	02	1	9202-			●
81	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-	●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8	9-09110-408-0	02	1	9202-		●
81	NUT; BRKT (A) M10	9-09110-510-0	04	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-510-0	04	1	9202-		●
81	NUT; BRKT (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-	●	●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10 LOCK NUT	9-09131-510-0	02	1	9202-		●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (D) M10	9-09110-510-0	02	1	9202-			●
81	NUT; BRKT EXC. VERTICAL TAIL PIPE<NC4> (A) M10	9-09110-510-0	01	1	9202-			●
89	CLAMP; EXH SILENCER,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=83.5	1-22133-178-1	01	1	9202-	●
89	CLAMP; EXH SILENCER,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=83.5	1-22133-178-1	01	1	9202-		●
94	BOLT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-	●
94	BOLT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9202-		●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9202-	●	●
94	BOLT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	9202-			●
97	WASHER; PL,CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-	●
97	WASHER; PL,CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5	9-09164-510-0	02	1	9202-		●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	04	1	9202-	●	●
97	WASHER; PL,CLAMP EXC. VERTICAL TAIL PIPE<NC4> ID=10.5	9-09164-510-0	06	1	9202-			●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10	9-09110-410-0	02	1	9202-9407		●
105	NUT; CLAMP VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-	●
105	NUT; CLAMP MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10	9-09110-510-0	02	1	9202-		●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-510-0	04	1	9202-	●	●
105	NUT; CLAMP EXC. VERTICAL TAIL PIPE<NC4> M10	9-09110-410-0	06	1	9202-9407			●
105	NUT; CLAMP M10	9-09110-510-0	06	1	9408-			●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-9307		●
107	BOLT; BRKT VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-	●
107	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> M10X40 FLANGE	0-28081-040-0	04	1	9308-		●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9307	●	●	●
107	BOLT; BRKT EXC. VERTICAL TAIL PIPE<NC4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-426-0	01	1	9202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-426-0	01	1	9202-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9202-	●	●
121	WASHER; PL,BRKT EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
121	WASHER; PL,BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=32	9-09164-810-0	02	1	9202-		●
128	PIPE; EXH,RR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-980-1	01	1	9202-	●
128	PIPE; EXH,RR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22112-980-1	01	1	9202-		●
135	WASHER; PL,STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●
135	WASHER; PL,STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=10.5 OD=22	9-09160-610-0	01	1	9202-		●
135	WASHER; PL,STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=15	9-09160-514-0	01	1	9202-9208		●
151	PROTECTOR; HEAT,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22159-169-3	01	1	9202-	●
151	PROTECTOR; HEAT,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22159-169-3	01	1	9202-		●
151	PROTECTOR; HEAT,EXH PIPE SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22159-099-1	01	1	9202-9208		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22	9-01900-822-0	10	1	9202-9204	●
159	BOLT; HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22	9-01900-822-0	10	1	9202-9204		●
159	BOLT; HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-	●
159	BOLT; HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X22 W/LK WASHER	0-50040-822-0	10	1	9205-		●
159	BOLT; HEAT PROTECTOR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M8X20 W/LK WASHER	0-50040-820-0	08	1	9202-9208		●
197	BRACKET; EXH PIPE,VERTICAL VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-607-2	01	1	9202-	●
197	BRACKET; EXH PIPE,VERTICAL SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-408-4	01	1	9202-9208		●
197	BRACKET; EXH PIPE,VERTICAL MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-605-2	01	1	9202-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●
201	BOLT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A) M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-		●
201	BOLT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-	●
201	BOLT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B) M10X30 W/LK WASHER	0-50041-030-0	01	1	9202-		●
201	BOLT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (B) M10X55	9-01066-055-0	01	1	9202-9208		●
201	BOLT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (A) M14X45	9-92061-445-0	01	1	9202-9208		●
238	WASHER; LK,HEAT PROTECTOR VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=22	9-09160-708-0	10	1	9202-	●
238	WASHER; LK,HEAT PROTECTOR MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=22	9-09160-708-0	10	1	9202-		●
238	WASHER; LK,HEAT PROTECTOR SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> ID=8.4 OD=26	9-09164-808-0	08	1	9202-9208		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 W/LK WASHER	0-50041-035-0	05	1	9202-9307	●
417	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 W/LK WASHER	0-50041-035-0	05	1	9202-9307		●
417	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 FLANGE	0-28081-035-0	05	1	9308-	●
417	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10X35 FLANGE	0-28081-035-0	05	1	9308-		●
417	BOLT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12X25 W/LK WASHER	0-50041-225-0	04	1	9202-9208		●
418	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	05	1	9202-	●
418	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	05	1	9202-		●
418	NUT; BRKT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M12	9-99110-512-0	04	1	9202-9208		●
433	BRACKET; STAY,EXH PIPE VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-501-1	01	1	9202-	●
433	BRACKET; STAY,EXH PIPE MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-501-1	01	1	9202-		●
434	BOLT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
434	BOLT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-		●
435	NUT; BRKT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8	9-09110-408-0	02	1	9202-	●
435	NUT; BRKT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M8	9-09110-408-0	02	1	9202-		●
436	STAY; SUPPORT,EXH VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-659-0	01	1	9202-	●
436	STAY; SUPPORT,EXH MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK>	1-22131-659-0	01	1	9202-		●
436	STAY; SUPPORT,EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-481-1	01	1	9202-9202		●
436	STAY; SUPPORT,EXH SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4>	1-22151-657-0	01	1	9203-9208		●
437	NUT; STAY VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	01	1	9202-	●
437	NUT; STAY MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> M10	9-09110-510-0	01	1	9202-		●
437	NUT; STAY SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> M14	9-99110-414-0	01	1	9202-9208		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22113-074-0	02	1	9202-	●
448	PIECE; DIST,U-BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-22113-074-0	02	1	9202-		●
448	PIECE; DIST,U-BOLT VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22119-214-0	01	1	9202-	●
448	PIECE; DIST,U-BOLT MIDDLE CHASSIS(FVR5MF) VERTICAL TAIL PIPE<NC4> ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-22119-214-0	01	1	9202-		●
448	PIECE; DIST,U-BOLT SHORT CHASSIS(FVR5MC) VERTICAL TAIL PIPE<NC4> (C)	1-22113-064-0	01	1	9202-9208		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
