8-01 — LAMP; FRONT AND FRONT SIDE (#10607) — 239 parça

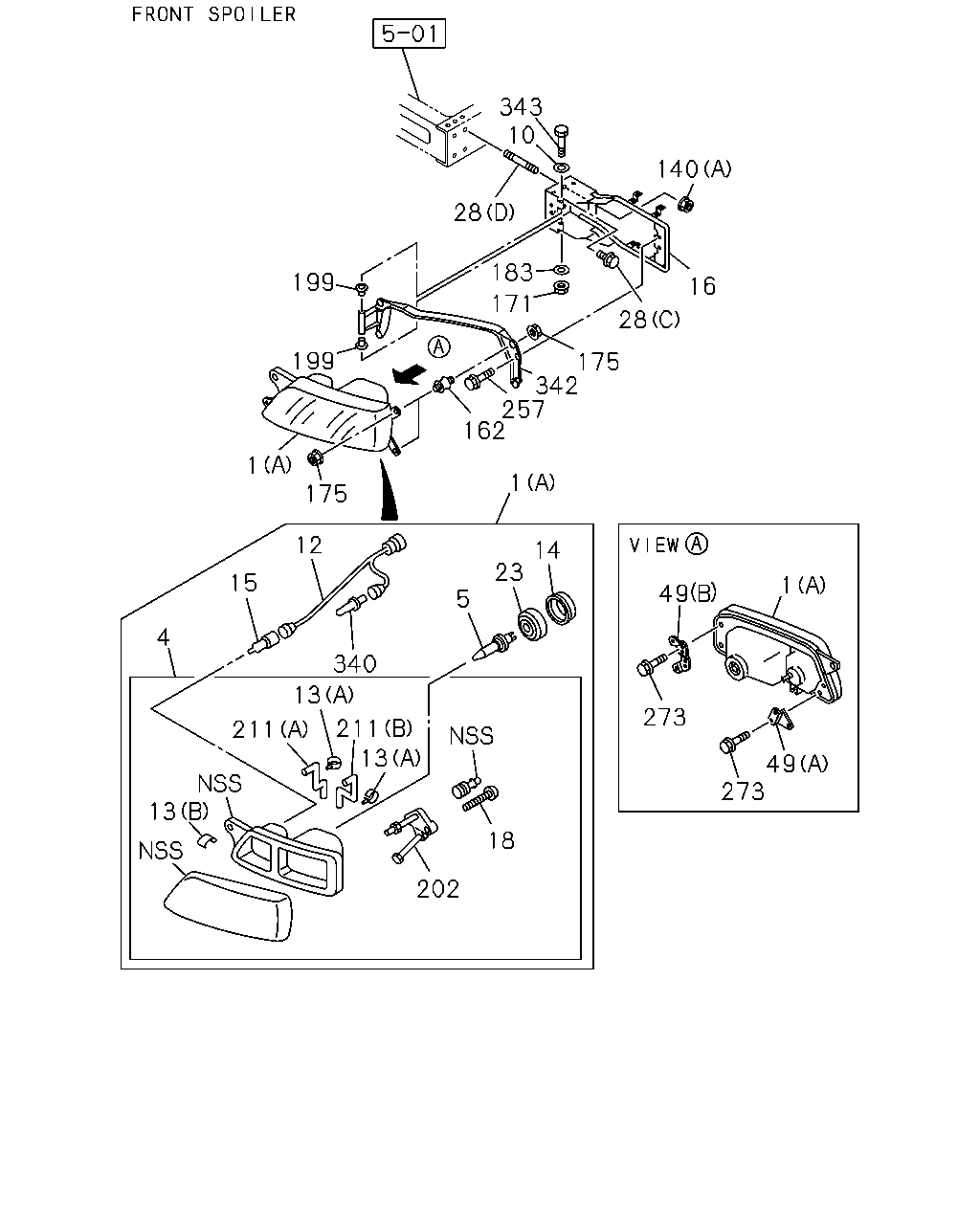

343 10 140 28 183 199 16 171 28 199 175 342 257 162 1 1 175 12 14 23 15 1 49 5 4 340 13 273 211 13 211 49 273 13 18 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 1 24V 70W	1-82191-032-0	02	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 2 24V 75/70W	1-82191-037-0	02	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82193-006-0	02	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	1-82193-007-0	02	1	0105-
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0105-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	0105-
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0105-
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-116-1	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-82117-103-1	04	1	0105-
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) STUD M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) HEADLAMP	1-82117-100-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) HEADLAMP	1-82117-102-0	01	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) HEADLAMP	1-82117-101-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C) FOG LAMP	1-82117-151-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C) FOG LAMP	1-82117-152-0	01	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	02	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M5 FLANGE	1-09984-170-0	12	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X15,M8X15 L=54	1-82117-086-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M5X15,M8X20 L=53	1-82117-304-1	16	1	0105-
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	0105-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0105-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	0105-
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	0105-
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	0105-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	0105-
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	0105-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	0105-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	0105-

62 362 61 353 66 363 242 91 344 91 321 321 327 327 344 133 104 133 104 185 60 185 324 68 67 78 127 399 75 129 124 68 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-86830-273-0	01	1	0105-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-86830-272-0	01	1	0105-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS>	1-86830-247-2	01	1	0105-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-297-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0105-
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	8-94149-259-0	02	1	0105-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 5W	1-82194-089-0	02	1	0105-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 21W	1-82194-090-0	02	1	0105-
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	0-91190-435-0	04	1	0105-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	8-94151-265-0	01	1	0105-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	8-94151-264-0	01	1	0105-
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0105-
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	0105-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0105-
124	BULB; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4> 24V 21W	1-82194-036-0	02	1	0105-
125	GASKET; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>	1-82216-033-0	02	1	0105-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-065-0	01	1	0105-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-064-0	01	1	0105-
129	SCREW; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>	1-82219-026-0	04	1	0105-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0105-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> (C) M4	5-09470-002-0	04	1	0105-
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0105-
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	0105-
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0105-
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0105-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>	1-82210-203-1	01	1	0105-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>	1-82210-202-1	01	1	0105-
326	WASHER; PL,FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>	1-82216-032-0	04	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-228-2	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-227-2	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	0105-
353	LAMP ASM; STEP EXC. CORNERING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	0105-
362	BULB; STEP LAMP EXC. CORNERING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	0105-
363	HARNESS; STEP LAMP EXC. CORNERING LAMP<TDS>	1-86830-296-0	01	1	0105-
399	SOCKET; TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>	1-82219-034-0	02	1	0105-

328 84 185 325 83 185 325 325 256 82 256 81 174 83 80 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 3W	1-82219-035-0	06	1	0105-
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0105-
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	0105-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	0105-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	0105-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	0105-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	0105-
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	0105-
174	BOLT HEADLAMPS RECTANGULAR<TR4> (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-
174	BOLT LAMPS TWO ROOF MARKER<TEC> (A) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> (C) M4	5-09470-002-0	04	1	0105-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	0105-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	0105-
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-134-0	01	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-135-0	01	1	0105-
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-1	03	1	0105-

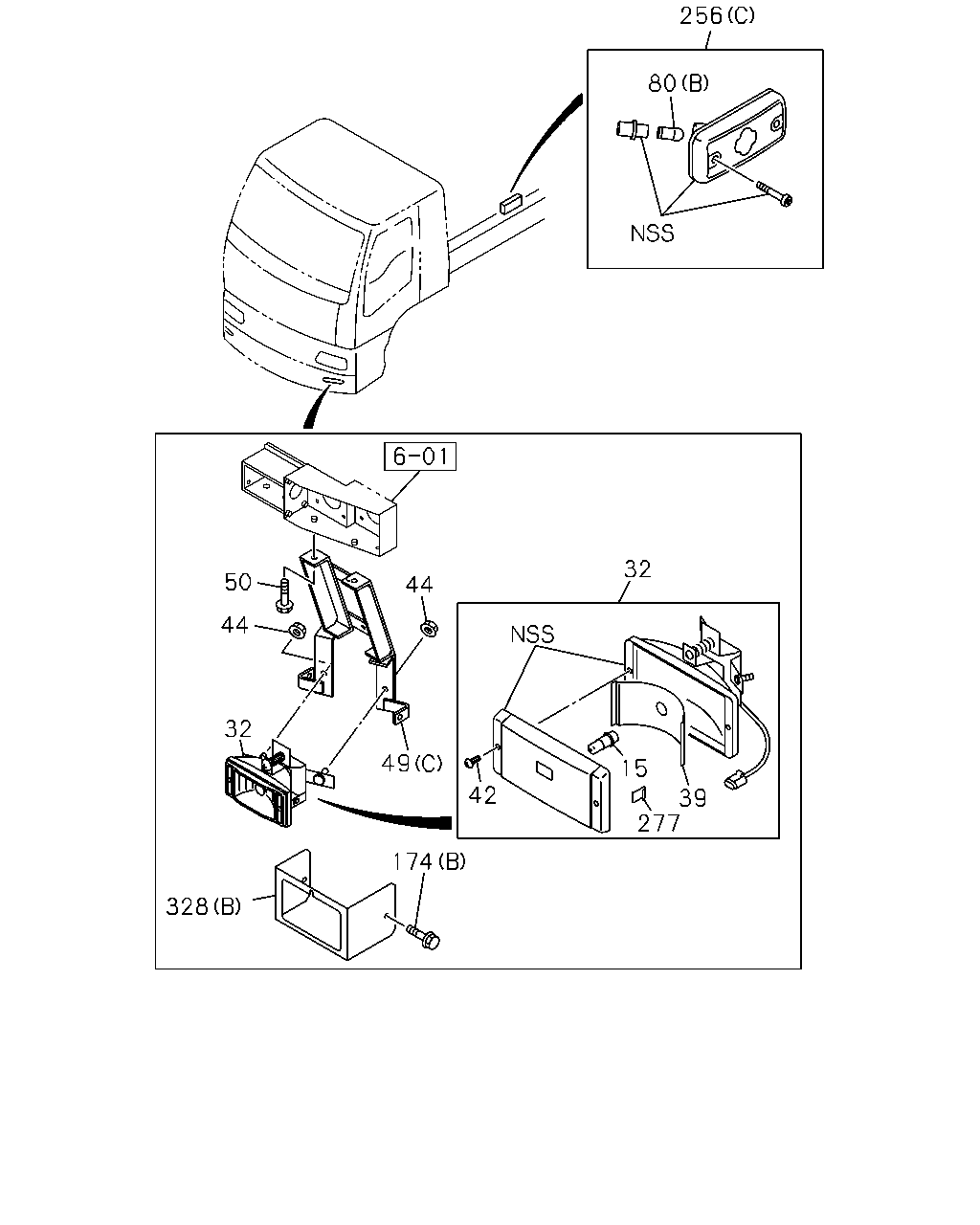

256 80 32 50 44 44 32 15 42 39 277 174 328 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0105-
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	0105-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0105-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0105-
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-929-0	02	1	0105-
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-931-0	04	1	0105-
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5 CAP NUT	9-61167-090-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) HEADLAMP	1-82117-100-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) HEADLAMP	1-82117-102-0	01	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) HEADLAMP	1-82117-101-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C) FOG LAMP	1-82117-151-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C) FOG LAMP	1-82117-152-0	01	1	0105-
50	BOLT; BRKT,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28680-820-0	04	1	0105-
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 3W	1-82219-035-0	06	1	0105-
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0105-
174	BOLT HEADLAMPS RECTANGULAR<TR4> (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-
174	BOLT LAMPS TWO ROOF MARKER<TEC> (A) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	0105-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-
277	CLIP; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-930-0	02	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-134-0	01	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-135-0	01	1	0105-
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-1	03	1	0105-

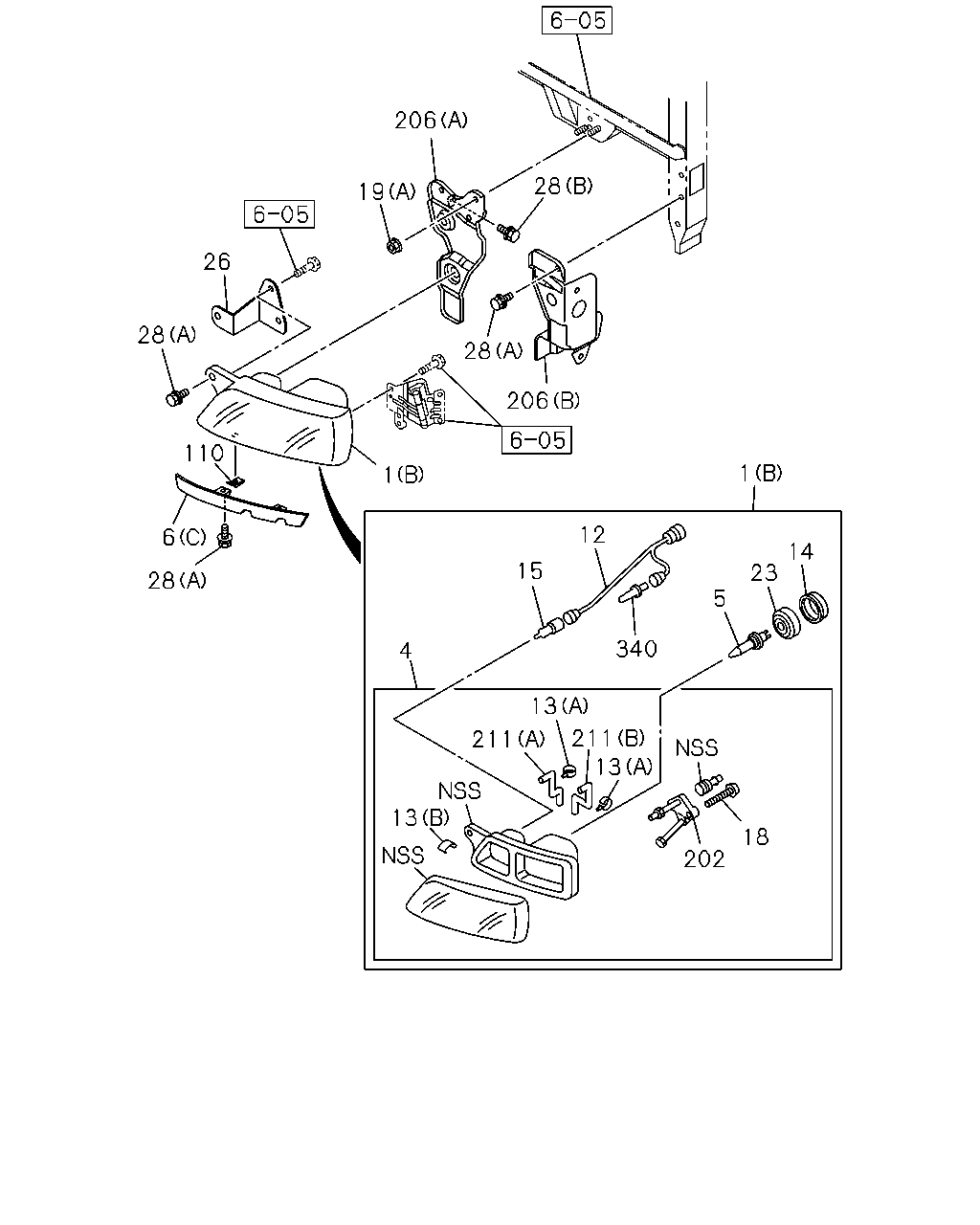

206 28 19 26 28 28 206 110 1 12 6 14 15 23 28 5 340 4 13 211 13 211 13 18 202 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 1 24V 70W	1-82191-032-0	02	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 2 24V 75/70W	1-82191-037-0	02	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82193-006-0	02	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	1-82193-007-0	02	1	0105-
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER	1-82114-018-0	02	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER	1-82114-019-0	02	1	0105-
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0105-
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	0105-
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0105-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) STUD M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	0105-
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-

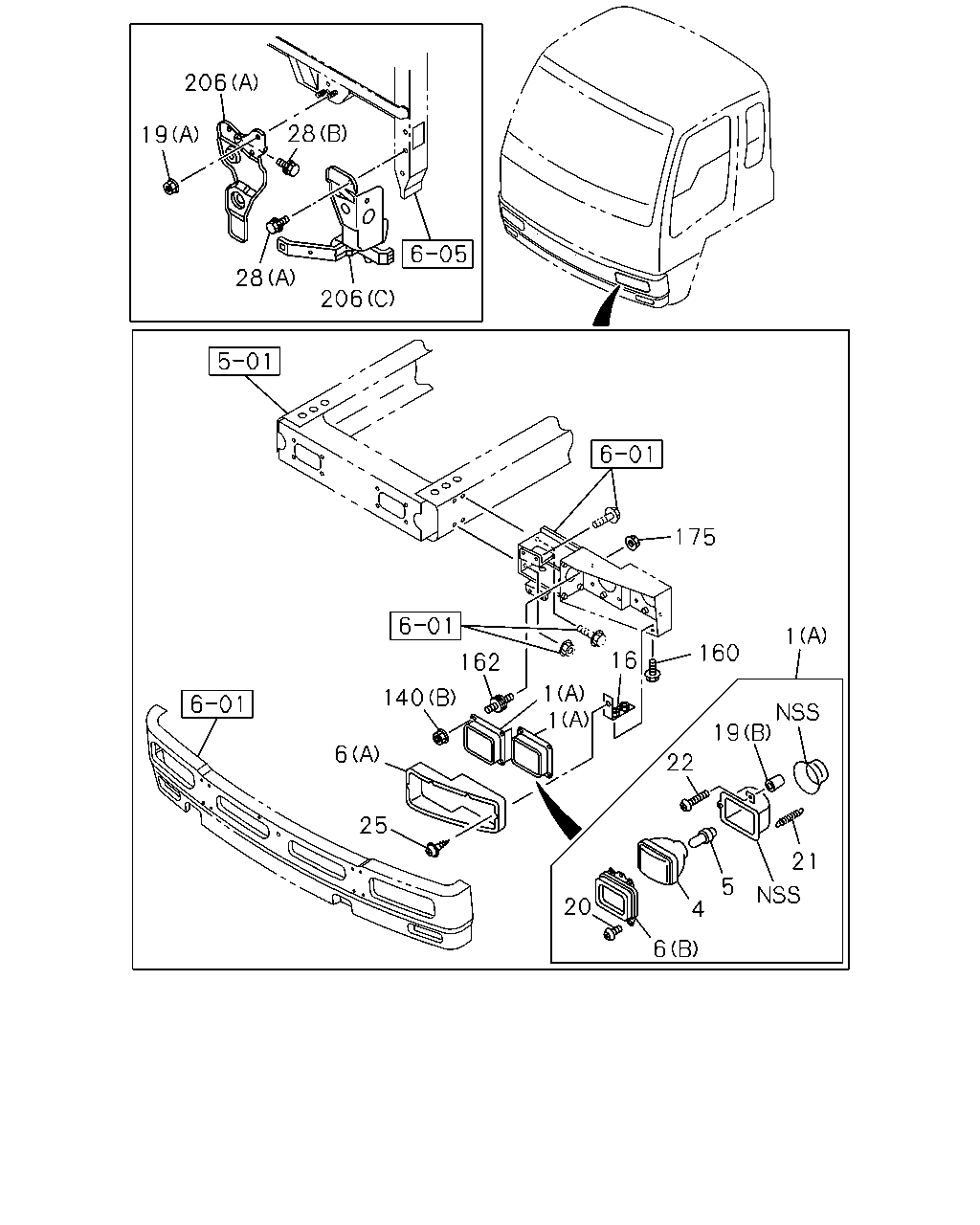

206 28 19 28 206 175 1 16 160 162 1 1 140 19 6 22 25 21 5 20 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 1 24V 70W	1-82191-032-0	02	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> TYPE 2 24V 75/70W	1-82191-037-0	02	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	0105-
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82193-006-0	02	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	1-82193-007-0	02	1	0105-
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER	1-82114-018-0	02	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER	1-82114-019-0	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-116-1	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-82117-103-1	04	1	0105-
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-023-0	16	1	0105-
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-105-0	04	1	0105-
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-095-0	08	1	0105-
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-09104-031-0	08	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) STUD M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	02	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M5 FLANGE	1-09984-170-0	12	1	0105-
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M8X16 FLANGE	0-28080-816-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X15,M8X15 L=54	1-82117-086-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M5X15,M8X20 L=53	1-82117-304-1	16	1	0105-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
