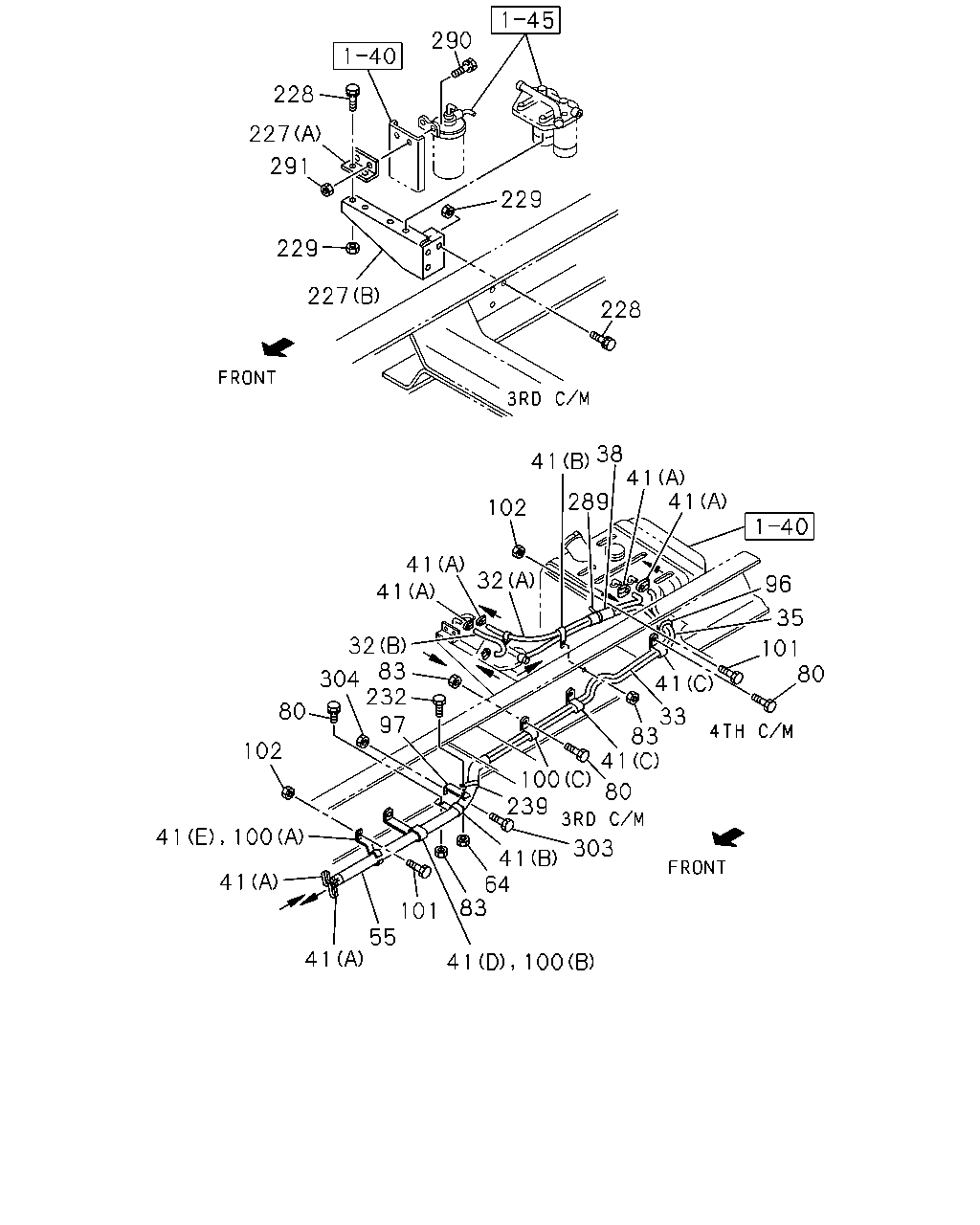

1-41 — FUEL PIPING; CHASSIS (#1059) — 96 parça

290 228 227 291 229 229 227 228 38 41 41 41 289 102 41 41 32 96 35 32 83 304 232 101 80 41 80 33 83 41 100 239 97 102 80 41 100 303 41 64 83 41 101 55 41 41 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR5MC) (B) L=400 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) (A) L=2000 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9208	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (A) L=1050 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●	●
32	PIPE; DELIVERY,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (A) L=1000 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●	●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR5MF) (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=280 SERVICED BY L=10000	9-09914-701-0	01	1	9202-			●
32	PIPE; DELIVERY,FUEL TANK MIDDLE CHASSIS(FVR5MF) (A) L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER SHORT CHASSIS(FVR5MC) L=1930 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR5MF) L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9205			●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9206-			●
33	PIPE; VINYL,DELIVERY,PRE FILTER MIDDLE CHASSIS(FVR5MF) L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9206-	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) L=2800 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9208	●	●
35	PIPE; FUEL TANK,RETURN SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) L=2410 SERVICED BY L=10000	1-09366-161-0	01	1	9202-	●	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR5MF) L=1890 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9205	●	●
35	PIPE; FUEL TANK,RETURN MIDDLE CHASSIS(FVR5MF) L=2050 SERVICED BY L=10000	1-09366-161-0	01	1	9206-	●	●
35	PIPE; FUEL TANK,RETURN L=1700 SERVICED BY L=10000	1-09366-161-0	01	1	9202-			●
38	SLEEVE; RUBBER,RUBBER HOSE SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) L=150	1-09369-006-1	01	1	9202-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE MIDDLE CHASSIS(FVR5MF) L=150	1-09369-006-1	01	1	9202-	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09369-006-1	01	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) (B) ID=16X2 L=20	9-09535-535-0	04	1	9202-9208	●	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) ID=16X2 L=20	9-09535-535-0	01	1	9202-9209	●	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (B) ID=16X2 L=20	9-09535-536-0	01	1	9210-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=16X2 L=20	9-09535-536-0	01	1	9210-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=15	9-09715-098-0	08	1	9202-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209			●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=25	1-09700-927-0	02	1	9202-			●
41	CLIP; FUEL PIPE,FUEL TANK (E)	1-15419-291-0	01	1	9202-			●
55	COVER; PIPE,FUEL TANK L=900	1-09360-622-1	01	1	9202-	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09360-379-1	01	1	9202-			●
64	NUT; CLIP SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8	9-09110-408-0	01	1	9202-9208	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X20 FLANGE	0-28080-820-0	04	1	9205-9208	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
80	BOLT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28010-816-0	01	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28080-816-0	03	1	9205-			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	03	1	9202-9204			●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	05	1	9205-			●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W)	9-09110-408-0	04	1	9202-9208	●	●
83	NUT; CLIP,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W)	9-09110-408-0	01	1	9202-	●	●
83	NUT; CLIP,FUEL TANK	9-09110-408-0	03	1	9202-			●
96	GROMMET; PIPE,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) ID=28 OD=35 T=25	1-09332-011-1	02	1	9202-9208	●	●
96	GROMMET; PIPE,FUEL TANK SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
96	GROMMET; PIPE,FUEL TANK MIDDLE CHASSIS(FVR5MF) ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-			●
97	BRACKET; CLIP SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) L=55	1-47475-304-0	01	1	9202-9208	●	●
100	CLIP; FUEL PIPE SHORT CHASSIS(FVR5MC) (C) L=25	1-09700-927-0	01	1	9202-9205	●
100	CLIP; FUEL PIPE (C) L=25	1-09700-927-0	01	1	9202-9205		●
100	CLIP; FUEL PIPE MIDDLE CHASSIS(FVR5MF) (C) L=25	1-09700-927-0	02	1	9202-9205	●
100	CLIP; FUEL PIPE (B)	1-09700-926-0	01	1	9202-	●	●
100	CLIP; FUEL PIPE (A)	1-15419-210-1	01	1	9202-9205	●	●
100	CLIP; FUEL PIPE (C) L=25	1-09700-927-0	02	1	9206-	●	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF) M8X25 FLANGE	0-28080-825-0	01	1	9205-9205	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF) M8X25 FLANGE	0-28080-825-0	03	1	9206-9210	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
101	BOLT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
101	BOLT; CLIP,FUEL PIPE SHORT CHASSIS(FVR5MC) M8X25 FLANGE	0-28080-825-0	04	1	9206-9210	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9211-	●	●
101	BOLT; CLIP,FUEL PIPE M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF)	9-09110-408-0	01	1	9202-9205	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF)	9-09110-408-0	03	1	9202-9205	●	●
102	NUT; CLIP,FUEL PIPE MIDDLE CHASSIS(FVR5MF)	9-09110-408-0	02	1	9206-9210	●	●
227	BRACKET; FUEL SEDIMENTER SHORT CHASSIS(FVR5MC) (B)	1-22518-137-2	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR5MF) (B)	1-22518-106-1	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER MIDDLE CHASSIS(FVR5MF) (A)	1-19755-108-1	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-19755-108-1	01	1	9202-			●
227	BRACKET; FUEL SEDIMENTER (B)	1-22518-124-1	01	1	9202-			●
228	BOLT; BRKT,SEDIMENTER SHORT CHASSIS(FVR5MC) M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-	●	●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR5MF) M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-9304			●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR5MF) M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	02	1	9305-			●
228	BOLT; BRKT,SEDIMENTER MIDDLE CHASSIS(FVR5MF) M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK WASHER	0-50041-035-0	03	1	9305-			●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9202-	●	●	●
229	NUT; BRKT,FUEL FILTER SHORT CHASSIS(FVR5MC) M10	9-09110-510-0	04	1	9202-	●	●
229	NUT; BRKT,FUEL FILTER MIDDLE CHASSIS(FVR5MF) M10	9-09110-510-0	05	1	9202-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	05	1	9202-			●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9202-	●	●	●
232	BOLT; CLIP,PIPE SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
232	BOLT; CLIP,PIPE SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X20 FLANGE	0-28080-820-0	03	1	9205-9208	●	●
232	BOLT; CLIP,PIPE SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
239	CLIP; FUEL PIPE SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) L=25	1-09700-927-0	01	1	9202-9208	●	●
289	CLIP; BAND,HOSE SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) L=250	5-09707-030-0	01	1	9202-	●	●
289	CLIP; BAND,HOSE MIDDLE CHASSIS(FVR5MF) L=250	5-09707-030-0	01	1	9202-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-0	01	1	9202-			●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9202-	●	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●	●	●
303	BOLT; BRKT SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●	●
303	BOLT; BRKT SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8X30 FLANGE	0-28080-830-0	03	1	9205-9208	●	●
303	BOLT; BRKT SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28080-830-0	01	1	9205-9208	●	●
303	BOLT; BRKT SHORT CHASSIS(FVR5MC) M8X30 FLANGE	0-28080-830-0	01	1	9209-	●
304	NUT; BRKT SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M8	9-09110-408-0	01	1	9202-9208	●	●
