6-47 — MUD GUARD AND INSULATOR (#10585) — 107 parça

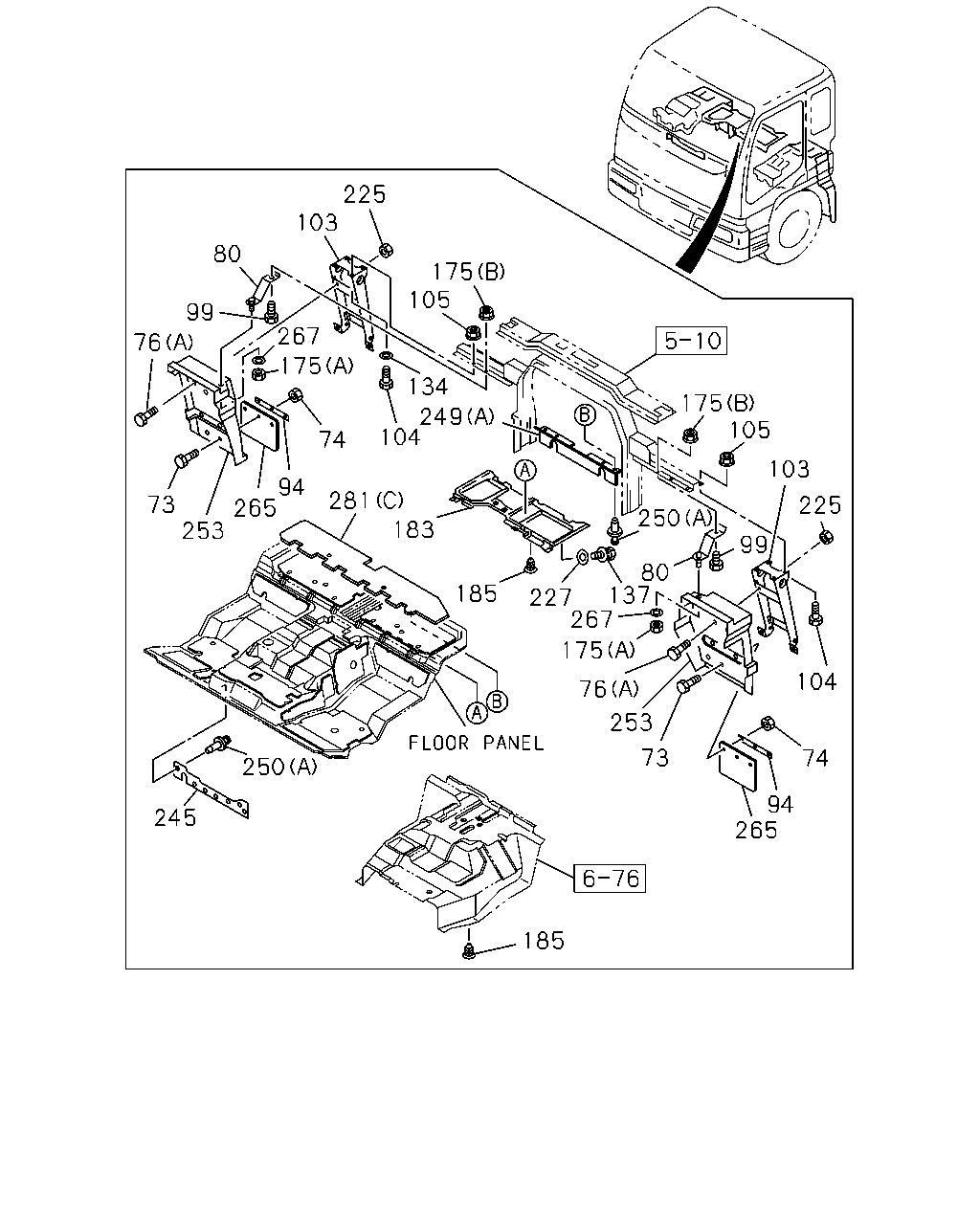

çizim 21998
225 103 80 175 105 99 267 76 175 134 175 105 249 104 74 103 94 73 265 253 281 183 225 250 99 80 227 137 267 185 175 104 76 253 73 74 250 94 265 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 0105-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 0105-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
253 GUARD; MUD 1-79931-066-7 01 1 0105-
253 GUARD; MUD 1-79931-064-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-420-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

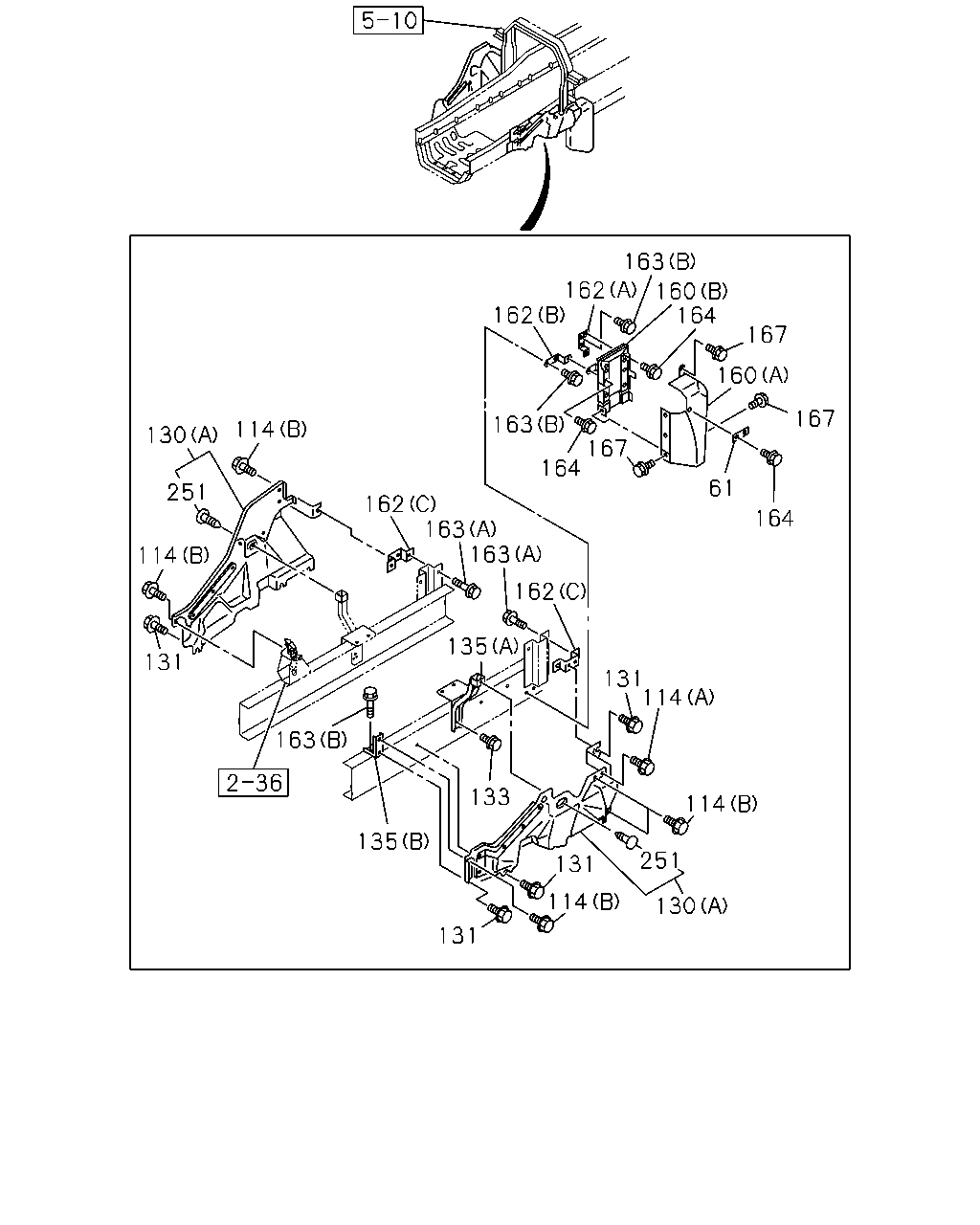

çizim 22000
163 162 162 160 164 167 160 167 163 114 130 167 164 61 251 162 163 163 164 114 162 131 135 131 114 163 133 114 135 251 131 114 130 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 0105-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 0105-
114 BOLT
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-971-2 01 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-1 01 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 0105-
133 BOLT; FRAME
EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 0105-
135 BRACKET; SIDE PANEL
(A) 		1-53441-508-1 01 1 0105-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-061-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-256-1 01 1 0105-
162 BRACKET
(C) 		1-53441-520-0 02 1 0105-
162 BRACKET
(B) 		1-53441-521-2 02 1 0105-
162 BRACKET
(A) 		1-53441-522-0 02 1 0105-
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0105-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 0105-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 0105-
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 0105-

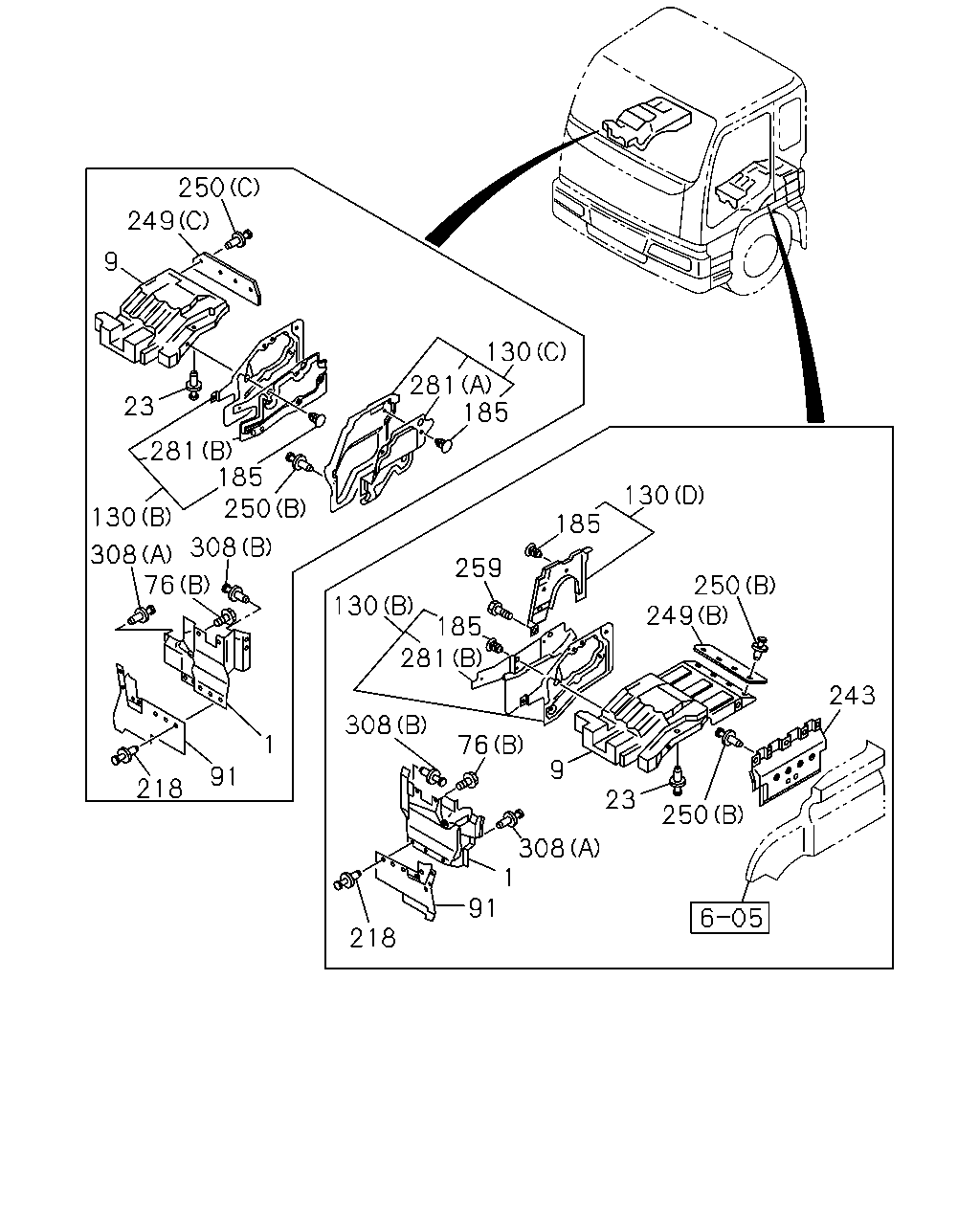

çizim 22001
250 249 9 130 281 185 23 281 185 250 130 130 185 308 308 76 259 250 249 130 185 281 243 308 1 76 9 91 218 23 250 308 1 91 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-200-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-199-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-971-2 01 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 0105-
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 0105-
130 PANEL; SHUTTER NOISE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-1 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-420-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-
