1-40 — FUEL TANK (#1058) — 62 parça

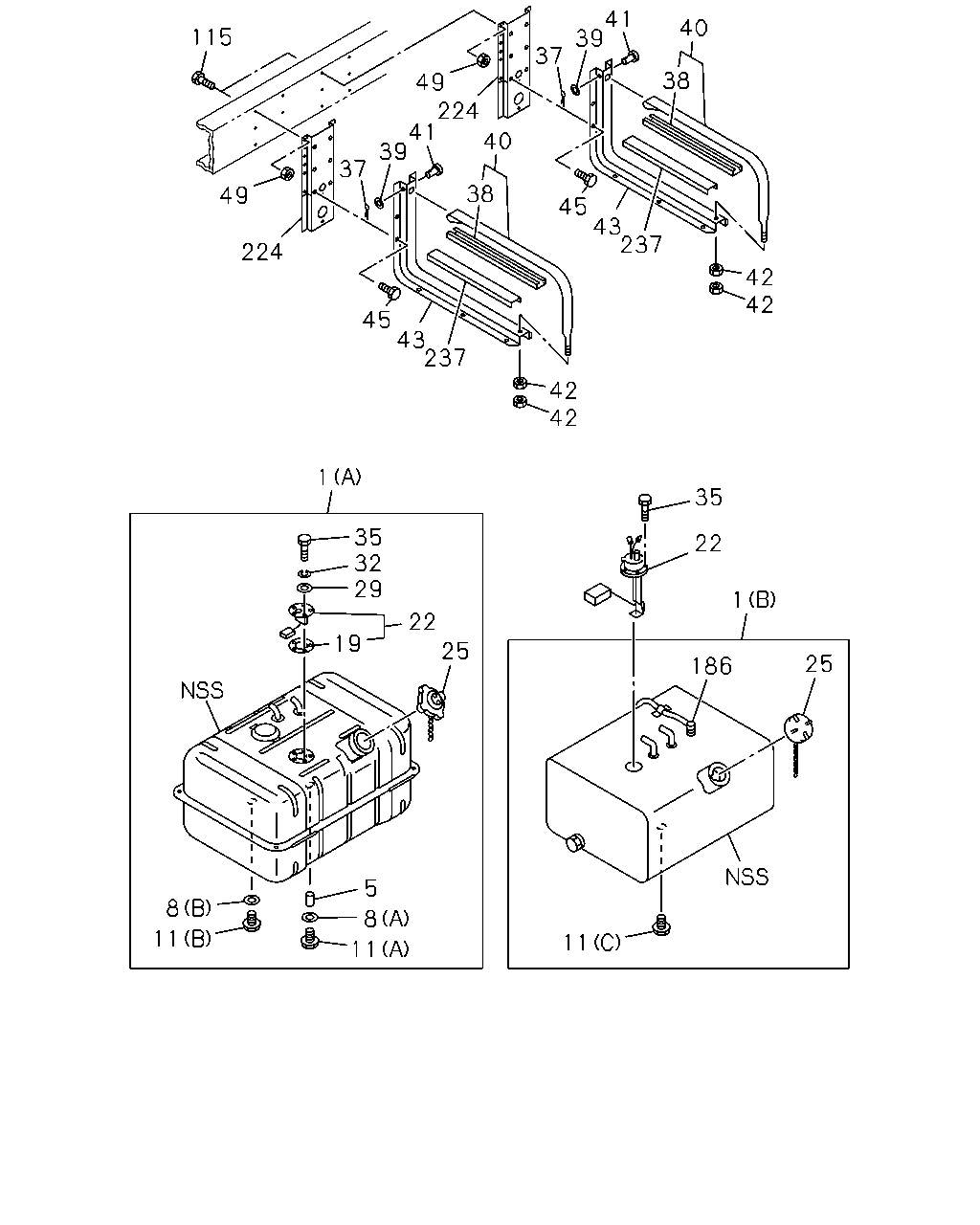

çizim 28761
41 39 40 37 115 38 49 224 41 39 40 37 38 49 45 43 237 224 42 42 45 43 237 42 42 1 35 35 32 29 22 1 22 19 25 25 186 5 8 8 11 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L 		1-22400-571-4 01 1 9202- ● ● ●
1 TANK; FUEL
FUEL TANK 200L FMCSR<PK6> (B) 869X597X413 200L 		1-22400-819-0 01 1 9202- ● ● ●
5 STRAINER; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22460-001-1 01 1 9202-9402 ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) T=1.60 		1-22416-001-0 01 1 9202- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (B) T=2.0 		9-09923-030-0 01 1 9202- ● ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (B) 		1-09604-052-0 01 1 9202- ● ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (A) M18X12 		1-09604-081-0 01 1 9202- ● ● ●
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FMCSR<PK6> (C) 		1-09604-082-0 01 1 9202- ● ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> 		9-83135-003-0 01 1 9202- ● ● ●
22 UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-83141-056-0 01 1 9202- ● ● ●
22 UNIT; FUEL TANK
FUEL TANK 200L FMCSR<PK6> 		1-83141-086-1 01 1 9202- ● ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22440-033-2 01 1 9202- ● ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FMCSR<PK6> 		1-22440-050-0 01 1 9202- ● ● ●
29 WASHER; PL,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=5.3 		9-09160-505-0 01 1 9202- ● ● ●
32 WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=5.1 		9-09150-505-0 05 1 9202- ● ● ●
35 SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> 		9-93497-510-0 05 1 9202- ● ● ●
35 SCREW; FUEL TANK UNIT
FUEL TANK 200L FMCSR<PK6> 		1-09187-007-0 05 1 9202- ● ● ●
37 PIN; SPLIT,SUPPORT BELT
FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28 		9-08114-028-0 02 1 9202- ● ● ●
38 INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> L=650 		1-22553-022-1 02 1 9202- ● ● ●
39 WASHER; PL,SUPPORT BELT
FUEL TANK 200L FMCSR<PK6> ID=17 		9-09164-516-0 02 1 9202- ● ● ●
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=1035 		1-22550-204-1 02 1 9202-9404 ● ● ●
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=1040 L=1040 		1-22550-194-2 02 1 9405- ● ● ●
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FMCSR<PK6> L=1035 		1-22550-221-0 02 1 9202- ● ● ●
41 PIN; SUPPORT BELT
FUEL TANK 200L FMCSR<PK6> OD=16 L=75 		9-08224-675-0 02 1 9202- ● ● ●
42 NUT; SUPPORT BELT
FUEL TANK 200L FMCSR<PK6> 		1-09487-027-1 04 1 9202- ● ● ●
42 NUT; SUPPORT BELT
EXC. FUEL TANK 200L FMCSR<PK6> M10 		9-09110-510-0 04 1 9202- ● ● ●
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-309-1 02 1 9202- ● ● ●
43 BRACKET; FUEL TANK
FUEL TANK 200L FMCSR<PK6> 		1-53461-355-2 02 1 9202- ● ● ●
45 BOLT; BRKT,FUEL TANK
M12X40 W/LK WASHER 		0-50041-240-0 12 1 9202-9307 ● ● ●
45 BOLT; BRKT,FUEL TANK
M12X40 FLANGE 		0-28081-240-0 12 1 9308-9412 ● ● ●
45 BOLT; BRKT,FUEL TANK
FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE 		0-28081-235-0 12 1 9501- ● ● ●
45 BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER 		0-50041-235-0 12 1 9501-9504 ● ● ●
45 BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> M12X40 W/LK WASHER 		0-50041-240-0 12 1 9505- ● ● ●
49 NUT; BRKT
SHORT CHASSIS(FVR5MC) WHEEL BASE 3300MM(33W) M12 		9-99110-412-0 09 1 9202-9208 ● ●
49 NUT; BRKT
MIDDLE CHASSIS(FVR5MF) M12 		9-99110-412-0 09 1 9202-9208 ● ●
49 NUT; BRKT
M12 		9-99110-412-0 09 1 9202-9208 ●
49 NUT; BRKT
SHORT CHASSIS(FVR5MC) WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) M12 		9-99110-512-0 12 1 9202-9405 ● ●
49 NUT; BRKT
MIDDLE CHASSIS(FVR5MF) M12 		9-99110-512-0 09 1 9209-9405 ● ●
49 NUT; BRKT
M12 		9-99110-512-0 09 1 9209-9405 ●
115 BOLT; BRKT
M12X40 W/LK WASHER 		0-50041-240-0 12 1 9202-9307 ● ● ●
115 BOLT; BRKT
M12X40 FLANGE 		0-28081-240-0 12 1 9308- ● ● ●
186 VALVE; GT,FUEL TANK
FUEL TANK 200L FMCSR<PK6> 		1-22453-005-0 01 1 9202- ● ● ●
224 BRACKET; FUEL TANK BRKT TO FRAME
FUEL TANK 200L FRAME SIDE<N20> 		1-53461-383-1 02 1 9202- ● ● ●
224 BRACKET; FUEL TANK BRKT TO FRAME
FUEL TANK 200L FMCSR<PK6> 		1-53461-397-0 02 1 9202- ● ● ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> L=580 		1-22553-003-0 02 1 9202- ● ● ●

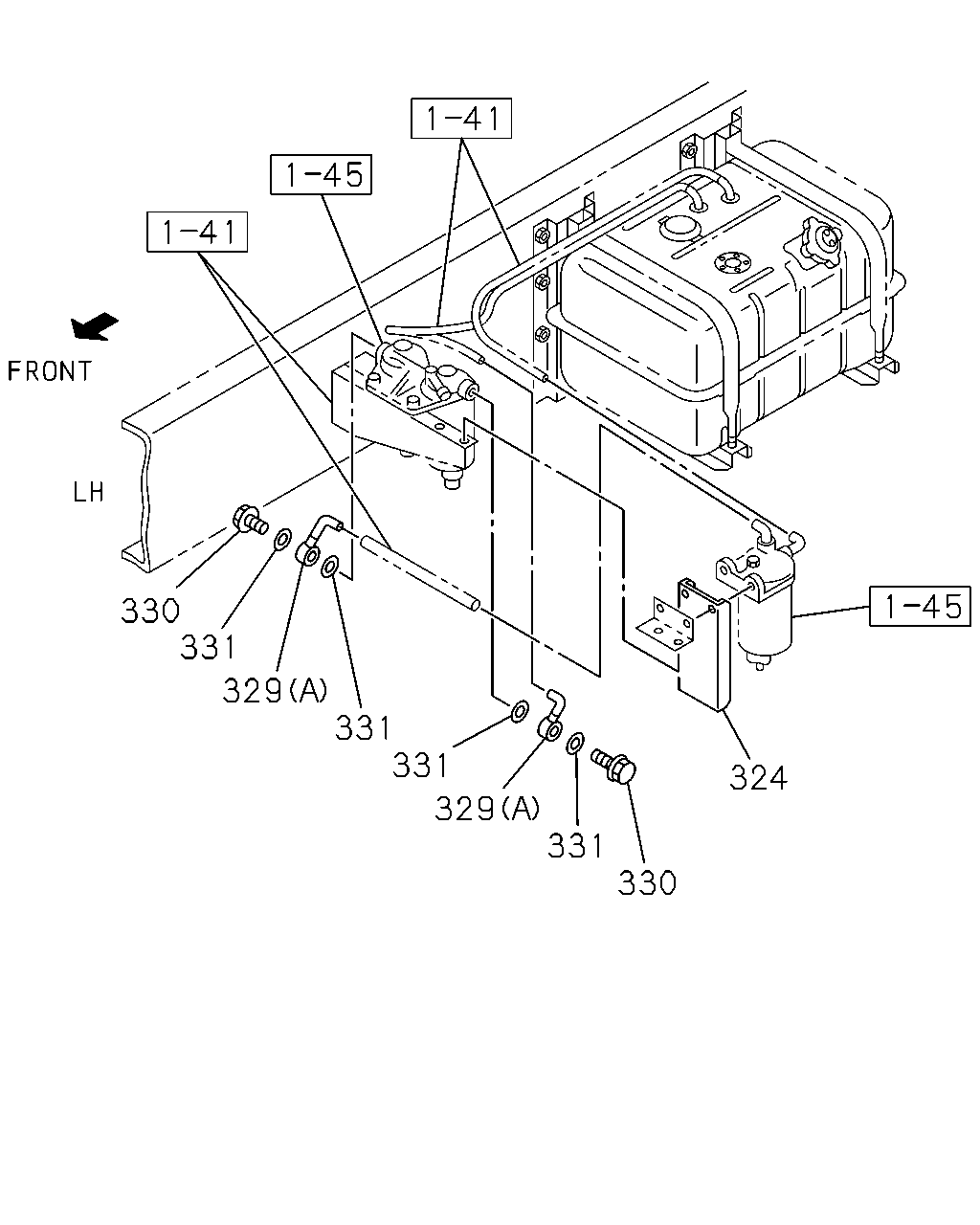

çizim 92211
330 331 329 331 331 324 329 331 330
BalonParca AdiParca NoAdetTipApplied Date A B C
324 PROTECTOR; FUEL SEDIMENTER 1-19759-012-0 01 1 9202- ● ● ●
329 JOINT ASM; EYE,FUEL PIPE
(B) 		5-09674-054-0 01 1 9202- ● ●
329 JOINT ASM; EYE,FUEL PIPE
(A) 		5-15411-472-0 01 1 9202- ● ● ●
329 JOINT ASM; EYE,FUEL PIPE
(A) 		5-15411-472-0 01 1 9202- ●
330 BOLT; EYE,JOINT
M14X27 FLANGE 		1-09675-086-0 02 1 9202- ● ● ●
331 GASKET; EYE JOINT
ID=14.2 OD=19.2 		1-09630-085-0 04 1 9202- ● ● ●

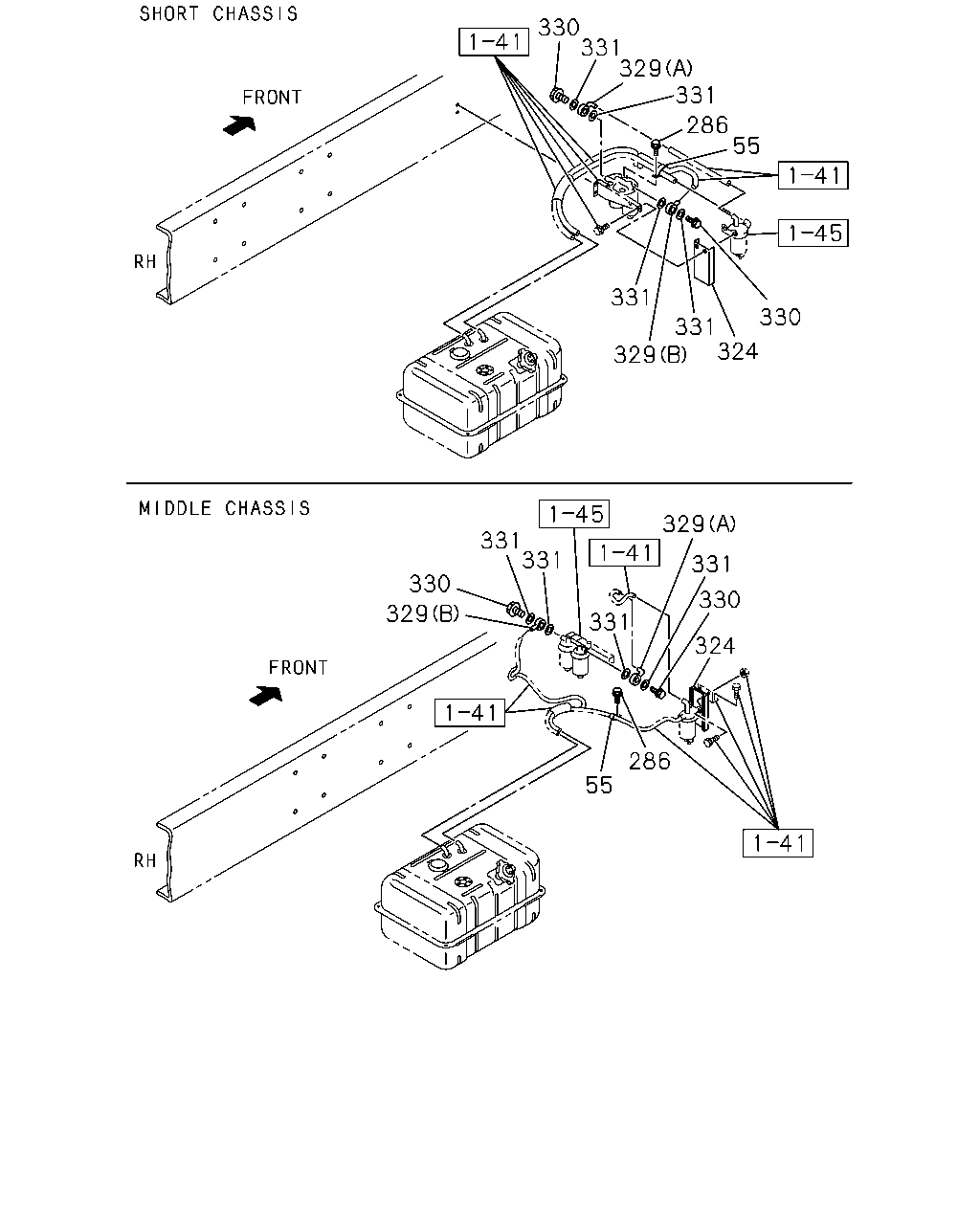

çizim 92747
330 331 329 331 286 55 331 330 331 329 324 329 331 331 331 330 330 331 329 324 286 55
BalonParca AdiParca NoAdetTipApplied Date A B C
55 CLIP; FUEL PIPE
SHORT CHASSIS(FVR5MC) ID=16X2 L=20 		9-09535-535-0 01 1 9202-9209 ● ●
55 CLIP; FUEL PIPE
SHORT CHASSIS(FVR5MC) ID=16X2 L=20 		9-09535-536-0 01 1 9210- ●
55 CLIP; FUEL PIPE
MIDDLE CHASSIS(FVR5MF) ID=15 		9-09521-565-0 01 1 9202- ● ●
286 BOLT; CLIP
M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
286 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
324 PROTECTOR; FUEL SEDIMENTER 1-19759-012-0 01 1 9202- ● ● ●
329 JOINT ASM; EYE,FUEL PIPE
(B) 		5-09674-054-0 01 1 9202- ● ●
329 JOINT ASM; EYE,FUEL PIPE
(A) 		5-15411-472-0 01 1 9202- ● ● ●
329 JOINT ASM; EYE,FUEL PIPE
(A) 		5-15411-472-0 01 1 9202- ●
330 BOLT; EYE,JOINT
M14X27 FLANGE 		1-09675-086-0 02 1 9202- ● ● ●
331 GASKET; EYE JOINT
ID=14.2 OD=19.2 		1-09630-085-0 04 1 9202- ● ● ●
