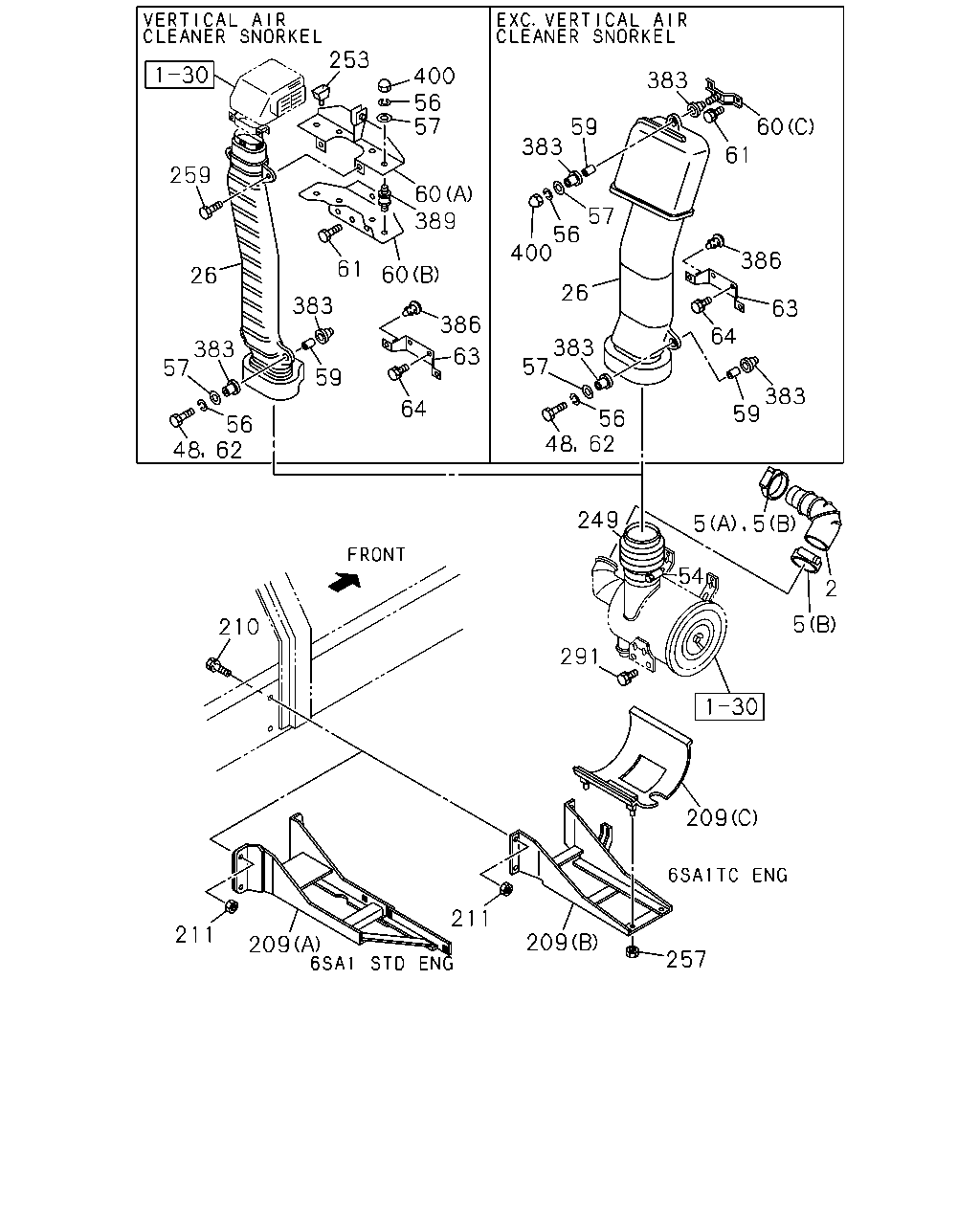

1-31 — AIR DUCT (#1057) — 124 parça

253 400 56 57 383 59 383 60 61 259 60 389 57 56 400 386 61 60 26 26 383 63 386 64 383 57 383 57 63 59 383 59 64 56 62 56 62 48 48 249 5 54 2 5 210 291 209 211 211 209 209 257 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-566-1	01	1	9202-	●
2	HOSE; ACL	1-14231-509-0	01	1	9202-		●
2	HOSE; ACL	1-14231-809-0	01	1	9202-			●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9202-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9202-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	02	1	9202-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-102-0	01	1	9202-	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-077-5	01	1	9202-9406	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-130-0	01	1	9407-	●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-103-0	01	1	9202-		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-076-6	01	1	9202-9406		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-131-0	01	1	9407-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-110-0	01	1	9202-9501			●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-143-0	01	1	9502-			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-676-0	01	1	9202-9501			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-141-0	01	1	9502-			●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9202-9202	●	●	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9203-			●
54	CLIP; GASKET,AIR DUCT	1-09707-113-0	01	1	9202-	●
54	CLIP; GASKET,AIR DUCT	1-09707-121-0	01	1	9202-		●
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10	1-09985-180-0	08	1	9202-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=18.4 M10	1-09500-046-0	01	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18	1-09985-173-0	08	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9202-	●	●	●
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9202-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9202-	●	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-665-0	01	1	9202-			●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-571-2	01	1	9202-			●
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9202-	●	●	●
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●	●
62	BOLT; AIR INT DUCT M10X26	1-09030-044-1	02	1	9203-	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9202-	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-572-2	01	1	9202-			●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9202-	●	●	●
209	BRACKET; ACL (A)	1-53497-320-1	01	1	9202-	●
209	BRACKET; ACL (C)	1-53497-206-2	01	1	9202-		●
209	BRACKET; ACL (B)	1-53497-391-0	01	1	9202-		●
209	BRACKET; ACL	1-53497-398-0	01	1	9202-			●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	04	1	9202-9307	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	04	1	9308-9503	●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	04	1	9504-	●	●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	02	1	9202-9307			●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	02	1	9308-9503			●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9504-			●
211	NUT; BRKT M12	9-99110-412-0	03	1	9202-9202	●	●
211	NUT; BRKT M12	9-99110-512-0	02	1	9203-	●		●
211	NUT; BRKT M12	9-99110-512-0	03	1	9203-		●
211	NUT; BRKT M12	9-99110-412-0	02	1	9202-9202			●
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	01	1	9202-	●
249	GASKET; RUBBER,BELLOWS	1-14230-118-0	01	1	9202-		●
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17>	1-14219-192-0	02	1	9202-	●		●
257	NUT; BRKT M10 FLANGE	5-09440-006-0	04	1	9202-		●
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9202-	●	●	●
291	BOLT; ACL M8X25 FLANGE	0-28080-825-0	04	1	9202-	●		●
383	RUBBER; SUPPORT,AIR INT,LWR VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9202-	●	●
383	RUBBER; SUPPORT,AIR INT,LWR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9202-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-121-0	08	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-145-0	01	1	9202-	●	●	●

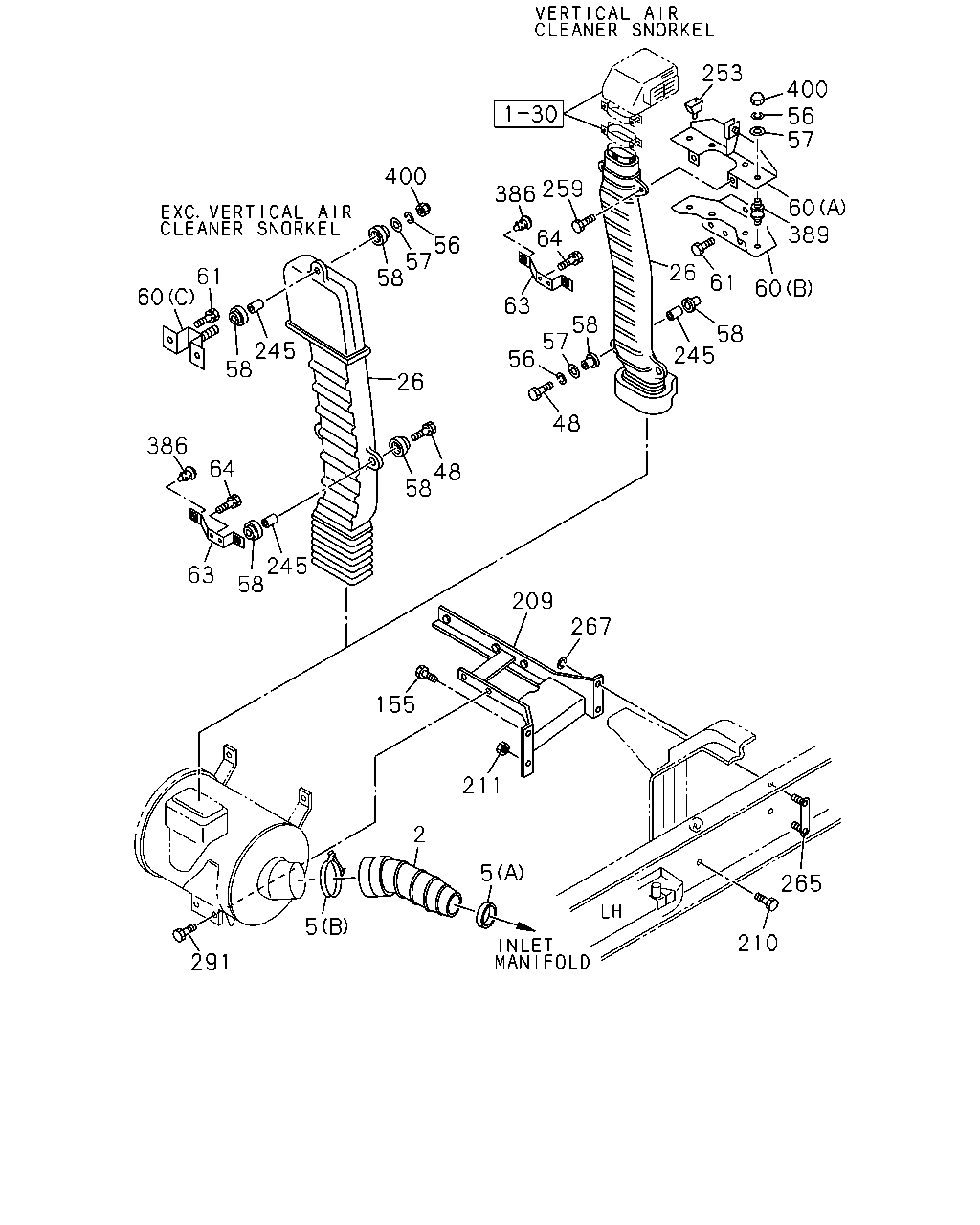

253 400 56 57 400 259 386 60 389 64 56 57 58 26 61 60 61 60 63 58 57 56 58 245 245 58 26 48 386 64 48 58 245 58 63 209 267 155 211 2 5 265 5 210 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-566-1	01	1	9202-	●
2	HOSE; ACL	1-14231-509-0	01	1	9202-		●
2	HOSE; ACL	1-14231-809-0	01	1	9202-			●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9202-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9202-	●		●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	02	1	9202-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-102-0	01	1	9202-	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-077-5	01	1	9202-9406	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-130-0	01	1	9407-	●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-103-0	01	1	9202-		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-076-6	01	1	9202-9406		●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-131-0	01	1	9407-		●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-110-0	01	1	9202-9501			●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-143-0	01	1	9502-			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-676-0	01	1	9202-9501			●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-141-0	01	1	9502-			●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9202-9202	●	●	●
48	BOLT; AIR DUCT M10X26	1-09030-044-1	02	1	9203-			●
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10	1-09985-180-0	08	1	9202-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=18.4 M10	1-09500-046-0	01	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18	1-09985-173-0	08	1	9202-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9202-	●	●	●
58	SUPPORT; AIR INL DUCT VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9202-			●
58	SUPPORT; AIR INL DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9202-			●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9202-	●	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-665-0	01	1	9202-			●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-571-2	01	1	9202-			●
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9202-	●	●	●
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9202-	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-572-2	01	1	9202-			●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9202-	●	●	●
155	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9202-			●
155	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9202-			●
209	BRACKET; ACL (A)	1-53497-320-1	01	1	9202-	●
209	BRACKET; ACL (C)	1-53497-206-2	01	1	9202-		●
209	BRACKET; ACL (B)	1-53497-391-0	01	1	9202-		●
209	BRACKET; ACL	1-53497-398-0	01	1	9202-			●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	04	1	9202-9307	●	●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	04	1	9308-9503	●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	04	1	9504-	●	●
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	02	1	9202-9307			●
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	02	1	9308-9503			●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9504-			●
211	NUT; BRKT M12	9-99110-412-0	03	1	9202-9202	●	●
211	NUT; BRKT M12	9-99110-512-0	02	1	9203-	●		●
211	NUT; BRKT M12	9-99110-512-0	03	1	9203-		●
211	NUT; BRKT M12	9-99110-412-0	02	1	9202-9202			●
245	PIECE; DIST,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9202-			●
245	PIECE; DIST,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9202-			●
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17>	1-14219-192-0	02	1	9202-	●		●
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9202-	●	●	●
265	BRACKET; STUD,ACL	1-53497-454-1	01	1	9202-			●
267	WASHER; LK,ACL ID=12.2	9-09150-512-0	02	1	9202-			●
291	BOLT; ACL M8X25 FLANGE	0-28080-825-0	04	1	9202-	●		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-121-0	08	1	9202-	●	●	●
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-145-0	01	1	9202-	●	●	●
