4-65 — REAR LEAF SPRING (#10565) — 89 parça

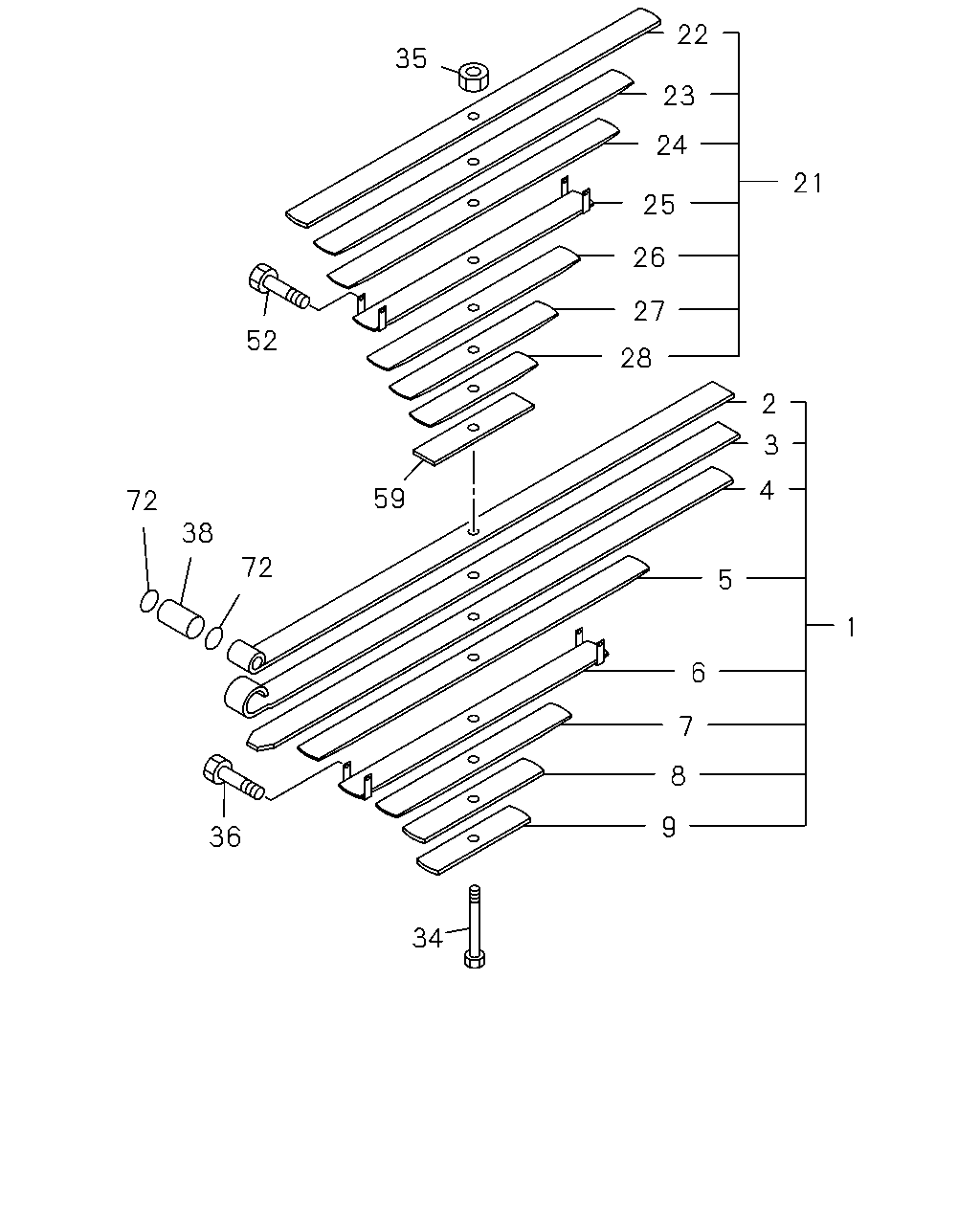

çizim 72981
22 35 23 24 21 25 26 27 52 28 2 3 4 59 72 38 72 5 1 6 7 9 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51410-265-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51410-267-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51411-265-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51411-267-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51412-265-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51412-267-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51413-265-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51413-267-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51414-265-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51414-267-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51415-265-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51415-267-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51416-265-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51416-267-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51418-265-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51418-267-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-620-1 		1-51340-362-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-622-1 		1-51340-383-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-620-1 		1-51341-362-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-622-1 		1-51341-383-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-620-1 		1-51342-362-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-622-1 		1-51342-383-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-620-1 		1-51343-362-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 1-51300-622-1 		1-51343-383-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-620-1 		1-51344-362-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-622-1 		1-51344-383-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-620-1 		1-51345-362-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-622-1 		1-51345-383-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-620-1 		1-51346-362-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-622-1 		1-51346-383-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: B = 1-51300-622-1 		1-51347-383-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-622-1 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: A = 1-51300-620-1 		1-51356-361-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51300-620-1 		1-09000-296-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-51351-037-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-620-1 		1-09000-296-0 02 1 -0206
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-620-1 		1-09000-296-0 01 1 0207-
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 01 1 0207-
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 02 1 -0206
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-620-1 		1-51359-018-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-622-1 		1-51377-118-0 01 1 -
72 SEAL; DUST
ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-51177-321-0 02 1 -

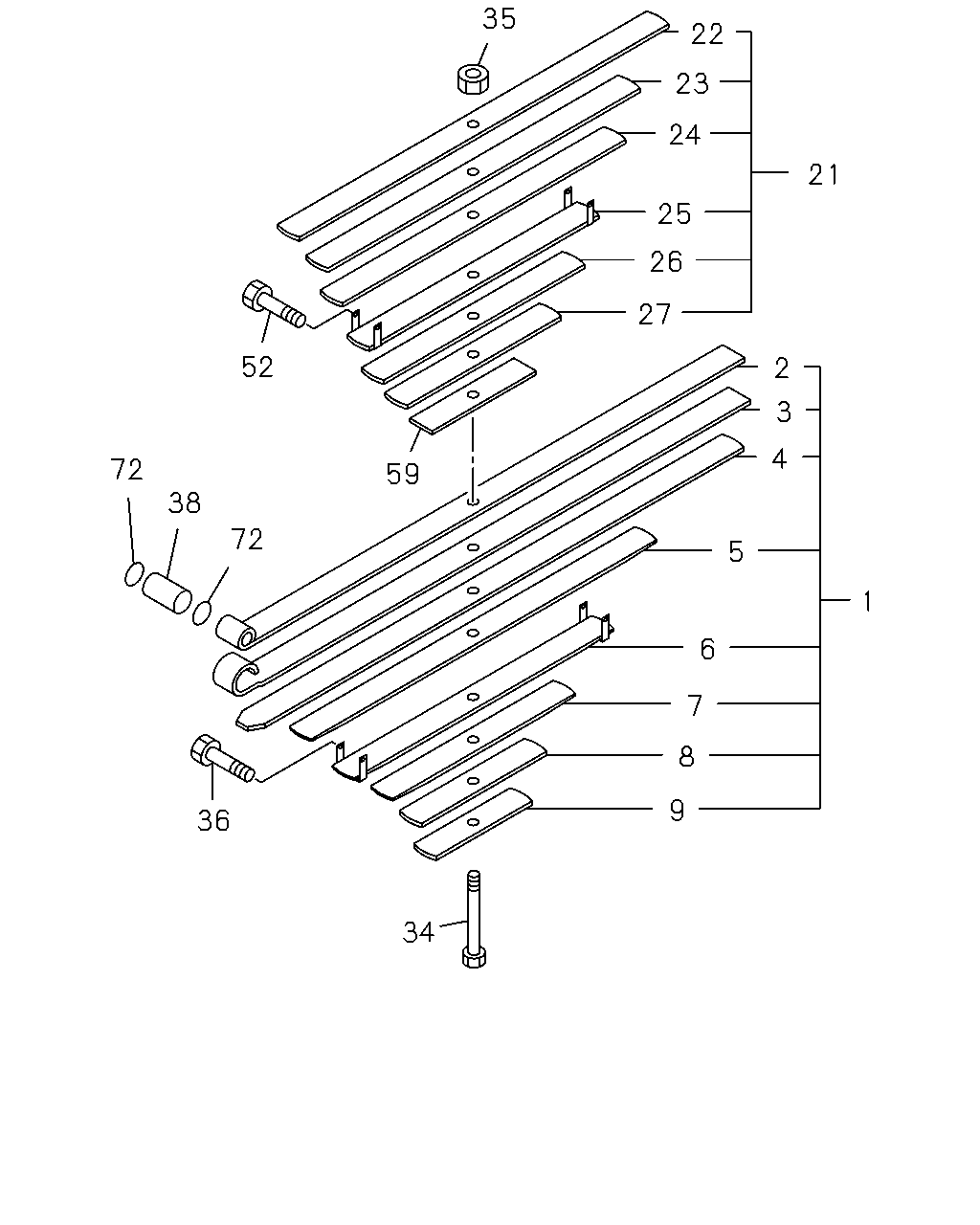

çizim 73542
35 22 23 24 21 25 26 27 52 2 3 4 72 59 38 72 5 1 6 7 9 36 34 8
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51410-265-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51410-267-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51411-265-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51411-267-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51412-265-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51412-267-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51413-265-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51413-267-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51414-265-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51414-267-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51415-265-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51415-267-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51416-265-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51416-267-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51417-265-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51417-267-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: B = 1-51300-622-1 		1-51418-265-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51300-620-1 		1-51418-267-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-620-1 		1-51340-362-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-622-1 		1-51340-383-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-620-1 		1-51341-362-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-622-1 		1-51341-383-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-620-1 		1-51342-362-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-622-1 		1-51342-383-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 1-51300-620-1 		1-51343-362-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 1-51300-622-1 		1-51343-383-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-620-1 		1-51344-362-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-622-1 		1-51344-383-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-620-1 		1-51345-362-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-622-1 		1-51345-383-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-620-1 		1-51346-362-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-622-1 		1-51346-383-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-622-1 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190 ASM PART: A = 1-51300-620-1 		1-51356-361-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51300-620-1 		1-09000-296-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-51351-037-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-620-1 		1-09000-296-0 02 1 -0206
52 BOLT; CLIP,LEAF SPR,RR SUB
ASM PART: A = 1-51300-620-1 		1-09000-296-0 01 1 0207-
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 01 1 0207-
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: B = 1-51300-622-1 		1-09000-334-0 02 1 -0206
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-620-1 		1-51359-018-0 01 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-622-1 		1-51377-118-0 01 1 -
72 SEAL; DUST
ASM PART: A = 1-51300-620-1, B = 1-51300-622-1 		1-51177-321-0 02 1 -
