◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10864 - EXR LHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#10564) — 18 parça

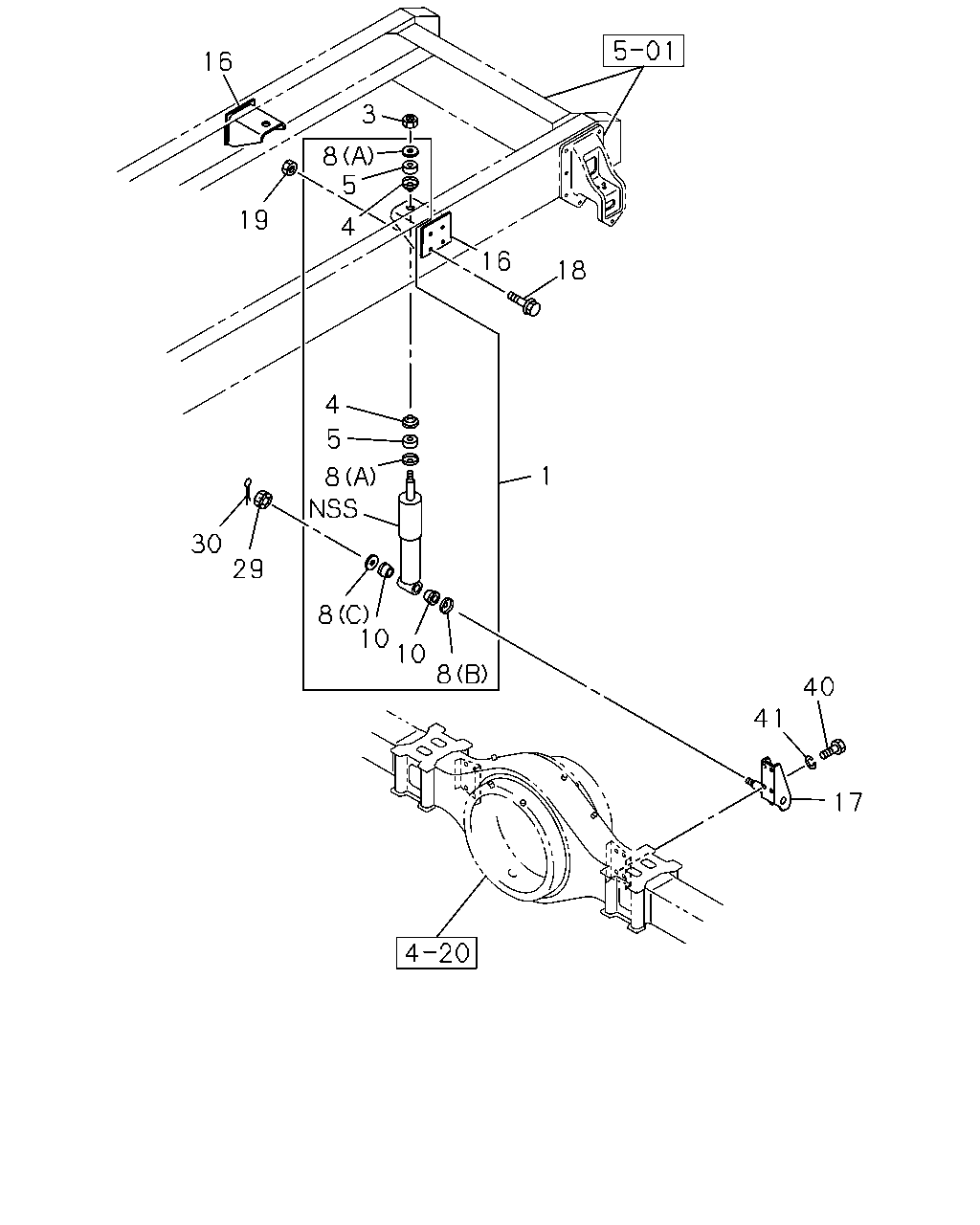

çizim 73363
16 3 8 5 19 4 16 18 4 5 1 8 30 29 8 10 10 8 40 41 17
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR 1-51630-496-0 02 1 0105-0110
1 ABSORBER ASM; SHOCK,RR 1-51630-602-0 02 1 0111-
3 NUT; S/ABS
M18 		9-99111-418-0 04 1 0105-
4 WASHER; CENTER,S/ABS 1-51631-072-0 04 1 0105-
5 BUSHING; RUBBER,S/ABS,UPR 1-51631-073-0 04 1 0105-
8 WASHER; S/ABS
(A) 		1-51631-071-0 04 1 0105-
8 WASHER; S/ABS
(B) 		1-51631-074-0 02 1 0105-
8 WASHER; S/ABS
(C) 		1-51631-075-0 02 1 0105-
10 BUSHING; RUBBER,S/ABS 1-51631-076-0 04 1 0105-
16 BRACKET; S/ABS,RR 1-51681-372-2 02 1 0105-
17 BRACKET; S/ABS LWR 1-51681-717-0 01 1 0105-
17 BRACKET; S/ABS LWR 1-51681-716-0 01 1 0105-
18 BOLT; S/ABS BRKT
M14X40 		9-92061-440-0 08 1 0105-
19 NUT; S/ABS BRKT
M14 		9-99110-514-0 08 1 0105-
29 NUT; LK,S/ABS,RR SUSP
M24 		9-99116-424-0 02 1 0105-
30 PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45 		9-08115-045-0 02 1 0105-
40 BOLT; LWR BRKT
M14X30 		0-20801-430-0 08 1 0105-
41 WASHER; LK
ID=14.2 		9-09150-614-0 08 1 0105-
