Sayfa 4-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10864 - EXR LHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#10557) — 89 parça

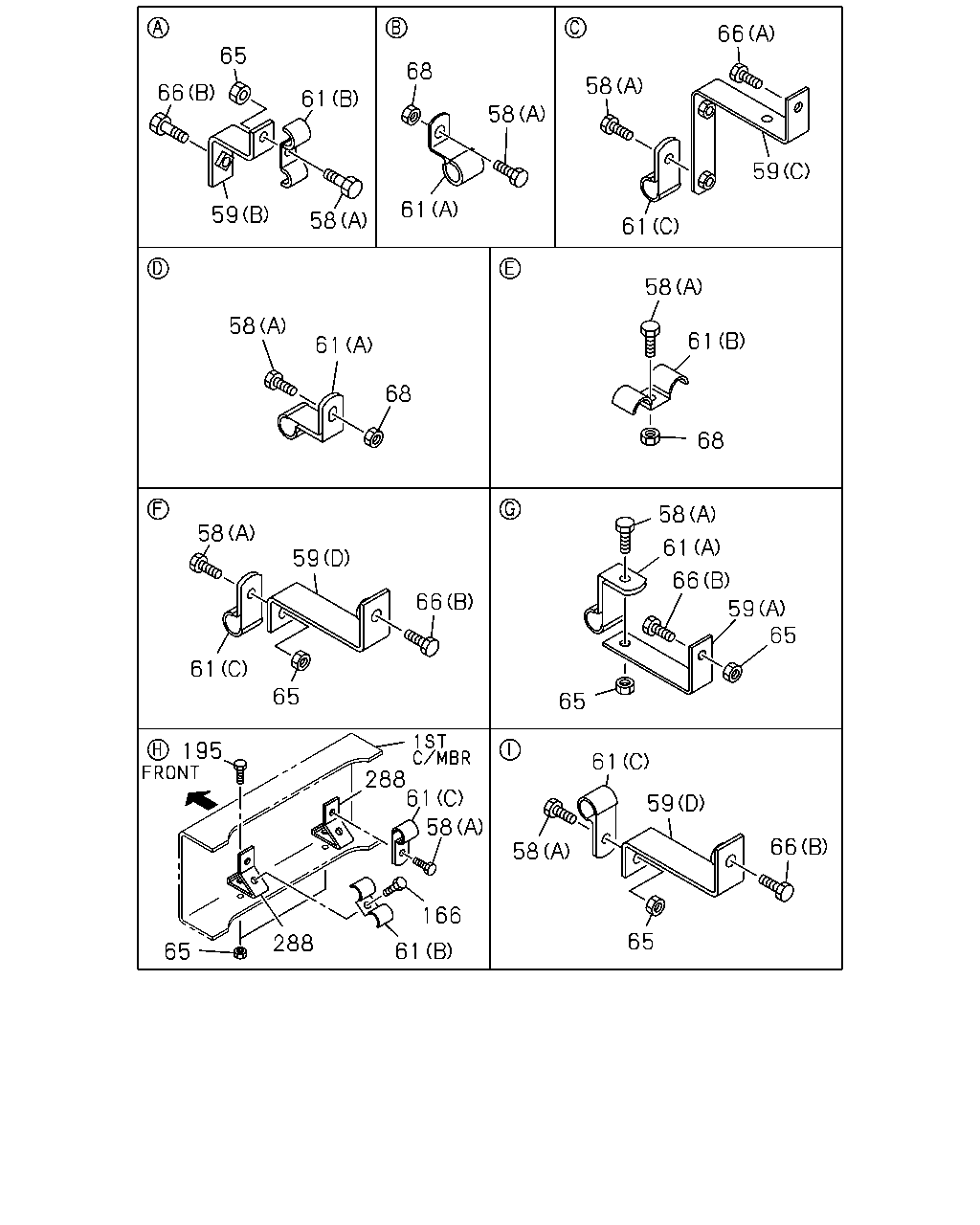

66 65 68 58 66 61 58 59 61 59 58 61 58 58 61 61 68 68 58 58 61 59 66 66 59 65 61 65 65 288 61 195 61 59 58 66 58 166 65 65 288 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-34656-009-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-881-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47477-434-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (D) L=90	1-82699-856-0	02	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	03	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 L=20	9-09525-535-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-
66	BOLT; BRKT,OIL PIPE (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-

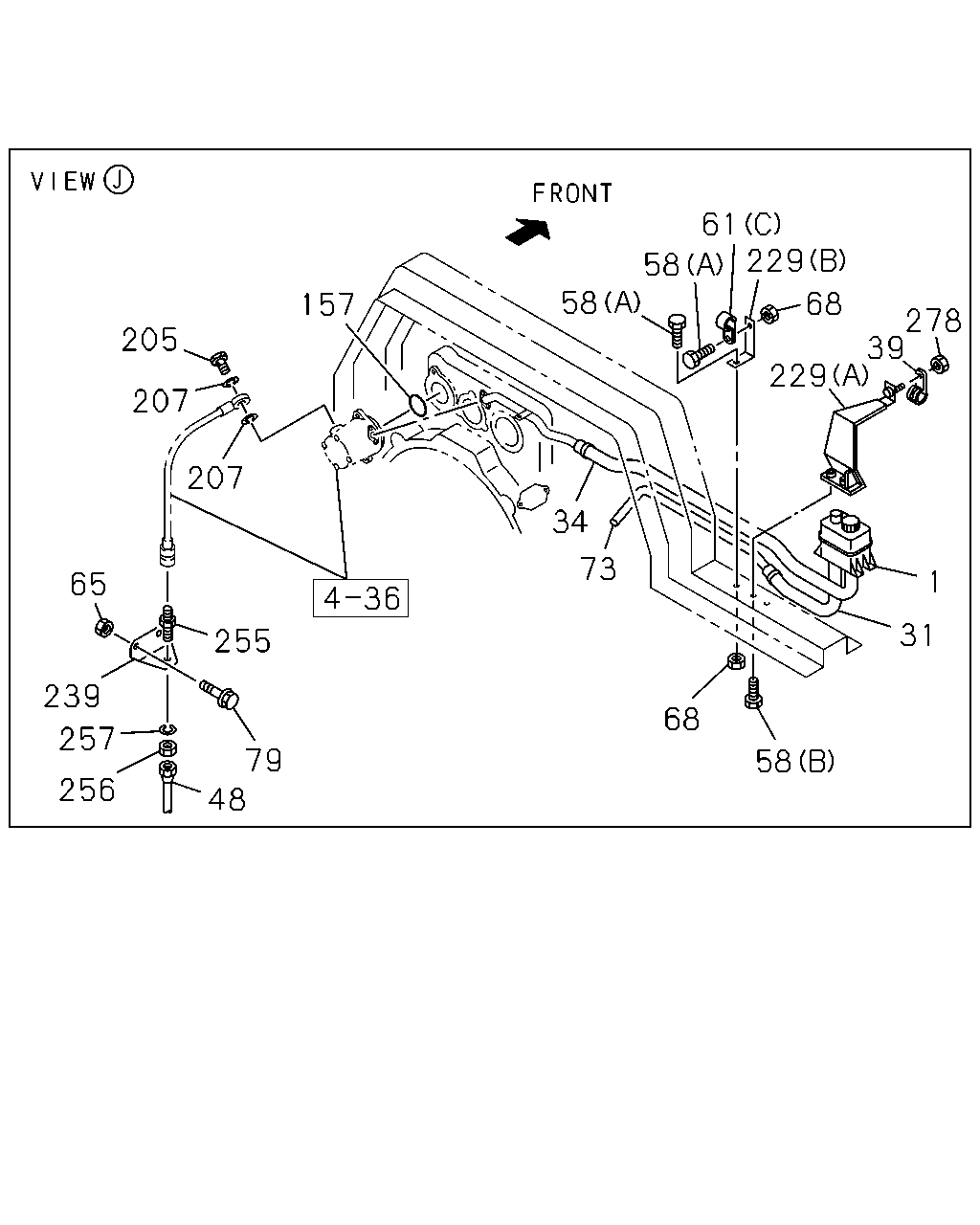

61 229 58 58 68 157 278 39 205 229 207 207 34 73 1 65 31 255 239 68 257 79 58 256 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ISUZU M/T<X9A>	1-21116-349-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E>	1-21116-350-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	03	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 L=20	9-09525-535-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	0105-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-480-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-481-0	01	1	0105-
239	BRACKET; FLEX HOSE	1-47478-471-0	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-
256	NUT; UNION M22	9-09111-422-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-

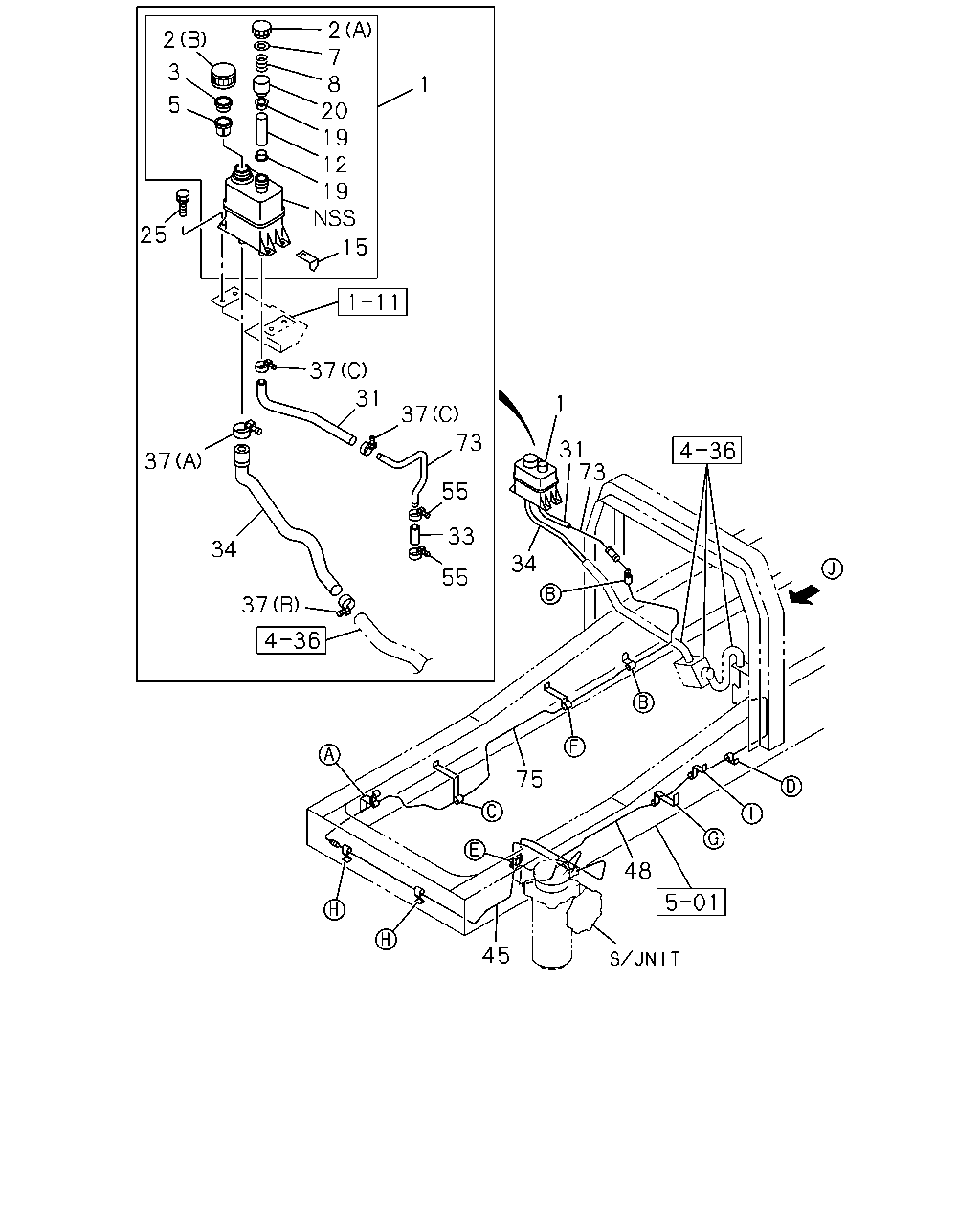

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 1 37 73 31 73 37 55 33 34 34 55 37 75 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	0105-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-847-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ISUZU M/T<X9A>	1-21116-349-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT ZF M/T<X9E>	1-21116-350-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	0105-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A>	1-21115-531-0	01	1	0105-0109
75	PIPE; OIL,P/S,UNION TO UNION ISUZU M/T<X9A>	1-21117-151-0	01	1	0110-
75	PIPE; OIL,P/S,UNION TO UNION ZF M/T<X9E>	1-21115-532-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
