◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10864 - EXR LHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#10554) — 19 parça

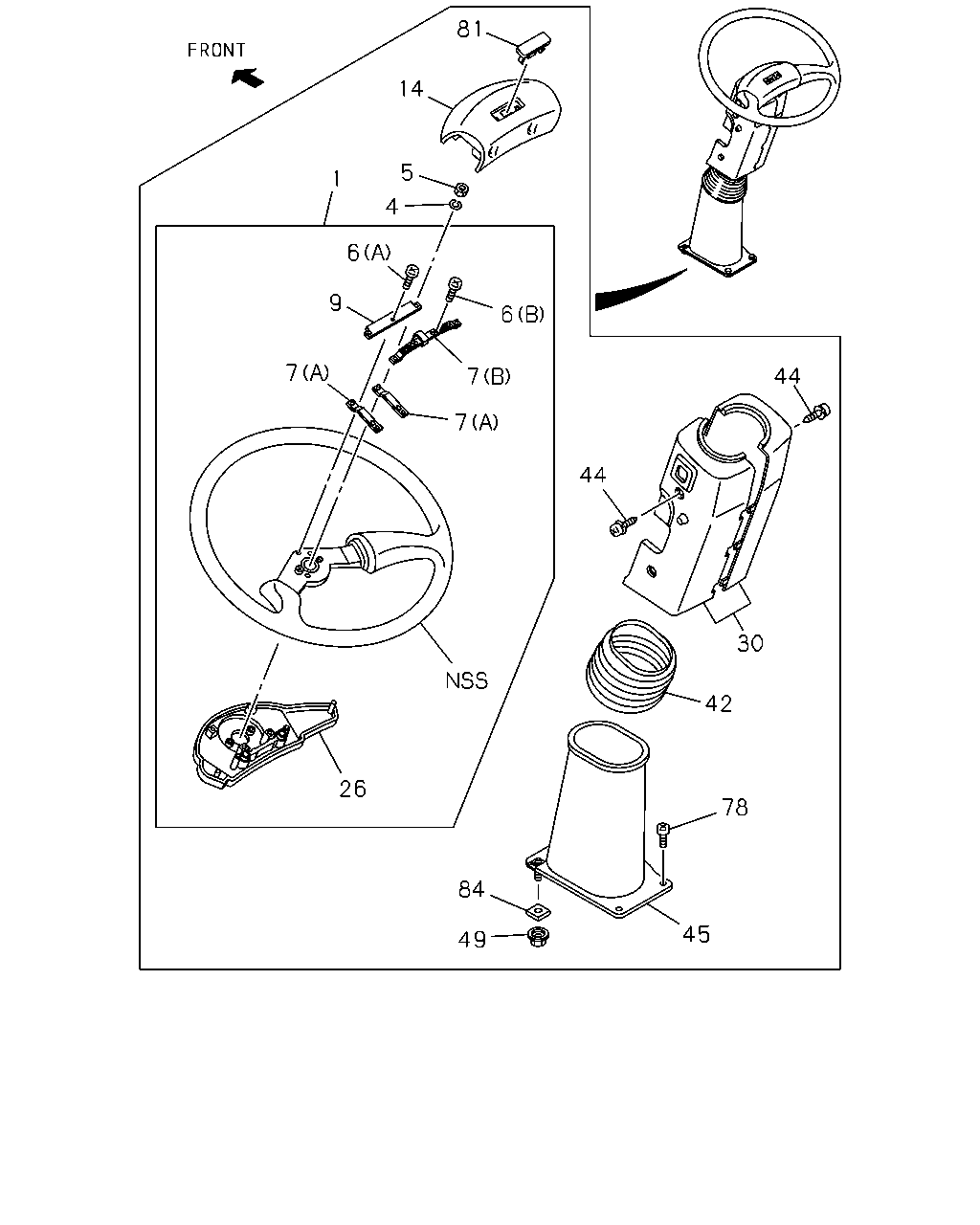

çizim 74469
81 14 5 1 4 6 9 6 7 7 44 7 44 30 42 26 78 84 45 49
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG 1-44110-159-1 01 1 0105-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0105-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0105-
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 0105-
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 0105-
7 SPRING; HORN CONTACT
(A) 		1-44129-033-0 02 1 0105-
7 SPRING; HORN CONTACT
(B) 		1-44129-037-0 01 1 0105-
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 0105-
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 0105-
26 COVER; STRG WHEEL,LWR 1-44129-039-1 01 1 0105-
30 COWL; STEERING 1-79997-342-3 01 1 0105-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0105-
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 0105-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0105-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0105-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0105-
81 EMBLEM; STRG WHEEL
CHEV BRAND PACKAGE<PS2> 		1-76210-666-0 01 1 0105-
81 EMBLEM; STRG WHEEL
EXC. CHEV BRAND PACKAGE<PS2> 		1-76210-638-1 01 1 0105-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0105-
